Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#74575) — 59 parça

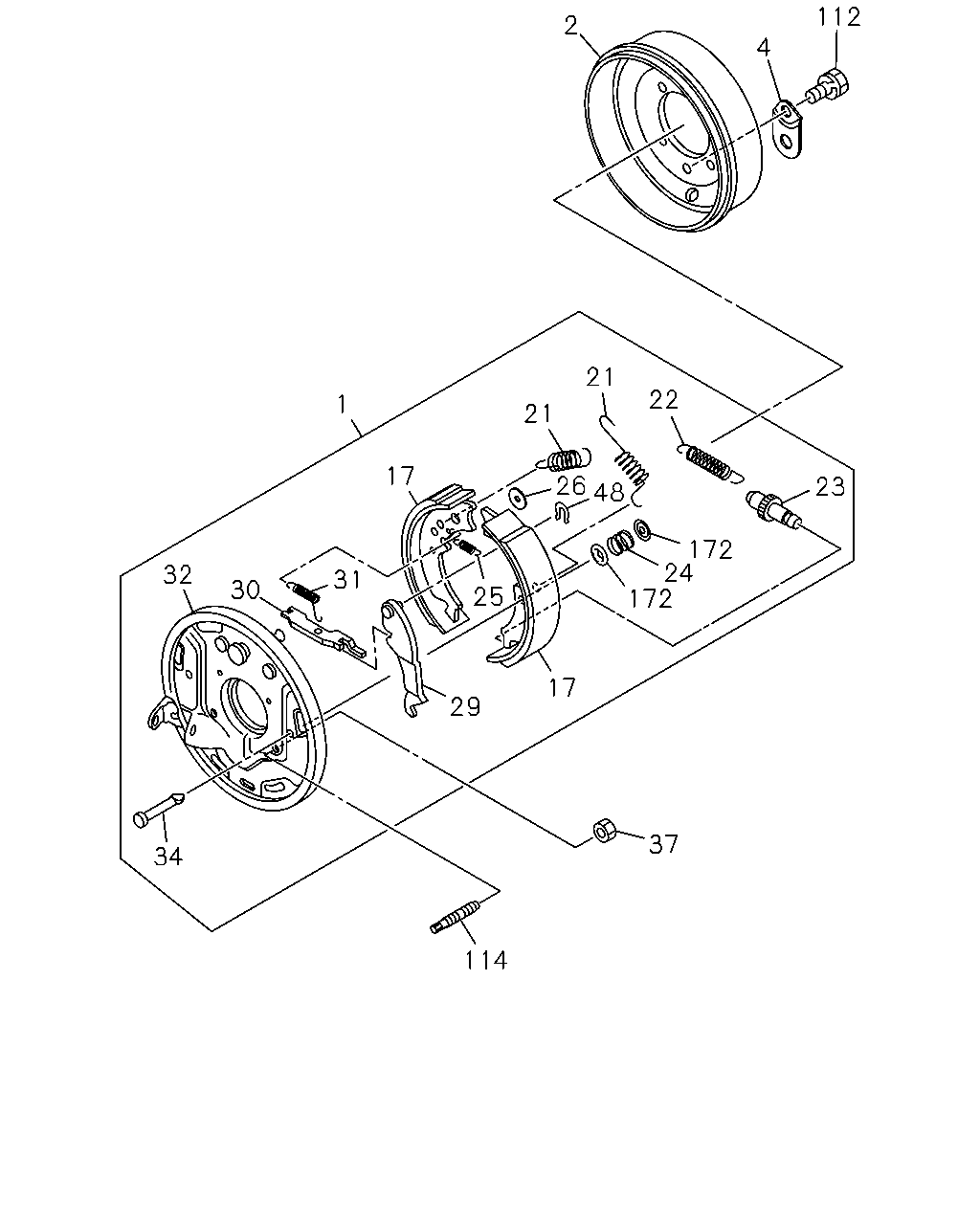

112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRAKE ASM; CENTER,PARKING	8-98029-922-0	01	1	0803-	●
2	DRUM; PARKING BRK	1-46211-057-1	01	1	0811-		●
2	DRUM; PARKING BRK	8-97334-107-0	01	1	0803-1506	●
2	DRUM; PARKING BRK	8-98308-289-0	01	1	1507-	●
4	COVER; ADJ HOLE	8-98029-820-0	01	1	0803-	●
17	SHOE; PARKING BRK	8-97042-934-1	02	1	0811-		●
17	SHOE; PARKING BRK	8-97020-250-2	02	1	0803-	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0811-		●
21	SPRING; RETURN,PARKING BRK SHOE	8-94132-157-0	02	1	0803-	●
22	SPRING; ADJ SCREW,PARKING BRK	8-94107-618-0	01	1	0803-	●
23	SCREW; ADJ,PARKING BRK SHOE	8-98043-963-0	01	1	0811-		●
23	SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	0803-	●
24	SPRING; BRK SHOE	8-94132-155-1	02	1	0803-	●
25	SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	0803-	●
26	PLATE; SHOE GUIDE	8-98043-959-0	01	1	0803-	●
29	LEVER; PARKING BRK	8-98043-949-0	01	1	0803-	●
30	STRUT; PARKING BRK	8-98043-953-0	01	1	0803-	●
31	SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0803-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0811-		●
32	PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0803-	●
34	PIN; BRK SHOE	8-98043-955-0	02	1	0803-	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0811-		●
37	NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	0803-	●
48	RETAINER; PIN,PARKING BRK	8-98043-958-0	01	1	0803-	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER THA	0-50540-616-0	01	1	0803-	●
114	STUD; SUPPORT PLATE M14X22.5 L=42.5	8-97365-445-0	04	1	0811-		●
114	STUD; SUPPORT PLATE	8-98029-929-0	04	1	0803-	●
172	CUP; SHOE HOLD	8-98043-956-0	04	1	0803-	●

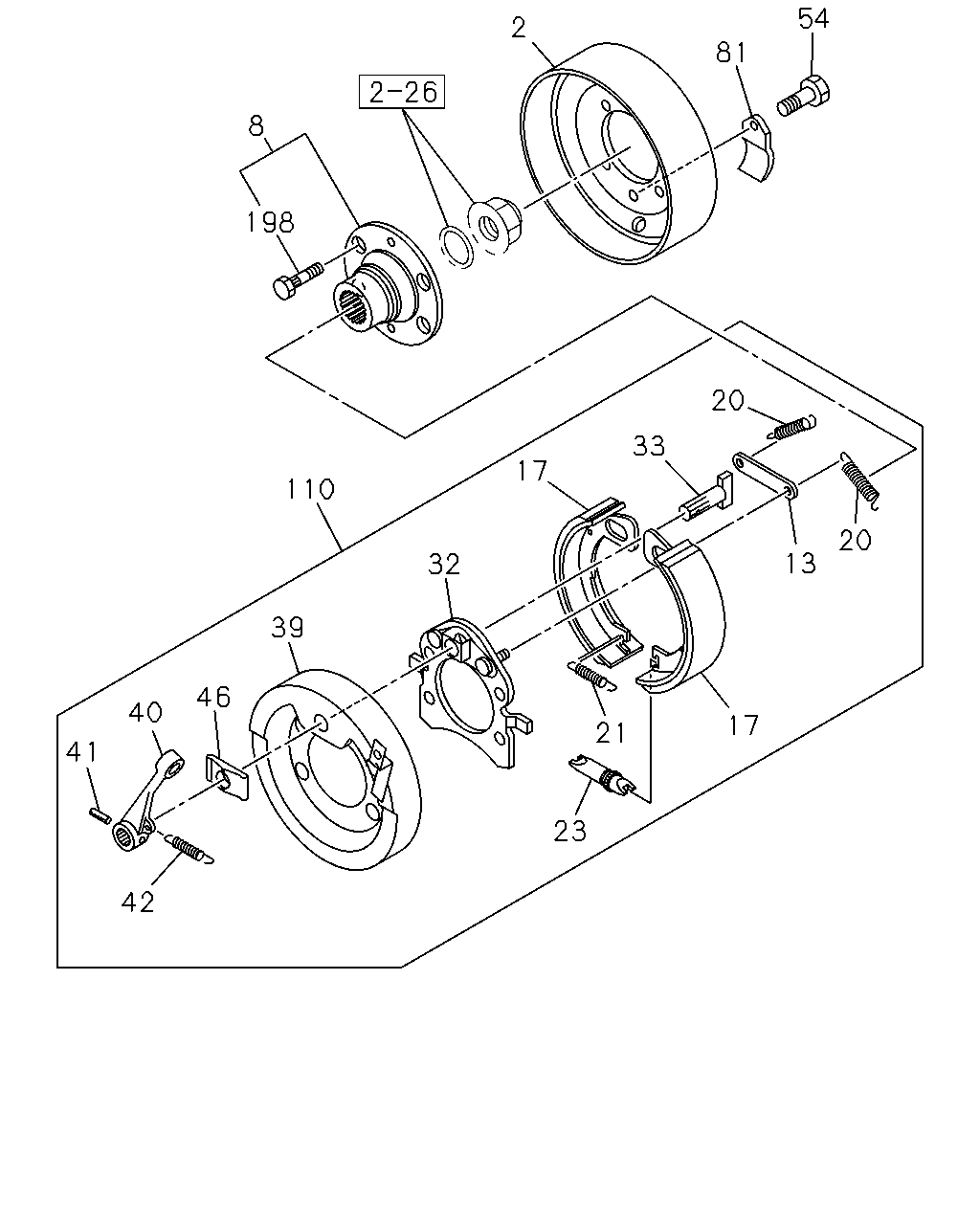

54 2 81 8 198 20 33 17 110 20 13 32 39 46 40 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-057-1	01	1	0811-		●
2	DRUM; PARKING BRK	8-97334-107-0	01	1	0803-1506	●
2	DRUM; PARKING BRK	8-98308-289-0	01	1	1507-	●
8	FLANGE; PARKING BRK	8-98044-142-0	01	1	0811-		●
13	BRACE; PARKING BRK	1-46239-003-0	01	1	0811-		●
17	SHOE; PARKING BRK	8-97042-934-1	02	1	0811-		●
17	SHOE; PARKING BRK	8-97020-250-2	02	1	0803-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	1-09586-002-0	02	1	0811-		●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0811-		●
21	SPRING; RETURN,PARKING BRK SHOE	8-94132-157-0	02	1	0803-	●
23	SCREW; ADJ,PARKING BRK SHOE	8-98043-963-0	01	1	0811-		●
23	SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	0803-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0811-		●
32	PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0803-	●
33	SHAFT; CAM,PARKING BRK	8-98043-961-0	01	1	0811-		●
39	COVER; DUST,PARKING BRK	1-46213-075-0	01	1	0811-		●
40	LEVER; CM/SHF,PARKING BRK	8-98047-550-0	01	1	0811-		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0811-		●
42	SPRING; RETURN,LEVER	1-09583-041-0	01	1	0811-		●
46	WASHER; LEVER	1-09509-057-0	01	1	0811-		●
54	BOLT; COVER M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0811-		●
81	COVER; CHECK HOLE,PARKING BRK	8-98031-861-0	02	1	0811-		●
110	BRAKE ASM; PARKING	8-98034-305-0	01	1	0811-		●
198	BOLT; KNURL M12X39	8-97365-446-0	04	1	0811-		●

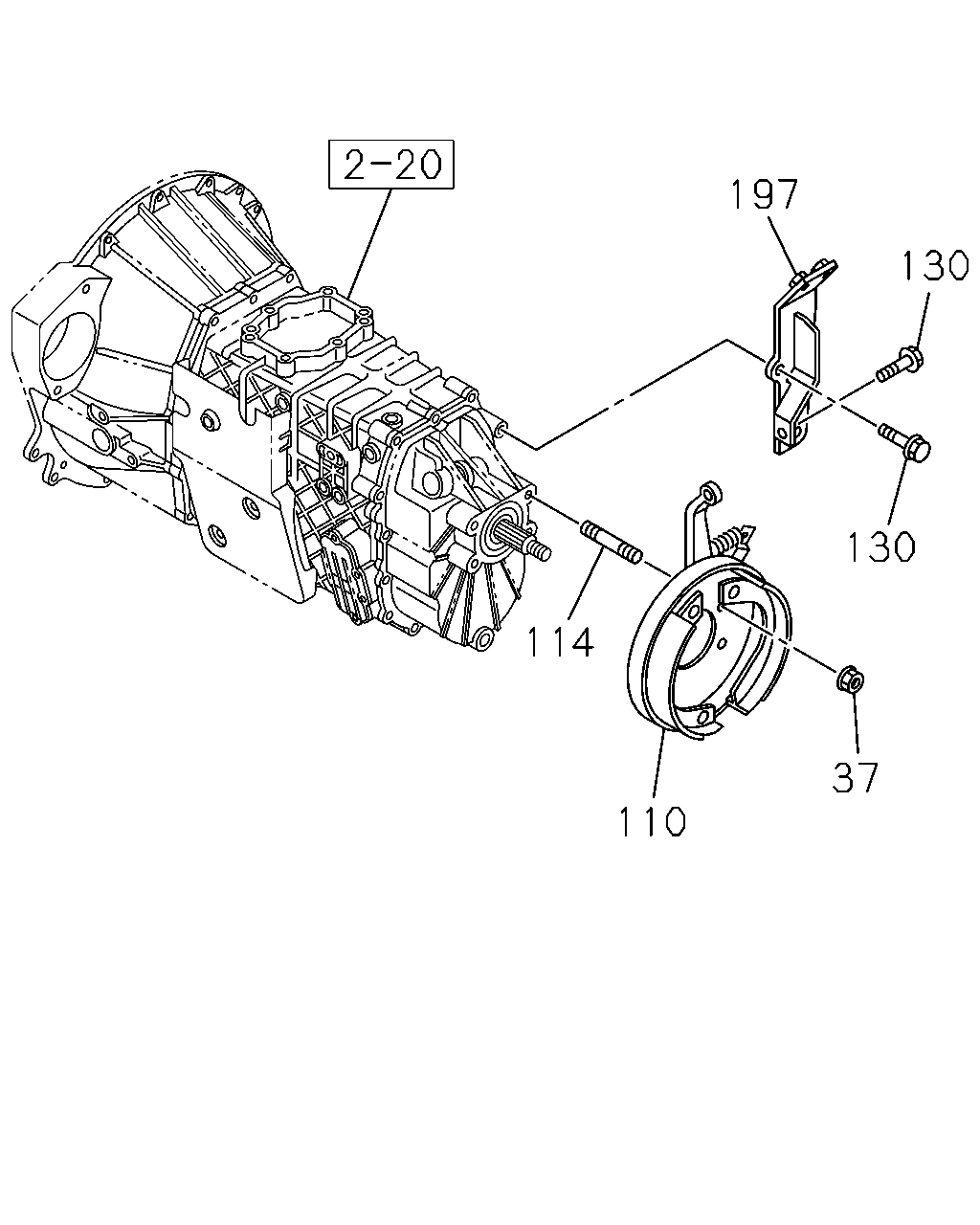

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0811-		●
37	NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	0803-	●
110	BRAKE ASM; PARKING	8-98034-305-0	01	1	0811-		●
114	STUD; SUPPORT PLATE M14X22.5 L=42.5	8-97365-445-0	04	1	0811-		●
114	STUD; SUPPORT PLATE	8-98029-929-0	04	1	0803-	●
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	0811-		●
197	BRACKET; CENTER BRAKE CABLE	8-97244-812-0	01	1	0811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
