2-85 — POWER TAKE OFF CONTROL (#74572) — 111 parça

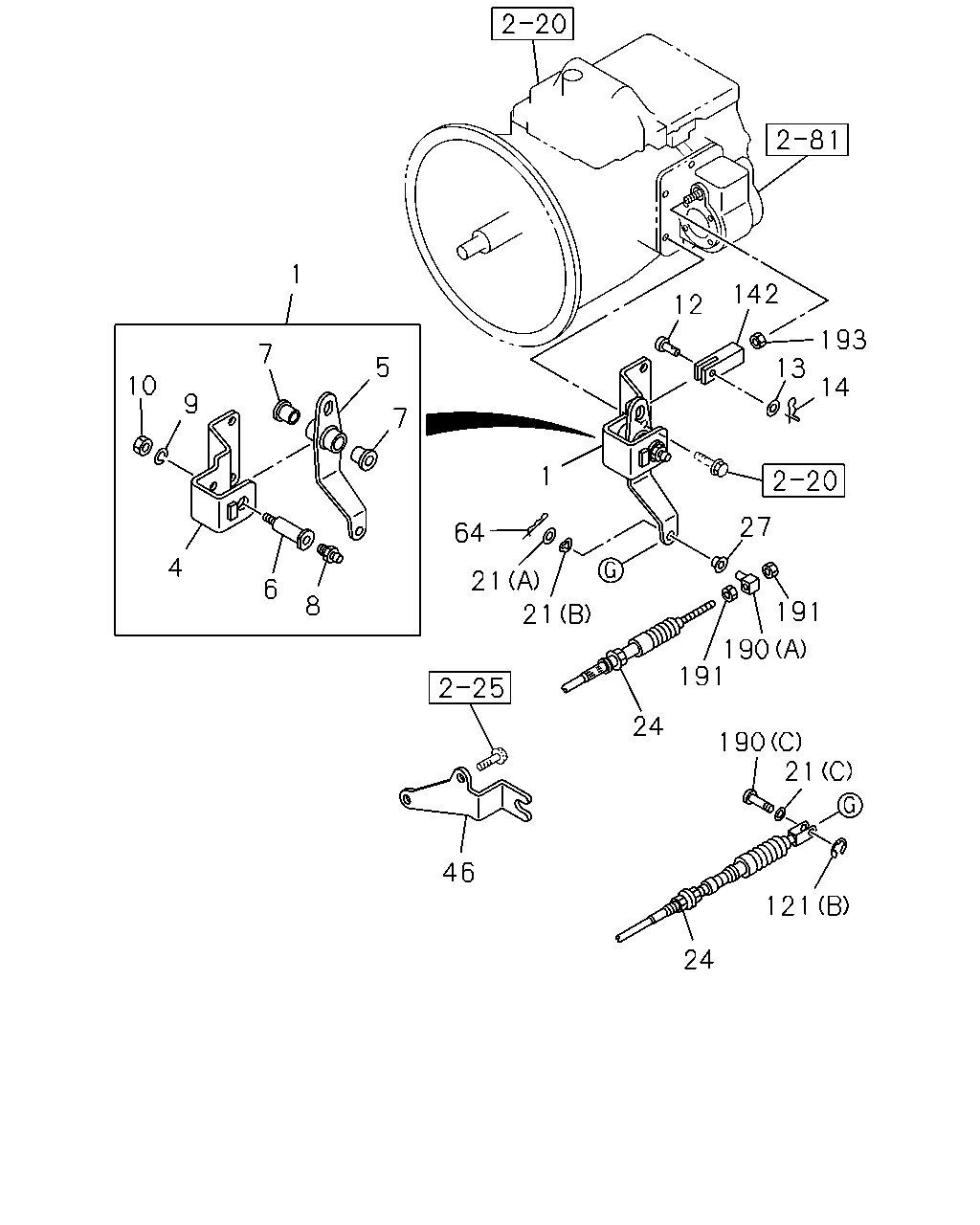

çizim 114455
1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 21 6 8 191 190 191 24 190 21 46 121 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98032-714-0 01 1 0803-1107 ●
1 LEVER ASM; PTO & DUMP CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98150-089-1 01 1 1108- ●
4 BRACKET; PTO CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98032-717-0 01 1 0803-1107 ●
4 BRACKET; PTO CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98150-099-1 01 1 1108- ●
5 LEVER; PTO SHIFT CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98032-718-0 01 1 0803- ●
6 SHAFT; PTO CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98032-720-0 01 1 0803-1107 ●
6 SHAFT; PTO CONT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98150-101-0 01 1 1108- ●
7 BUSHING; LEVER,PTO
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		5-33659-053-0 02 1 0803- ●
8 NIPPLE; GREASE
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M6 STRAIGHT THA 		0-90301-406-0 01 1 0803- ●
9 WASHER; LK,SHAFT,PTO
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> ID=8.2 THA 		0-91510-508-0 01 1 0803- ●
10 NUT; SHAFT,PTO
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M8 THA 		0-91110-508-0 01 1 0803- ●
12 JOINT; PIN,YOKE
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98031-692-0 01 1 0803- ●
13 WASHER; PL,YOKE
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> ID=12.5 OD=22 		0-91610-512-0 01 1 0803- ●
14 PIN; SPLIT,YOKE
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-97581-216-0 01 1 0803- ●
21 WASHER; PL,CONT LEVER
PTO MANUAL CONTROL<6WC> (C) ID=10.5 		0-91610-510-0 01 1 0811- ●
21 WASHER; PL,CONT LEVER
PTO MANUAL CONTROL<6WC> (A) ID=8.4 OD=22 THA 		0-91614-708-0 01 1 0803- ●
21 WASHER; PL,CONT LEVER
PTO MANUAL CONTROL<6WC> (B) ID=8.5 T=0.3 		5-09509-001-0 01 1 0803- ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98070-960-2 01 1 0811-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98223-356-0 01 1 1208- ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98085-642-1 01 1 0803-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98223-352-0 01 1 1208- ●
27 BUSHING; LEVER,PTO
PTO MANUAL CONTROL<6WC> 		8-94367-367-0 01 1 0803- ●
46 BRACKET; PTO,TRANS SIDE
PTO MANUAL CONTROL<6WC> 		8-98032-829-2 01 1 0803- ●
64 PIN; SNAP,CONT CABLE JOINT
PTO MANUAL CONTROL<6WC> L=27.7 		8-94111-137-0 01 1 0803- ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (B) ID=8 		0-91805-508-0 01 1 0811- ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (A) ID=4 		0-91805-504-0 01 1 0803-0810 ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (A) ID=4 		0-91805-504-0 01 1 0811- ● ●
142 CLEVIS; CONT BOX
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> 		8-98031-691-0 01 1 0803- ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (C) 		0-82154-025-0 01 1 0811- ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (A) 		8-94366-842-2 01 1 0803- ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (B) 		8-98029-878-0 01 1 0803-0810 ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (B) 		8-98029-878-0 01 1 0811- ● ●
191 NUT; BOSS
PTO MANUAL CONTROL<6WC> M6 THA 		0-91110-506-0 02 1 0803- ●
193 NUT
4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M12 		0-91111-512-0 01 1 0803- ●

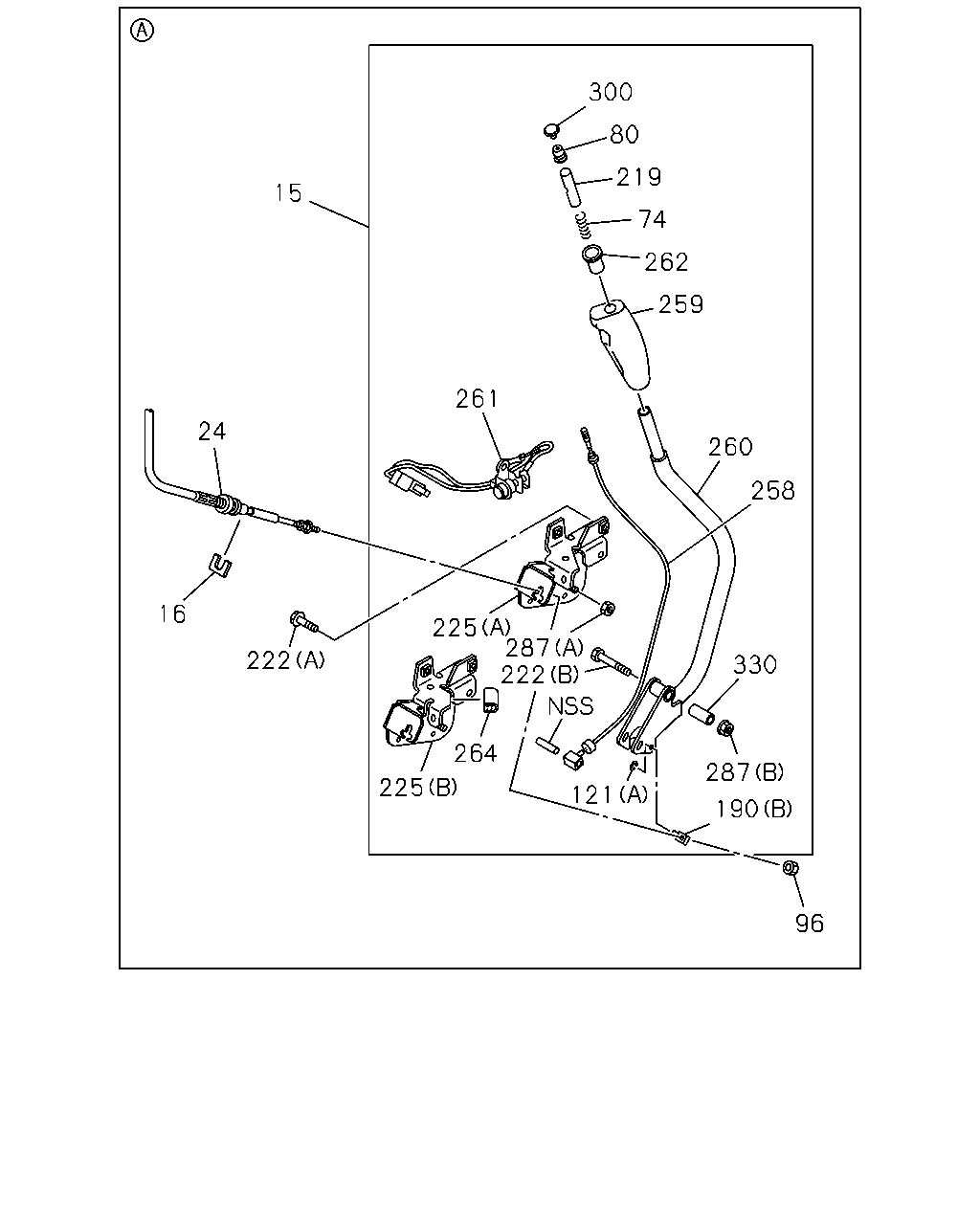

çizim 114578
15 300 80 219 74 262 259 260 258 330 287 190 96 121 222 287 225 225 264 222 16 24 261
BalonParca AdiParca NoAdetTipApplied Date A B
15 LEVER ASM; PTO CONT
PTO MANUAL CONTROL<6WC> 		8-98029-208-7 01 1 0803-0810 ●
15 LEVER ASM; PTO CONT
PTO MANUAL CONTROL<6WC> 		8-98029-208-7 01 1 0811-1204 ● ●
15 LEVER ASM; PTO CONT
PTO MANUAL CONTROL<6WC> 		8-98199-362-0 01 1 1205- ● ●
16 CLIP; CABLE,PTO
PTO MANUAL CONTROL<6WC> 		8-98050-126-0 01 1 0803-0810 ●
16 CLIP; CABLE,PTO
PTO MANUAL CONTROL<6WC> 		8-98050-126-0 01 1 0811- ● ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98070-960-2 01 1 0811-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98223-356-0 01 1 1208- ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98085-642-1 01 1 0803-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98223-352-0 01 1 1208- ●
74 SPRING; RETURN,CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-98029-874-0 01 1 0803-0810 ●
74 SPRING; RETURN,CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-98029-874-0 01 1 0811- ● ●
80 COVER; CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-97122-741-0 01 1 0803-0810 ●
80 COVER; CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-97122-741-0 01 1 0811- ● ●
96 NUT
PTO MANUAL CONTROL<6WC> M6 THA 		0-91110-506-0 01 1 0803-0810 ●
96 NUT
PTO MANUAL CONTROL<6WC> M6 THA 		0-91110-506-0 01 1 0811- ● ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (B) ID=8 		0-91805-508-0 01 1 0811- ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (A) ID=4 		0-91805-504-0 01 1 0803-0810 ●
121 RING; SNAP
PTO MANUAL CONTROL<6WC> (A) ID=4 		0-91805-504-0 01 1 0811- ● ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (C) 		0-82154-025-0 01 1 0811- ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (A) 		8-94366-842-2 01 1 0803- ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (B) 		8-98029-878-0 01 1 0803-0810 ●
190 BOSS; LEVER,PTO
PTO MANUAL CONTROL<6WC> (B) 		8-98029-878-0 01 1 0811- ● ●
219 KNOB; LEVER
PTO MANUAL CONTROL<6WC> 		8-97122-736-0 01 1 0803-0810 ●
219 KNOB; LEVER
PTO MANUAL CONTROL<6WC> 		8-97122-736-0 01 1 0811- ● ●
222 BOLT; LEVER
PTO MANUAL CONTROL<6WC> (B) M8X60 		0-10855-860-0 01 1 0803-0810 ●
222 BOLT; LEVER
PTO MANUAL CONTROL<6WC> (B) M8X60 		0-10855-860-0 01 1 0811- ● ●
222 BOLT; LEVER
PTO MANUAL CONTROL<6WC> (A) M8X20 FLANGE THA 		0-28650-820-0 03 1 0803-0810 ●
222 BOLT; LEVER
PTO MANUAL CONTROL<6WC> (A) M8X20 FLANGE THA 		0-28650-820-0 03 1 0811- ● ●
225 BRACKET; CONT LEVER
PTO MANUAL CONTROL<6WC> (A) 		8-98029-873-3 01 1 0803-0810 ●
225 BRACKET; CONT LEVER
PTO MANUAL CONTROL<6WC> (A) 		8-98029-873-3 01 1 0811-1204 ● ●
225 BRACKET; CONT LEVER
PTO MANUAL CONTROL<6WC> (B) 		8-98152-960-1 01 1 1205- ● ●
258 CABLE; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98029-877-1 01 1 0803-0810 ●
258 CABLE; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98029-877-1 01 1 0811- ● ●
259 GRIP; CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-97141-653-0 01 1 0803-0810 ●
259 GRIP; CONT LEVER
PTO MANUAL CONTROL<6WC> 		8-97141-653-0 01 1 0811- ● ●
260 LEVER; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98030-057-2 01 1 0803-0810 ●
260 LEVER; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98030-057-2 01 1 0811- ● ●
261 SWITCH; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98081-918-0 01 1 0803-0810 ●
261 SWITCH; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98081-918-0 01 1 0811- ● ●
262 RETAINER; SPRING
PTO MANUAL CONTROL<6WC> 		8-97129-397-0 01 1 0803-0810 ●
262 RETAINER; SPRING
PTO MANUAL CONTROL<6WC> 		8-97129-397-0 01 1 0811- ● ●
264 PROTECTOR; EDGE
PTO MANUAL CONTROL<6WC> 		8-98211-652-0 01 1 1205- ● ●
287 NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL<6WC> (A) M6 THA 		0-91110-506-0 01 1 0803-0810 ●
287 NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL<6WC> (A) M6 THA 		0-91110-506-0 01 1 0811- ● ●
287 NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA 		0-91180-208-0 01 1 0803-0810 ●
287 NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA 		0-91180-208-0 01 1 0811- ● ●
300 CAP; KNOB
PTO MANUAL CONTROL<6WC> 		8-97122-740-0 01 1 0803-0810 ●
300 CAP; KNOB
PTO MANUAL CONTROL<6WC> 		8-97122-740-0 01 1 0811- ● ●
330 COLOR; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98049-802-0 01 1 0803-0810 ●
330 COLOR; DUMP CONT
PTO MANUAL CONTROL<6WC> 		8-98049-802-0 01 1 0811- ● ●

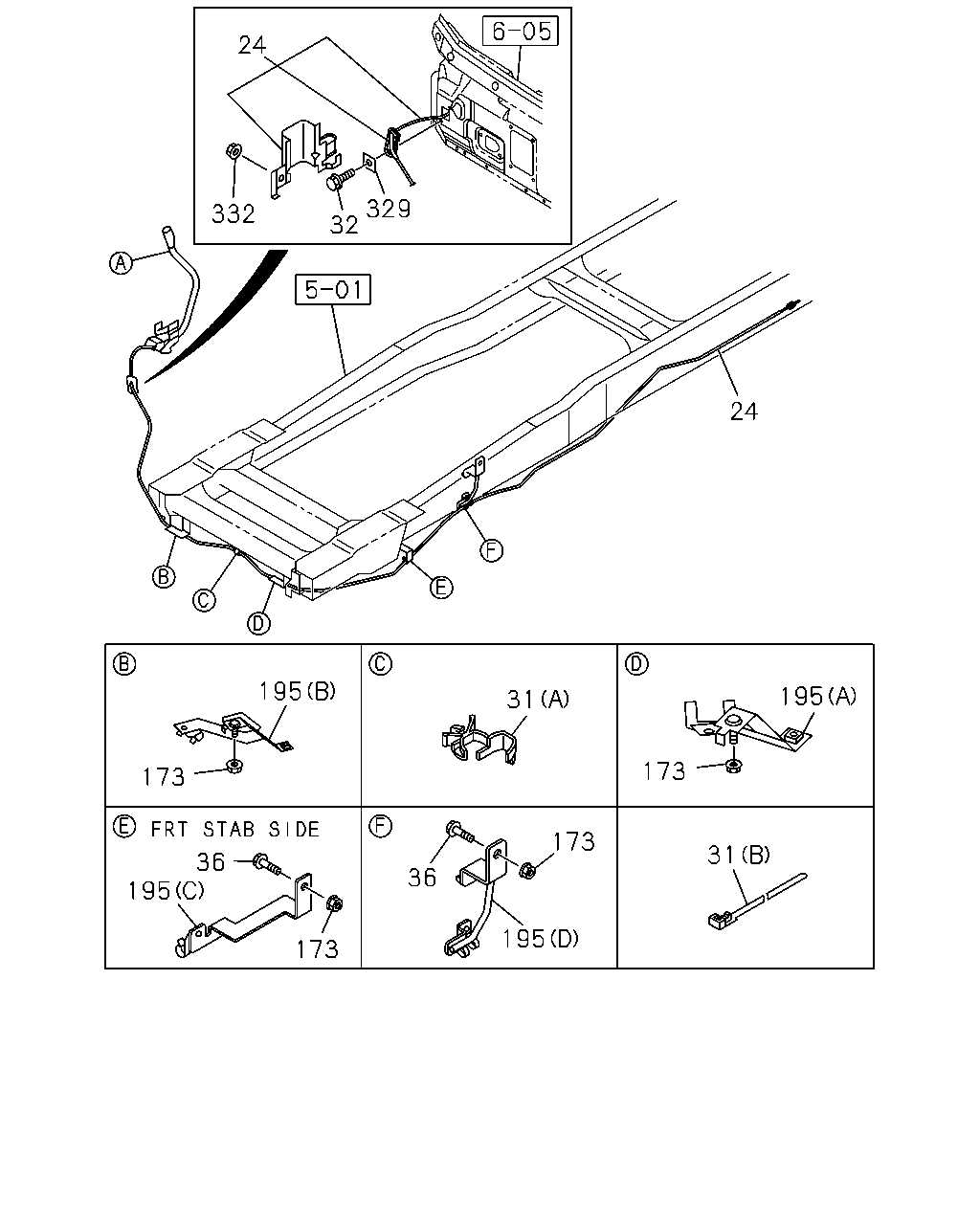

çizim 185709
24 329 32 332 24 195 195 31 173 173 173 31 36 195 36 195 173
BalonParca AdiParca NoAdetTipApplied Date A B
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98070-960-2 01 1 0811-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3844 		8-98223-356-0 01 1 1208- ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98085-642-1 01 1 0803-1207 ●
24 CABLE; PTO CONT
PTO MANUAL CONTROL<6WC> FRAME STRAIGHT TYPE<7KJ> L=3602 		8-98223-352-0 01 1 1208- ●
31 CLIP; BAND,CABLE
PTO MANUAL CONTROL<6WC> (B) L=250 THA 		5-09707-030-1 06 1 0803-0810 ●
31 CLIP; BAND,CABLE
PTO MANUAL CONTROL<6WC> (B) L=250 THA 		5-09707-030-1 06 1 0811- ● ●
31 CLIP; BAND,CABLE
PTO MANUAL CONTROL<6WC> (A) ID=16 		8-97040-812-0 01 1 0803-0810 ●
31 CLIP; BAND,CABLE
PTO MANUAL CONTROL<6WC> (A) ID=16 		8-97040-812-0 01 1 0811- ● ●
32 BOLT; CLIP,CABLE
PTO MANUAL CONTROL<6WC> M6X16 FLANGE 		0-28060-616-0 02 1 0803-0810 ●
32 BOLT; CLIP,CABLE
PTO MANUAL CONTROL<6WC> M6X16 FLANGE 		0-28060-616-0 02 1 0811- ● ●
36 BOLT; PTO BRKT
PTO MANUAL CONTROL<6WC> M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
36 BOLT; PTO BRKT
PTO MANUAL CONTROL<6WC> M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
36 BOLT; PTO BRKT
PTO MANUAL CONTROL<6WC> M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ●
173 NUT; BRKT
PTO MANUAL CONTROL<6WC> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ●
173 NUT; BRKT
PTO MANUAL CONTROL<6WC> M8 FLANGE THA 		0-91180-108-0 03 1 0803-0810 ●
173 NUT; BRKT
PTO MANUAL CONTROL<6WC> M8 FLANGE THA 		0-91180-108-0 03 1 0811- ● ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (D) 		8-98099-115-0 01 1 0811- ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (B) 		8-98098-618-0 01 1 0803-0810 ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (B) 		8-98098-618-0 01 1 0811- ● ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (C) 		8-98102-494-0 01 1 0803-0810 ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (C) 		8-98102-494-0 01 1 0811- ● ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (A) 		8-98102-495-1 01 1 0803-0810 ●
195 BRACKET; CONT CABLE
PTO MANUAL CONTROL<6WC> (A) 		8-98102-495-1 01 1 0811- ● ●
329 SEAL
PTO MANUAL CONTROL<6WC> 		8-97856-616-0 02 1 0803-0810 ●
329 SEAL
PTO MANUAL CONTROL<6WC> 		8-97856-616-0 02 1 0811- ● ●
332 NUT; PTO CONT CABLE
PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0803-0810 ●
332 NUT; PTO CONT CABLE
PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 0811- ● ●
