2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#74570) — 34 parça

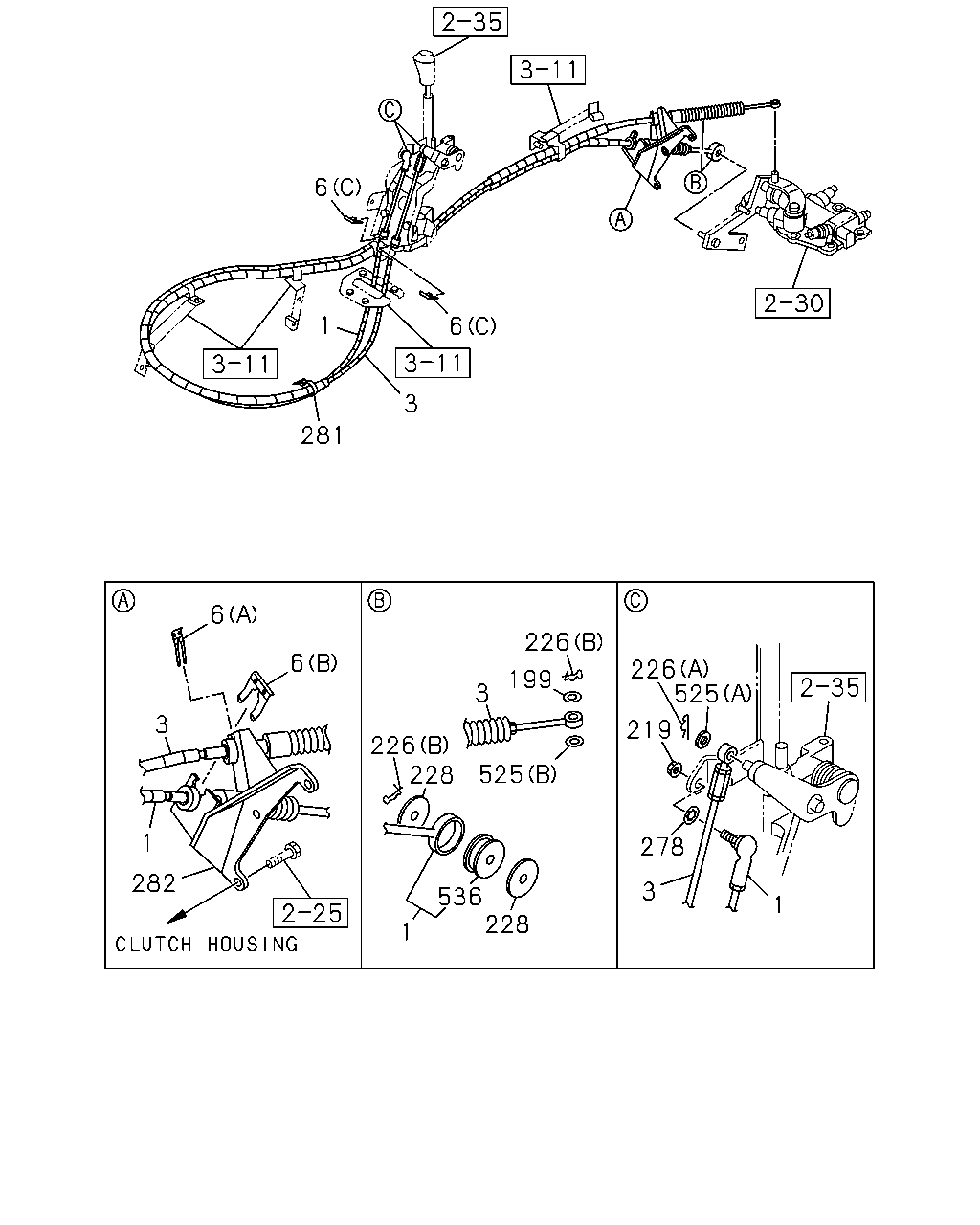

çizim 114005
6 1 281 3 6 3 282 6 226 226 199 228 525 536 228 3 226 525 219 278 3 1 1 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3116 		8-98025-437-3 01 1 0811-0911 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3116 THA 		8-98146-876-0 01 1 0912- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG<RDQ> L=3090 		8-98025-436-3 01 1 0803-0911 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG<RDQ> L=3090 THA 		8-98146-856-0 01 1 0912- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> L=3229 THA 		8-98025-443-4 01 1 0811- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG<RDQ> L=3202 THA 		8-98025-442-3 01 1 0803- ●
6 CLIP; CABLE
(A) ID=22.2 		1-09701-209-1 01 1 0803-0810 ●
6 CLIP; CABLE
(A) ID=22.2 		1-09701-209-1 01 1 0811- ● ●
6 CLIP; CABLE
(C) 		8-97011-448-0 02 1 0803-0810 ●
6 CLIP; CABLE
(C) 		8-97011-448-0 02 1 0811- ● ●
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0803-0810 ●
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0811- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0803-0810 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0811- ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0803-0810 ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0811- ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0803-0810 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0811- ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 0803-0810 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 0811- ● ●
228 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 0803-0810 ●
228 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 0811- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0803-0810 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0811- ● ●
281 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 0803-0810 ●
281 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 0811- ● ●
282 BRACKET; TRANS SIDE
4HK1-TCS ENG<RJS> 		8-98032-396-2 01 1 0811- ●
282 BRACKET; TRANS SIDE
4HK1-TCN ENG<RDQ> 		8-98032-395-1 01 1 0803- ●
525 WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 		0-91614-508-0 01 1 0803-0810 ●
525 WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 		0-91614-508-0 01 1 0811- ● ●
525 WASHER; SHIFT CABLE
(B) ID=8.4 OD=14 		5-09550-002-0 01 1 0803-0810 ●
525 WASHER; SHIFT CABLE
(B) ID=8.4 OD=14 		5-09550-002-0 01 1 0811- ● ●
536 DAMPER; CABLE
4HK1-TCN ENG<RDQ> THA 		8-98097-681-0 01 1 0803-0810 ●
536 DAMPER; CABLE
THA 		8-98097-681-0 01 1 0811- ● ●
