2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#74569) — 42 parça

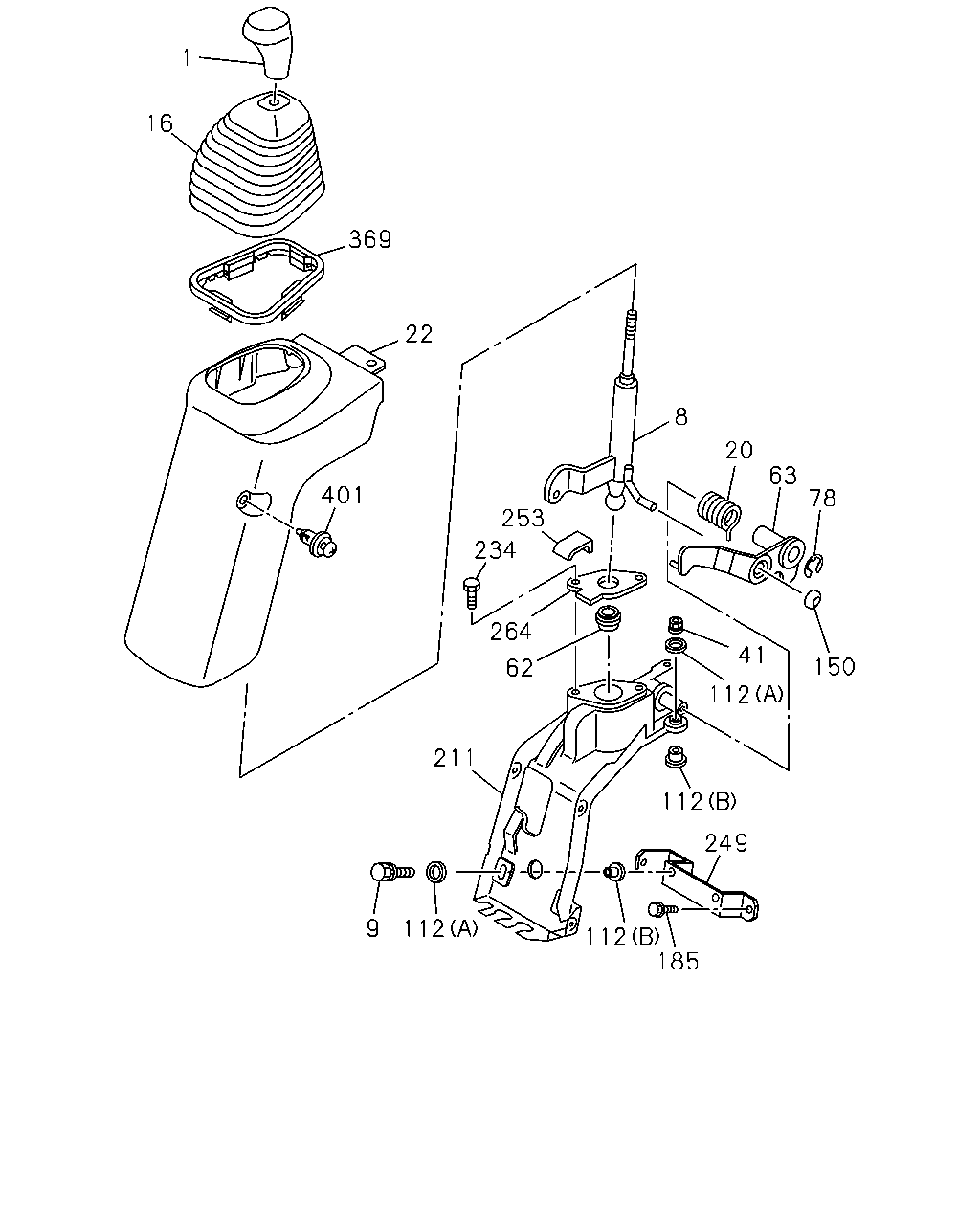

çizim 114187
1 16 369 22 8 20 63 401 78 253 234 264 41 150 62 112 211 112 249 112 185 9 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 0803-0810 ●
1 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 0811- ● ●
8 LEVER; CHANGE 8-97204-507-0 01 1 0803-0810 ●
8 LEVER; CHANGE 8-97204-507-0 01 1 0811- ● ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0803-0810 ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0811- ● ●
16 BOOT; CHANGE LEVER 8-98035-063-0 01 1 0803-0810 ●
16 BOOT; CHANGE LEVER 8-98035-063-0 01 1 0811- ● ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0803-0810 ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0811- ● ●
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-728-1 01 1 0803-0810 ●
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-728-1 01 1 0811- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0803-0810 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0811- ● ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0803-0810 ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0811- ● ●
63 LEVER; RELAY,SELECT 8-97163-768-0 01 1 0803-0810 ●
63 LEVER; RELAY,SELECT 8-97163-768-0 01 1 0811- ● ●
78 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 0803-0810 ●
78 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 0811- ● ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0803-0810 ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0811- ● ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0803-0810 ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0811- ● ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0803-0810 ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0811- ● ●
185 BOLT; BRKT,COVER
M8X20 FLANGE THA 		0-28650-820-0 02 1 0803-0810 ●
185 BOLT; BRKT,COVER
M8X20 FLANGE THA 		0-28650-820-0 02 1 0811- ● ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0803-0810 ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0811- ● ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0803-0810 ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0811- ● ●
249 BRACKET; COVER 8-97387-767-0 01 1 0803-0810 ●
249 BRACKET; COVER 8-97387-767-0 01 1 0811- ● ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0803-0810 ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0811- ● ●
264 PLATE; COVER 8-97204-511-0 01 1 0803-0810 ●
264 PLATE; COVER 8-97204-511-0 01 1 0811- ● ●
369 RETAINER; REINF 8-98032-213-1 01 1 0803-0810 ●
369 RETAINER; REINF 8-98032-213-1 01 1 0811- ● ●
401 CLIP; COVER
GRAY 		8-97406-179-0 04 1 0803-0810 ●
401 CLIP; COVER
GRAY 		8-97406-179-0 04 1 0811- ● ●
