2-30 — GEAR SHIFTER AND QUADRANT BOX (#74568) — 100 parça

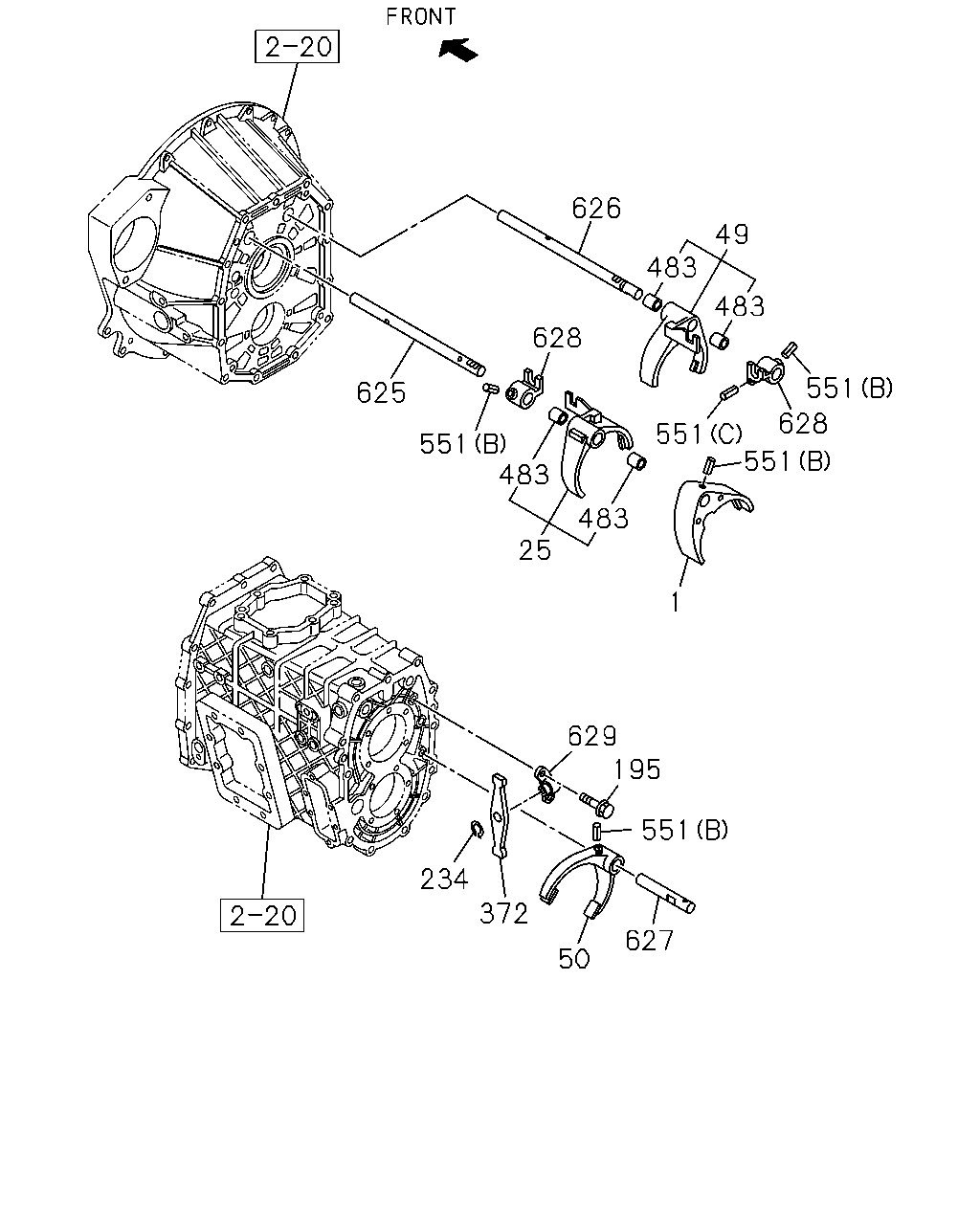

çizim 113320
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
4HK1-TCS ENG<RJS> 		8-97241-319-2 01 1 0811- ●
1 ARM; SHIFT,1ST & REV
4HK1-TCN ENG<RDQ> 		8-97241-320-2 01 1 0803- ●
25 ARM; SHIFT,2ND & 3RD
4HK1-TCS ENG<RJS> 		8-97362-737-1 01 1 0811- ●
25 ARM; SHIFT,2ND & 3RD
4HK1-TCN ENG<RDQ> 		8-97362-731-2 01 1 0803-1407 ●
25 ARM; SHIFT,2ND & 3RD
4HK1-TCN ENG<RDQ> 		8-98255-926-1 01 1 1408- ●
49 ARM; SHIFT,4TH & 5TH
4HK1-TCS ENG<RJS> 		8-97362-738-1 01 1 0811- ●
49 ARM; SHIFT,4TH & 5TH
4HK1-TCN ENG<RDQ> 		8-97362-732-1 01 1 0803- ●
50 ARM; SHIFT,6TH
4HK1-TCS ENG<RJS> 		8-97241-324-1 01 1 0811- ●
50 ARM; SHIFT,6TH
4HK1-TCN ENG<RDQ> 		8-97241-325-1 01 1 0803- ●
195 BOLT
4HK1-TCN ENG<RDQ> M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0803-0810 ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0811- ● ●
234 RING; SNAP
4HK1-TCN ENG<RDQ> ID=16.5 		0-91800-618-0 01 1 0803-0810 ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0811- ● ●
372 LEVER; RELAY,6TH
4HK1-TCS ENG<RJS> 		8-97241-342-0 01 1 0811- ●
372 LEVER; RELAY,6TH
4HK1-TCN ENG<RDQ> 		8-97241-343-0 01 1 0803- ●
483 BUSHING; SHIFT ARM
4HK1-TCN ENG<RDQ> 		8-97241-326-2 04 1 0803-0810 ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (A) L=25 OD=5 		1-09748-032-0 01 1 0803-0810 ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (B) L=32 		8-97011-596-2 05 1 0803-0810 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (C) L=20 		8-97241-340-0 01 1 0803-0810 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0811- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HK1-TCS ENG<RJS> 		8-97362-735-0 01 1 0811- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HK1-TCN ENG<RDQ> 		8-97362-741-0 01 1 0803- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG<RJS> 		8-98107-548-0 01 1 0811- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCN ENG<RDQ> 		8-97366-024-1 01 1 0803- ●
627 ROD; GEAR SHIFT,6TH SUB
4HK1-TCN ENG<RDQ> 		8-97241-339-0 01 1 0803-0805 ●
627 ROD; GEAR SHIFT,6TH SUB
4HK1-TCN ENG<RDQ> 		8-98119-293-0 01 1 0806-0810 ●
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0811- ● ●
628 BLOCK; SHIFT,LOW,REV & 6TH
4HK1-TCN ENG<RDQ> 		8-97241-327-1 02 1 0803-0810 ●
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0811- ● ●
629 BRIDGE; LEVER
4HK1-TCN ENG<RDQ> 		8-97241-345-1 01 1 0803-0810 ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 0811- ● ●

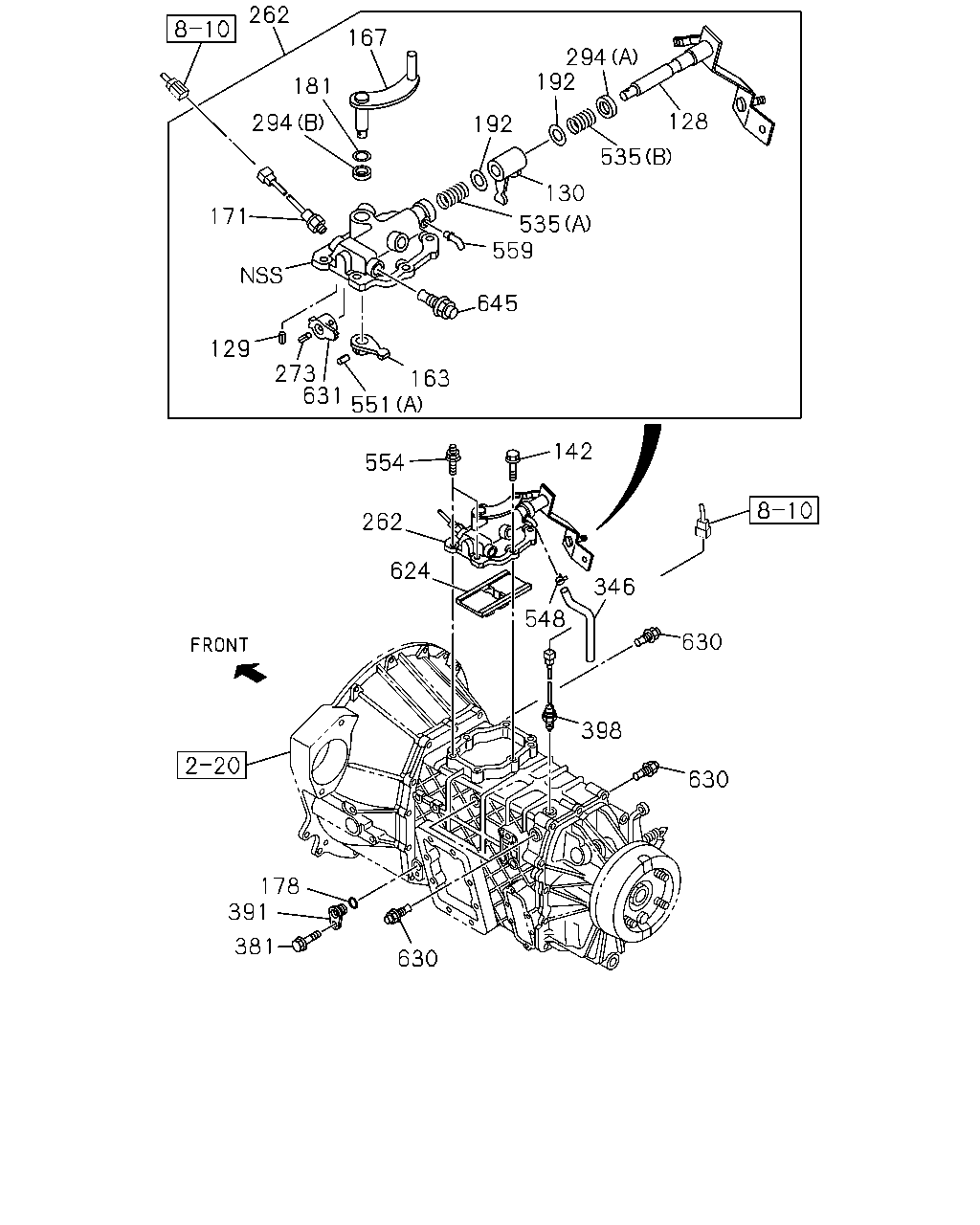

çizim 113441
262 167 294 192 181 128 294 192 535 130 171 535 559 645 129 273 631 163 551 142 554 262 624 346 548 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL
4HK1-TCN ENG<RDQ> 		8-98021-595-0 01 1 0803-0810 ●
128 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 0811- ● ●
129 PIN; SPR,SHIFT
4HK1-TCN ENG<RDQ> L=30 OD=4 		1-09748-031-0 01 1 0803-0810 ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0811- ● ●
130 LEVER; SHIFT,INTERNAL
4HK1-TCN ENG<RDQ> 		8-97306-647-0 01 1 0803-0810 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0811- ● ●
142 BOLT; QUAD BOX
4HK1-TCN ENG<RDQ> M8X22 FLANGE 		8-97365-376-0 04 1 0803-0810 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0811- ● ●
163 LEVER; SELECT,INTERNAL
4HK1-TCN ENG<RDQ> 		8-97305-663-0 01 1 0803-0810 ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0811- ● ●
167 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG<RDQ> 		8-98039-444-0 01 1 0803-0810 ●
167 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 0811- ● ●
171 SWITCH; NEUTRAL
4HK1-TCN ENG<RDQ> 		8-98023-050-0 01 1 0803-0810 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0811-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> 		9-09567-113-0 01 1 0803-0810 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0811- ● ●
181 WASHER; PL,SELECT LEVER
4HK1-TCN ENG<RDQ> 		8-97367-327-0 01 1 0803-0810 ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0811- ● ●
192 WASHER; PL
4HK1-TCN ENG<RDQ> 		8-97305-661-0 02 1 0803-0810 ●
192 WASHER; PL 8-97305-661-0 02 1 0811- ● ●
262 BOX ASM; SHIFT CONT
4HK1-TCN ENG<RDQ> 		8-98021-592-1 01 1 0803-0810 ●
262 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 0811-1312 ● ●
262 BOX ASM; SHIFT CONT 8-98240-994-1 01 1 1401- ● ●
273 PIN; SPR,STOPPER
4HK1-TCN ENG<RDQ> D=4.2 L=25 		8-97103-142-0 01 1 0803-0810 ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0811- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> (B) 		8-97305-662-0 01 1 0803-0810 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0811- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> (A) 		8-97363-225-0 01 1 0803-0810 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0811- ● ●
346 HOSE; AIR
4HK1-TCN ENG<RDQ> 		8-97309-855-0 01 1 0803-0810 ●
346 HOSE; AIR 8-97309-855-0 01 1 0811- ● ●
381 BOLT
4HK1-TCN ENG<RDQ> M6X16 FLANGE THA 		0-28650-616-0 01 1 0803-0810 ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 0811- ● ●
391 PLUG; SW HOLE
4HK1-TCN ENG<RDQ> 		8-97300-273-1 01 1 0803-0810 ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0811- ● ●
398 SWITCH; REV LAMP
4HK1-TCN ENG<RDQ> 		8-98186-003-0 01 1 1107-1108 ●
398 SWITCH; REV LAMP 8-98186-003-0 01 1 1109-1311 ● ●
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1312- ● ●
398 SWITCH; REV LAMP
4HK1-TCN ENG<RDQ> 		8-98023-050-0 01 1 0803-0810 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0811-1106 ● ●
398 SWITCH; REV LAMP
4HK1-TCS ENG<RJS> 		8-98023-050-0 01 1 1107-1108 ●
535 SPRING; LEVER
4HK1-TCN ENG<RDQ> (A) 		8-97305-659-0 01 1 0803-0810 ●
535 SPRING; LEVER
(A) 		8-97305-659-0 01 1 0811- ● ●
535 SPRING; LEVER
4HK1-TCN ENG<RDQ> (B) 		8-97305-660-0 01 1 0803-0810 ●
535 SPRING; LEVER
(B) 		8-97305-660-0 01 1 0811- ● ●
548 CLIP; HOSE
4HK1-TCN ENG<RDQ> 		8-97031-674-0 01 1 0803-0810 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (A) L=25 OD=5 		1-09748-032-0 01 1 0803-0810 ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (B) L=32 		8-97011-596-2 05 1 0803-0810 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0811- ● ●
551 PIN; SPRING
4HK1-TCN ENG<RDQ> (C) L=20 		8-97241-340-0 01 1 0803-0810 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0811- ● ●
554 STUD; CONT BOX
4HK1-TCN ENG<RDQ> M8X15,M8X25 L=49 		8-97365-378-0 02 1 0803-0810 ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0811- ● ●
559 PIPE; BREATHER
4HK1-TCN ENG<RDQ> 		8-97358-318-0 01 1 0803-0810 ●
559 PIPE; BREATHER 8-97358-318-0 01 1 0811- ● ●
624 PLATE; INTER LOCK
4HK1-TCN ENG<RDQ> 		8-97241-317-3 01 1 0803-0810 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0811- ● ●
630 DETENT ASM
4HK1-TCN ENG<RDQ> 		8-98019-536-0 04 1 0803-0810 ●
630 DETENT ASM 8-98019-536-0 04 1 0811- ● ●
631 STOPPER; SPRING
4HK1-TCN ENG<RDQ> 		8-97305-666-0 01 1 0803-0810 ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0811- ● ●
645 DETENT ASM
4HK1-TCN ENG<RDQ> 		8-98019-536-0 01 1 0803-0810 ●
645 DETENT ASM 8-98019-536-0 01 1 0811- ● ●
