2-26 — MANUAL TRANSMISSION GEAR (#74567) — 306 parça

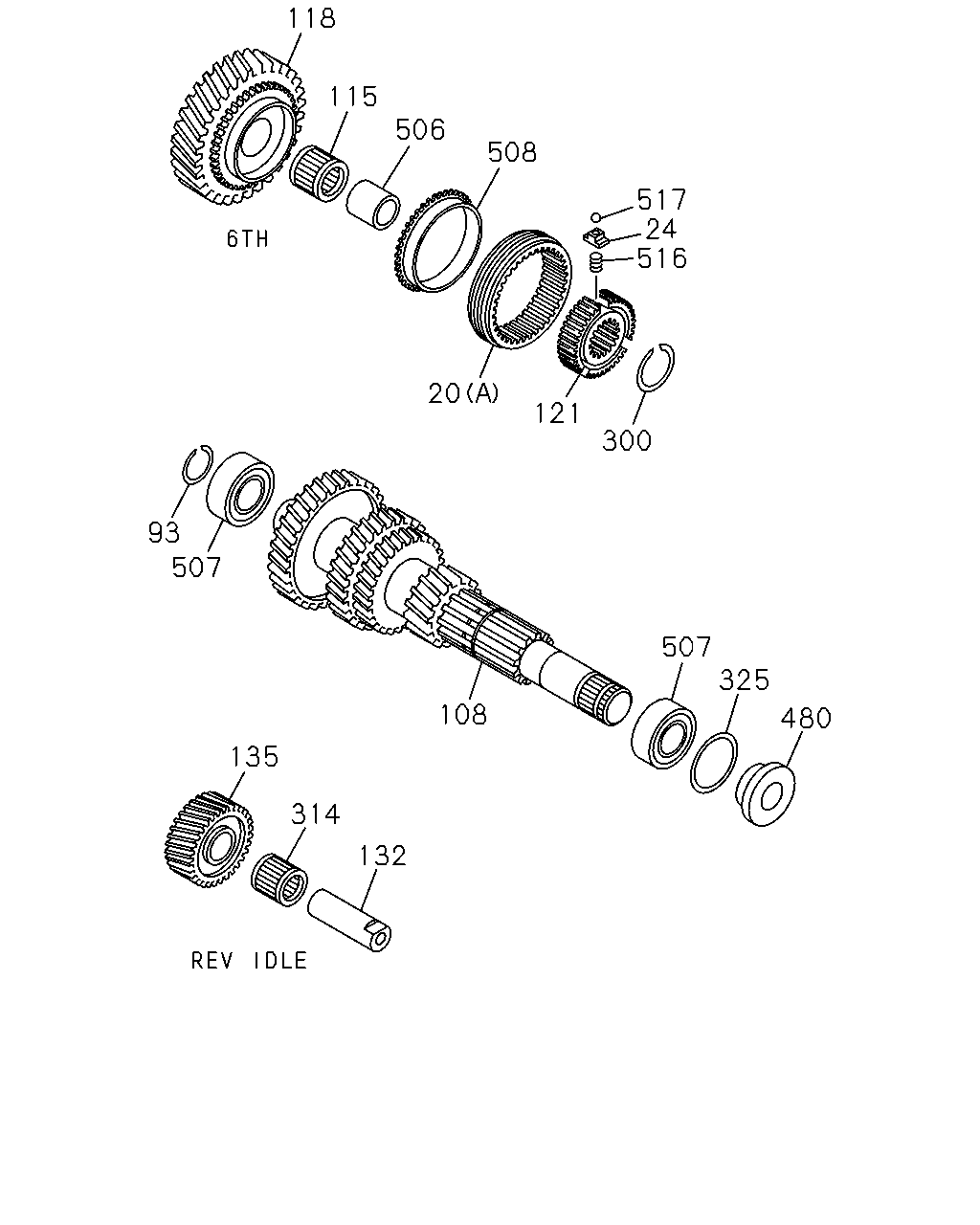

118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE 4HK1-TCS ENG<RJS> (B) Z=54	8-97241-295-2	02	1	0811-	●
20	SLEEVE 4HK1-TCS ENG<RJS> (A) Z=45	8-97241-296-1	02	1	0811-1311	●
20	SLEEVE 4HK1-TCS ENG<RJS> (A) Z=45	8-98258-279-0	02	1	1312-	●
24	BLOCK; INDEX,SYN 4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0811-	●
24	BLOCK; INDEX,SYN 4HK1-TCN ENG<RDQ>	8-97241-313-1	06	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=1.9	8-97254-735-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=2.1	8-97254-738-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=2.3	8-97254-741-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-97349-881-0	01	1	0811-0910	●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
108	SHAFT; COUNTER 4HK1-TCN ENG<RDQ> Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER 4HK1-TCN ENG<RDQ> OD=49.75	8-97253-113-0	01	1	0803-0810		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0811-	●	●
118	GEAR; 6TH,COUNTER 4HK1-TCS ENG<RJS> Z=47	8-97241-246-0	01	1	0811-	●
118	GEAR; 6TH,COUNTER 4HK1-TCN ENG<RDQ> Z=50	8-97386-580-0	01	1	0803-		●
121	HUB; CLU,6TH 4HK1-TCS ENG<RJS>	8-97241-301-2	01	1	0811-	●
132	SHAFT; REV 4HK1-TCN ENG<RDQ>	8-97252-655-0	01	1	0803-0810		●
132	SHAFT; REV	8-97252-655-0	01	1	0811-	●	●
135	GEAR; REV IDLER 4HK1-TCS ENG<RJS> Z=26	8-97241-292-2	01	1	0811-	●
135	GEAR; REV IDLER 4HK1-TCN ENG<RDQ> Z=25	8-98031-869-1	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.7	8-97288-618-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.8	8-97288-619-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.9	8-97288-620-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.6	8-97365-616-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.7	8-97254-727-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.6	8-97365-617-0	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR 4HK1-TCN ENG<RDQ> NSK	8-97253-114-0	01	1	0803-0810		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0811-	●	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.38	8-97252-656-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.44	8-97252-657-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.50	8-97252-658-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.56	8-97252-659-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.62	8-97252-660-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.68	8-97252-661-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.74	8-97252-662-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.80	8-97252-663-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.86	8-97252-664-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.92	8-97252-665-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.98	8-97257-621-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.20	8-97306-185-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.26	8-97306-186-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.32	8-97306-187-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●
480	WASHER; THRUST,6TH 4HK1-TCS ENG<RJS>	8-97253-122-1	01	1	0811-	●
480	WASHER; THRUST,6TH 4HK1-TCN ENG<RDQ>	8-97253-123-1	01	1	0803-		●
506	COLLAR; 6TH,COUNTER 4HK1-TCS ENG<RJS>	8-97253-120-1	01	1	0811-	●
506	COLLAR; 6TH,COUNTER 4HK1-TCN ENG<RDQ>	8-97253-121-1	01	1	0803-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCS ENG<RJS>	8-97253-106-0	02	1	0811-	●
507	BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCN ENG<RDQ>	8-97253-107-0	02	1	0803-		●
508	RING; BLOCK,6TH 4HK1-TCS ENG<RJS> Z=45	8-97241-306-1	01	1	0811-	●
508	RING; BLOCK,6TH 4HK1-TCN ENG<RDQ> Z=45	8-97309-532-0	01	1	0803-		●
516	SPRING; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0811-	●
516	SPRING; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97254-835-0	06	1	0803-		●
517	BALL; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0811-	●
517	BALL; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97252-935-0	06	1	0803-		●

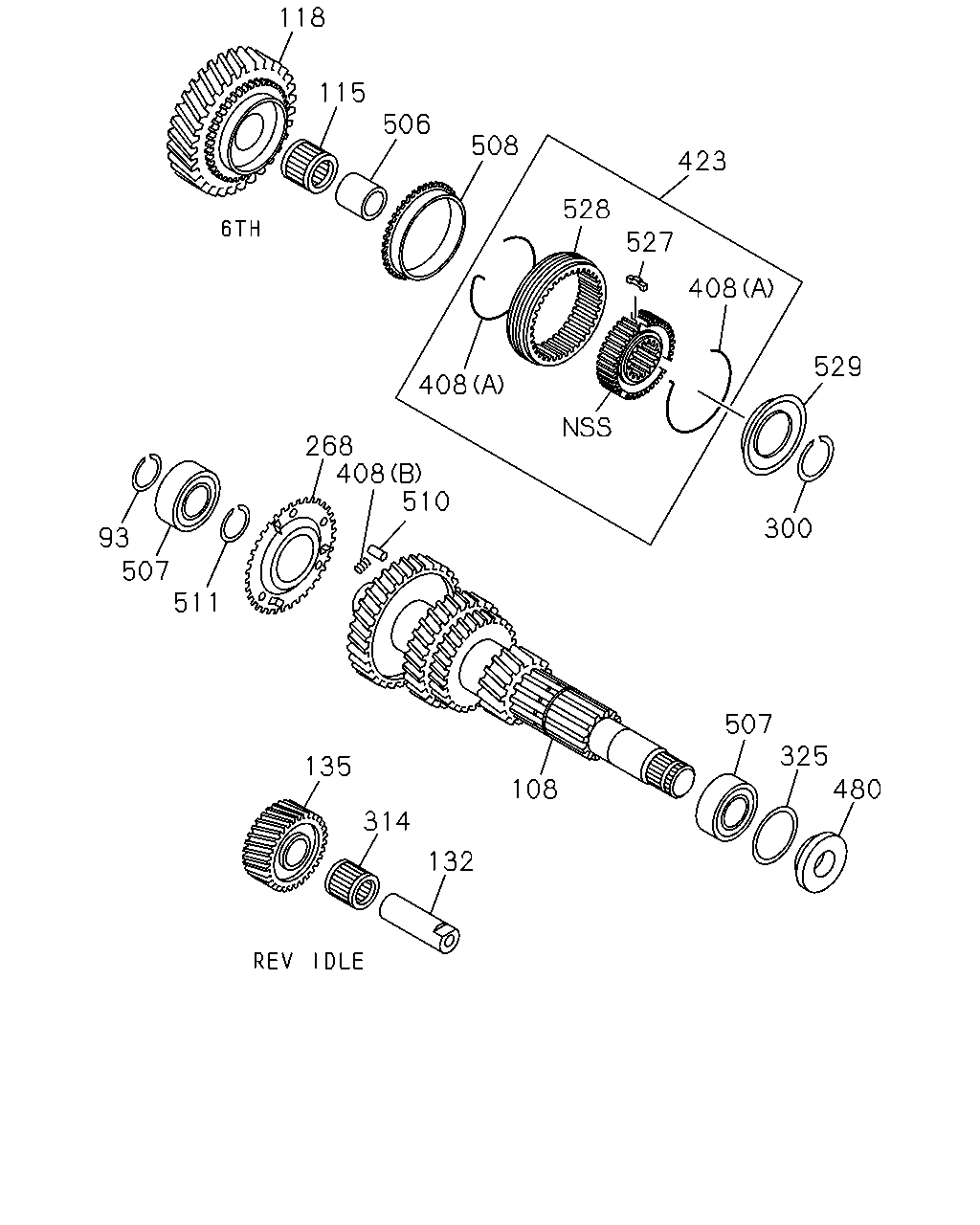

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=1.9	8-97254-735-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=2.1	8-97254-738-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG<RJS> ID=34.4 T=2.3	8-97254-741-0	01	1	0811-	●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG<RDQ> ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-97349-881-0	01	1	0811-0910	●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	SHAFT; COUNTER 4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
108	SHAFT; COUNTER 4HK1-TCN ENG<RDQ> Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER 4HK1-TCN ENG<RDQ> OD=49.75	8-97253-113-0	01	1	0803-0810		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0811-	●	●
118	GEAR; 6TH,COUNTER 4HK1-TCS ENG<RJS> Z=47	8-97241-246-0	01	1	0811-	●
118	GEAR; 6TH,COUNTER 4HK1-TCN ENG<RDQ> Z=50	8-97386-580-0	01	1	0803-		●
132	SHAFT; REV 4HK1-TCN ENG<RDQ>	8-97252-655-0	01	1	0803-0810		●
132	SHAFT; REV	8-97252-655-0	01	1	0811-	●	●
135	GEAR; REV IDLER 4HK1-TCS ENG<RJS> Z=26	8-97241-292-2	01	1	0811-	●
135	GEAR; REV IDLER 4HK1-TCN ENG<RDQ> Z=25	8-98031-869-1	01	1	0803-		●
268	PLATE; ANTI LASH,COUNTER 4HK1-TCN ENG<RDQ>	8-97252-684-1	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.7	8-97288-618-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.8	8-97288-619-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.9	8-97288-620-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG<RJS> ID=33.2 T=1.6	8-97365-616-0	01	1	0811-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.7	8-97254-727-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG<RDQ> ID=30.7 T=1.6	8-97365-617-0	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR 4HK1-TCN ENG<RDQ> NSK	8-97253-114-0	01	1	0803-0810		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0811-	●	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.38	8-97252-656-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.44	8-97252-657-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.50	8-97252-658-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.56	8-97252-659-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.62	8-97252-660-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.68	8-97252-661-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.74	8-97252-662-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.80	8-97252-663-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.86	8-97252-664-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.92	8-97252-665-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.98	8-97257-621-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.20	8-97306-185-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.26	8-97306-186-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG<RJS> ID=70 T=1.32	8-97306-187-0	01	1	0811-	●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG<RDQ> ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●
408	SPRING 4HK1-TCN ENG<RDQ> (B)	8-94148-196-0	03	1	0803-		●
408	SPRING 4HK1-TCN ENG<RDQ> (A)	8-97366-040-1	04	1	0803-		●
423	SLEEVE & HUB ASM; 6TH 4HK1-TCN ENG<RDQ>	8-97367-022-0	01	1	0803-		●
480	WASHER; THRUST,6TH 4HK1-TCS ENG<RJS>	8-97253-122-1	01	1	0811-	●
480	WASHER; THRUST,6TH 4HK1-TCN ENG<RDQ>	8-97253-123-1	01	1	0803-		●
506	COLLAR; 6TH,COUNTER 4HK1-TCS ENG<RJS>	8-97253-120-1	01	1	0811-	●
506	COLLAR; 6TH,COUNTER 4HK1-TCN ENG<RDQ>	8-97253-121-1	01	1	0803-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCS ENG<RJS>	8-97253-106-0	02	1	0811-	●
507	BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCN ENG<RDQ>	8-97253-107-0	02	1	0803-		●
508	RING; BLOCK,6TH 4HK1-TCS ENG<RJS> Z=45	8-97241-306-1	01	1	0811-	●
508	RING; BLOCK,6TH 4HK1-TCN ENG<RDQ> Z=45	8-97309-532-0	01	1	0803-		●
510	PIN; STRAIGHT,ANTI LASH 4HK1-TCN ENG<RDQ>	9-08160-825-0	03	1	0803-		●
511	RING; SNAP,ANTI LASH PLATE 4HK1-TCN ENG<RDQ>	8-97254-767-0	01	1	0803-		●
527	INSERT; 6TH 4HK1-TCN ENG<RDQ>	8-94448-202-2	03	1	0803-		●
528	SLEEVE; 6TH 4HK1-TCN ENG<RDQ> Z=45	8-94421-871-1	01	1	0803-		●
529	PLATE; STOPPER,6TH 4HK1-TCN ENG<RDQ>	8-97248-952-0	01	1	0803-		●

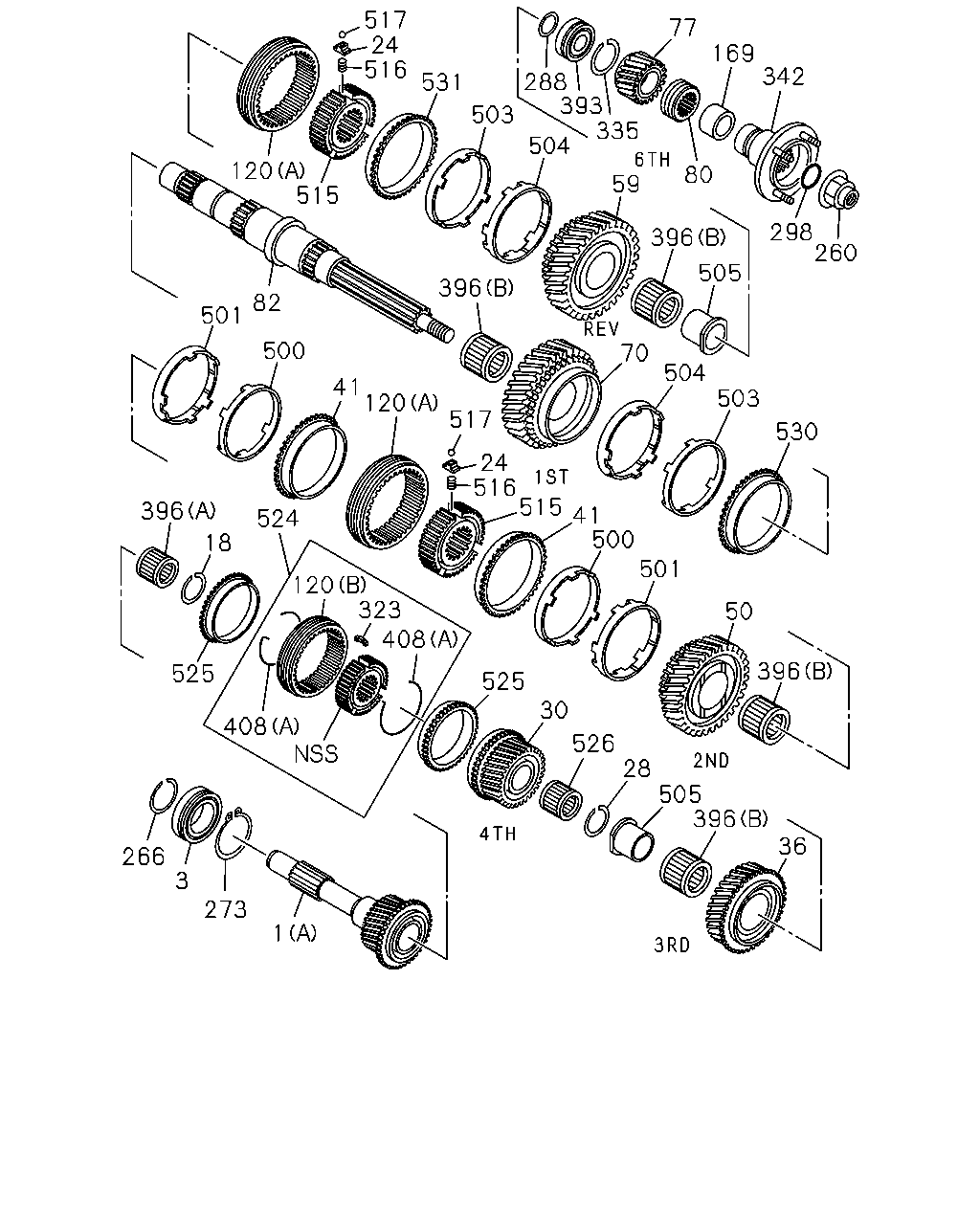

517 24 516 77 169 342 288 393 335 531 503 504 59 120 515 80 298 260 396 505 396 82 501 70 500 504 41 120 503 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG<RJS> (B) Z=25	8-97371-090-0	01	1	0811-	●
1	SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG<RDQ> (A) Z=26	8-98021-266-0	01	1	0803-		●
3	BEARING; TOP GEAR SHAFT 4HK1-TCS ENG<RJS> NSK	8-97253-097-1	01	1	0811-	●
3	BEARING; TOP GEAR SHAFT 4HK1-TCN ENG<RDQ> NSK	8-97253-098-1	01	1	0803-		●
18	RING; SNAP,CLU HUB 4HK1-TCS ENG<RJS> ID=35.7 T=1.8	8-97256-855-0	01	1	0811-	●
18	RING; SNAP,CLU HUB 4HK1-TCN ENG<RDQ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
24	BLOCK; INDEX,SYN 4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0811-	●
24	BLOCK; INDEX,SYN 4HK1-TCN ENG<RDQ>	8-97241-313-1	06	1	0803-		●
28	RING; SNAP,3RD GEAR 4HK1-TCN ENG<RDQ> ID=46.5 T=1.8	8-97254-743-0	01	1	0803-0810		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0811-	●	●
30	GEAR; 4TH,MAINSHAFT 4HK1-TCS ENG<RJS> Z=28	8-97252-628-0	01	1	0811-	●
30	GEAR; 4TH,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=28	8-97241-230-0	01	1	0803-		●
36	GEAR; 3RD,MAINSHAFT 4HK1-TCS ENG<RJS> Z=31	8-97252-630-1	01	1	0811-	●
36	GEAR; 3RD,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=34	8-97241-234-0	01	1	0803-		●
41	RING; BLOCK,2ND & 3RD 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	02	1	0811-	●
41	RING; BLOCK,2ND & 3RD 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	02	1	0803-		●
50	GEAR; 2ND,MAINSHAFT 4HK1-TCS ENG<RJS> Z=43	8-97241-236-1	01	1	0811-	●
50	GEAR; 2ND,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=38	8-97241-237-1	01	1	0803-		●
59	GEAR; REV MAINSHAFT 4HK1-TCS ENG<RJS> Z=45	8-97241-243-0	01	1	0811-	●
59	GEAR; REV MAINSHAFT 4HK1-TCN ENG<RDQ> Z=41	8-97350-011-0	01	1	0803-1006		●
59	GEAR; REV MAINSHAFT 4HK1-TCN ENG<RDQ> Z=41	8-97241-244-0	01	1	1007-		●
70	GEAR; 1ST,MAINSHAFT 4HK1-TCS ENG<RJS> Z=45	8-97241-241-0	01	1	0811-	●
70	GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=43	8-97350-010-0	01	1	0803-		●
77	GEAR; 6TH,MAINSHAFT 4HK1-TCS ENG<RJS> Z=20	8-97252-634-0	01	1	0811-	●
77	GEAR; 6TH,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=21	8-97386-582-0	01	1	0803-		●
80	GEAR; SPD DRIVE 4HK1-TCS ENG<RJS> Z=4	8-97253-555-0	01	1	0811-	●
80	GEAR; SPD DRIVE 4HK1-TCN ENG<RDQ> Z=4	8-97253-556-0	01	1	0803-		●
82	SHAFT; MAIN,TRANS 4HK1-TCS ENG<RJS> Z=26-42-23	8-97253-115-3	01	1	0811-	●
82	SHAFT; MAIN,TRANS 4HK1-TCN ENG<RDQ> Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
120	SLEEVE 4HK1-TCN ENG<RDQ> (B) Z=45	8-94421-871-1	01	1	0803-		●
120	SLEEVE 4HK1-TCN ENG<RDQ> (A) Z=45	8-97241-296-1	02	1	0803-1311		●
120	SLEEVE 4HK1-TCN ENG<RDQ> (A) Z=45	8-98258-279-0	02	1	1312-		●
169	COLLAR; MAINSHAFT 4HK1-TCN ENG<RDQ>	8-97252-937-1	01	1	0803-		●
260	NUT; MAINSHAFT END 4HK1-TCN ENG<RDQ> M27 H=25	8-97360-410-0	01	1	0803-0810		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0811-	●	●
266	RING; SNAP,BRG INNER 4HK1-TCS ENG<RJS>	8-97286-915-0	01	1	0811-	●
266	RING; SNAP,BRG INNER 4HK1-TCN ENG<RDQ>	8-97286-916-0	01	1	0803-		●
273	RING; SNAP,BRG OUTER 4HK1-TCS ENG<RJS>	8-97254-609-0	01	1	0811-	●
273	RING; SNAP,BRG OUTER 4HK1-TCN ENG<RDQ>	8-97254-610-0	01	1	0803-		●
288	SPACER; BRG,MAINSHAFT 4HK1-TCS ENG<RJS>	8-97252-941-0	01	1	0811-	●
288	SPACER; BRG,MAINSHAFT 4HK1-TCN ENG<RDQ>	8-97252-942-0	01	1	0803-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> ID=35.7 T=5	1-09623-379-0	01	1	0811-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●
323	INSERT 4HK1-TCN ENG<RDQ>	8-94448-202-2	03	1	0803-		●
335	RING; SNAP,BEARING 4HK1-TCS ENG<RJS>	8-97254-720-0	01	1	0811-	●
335	RING; SNAP,BEARING 4HK1-TCN ENG<RDQ>	8-97254-722-0	01	1	0803-		●
342	FLANGE; OUTPUT 4HK1-TCN ENG<RDQ>	8-98031-862-0	01	1	0803-		●
393	BEARING; MAINSHAFT END 4HK1-TCS ENG<RJS>	8-97253-104-0	01	1	0811-	●
393	BEARING; MAINSHAFT END 4HK1-TCN ENG<RDQ>	8-97253-105-1	01	1	0803-		●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCS ENG<RJS> (A)	8-97253-099-1	01	1	0811-	●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG<RDQ> (A)	8-97253-102-1	01	1	0803-		●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG<RDQ> (B)	8-97253-110-0	04	1	0803-0810		●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0811-	●	●
408	SPRING 4HK1-TCN ENG<RDQ> (B)	8-94148-196-0	03	1	0803-		●
408	SPRING 4HK1-TCN ENG<RDQ> (A)	8-97366-040-1	04	1	0803-		●
500	RING; OUTSIDE,3RD & 2ND 4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0811-	●
500	RING; OUTSIDE,3RD & 2ND 4HK1-TCN ENG<RDQ>	8-97241-309-1	02	1	0803-		●
501	RING; INSIDE,3RD & 2ND 4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0811-	●
501	RING; INSIDE,3RD & 2ND 4HK1-TCN ENG<RDQ>	8-97241-312-1	02	1	0803-		●
503	RING; OUTSIDE,LOW & REV 4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0811-	●
503	RING; OUTSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-309-1	02	1	0803-1006		●
503	RING; OUTSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-309-1	01	1	1007-		●
504	RING; INSIDE,LOW & REV 4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0811-	●
504	RING; INSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-312-1	02	1	0803-1006		●
504	RING; INSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-312-1	01	1	1007-		●
505	COLLAR; 3RD & REV 4HK1-TCN ENG<RDQ>	8-97253-119-2	02	1	0803-0810		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0811-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCS ENG<RJS>	8-97239-155-2	02	1	0811-	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG<RDQ>	8-97241-298-3	02	1	0803-		●
516	SPRING; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0811-	●
516	SPRING; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97254-835-0	06	1	0803-		●
517	BALL; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0811-	●
517	BALL; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97252-935-0	06	1	0803-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HK1-TCN ENG<RDQ>	8-97366-526-0	01	1	0803-		●
525	RING; BLOCK,TOP & 4TH,OD 4HK1-TCN ENG<RDQ> Z=45	8-97309-532-0	02	1	0803-		●
526	BEARING; NEEDLE,4TH & 5TH 4HK1-TCN ENG<RDQ>	8-97253-112-0	01	1	0803-		●
530	RING; BLOCK,LOW 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0811-	●
530	RING; BLOCK,LOW 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	01	1	0803-		●
531	RING; BLOCK,REV 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0811-	●
531	RING; BLOCK,REV 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	01	1	0803-1006		●
531	RING; BLOCK,REV 4HK1-TCN ENG<RDQ> Z=45	8-97368-343-0	01	1	1007-		●

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG<RJS> (B) Z=25	8-97371-090-0	01	1	0811-	●
1	SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG<RDQ> (A) Z=26	8-98021-266-0	01	1	0803-		●
3	BEARING; TOP GEAR SHAFT 4HK1-TCS ENG<RJS> NSK	8-97253-097-1	01	1	0811-	●
3	BEARING; TOP GEAR SHAFT 4HK1-TCN ENG<RDQ> NSK	8-97253-098-1	01	1	0803-		●
18	RING; SNAP,CLU HUB 4HK1-TCS ENG<RJS> ID=35.7 T=1.8	8-97256-855-0	01	1	0811-	●
18	RING; SNAP,CLU HUB 4HK1-TCN ENG<RDQ> ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
19	RING; BLOCK,4TH & 5TH 4HK1-TCS ENG<RJS> Z=45	8-97241-306-1	02	1	0811-	●
20	SLEEVE 4HK1-TCS ENG<RJS> (B) Z=54	8-97241-295-2	02	1	0811-	●
20	SLEEVE 4HK1-TCS ENG<RJS> (A) Z=45	8-97241-296-1	02	1	0811-1311	●
20	SLEEVE 4HK1-TCS ENG<RJS> (A) Z=45	8-98258-279-0	02	1	1312-	●
21	HUB; CLU,4TH & 5TH 4HK1-TCS ENG<RJS>	8-97241-299-3	01	1	0811-	●
24	BLOCK; INDEX,SYN 4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0811-	●
24	BLOCK; INDEX,SYN 4HK1-TCN ENG<RDQ>	8-97241-313-1	06	1	0803-		●
28	RING; SNAP,3RD GEAR 4HK1-TCN ENG<RDQ> ID=46.5 T=1.8	8-97254-743-0	01	1	0803-0810		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0811-	●	●
30	GEAR; 4TH,MAINSHAFT 4HK1-TCS ENG<RJS> Z=28	8-97252-628-0	01	1	0811-	●
30	GEAR; 4TH,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=28	8-97241-230-0	01	1	0803-		●
36	GEAR; 3RD,MAINSHAFT 4HK1-TCS ENG<RJS> Z=31	8-97252-630-1	01	1	0811-	●
36	GEAR; 3RD,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=34	8-97241-234-0	01	1	0803-		●
41	RING; BLOCK,2ND & 3RD 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	02	1	0811-	●
41	RING; BLOCK,2ND & 3RD 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	02	1	0803-		●
50	GEAR; 2ND,MAINSHAFT 4HK1-TCS ENG<RJS> Z=43	8-97241-236-1	01	1	0811-	●
50	GEAR; 2ND,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=38	8-97241-237-1	01	1	0803-		●
59	GEAR; REV MAINSHAFT 4HK1-TCS ENG<RJS> Z=45	8-97241-243-0	01	1	0811-	●
59	GEAR; REV MAINSHAFT 4HK1-TCN ENG<RDQ> Z=41	8-97350-011-0	01	1	0803-1006		●
59	GEAR; REV MAINSHAFT 4HK1-TCN ENG<RDQ> Z=41	8-97241-244-0	01	1	1007-		●
70	GEAR; 1ST,MAINSHAFT 4HK1-TCS ENG<RJS> Z=45	8-97241-241-0	01	1	0811-	●
70	GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=43	8-97350-010-0	01	1	0803-		●
77	GEAR; 6TH,MAINSHAFT 4HK1-TCS ENG<RJS> Z=20	8-97252-634-0	01	1	0811-	●
77	GEAR; 6TH,MAINSHAFT 4HK1-TCN ENG<RDQ> Z=21	8-97386-582-0	01	1	0803-		●
80	GEAR; SPD DRIVE 4HK1-TCS ENG<RJS> Z=4	8-97253-555-0	01	1	0811-	●
80	GEAR; SPD DRIVE 4HK1-TCN ENG<RDQ> Z=4	8-97253-556-0	01	1	0803-		●
82	SHAFT; MAIN,TRANS 4HK1-TCS ENG<RJS> Z=26-42-23	8-97253-115-3	01	1	0811-	●
82	SHAFT; MAIN,TRANS 4HK1-TCN ENG<RDQ> Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
260	NUT; MAINSHAFT END 4HK1-TCN ENG<RDQ> M27 H=25	8-97360-410-0	01	1	0803-0810		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0811-	●	●
266	RING; SNAP,BRG INNER 4HK1-TCS ENG<RJS>	8-97286-915-0	01	1	0811-	●
266	RING; SNAP,BRG INNER 4HK1-TCN ENG<RDQ>	8-97286-916-0	01	1	0803-		●
273	RING; SNAP,BRG OUTER 4HK1-TCS ENG<RJS>	8-97254-609-0	01	1	0811-	●
273	RING; SNAP,BRG OUTER 4HK1-TCN ENG<RDQ>	8-97254-610-0	01	1	0803-		●
288	SPACER; BRG,MAINSHAFT 4HK1-TCS ENG<RJS>	8-97252-941-0	01	1	0811-	●
288	SPACER; BRG,MAINSHAFT 4HK1-TCN ENG<RDQ>	8-97252-942-0	01	1	0803-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> ID=35.7 T=5	1-09623-379-0	01	1	0811-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●
335	RING; SNAP,BEARING 4HK1-TCS ENG<RJS>	8-97254-720-0	01	1	0811-	●
335	RING; SNAP,BEARING 4HK1-TCN ENG<RDQ>	8-97254-722-0	01	1	0803-		●
393	BEARING; MAINSHAFT END 4HK1-TCS ENG<RJS>	8-97253-104-0	01	1	0811-	●
393	BEARING; MAINSHAFT END 4HK1-TCN ENG<RDQ>	8-97253-105-1	01	1	0803-		●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCS ENG<RJS> (A)	8-97253-099-1	01	1	0811-	●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG<RDQ> (A)	8-97253-102-1	01	1	0803-		●
396	BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG<RDQ> (B)	8-97253-110-0	04	1	0803-0810		●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0811-	●	●
432	BEARING; NEEDLE,4TH 4HK1-TCS ENG<RJS> NSK	8-97253-111-0	01	1	0811-	●
500	RING; OUTSIDE,3RD & 2ND 4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0811-	●
500	RING; OUTSIDE,3RD & 2ND 4HK1-TCN ENG<RDQ>	8-97241-309-1	02	1	0803-		●
501	RING; INSIDE,3RD & 2ND 4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0811-	●
501	RING; INSIDE,3RD & 2ND 4HK1-TCN ENG<RDQ>	8-97241-312-1	02	1	0803-		●
503	RING; OUTSIDE,LOW & REV 4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0811-	●
503	RING; OUTSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-309-1	02	1	0803-1006		●
503	RING; OUTSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-309-1	01	1	1007-		●
504	RING; INSIDE,LOW & REV 4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0811-	●
504	RING; INSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-312-1	02	1	0803-1006		●
504	RING; INSIDE,LOW & REV 4HK1-TCN ENG<RDQ>	8-97241-312-1	01	1	1007-		●
505	COLLAR; 3RD & REV 4HK1-TCN ENG<RDQ>	8-97253-119-2	02	1	0803-0810		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0811-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCS ENG<RJS>	8-97239-155-2	02	1	0811-	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG<RDQ>	8-97241-298-3	02	1	0803-		●
516	SPRING; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0811-	●
516	SPRING; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97254-835-0	06	1	0803-		●
517	BALL; SYNCHRO,INDEX 4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0811-	●
517	BALL; SYNCHRO,INDEX 4HK1-TCN ENG<RDQ>	8-97252-935-0	06	1	0803-		●
530	RING; BLOCK,LOW 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0811-	●
530	RING; BLOCK,LOW 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	01	1	0803-		●
531	RING; BLOCK,REV 4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0811-	●
531	RING; BLOCK,REV 4HK1-TCN ENG<RDQ> Z=45	8-97241-306-1	01	1	0803-1006		●
531	RING; BLOCK,REV 4HK1-TCN ENG<RDQ> Z=45	8-97368-343-0	01	1	1007-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
