Sayfa 2-25 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶

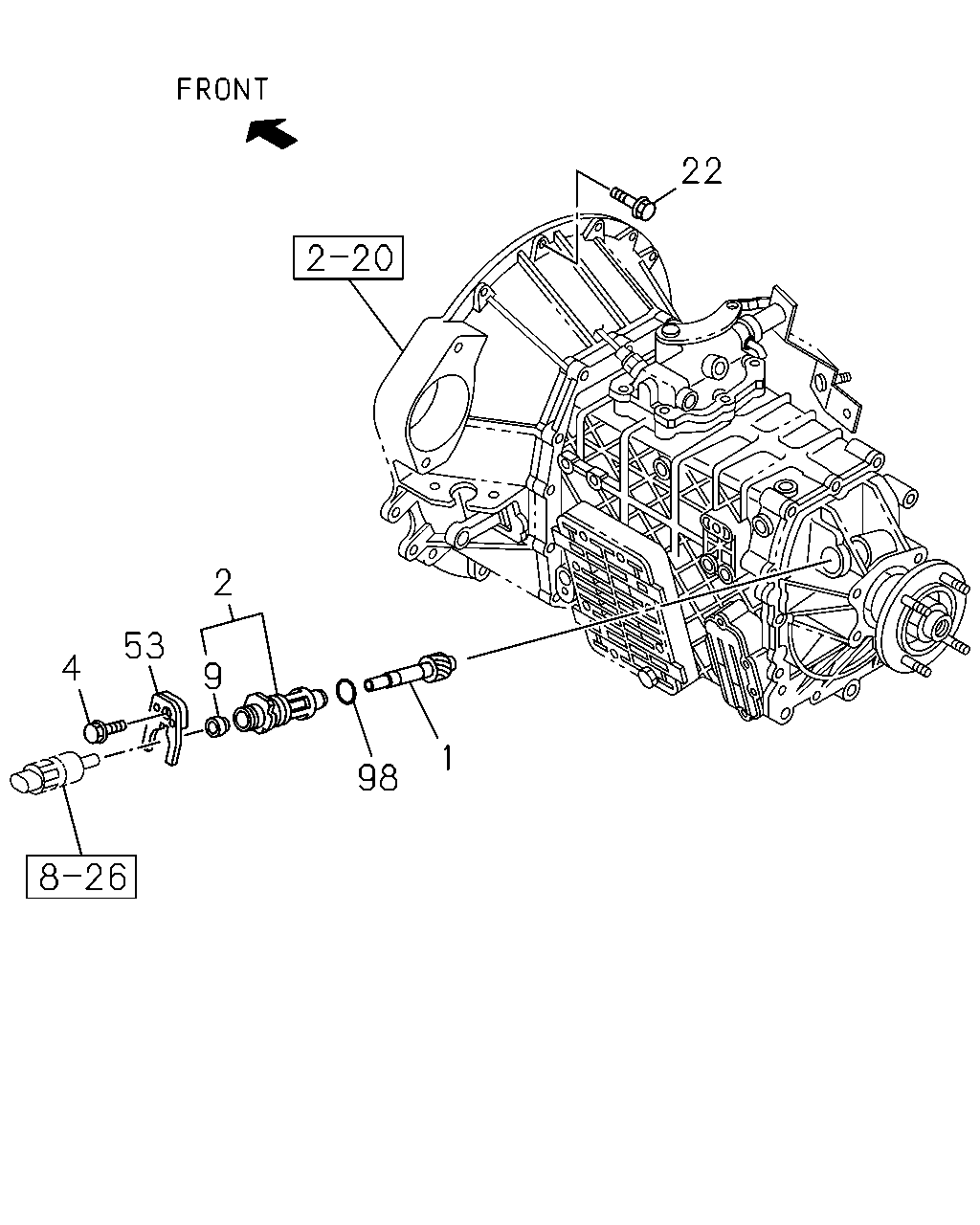

2-25 — SPEEDOMETER DRIVEN GEAR (#74566) — 42 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=11	8-97253-559-1	01	1	0803-0810	●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=11	8-97253-559-1	01	1	0811-0902	●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 16X6.00GS-135 6-WHL/NUT<CUK>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=11	8-97253-559-1	01	1	0811-0902		●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=11	8-97253-559-1	01	1	0903-0903	●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=11	8-97253-559-1	01	1	0903-0903		●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=11	8-97253-559-1	01	1	0904-	●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=11	8-97253-559-1	01	1	0904-		●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12	8-97253-563-1	01	1	0803-0902	●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12	8-97253-563-1	01	1	0903-0903	●
1	GEAR; DRIVEN,SPD M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12	8-97253-563-1	01	1	0904-	●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5> FRT&RR 8.25R-16-14 16X6.00GS-135 6-WHL/NUT<CUK>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10	8-97253-579-1	01	1	0811-0902		●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10	8-97253-579-1	01	1	0903-0903		●
1	GEAR; DRIVEN,SPD M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10	8-97253-579-1	01	1	0904-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17"	8-97253-124-0	01	1	0803-0810	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17"	8-97253-124-0	01	1	0811-0902	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 16X6.00GS-135 6-WHL/NUT<CUK>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "10,11,16,17"	8-97253-124-0	01	1	0811-0902		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17"	8-97253-124-0	01	1	0903-0903	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "10,11,16,17"	8-97253-124-0	01	1	0903-0903		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17"	8-97253-124-0	01	1	0904-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "10,11,16,17"	8-97253-124-0	01	1	0904-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT<83V>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15"	8-97253-125-0	01	1	0803-0902	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15"	8-97253-125-0	01	1	0903-0903	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15"	8-97253-125-0	01	1	0904-	●
4	BOLT; RET,DRIVEN GEAR M/T MYY6S<RST> M8X20 FLANGE THA	0-28650-820-0	01	1	0803-0810	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	0811-	●	●
9	SEAL; OIL,DRIVEN GEAR M/T MYY6S<RST> NOK	8-97131-328-1	01	1	0803-0810	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	0811-	●	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> M10X35 FLANGE	0-28151-035-0	03	1	0803-0810	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	0811-	●	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> M10X55 FLANGE	8-97365-449-0	02	1	0803-0810	●
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE	8-97365-449-0	02	1	0811-	●	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0803-	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0803-0810	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> M10X30 FLANGE	0-28151-030-0	02	1	0803-0810	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0811-	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> M10X30 FLANGE	0-28151-030-0	02	1	0811-	●
22	BOLT; TRANS CASE TO ENG 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M10X30 FLANGE	0-28151-030-0	02	1	0811-		●
22	BOLT; TRANS CASE TO ENG 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M10X30 FLANGE	0-28151-030-0	02	1	0811-		●
53	PLATE; LOCK,DRIVEN GEAR M/T MYY6S<RST>	8-98046-217-0	01	1	0803-0810	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0811-	●	●
98	SEAL; OIL,BUSH M/T MYY6S<RST>	9-09561-324-0	01	1	0803-0810	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
