2-20 — MANUAL TRANSMISSION ASM AND CASE (#74565) — 136 parça

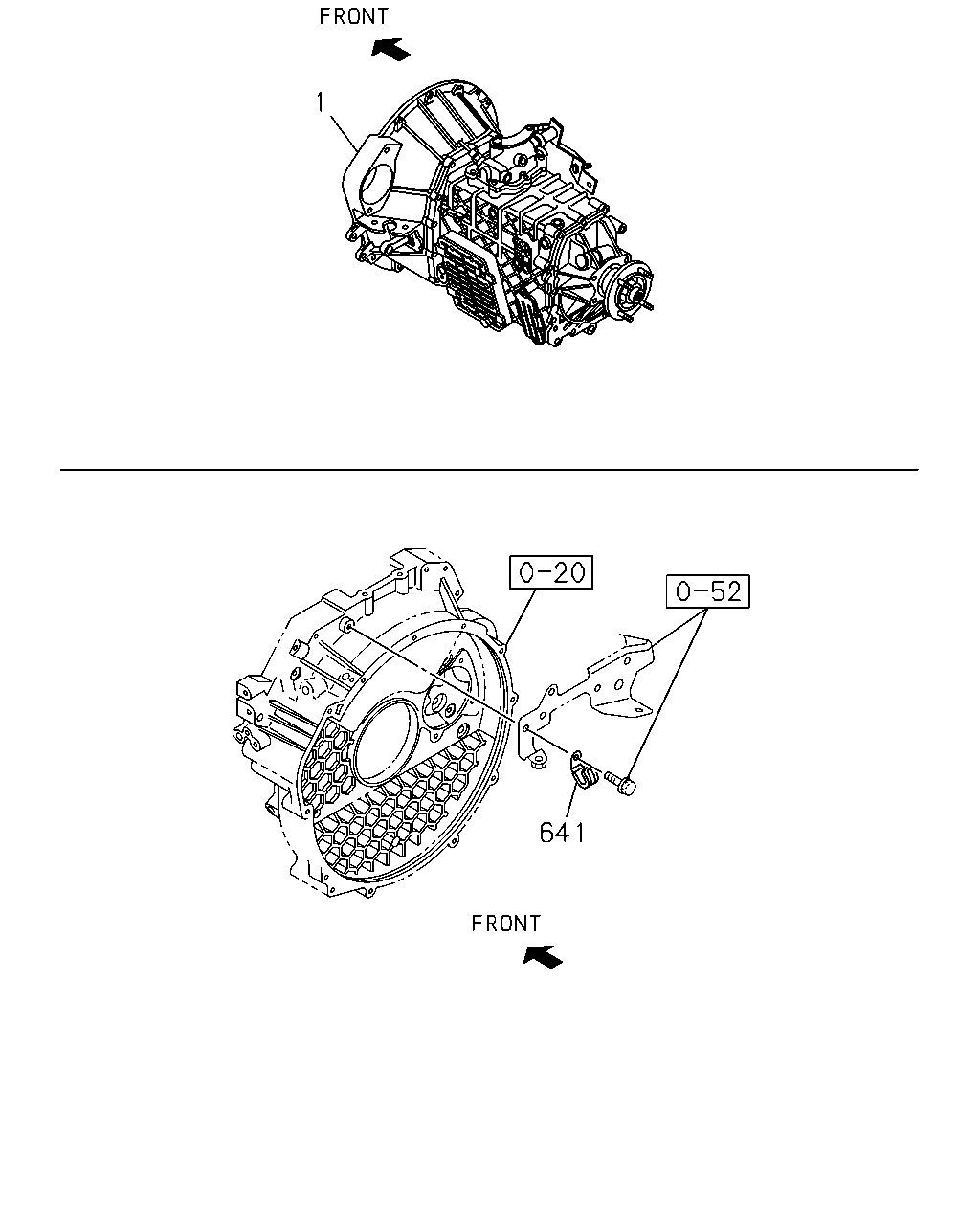

1 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66>	8-98066-931-0	01	1	0811-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-98066-931-0	01	1	0811-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66>	8-98067-680-0	01	1	0803-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCN ENG<RDQ> EXC. PTO TRANSMISSION SIDE<V66>	8-98067-680-0	01	1	0803-		●
641	CLIP; CAM SENSOR 4HK1-TCN ENG<RDQ> ID=8	8-94107-659-0	01	1	0803-0804		●

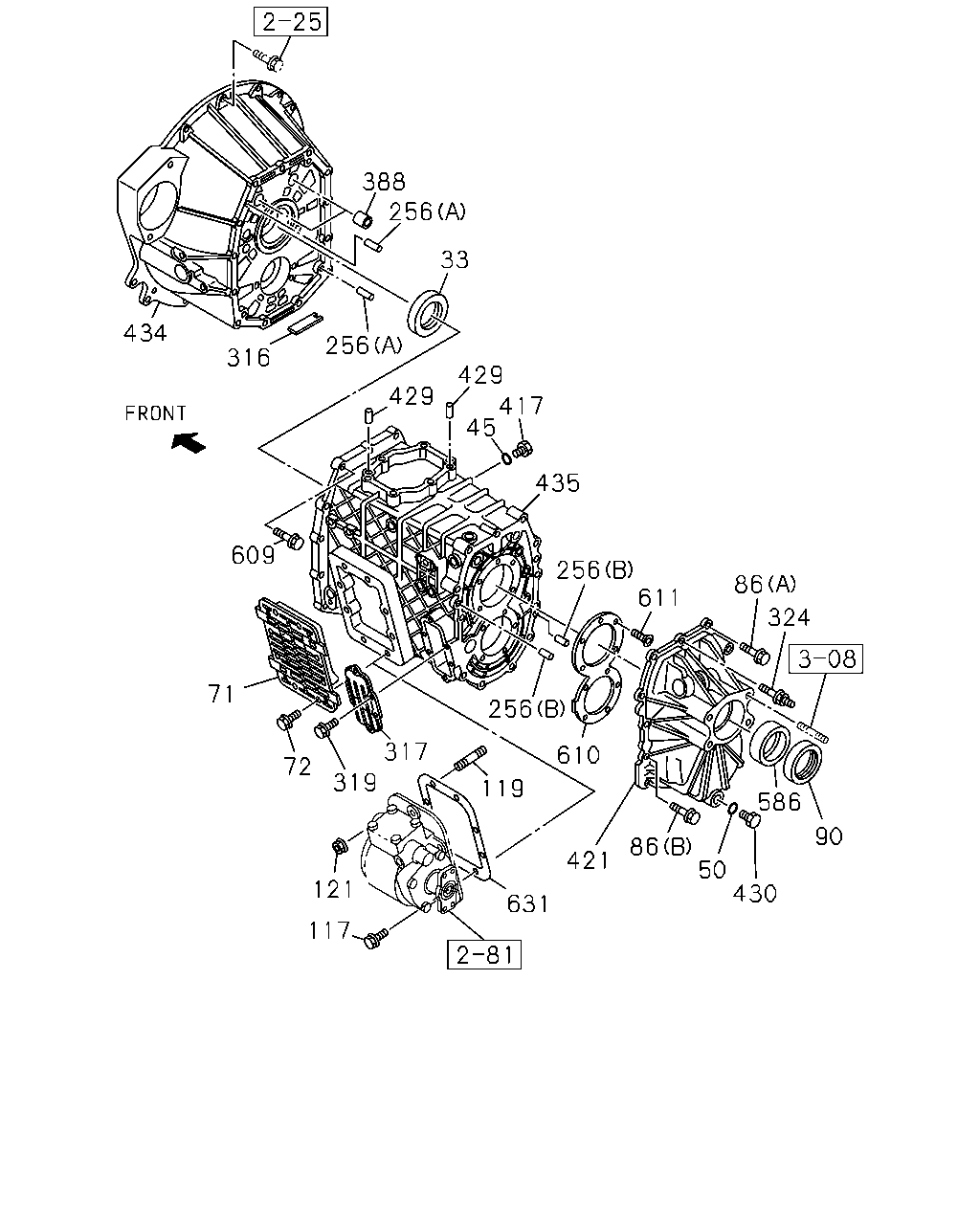

388 256 33 434 256 316 429 429 417 45 435 609 256 611 86 256 324 71 317 610 72 319 119 586 90 86 50 430 421 121 631 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ>	8-97253-550-0	01	1	0803-0810		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0811-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=17	8-97115-712-0	01	1	0803-0810		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0811-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> ID=17	8-97115-712-0	01	1	0811-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=17	8-97115-712-0	02	1	0803-		●
71	COVER; SIDE,TRANS CASE 4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0811-	●
71	COVER; SIDE,TRANS CASE 4HK1-TCN ENG<RDQ> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0803-		●
72	BOLT; SIDE COVER 4HK1-TCN ENG<RDQ> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-98014-142-0	06	1	0803-		●
72	BOLT; SIDE COVER 4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-98014-142-0	08	1	0811-	●
86	BOLT; RR COVER 4HK1-TCS ENG<RJS> (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (A) M10X40 FLANGE	0-28151-040-0	10	1	0803-0810		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0811-1405	●	●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (B) M10X40 FLANGE	8-97365-377-0	02	1	0803-0810		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0811-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> NOK	8-97253-551-1	01	1	0811-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> NOK	8-97253-552-1	01	1	0803-		●
117	BOLT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	8-98044-944-0	06	1	0811-	●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0803-1107		●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	02	1	1108-		●
119	STUD; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	0811-1107	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	1108-	●	●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	03	1	0803-1107		●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 L=45	0-44011-030-0	02	1	1108-		●
121	NUT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	02	1	0811-	●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	03	1	0803-1006		●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	04	1	1007-		●
256	PIN; KNOCK 4HK1-TCN ENG<RDQ> (A) OD=10 L=20	8-97135-423-0	02	1	0803-0810		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0811-	●	●
256	PIN; KNOCK 4HK1-TCN ENG<RDQ> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0803-0810		●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	0811-	●	●
316	MAGNET; TRANS CASE 4HK1-TCN ENG<RDQ>	8-94249-524-2	01	1	0803-0810		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0811-	●	●
317	COVER; CASE 4HK1-TCN ENG<RDQ>	8-97252-626-0	01	1	0803-0810		●
317	COVER; CASE	8-97252-626-0	01	1	0811-	●	●
319	BOLT; COVER 4HK1-TCN ENG<RDQ> M8X20 FLANGE THA	0-28050-820-0	06	1	0803-0810		●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	0811-	●	●
324	STUD; RR COVER 4HK1-TCS ENG<RJS> M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
324	STUD; RR COVER 4HK1-TCN ENG<RDQ> M10X15,M10X40 L=65	8-97365-379-0	01	1	0803-0810		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0811-1405	●	●
324	STUD; RR COVER 4HK1-TCN ENG<RDQ> M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
388	BUSHING; CLU HSG 4HK1-TCN ENG<RDQ>	8-97241-326-2	02	1	0803-0810		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0811-	●	●
417	PLUG; OIL FILLER,TRANS 4HK1-TCN ENG<RDQ>	8-97365-373-0	01	1	0803-0810		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0811-	●	●
421	COVER; RR,TRANS 4HK1-TCS ENG<RJS>	8-97238-934-5	01	1	0811-	●
421	COVER; RR,TRANS 4HK1-TCN ENG<RDQ>	8-98020-028-0	01	1	0803-		●
429	PIN; STRAIGHT 4HK1-TCN ENG<RDQ> OD=10 L=20	8-97135-423-0	02	1	0803-0810		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0811-	●	●
430	PLUG; OIL DRAIN 4HK1-TCS ENG<RJS>	8-97365-374-0	01	1	0811-	●
430	PLUG; OIL DRAIN 4HK1-TCN ENG<RDQ>	8-97365-374-0	02	1	0803-		●
434	HOUSING; CLU 4HK1-TCS ENG<RJS>	8-97238-930-4	01	1	0811-	●
434	HOUSING; CLU 4HK1-TCN ENG<RDQ>	8-97237-099-5	01	1	0803-		●
435	CASE; TRANS 4HK1-TCS ENG<RJS>	8-97382-868-1	01	1	0811-	●
435	CASE; TRANS 4HK1-TCN ENG<RDQ>	8-97379-374-0	01	1	0803-		●
586	BEARING; NEEDLE 4HK1-TCS ENG<RJS>	8-97253-108-0	01	1	0811-	●
586	BEARING; NEEDLE 4HK1-TCN ENG<RDQ>	8-97253-109-0	01	1	0803-		●
609	BOLT; HSG TO CASE 4HK1-TCN ENG<RDQ> M10X40 FLANGE	0-28151-040-0	13	1	0803-0810		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0811-	●	●
610	RETAINER; BRG 4HK1-TCS ENG<RJS>	8-97241-314-2	01	1	0811-	●
610	RETAINER; BRG 4HK1-TCN ENG<RDQ>	8-97241-315-1	01	1	0803-		●
611	SCREW 4HK1-TCS ENG<RJS> M10X27 TORQUES	8-97365-354-0	10	1	0811-	●
611	SCREW 4HK1-TCN ENG<RDQ> M10X27 TORQUES	8-97365-354-0	11	1	0803-		●
631	SPACER; PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66>	8-97328-662-0	01	1	0811-	●

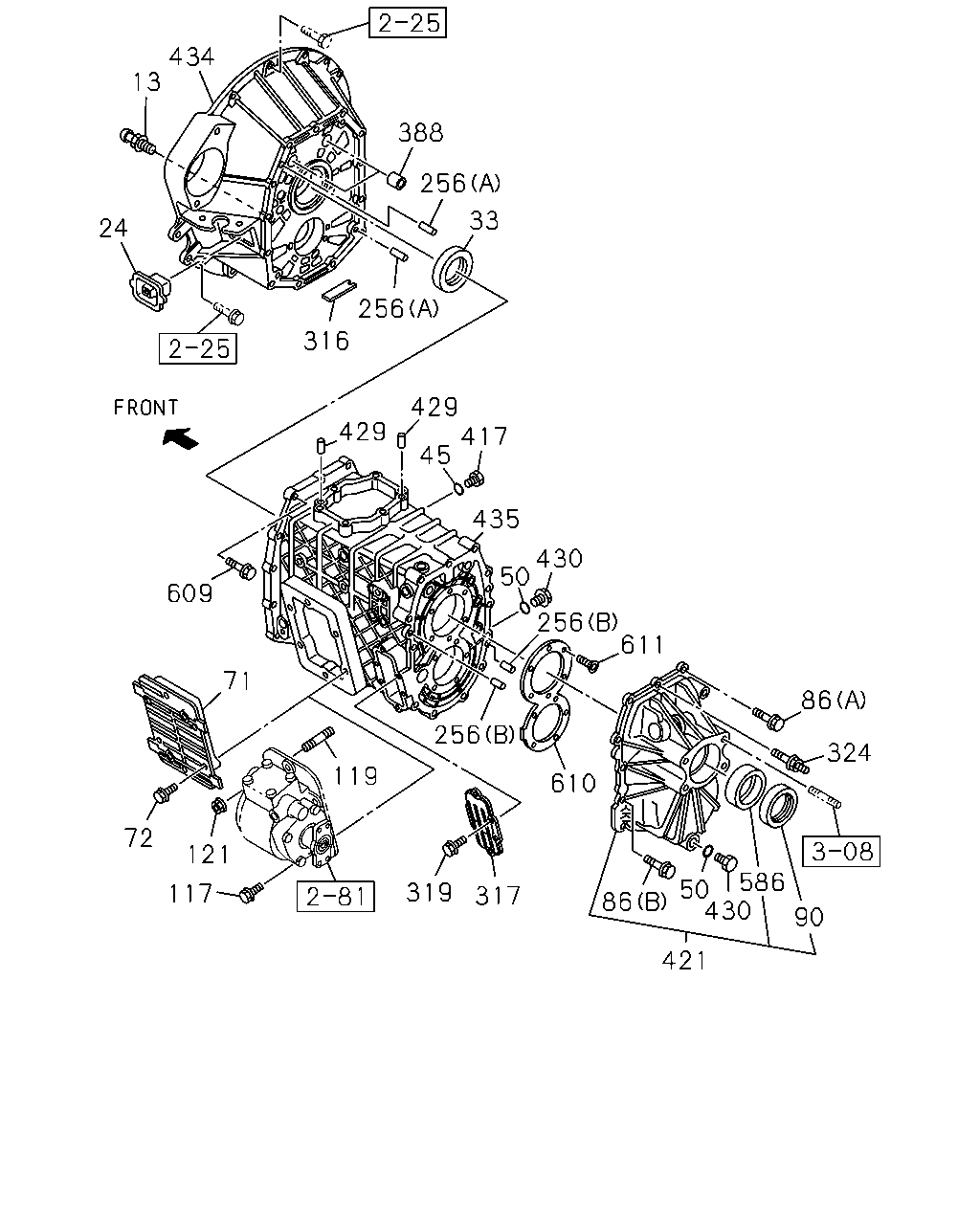

434 13 388 256 33 24 256 316 429 417 45 429 435 430 50 609 256 611 256 71 86 324 119 610 72 121 586 50 430 319 117 317 86 90 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK 4HK1-TCN ENG<RDQ>	8-97255-385-1	01	1	0803-		●
24	COVER; CHECK HOLE,DUST 4HK1-TCN ENG<RDQ>	8-97255-201-0	01	1	0803-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ>	8-97253-550-0	01	1	0803-0810		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0811-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=17	8-97115-712-0	01	1	0803-0810		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0811-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> ID=17	8-97115-712-0	01	1	0811-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> ID=17	8-97115-712-0	02	1	0803-		●
71	COVER; SIDE,TRANS CASE 4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0811-	●
71	COVER; SIDE,TRANS CASE 4HK1-TCN ENG<RDQ> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0803-		●
72	BOLT; SIDE COVER 4HK1-TCN ENG<RDQ> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-98014-142-0	06	1	0803-		●
72	BOLT; SIDE COVER 4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-98014-142-0	08	1	0811-	●
86	BOLT; RR COVER 4HK1-TCS ENG<RJS> (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (A) M10X40 FLANGE	0-28151-040-0	10	1	0803-0810		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0811-1405	●	●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER 4HK1-TCN ENG<RDQ> (B) M10X40 FLANGE	8-97365-377-0	02	1	0803-0810		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0811-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> NOK	8-97253-551-1	01	1	0811-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG<RDQ> NOK	8-97253-552-1	01	1	0803-		●
117	BOLT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	8-98044-944-0	06	1	0811-	●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0803-1107		●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	02	1	1108-		●
119	STUD; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	0811-1107	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	1108-	●	●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	03	1	0803-1107		●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10X30 L=45	0-44011-030-0	02	1	1108-		●
121	NUT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	02	1	0811-	●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	03	1	0803-1006		●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	04	1	1007-		●
256	PIN; KNOCK 4HK1-TCN ENG<RDQ> (A) OD=10 L=20	8-97135-423-0	02	1	0803-0810		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0811-	●	●
256	PIN; KNOCK 4HK1-TCN ENG<RDQ> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0803-0810		●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	0811-	●	●
316	MAGNET; TRANS CASE 4HK1-TCN ENG<RDQ>	8-94249-524-2	01	1	0803-0810		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0811-	●	●
317	COVER; CASE 4HK1-TCN ENG<RDQ>	8-97252-626-0	01	1	0803-0810		●
317	COVER; CASE	8-97252-626-0	01	1	0811-	●	●
319	BOLT; COVER 4HK1-TCN ENG<RDQ> M8X20 FLANGE THA	0-28050-820-0	06	1	0803-0810		●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	0811-	●	●
324	STUD; RR COVER 4HK1-TCS ENG<RJS> M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
324	STUD; RR COVER 4HK1-TCN ENG<RDQ> M10X15,M10X40 L=65	8-97365-379-0	01	1	0803-0810		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0811-1405	●	●
324	STUD; RR COVER 4HK1-TCN ENG<RDQ> M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
388	BUSHING; CLU HSG 4HK1-TCN ENG<RDQ>	8-97241-326-2	02	1	0803-0810		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0811-	●	●
417	PLUG; OIL FILLER,TRANS 4HK1-TCN ENG<RDQ>	8-97365-373-0	01	1	0803-0810		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0811-	●	●
421	COVER; RR,TRANS 4HK1-TCS ENG<RJS>	8-97238-934-5	01	1	0811-	●
421	COVER; RR,TRANS 4HK1-TCN ENG<RDQ>	8-98020-028-0	01	1	0803-		●
429	PIN; STRAIGHT 4HK1-TCN ENG<RDQ> OD=10 L=20	8-97135-423-0	02	1	0803-0810		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0811-	●	●
430	PLUG; OIL DRAIN 4HK1-TCS ENG<RJS>	8-97365-374-0	01	1	0811-	●
430	PLUG; OIL DRAIN 4HK1-TCN ENG<RDQ>	8-97365-374-0	02	1	0803-		●
434	HOUSING; CLU 4HK1-TCS ENG<RJS>	8-97238-930-4	01	1	0811-	●
434	HOUSING; CLU 4HK1-TCN ENG<RDQ>	8-97237-099-5	01	1	0803-		●
435	CASE; TRANS 4HK1-TCS ENG<RJS>	8-97382-868-1	01	1	0811-	●
435	CASE; TRANS 4HK1-TCN ENG<RDQ>	8-97379-374-0	01	1	0803-		●
586	BEARING; NEEDLE 4HK1-TCS ENG<RJS>	8-97253-108-0	01	1	0811-	●
586	BEARING; NEEDLE 4HK1-TCN ENG<RDQ>	8-97253-109-0	01	1	0803-		●
609	BOLT; HSG TO CASE 4HK1-TCN ENG<RDQ> M10X40 FLANGE	0-28151-040-0	13	1	0803-0810		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0811-	●	●
610	RETAINER; BRG 4HK1-TCS ENG<RJS>	8-97241-314-2	01	1	0811-	●
610	RETAINER; BRG 4HK1-TCN ENG<RDQ>	8-97241-315-1	01	1	0803-		●
611	SCREW 4HK1-TCS ENG<RJS> M10X27 TORQUES	8-97365-354-0	10	1	0811-	●
611	SCREW 4HK1-TCN ENG<RDQ> M10X27 TORQUES	8-97365-354-0	11	1	0803-		●
