2-08 — CLUTCH MASTER CYLINDER (#74563) — 48 parça

1 8 9 64 7 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T> (B)	8-98098-250-0	01	1	0803-0810	●
1	CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-98098-250-0	01	1	0811-	●	●
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97162-963-0	01	1	0803-0803	●
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-639-0	01	1	0804-0810	●
1	CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-639-0	01	1	0811-	●	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T>	5-87832-221-0	01	1	0803-0810	●
2	REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87832-221-0	01	1	0811-	●	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0803-0803	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0804-0810	●
2	REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0811-	●	●
7	SPRING ASM; CLU M/CYL 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T>	8-98077-784-0	01	1	0803-0810	●
7	SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-98077-784-0	01	1	0811-	●	●
7	SPRING ASM; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0803-0810	●
7	SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0811-	●	●
8	CONNECTOR; PIPE,CLU M/CYL 4HK1-TCN ENG<RDQ>	8-97163-191-0	01	1	0803-0810	●
8	CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	0811-	●	●
9	CLAMP; PIPE CONNECTOR,CLU M/CYL 4HK1-TCN ENG<RDQ>	8-97167-773-0	01	1	0803-0810	●
9	CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	0811-	●	●
64	GASKET; CONNECTOR 4HK1-TCN ENG<RDQ>	8-97167-767-0	01	1	0803-0810	●
64	GASKET; CONNECTOR	8-97167-767-0	01	1	0811-	●	●

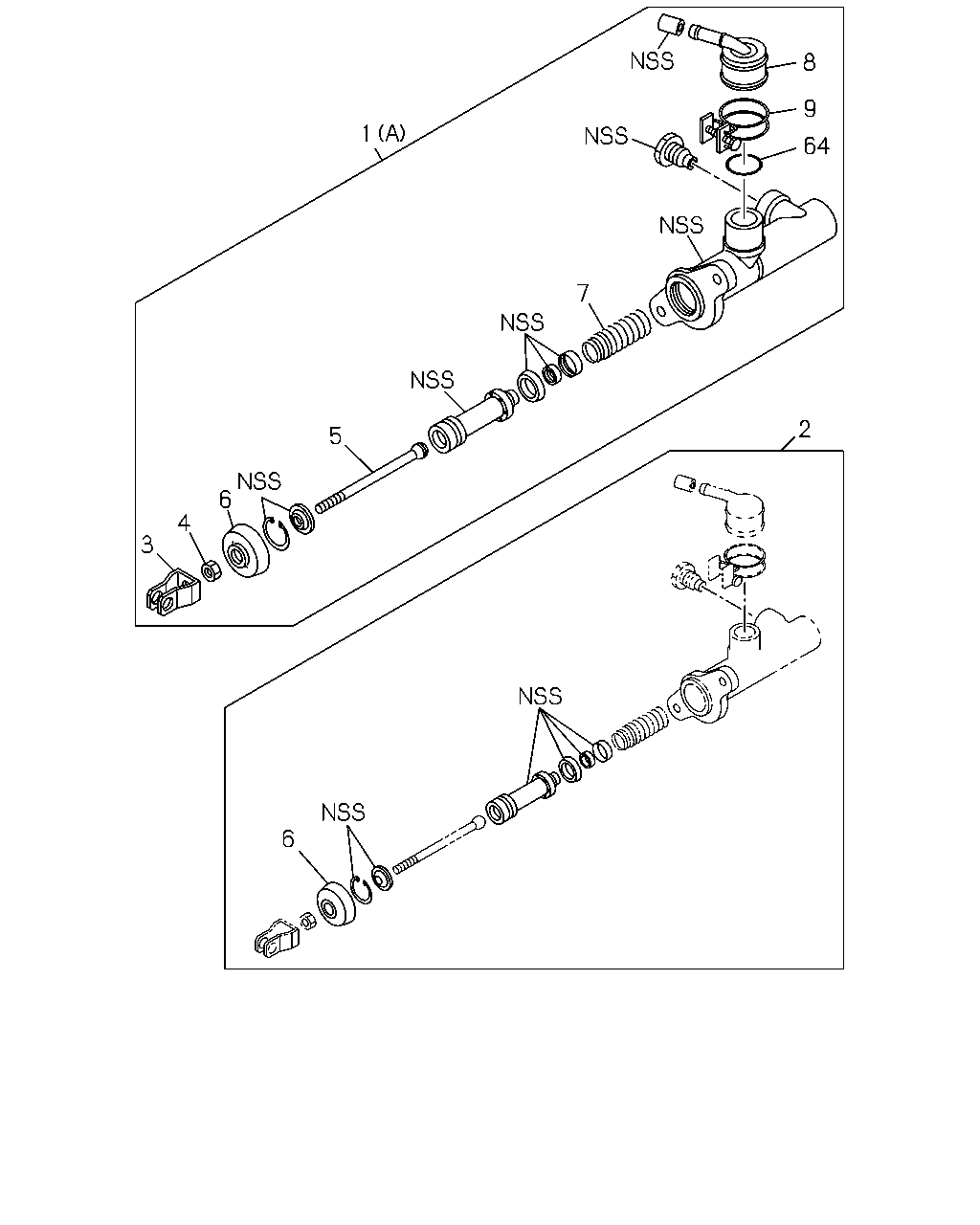

8 9 1 64 7 2 5 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T> (B)	8-98098-250-0	01	1	0803-0810	●
1	CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-98098-250-0	01	1	0811-	●	●
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97162-963-0	01	1	0803-0803	●
1	CYLINDER ASM; CLUTCH MASTER 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-639-0	01	1	0804-0810	●
1	CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-639-0	01	1	0811-	●	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T>	5-87832-221-0	01	1	0803-0810	●
2	REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87832-221-0	01	1	0811-	●	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0803-0803	●
2	REPAIR KIT; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0804-0810	●
2	REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0811-	●	●
3	JOINT; JAW,CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	0803-0810	●
3	JOINT; JAW,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	0811-	●	●
4	NUT; JAW JOINT 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T> M8	0-91111-508-0	01	1	0803-0810	●
4	NUT; JAW JOINT EXC. POWER ASSIST CLUTCH<S2T> M8	0-91111-508-0	01	1	0811-	●	●
5	ROD; PUSH,CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	0803-0810	●
5	ROD; PUSH,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	0811-	●	●
6	BOOT; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0803-0810	●
6	BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0811-	●	●
7	SPRING ASM; CLU M/CYL 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T>	8-98077-784-0	01	1	0803-0810	●
7	SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-98077-784-0	01	1	0811-	●	●
7	SPRING ASM; CLU M/CYL 4HK1-TCN ENG<RDQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0803-0810	●
7	SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0811-	●	●
8	CONNECTOR; PIPE,CLU M/CYL 4HK1-TCN ENG<RDQ>	8-97163-191-0	01	1	0803-0810	●
8	CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	0811-	●	●
9	CLAMP; PIPE CONNECTOR,CLU M/CYL 4HK1-TCN ENG<RDQ>	8-97167-773-0	01	1	0803-0810	●
9	CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	0811-	●	●
64	GASKET; CONNECTOR 4HK1-TCN ENG<RDQ>	8-97167-767-0	01	1	0803-0810	●
64	GASKET; CONNECTOR	8-97167-767-0	01	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
