2-05 — CLUTCH PIPING (#74560) — 43 parça

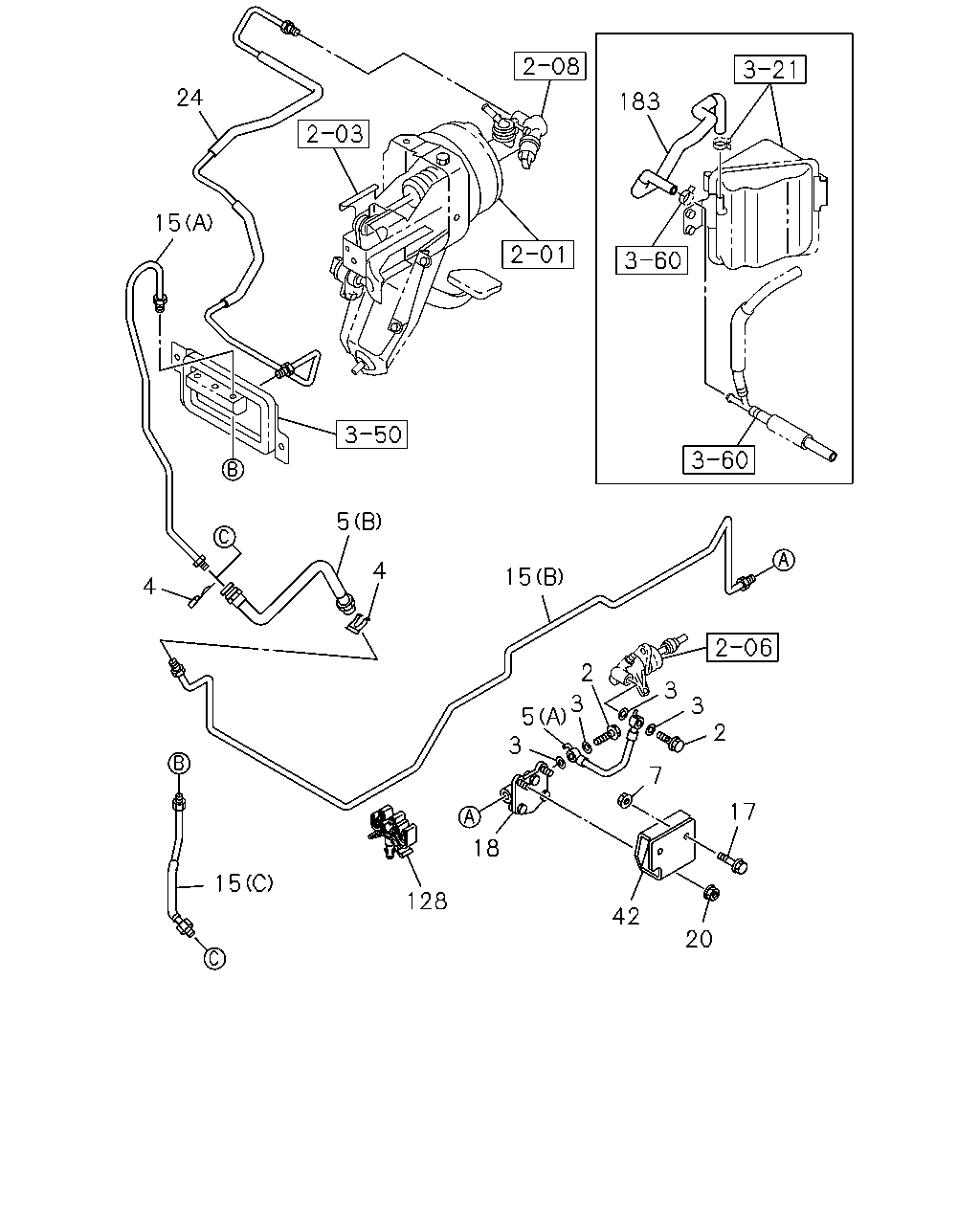

çizim 102617
24 183 15 5 4 15 4 2 3 3 3 2 5 3 7 17 18 15 128 42 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
4HK1-TCN ENG<RDQ> M10X22 		8-97381-454-0 02 1 0803-0810 ●
2 BOLT; EYE,SLAVE CYL
M10X22 		8-97381-454-0 02 1 0811-0905 ● ●
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-98014-005-0 02 1 0906- ● ●
3 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG<RDQ> ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 0803-0810 ●
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 0811- ● ●
4 CLIP; FLEX HOSE,CLU CONT
4HK1-TCN ENG<RDQ> 		8-97365-304-0 02 1 0803-0810 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0811- ● ●
5 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG<RDQ> (A) 		8-98077-611-2 01 1 0803-0810 ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 0811- ● ●
5 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG<RDQ> (B) 		8-98083-907-0 01 1 0803-0810 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0811- ● ●
7 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG<RDQ> M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98043-499-3 01 1 0811- ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-643-0 01 1 0803-1311 ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98250-269-0 01 1 1312- ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-742-3 01 1 0803-0810 ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-742-3 01 1 0811- ● ●
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1207-1210 ● ●
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1211- ● ●
17 BOLT; BRKT
4HK1-TCN ENG<RDQ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
17 BOLT; BRKT
4HK1-TCN ENG<RDQ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0811-1206 ● ●
17 BOLT; BRKT
4HK1-TCN ENG<RDQ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0811-1206 ●
17 BOLT; BRKT
4HK1-TCN ENG<RDQ> M8X25 FLANGE THA 		0-28650-825-0 02 1 1207- ●
18 DAMPER ASM; CLU OIL
4HK1-TCN ENG<RDQ> 		8-98077-610-1 01 1 0803-0810 ●
18 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 0811- ● ●
20 NUT; CLU OIL DAMPER
4HK1-TCN ENG<RDQ> M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
20 NUT; CLU OIL DAMPER
M8 FLANGE THA 		0-91180-108-0 02 1 0811-1206 ● ●
20 NUT; CLU OIL DAMPER
M8 FLANGE THA 		0-91180-108-0 02 1 1207-1210 ● ●
20 NUT; CLU OIL DAMPER
M8 FLANGE THA 		0-91180-108-0 04 1 1211- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98077-617-0 01 1 0803- ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98098-686-1 01 1 0811- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-98077-184-1 01 1 0811-0812 ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-98098-684-1 01 1 0901- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97389-356-1 01 1 0803- ●
42 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG<RDQ> 		8-98082-472-2 01 1 0803-0810 ●
42 BRACKET; FLEX HOSE,CLU CONT 8-98082-472-2 01 1 0811- ● ●
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0803-0810 ●
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0811- ● ●
183 HOSE; VAC,VAC TANK SIDE
4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> 		8-98088-023-0 01 1 0811- ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98017-169-1 01 1 0803-1012 ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98121-942-0 01 1 1101- ●
