◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#74558) — 63 parça

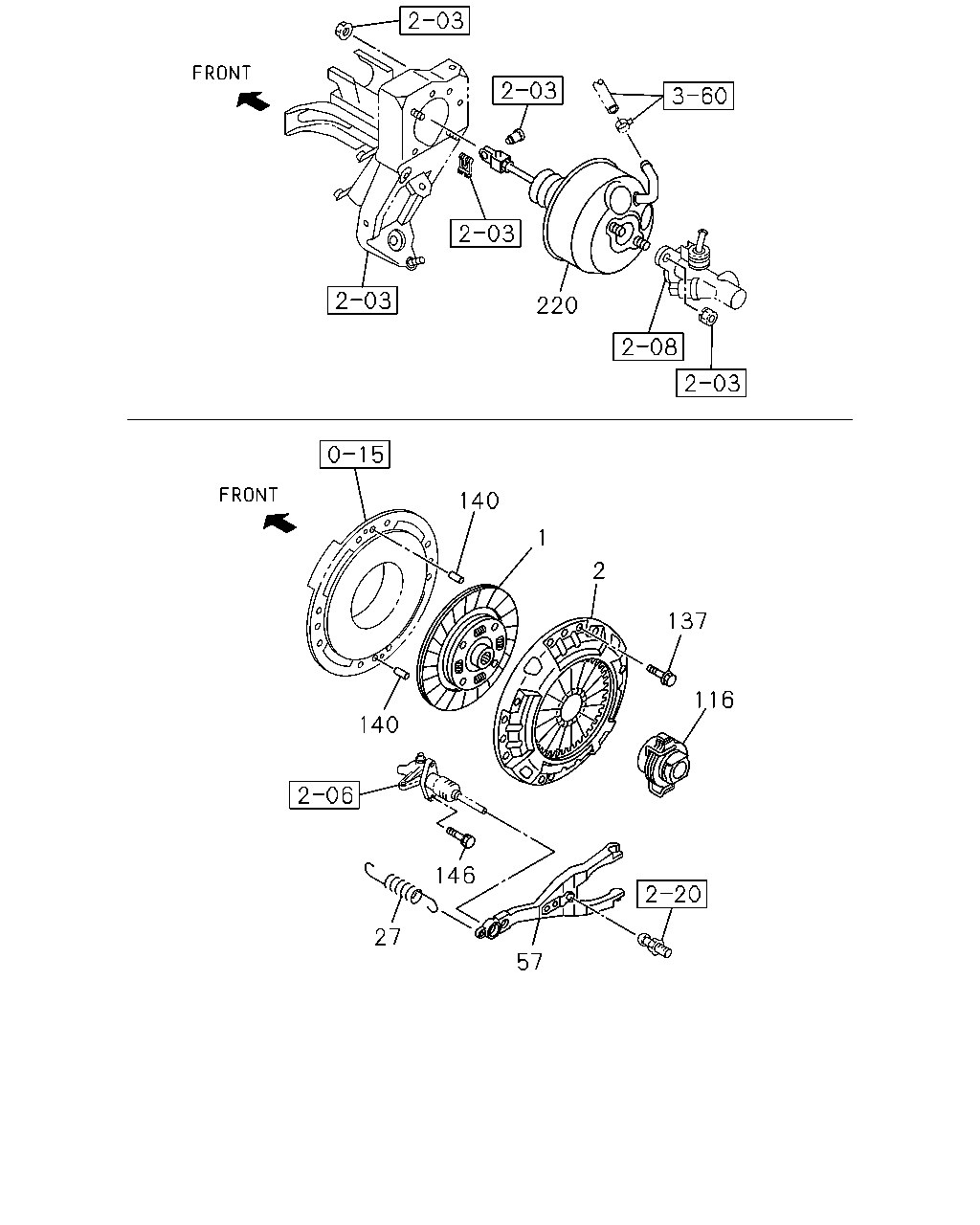

çizim 97612
220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> 		8-97367-795-0 01 1 0811- ●
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> 		8-98164-917-1 01 1 1008- ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> 		8-97362-235-1 01 1 0803-1402 ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> 		8-98255-140-1 01 1 1403- ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> BEST VALUE PARTS 		5-87610-080-1 01 1 0803- ●
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> BEST VALUE PARTS THA 		5-87610-092-0 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG<RDQ> 		8-97351-794-0 01 1 0803-0810 ●
2 PLATE ASM; PRESSURE,CLU 8-97351-794-0 01 1 0811-1405 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 1406- ● ●
2 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG<RDQ> BEST VALUE PARTS 		5-87610-081-0 01 1 0803-0810 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-081-0 01 1 0811-1405 ● ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ● ●
27 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 0811- ●
27 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 0803- ●
57 FORK; SHIFT,CLU
4HK1-TCS ENG<RJS> 		8-97310-456-1 01 1 0811- ●
57 FORK; SHIFT,CLU
4HK1-TCN ENG<RDQ> 		8-97255-303-0 01 1 0803- ●
116 BLOCK; SHIFT,CLU
4HK1-TCN ENG<RDQ> 		8-97255-313-0 01 1 0803- ●
116 BLOCK; SHIFT,CLU
4HK1-TCN ENG<RDQ> BEST VALUE PARTS 		5-87610-110-0 01 1 0803- ●
137 BOLT; CLU COVER
4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> M10X16 FLANGE THA 		0-28051-016-0 10 1 0803-0810 ●
137 BOLT; CLU COVER
EXPORT PACKAGE KD STD<RWA> M10X16 FLANGE THA 		0-28051-016-0 10 1 0811- ● ●
137 BOLT; CLU COVER
4HK1-TCN ENG<RDQ> M10X16 FLANGE THA 		0-28051-016-0 10 1 0803-0810 ●
137 BOLT; CLU COVER
M10X16 FLANGE THA 		0-28051-016-0 10 1 0811- ● ●
140 PIN; STRAIGHT
4HK1-TCN ENG<RDQ> L=25 		8-94410-361-0 02 1 0803-0810 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0811- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
4HK1-TCN ENG<RDQ> M8X30 FLANGE THA 		0-28650-830-0 02 1 0803-0810 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE THA 		0-28650-830-0 02 1 0811- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T> 		8-98033-837-0 01 1 0803-0810 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-98033-837-0 01 1 0811- ● ●

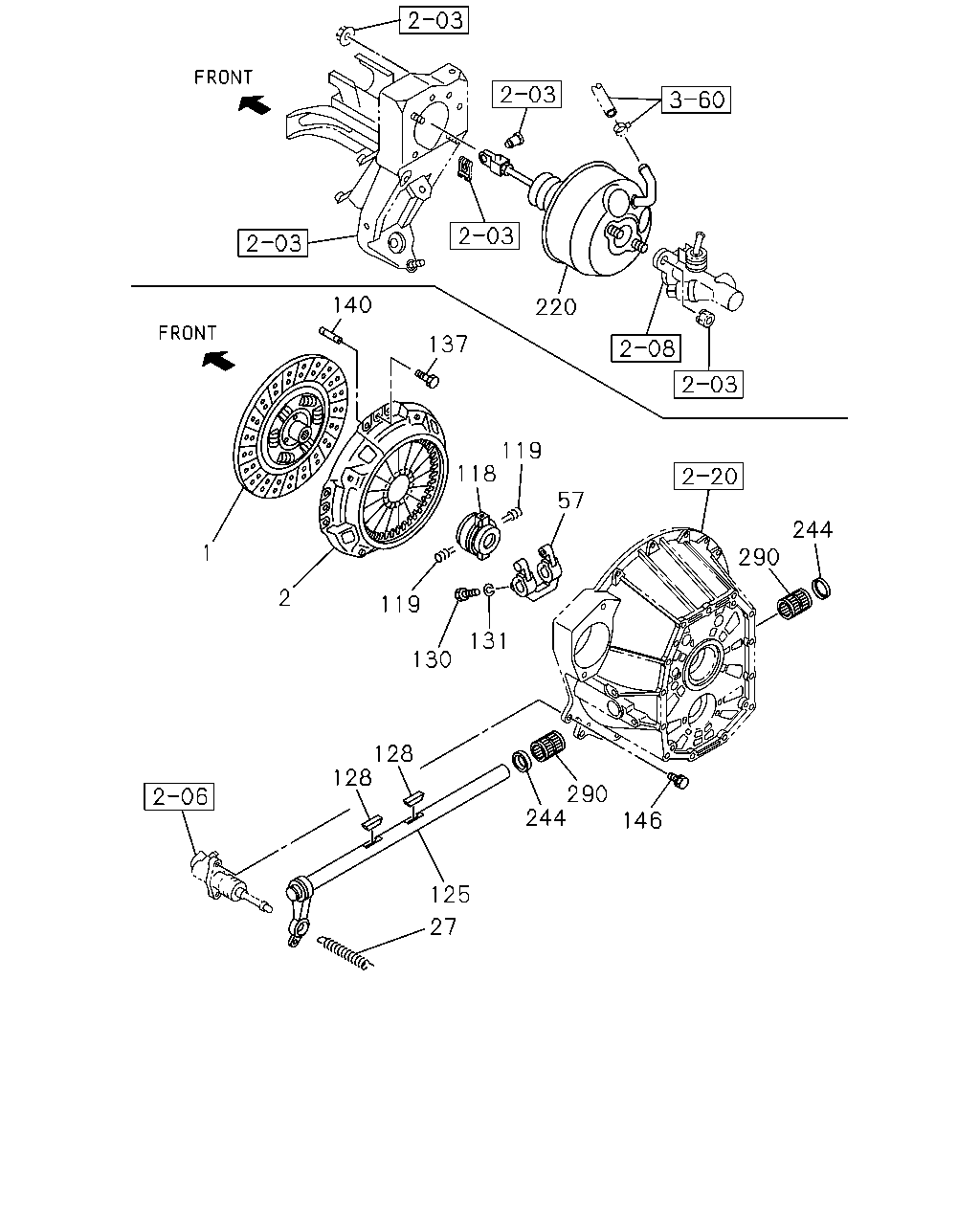

çizim 97729
140 220 137 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> 		8-97367-795-0 01 1 0811- ●
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> 		8-98164-917-1 01 1 1008- ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> 		8-97362-235-1 01 1 0803-1402 ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> 		8-98255-140-1 01 1 1403- ●
1 DISC; CLUTCH
4HK1-TCN ENG<RDQ> BEST VALUE PARTS 		5-87610-080-1 01 1 0803- ●
1 DISC; CLUTCH
4HK1-TCS ENG<RJS> BEST VALUE PARTS THA 		5-87610-092-0 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG<RDQ> 		8-97351-794-0 01 1 0803-0810 ●
2 PLATE ASM; PRESSURE,CLU 8-97351-794-0 01 1 0811-1405 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 1406- ● ●
2 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG<RDQ> BEST VALUE PARTS 		5-87610-081-0 01 1 0803-0810 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-081-0 01 1 0811-1405 ● ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ● ●
27 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 0811- ●
27 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 0803- ●
57 FORK; SHIFT,CLU
4HK1-TCS ENG<RJS> 		8-97310-456-1 01 1 0811- ●
57 FORK; SHIFT,CLU
4HK1-TCN ENG<RDQ> 		8-97255-303-0 01 1 0803- ●
118 BEARING; CLU RELEASE
4HK1-TCS ENG<RJS> 		1-31310-012-0 01 1 0811- ●
118 BEARING; CLU RELEASE
4HK1-TCS ENG<RJS> BEST VALUE PARTS 		1-87610-110-0 01 1 0811- ●
119 SPRING; SHIFT FORK
4HK1-TCS ENG<RJS> 		1-31329-024-0 02 1 0811- ●
125 SHAFT; CLU
4HK1-TCS ENG<RJS> 		8-97310-435-0 01 1 0811- ●
128 KEY; FEATHER,CLU SHAFT
4HK1-TCS ENG<RJS> 		9-09867-008-0 02 1 0811- ●
130 SCREW; SHIFT FORK
4HK1-TCS ENG<RJS> M8X14 		0-61200-814-0 01 1 0811- ●
131 WASHER; LK,SHIFT FORK
4HK1-TCS ENG<RJS> ID=8.2 THA 		0-91510-508-0 01 1 0811- ●
137 BOLT; CLU COVER
4HK1-TCN ENG<RDQ> KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> M10X16 FLANGE THA 		0-28051-016-0 10 1 0803-0810 ●
137 BOLT; CLU COVER
EXPORT PACKAGE KD STD<RWA> M10X16 FLANGE THA 		0-28051-016-0 10 1 0811- ● ●
137 BOLT; CLU COVER
4HK1-TCN ENG<RDQ> M10X16 FLANGE THA 		0-28051-016-0 10 1 0803-0810 ●
137 BOLT; CLU COVER
M10X16 FLANGE THA 		0-28051-016-0 10 1 0811- ● ●
140 PIN; STRAIGHT
4HK1-TCN ENG<RDQ> L=25 		8-94410-361-0 02 1 0803-0810 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0811- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
4HK1-TCN ENG<RDQ> M8X30 FLANGE THA 		0-28650-830-0 02 1 0803-0810 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE THA 		0-28650-830-0 02 1 0811- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG<RDQ> POWER ASSIST CLUTCH<S2T> 		8-98033-837-0 01 1 0803-0810 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-98033-837-0 01 1 0811- ● ●
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG<RJS> 		1-09625-002-0 02 1 0811- ●
290 BEARING; NEEDLE
4HK1-TCS ENG<RJS> NTN 		1-09811-002-1 02 1 0811- ●
