1-56 — EXHAUST BRAKE SYSTEM (#74557) — 20 parça

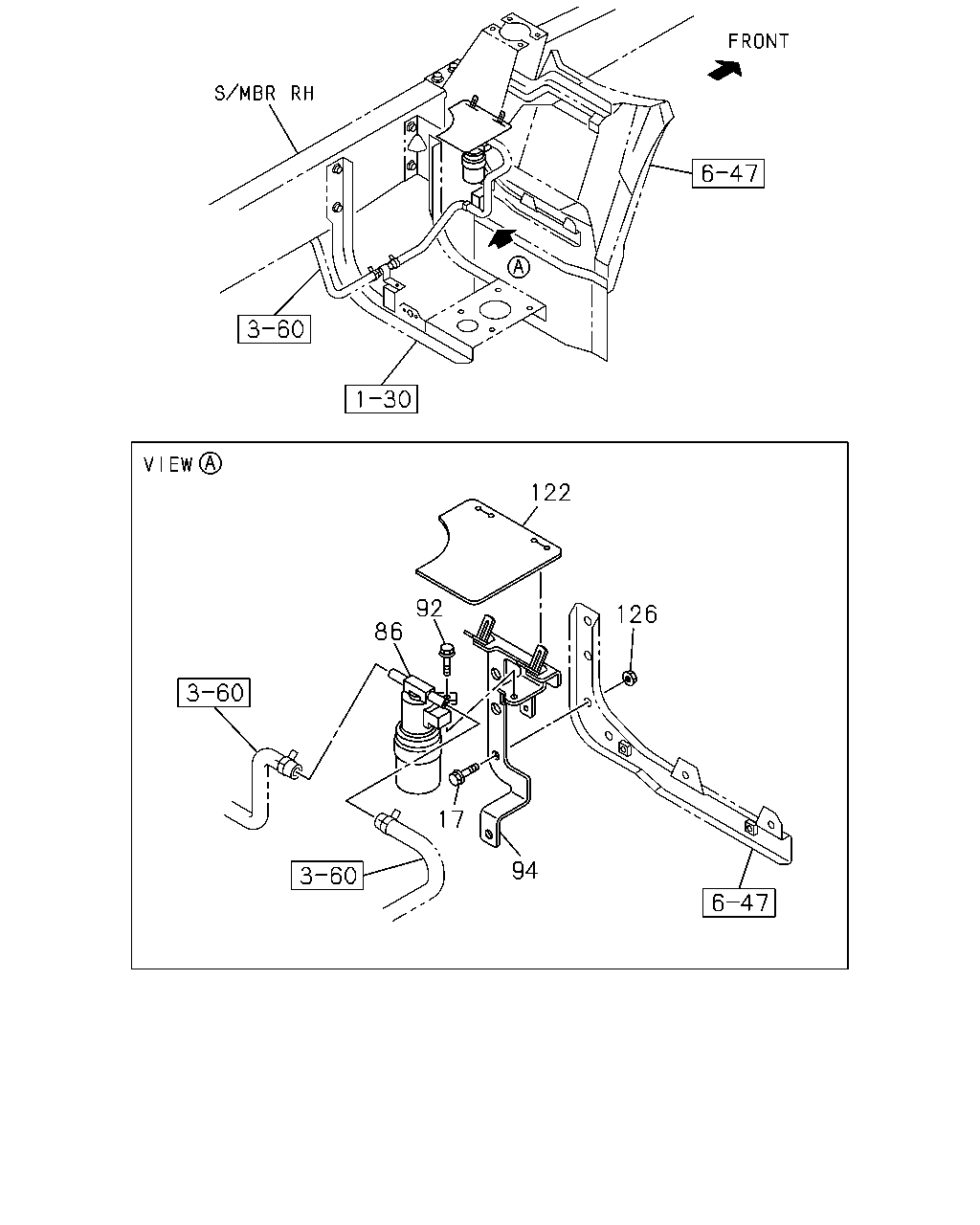

çizim 97072
17 92 86 122 126 94
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
17 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
86 VALVE; MAG,EXH BRK
THA 		8-98043-344-0 01 1 0803-0810 ●
86 VALVE; MAG,EXH BRK
THA 		8-98043-344-0 01 1 0811- ● ●
92 BOLT; MAG VLV
M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
92 BOLT; MAG VLV
M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-053-3 01 1 0803-0810 ●
94 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-053-3 01 1 0811- ● ●
122 PROTECTOR; MAG VLV
FRAME STRAIGHT TYPE<7KJ> 		8-98087-988-0 01 1 0803-0810 ●
122 PROTECTOR; MAG VLV
FRAME STRAIGHT TYPE<7KJ> 		8-98087-988-0 01 1 0811- ● ●
126 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
126 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
çizim 97375
5 1 5 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRAKE UNIT; EXH 8-98056-673-0 01 1 0803-0810 ●
1 BRAKE UNIT; EXH 8-98056-673-0 01 1 0811-1407 ● ●
1 BRAKE UNIT; EXH 8-98288-176-0 01 1 1408- ● ●
5 GASKET; EXH BRAKE UNIT
ID=64 		8-97373-108-0 02 1 0803-0810 ●
5 GASKET; EXH BRAKE UNIT
ID=64 		8-97373-108-0 02 1 0811- ● ●
8 NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER 		8-94327-073-0 04 1 0803-0805 ●
8 NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER THA 		8-97581-234-0 04 1 0806-0810 ●
8 NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER THA 		8-97581-234-0 04 1 0811- ● ●
