Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#74555) — 210 parça

172 25 532 38 385 562 143 2 44 1 36 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97924-535-0	01	1	0803-0810	●
1	PIPE; EXH THA	8-97924-535-0	01	1	0811-	●	●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0803-0810	●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0811-	●	●
8	BRACKET; EXH PIPE	8-97365-228-0	01	1	0803-0810	●
8	BRACKET; EXH PIPE	8-97365-228-0	01	1	0811-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-98074-109-0	01	1	0803-0810	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-98074-109-0	01	1	0811-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-0810	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0811-	●	●
36	NUT; EXH PIPE WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
36	NUT; EXH PIPE WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0811-	●
36	NUT; EXH PIPE WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0811-		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
44	BOLT; BRKT M10X40 FLANGE THA	0-28051-040-0	01	1	0803-0810	●
44	BOLT; BRKT M10X40 FLANGE THA	0-28051-040-0	01	1	0811-	●	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0803-0810	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0811-	●	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-0810	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0811-	●	●
172	BOLT M10X35 FLANGE THA	0-28651-035-0	02	1	0803-0810	●
172	BOLT M10X35 FLANGE THA	0-28651-035-0	02	1	0811-	●	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0803-0810	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0811-	●	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0803-0810	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0811-	●	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0803-0803	●
532	NUT 4HK1-TCN ENG<RDQ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0804	●
532	NUT 4HK1-TCN ENG<RDQ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0804	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0805-0810	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0811-	●	●
532	NUT M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	0803-0810	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	0811-	●	●

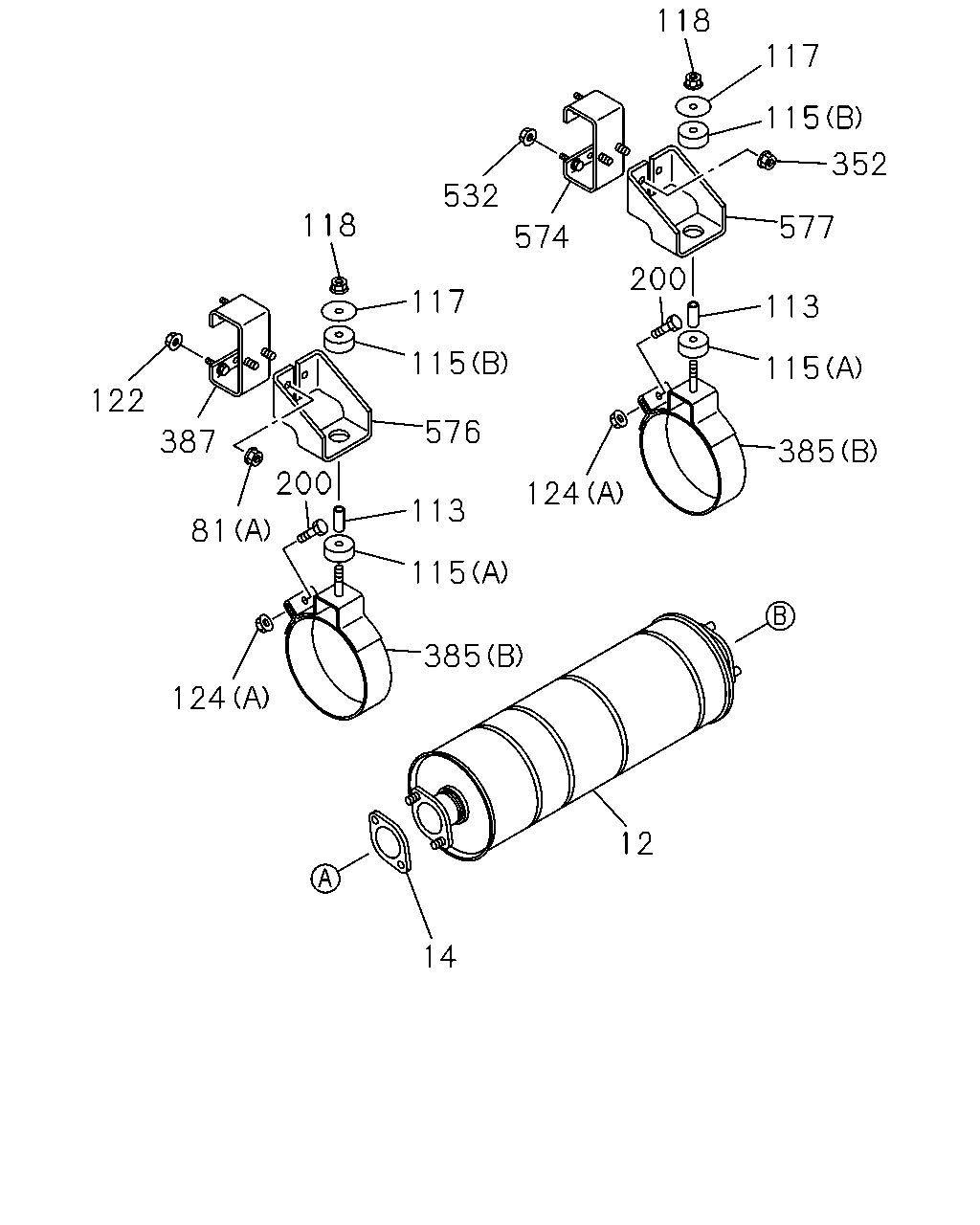

118 117 115 352 532 118 577 574 200 117 113 115 115 122 576 387 385 200 124 113 81 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH THA	8-97924-545-1	01	1	0803-0810	●
12	SILENCER ASM; EXH THA	8-97924-545-1	01	1	0811-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0803-0810	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0811-	●	●
81	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
81	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	1211-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	0803-0810	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	0811-	●	●
115	RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0803-0810	●
115	RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0811-	●	●
115	RUBBER; MTG,SILENCER (B) THA	8-97379-927-0	02	1	0803-0810	●
115	RUBBER; MTG,SILENCER (B) THA	8-97379-927-0	02	1	0811-1010	●	●
115	RUBBER; MTG,SILENCER (B) THA	8-97925-254-0	02	1	1011-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0803-0810	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0811-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0803-0810	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0811-	●	●
122	NUT; HANGER BRKT M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
122	NUT; HANGER BRKT M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 4100MM<41W> (C) M10 THA	0-91110-510-0	01	1	0811-		●
124	NUT; SUPPORT RUBBER (A) M8 THA	0-91110-508-0	02	1	0803-0810	●
124	NUT; SUPPORT RUBBER (A) M8 THA	0-91110-508-0	02	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-	●
200	BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50040-845-0	02	1	0803-0810	●
200	BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50040-845-0	02	1	0811-0909	●	●
200	BOLT; SUPPORT RUBBER M8X45 W/LK WASHER THA	0-50540-845-0	02	1	0910-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0803-0810	●
385	BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0811-	●	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0803-0810	●
385	BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0811-	●	●
387	SPACER; BRKT	8-98044-774-0	01	1	0803-0810	●
387	SPACER; BRKT	8-98044-774-0	01	1	0811-	●	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0803-0803	●
532	NUT 4HK1-TCN ENG<RDQ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0804	●
532	NUT 4HK1-TCN ENG<RDQ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0804	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0805-0810	●
532	NUT M10 FLANGE THA	0-91180-110-0	04	1	0811-	●	●
532	NUT M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
574	SPACER; DPD	8-98044-774-0	01	1	0803-0810	●
574	SPACER; DPD	8-98044-774-0	01	1	0811-	●	●
576	BRACKET; DPD FRT TO FRAME THA	8-98074-124-1	01	1	1211-	●	●
576	BRACKET; DPD FRT TO FRAME THA	8-98074-124-1	01	1	0803-0810	●
576	BRACKET; DPD FRT TO FRAME THA	8-98074-124-1	01	1	0811-	●	●
577	BRACKET; DPD RR TO FRAME THA	8-98074-124-1	01	1	1211-	●	●
577	BRACKET; DPD RR TO FRAME THA	8-98074-124-1	01	1	0803-0810	●
577	BRACKET; DPD RR TO FRAME THA	8-98074-124-1	01	1	0811-	●	●

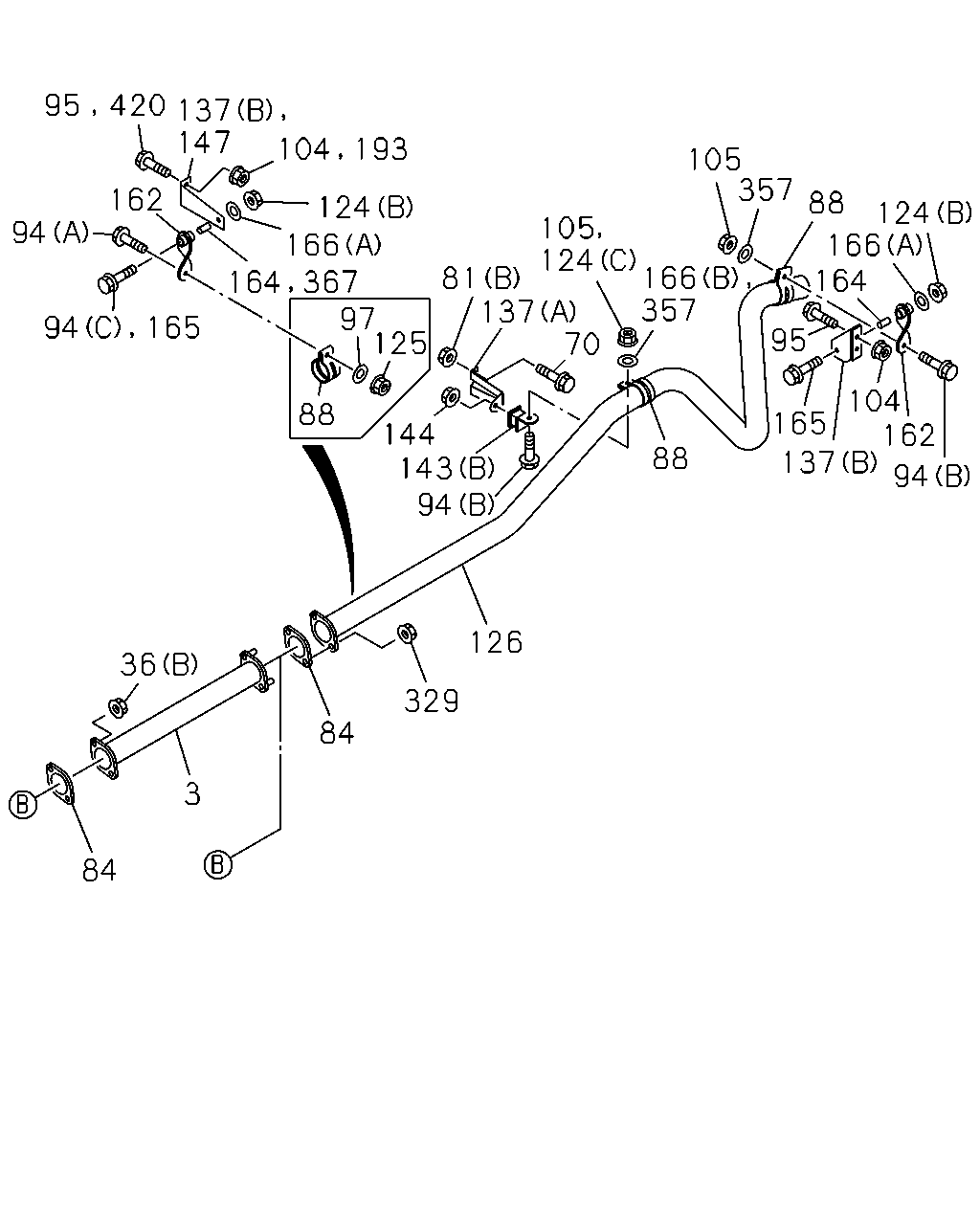

137 147 104 193 105 357 162 88 124 166 97 125 124 166 164 105 124 166 357 94 81 137 70 94 165 95 104 162 137 88 165 144 143 94 88 94 126 36 329 84 3 84 95 420 164 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; EXH,CENTER WHEEL BASE 4100MM<41W> THA	8-97307-804-0	01	1	0811-		●
3	PIPE; EXH,CENTER WHEEL BASE 3800MM<38W> THA	8-97187-167-0	01	1	0803-	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-0810	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0811-	●	●
36	NUT; EXH PIPE WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
36	NUT; EXH PIPE WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0811-	●
36	NUT; EXH PIPE WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA	0-91180-110-0	02	1	0811-		●
70	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
70	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
81	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
81	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
84	GASKET; EXH PIPE ID=64.7	8-94328-352-0	01	1	0803-0810	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM<38W> ID=64.7	8-94328-352-0	01	1	0803-0810	●
84	GASKET; EXH PIPE ID=64.7	8-94328-352-0	01	1	0811-	●	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM<38W> ID=64.7	8-94328-352-0	01	1	0811-	●
84	GASKET; EXH PIPE ID=64.7	8-94328-352-0	01	1	0811-		●
88	CLAMP; EXH PIPE THA	8-97373-158-0	03	1	0803-0803	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	02	1	0803-0810	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	02	1	0811-	●	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	01	1	0803-0810	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	01	1	0803-0810	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	01	1	0811-	●	●
88	CLAMP; EXH PIPE THA	8-97373-158-0	01	1	0811-	●	●
94	BOLT; CLAMP WHEEL BASE 4100MM<41W> (C) M10X70 FLANGE THA	0-28051-070-0	01	1	0811-		●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-0810	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-0810	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0811-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0811-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	0803-	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	0803-0810	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	0811-	●	●
95	BOLT; BRKT WHEEL BASE 4100MM<41W> M10X30 FLANGE THA	0-28651-030-0	04	1	0811-		●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●
95	BOLT; BRKT WHEEL BASE 3400MM<34W> M8X25 FLANGE THA	0-28650-825-0	02	1	0811-		●
97	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-0810	●
97	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0811-	●	●
104	NUT; BRKT WHEEL BASE 4100MM<41W> M10 FLANGE THA	0-91180-110-0	04	1	0811-		●
104	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
104	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0811-	●
104	NUT; BRKT WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0811-		●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-0810	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-0810	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0811-	●	●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0811-	●
105	NUT; CLAMP WHEEL BASE 3400MM<34W> M10 THA	0-91110-510-0	01	1	0811-		●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-	●
124	NUT; SUPPORT RUBBER WHEEL BASE 4100MM<41W> (C) M10 THA	0-91110-510-0	01	1	0811-		●
124	NUT; SUPPORT RUBBER (A) M8 THA	0-91110-508-0	02	1	0803-0810	●
124	NUT; SUPPORT RUBBER (A) M8 THA	0-91110-508-0	02	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-0810	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0811-	●	●
124	NUT; SUPPORT RUBBER (B) M10 FLANGE THA	0-91180-110-0	01	1	0803-	●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0803-0810	●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	0811-	●	●
126	PIPE; EXH,RR WHEEL BASE 4100MM<41W> THA	8-97924-506-0	01	1	0811-		●
126	PIPE; EXH,RR THA	8-97924-505-0	01	1	0803-0810	●
126	PIPE; EXH,RR THA	8-97924-505-0	01	1	0811-	●
126	PIPE; EXH,RR WHEEL BASE 3400MM<34W> THA	8-97924-505-0	01	1	0811-		●
137	BRACKET; TAIL PIPE WHEEL BASE 4100MM<41W> (B)	8-97185-801-0	02	1	0811-		●
137	BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0803-0810	●
137	BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 3400MM<34W> (B)	8-97116-588-2	01	1	0811-		●
137	BRACKET; TAIL PIPE (A)	8-98090-280-0	01	1	0803-0810	●
137	BRACKET; TAIL PIPE (A)	8-98090-280-0	01	1	0811-	●	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0803-0810	●
143	RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0811-	●	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-0810	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0811-	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	0803-0810	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
147	BRACKET; VERTICAL PIPE	8-98090-125-1	01	1	0803-0810	●
147	BRACKET; VERTICAL PIPE	8-98090-125-1	01	1	0811-	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 3400MM<34W>	8-98090-125-1	01	1	0811-		●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0803-0810	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0803-0810	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0811-	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0811-	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	1211-	●	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 4100MM<41W> L=37.5 THA	9-22151-217-0	01	1	1211-		●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0803-0810	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0811-	●	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 4100MM<41W> L=37.5 THA	9-22151-217-0	01	1	0811-		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0803-0810	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0803-0810	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0811-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0811-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3400MM<34W> M10X70 FLANGE THA	0-28051-070-0	01	1	0811-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE WHEEL BASE 4100MM<41W> (B) ID=10.5 OD=22 THA	0-91614-610-0	01	1	0811-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE (A) ID=10.5 OD=32	0-91614-810-0	01	1	0803-0810	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE (A) ID=10.5 OD=32	0-91614-810-0	01	1	0803-0810	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE (A) ID=10.5 OD=32	0-91614-810-0	01	1	0811-	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE (A) ID=10.5 OD=32	0-91614-810-0	01	1	0811-	●	●
193	NUT; BRKT,VERTICAL PIPE M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
193	NUT; BRKT,VERTICAL PIPE M10 FLANGE THA	0-91180-110-0	02	1	0811-	●
193	NUT; BRKT,VERTICAL PIPE WHEEL BASE 3400MM<34W> M10 FLANGE THA	0-91180-110-0	02	1	0811-		●
193	NUT; BRKT,VERTICAL PIPE M10 FLANGE THA	0-91180-110-0	02	1	0803-	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-0810	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0803-0810	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0811-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 THA	0-91614-610-0	01	1	0811-	●
357	WASHER; PL,CLAMP WHEEL BASE 3400MM<34W> ID=10.5 OD=22 THA	0-91614-610-0	01	1	0811-		●
367	COLLAR; DIST,SUPPORT RUBBER L=37.5 THA	9-22151-217-0	01	1	1211-	●
367	COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3400MM<34W> L=37.5 THA	9-22151-217-0	01	1	1211-		●
367	COLLAR; DIST,SUPPORT RUBBER L=37.5 THA	9-22151-217-0	01	1	0803-0810	●
367	COLLAR; DIST,SUPPORT RUBBER L=37.5 THA	9-22151-217-0	01	1	0811-	●
367	COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3400MM<34W> L=37.5 THA	9-22151-217-0	01	1	0811-		●
420	BOLT; BRKT,VERTICAL PIPE M10X30 FLANGE THA	0-28651-030-0	02	1	0803-0810	●
420	BOLT; BRKT,VERTICAL PIPE M10X30 FLANGE THA	0-28651-030-0	02	1	0811-	●
420	BOLT; BRKT,VERTICAL PIPE WHEEL BASE 3400MM<34W> M10X30 FLANGE THA	0-28651-030-0	02	1	0811-		●
420	BOLT; BRKT,VERTICAL PIPE M10X30 FLANGE THA	0-28651-030-0	02	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
