1-41 — FUEL PIPING; CHASSIS (#74554) — 170 parça

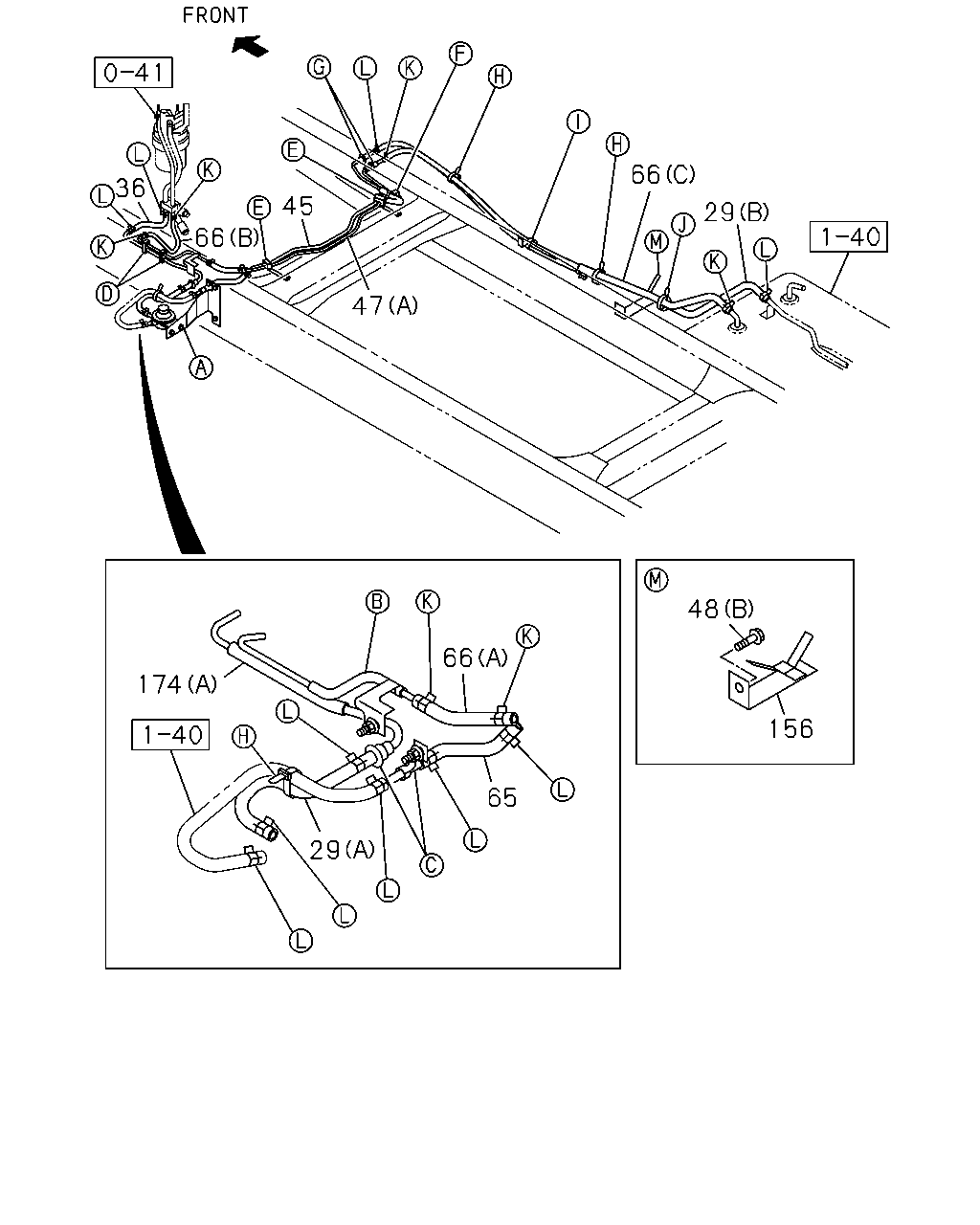

66 36 45 66 29 47 48 66 174 156 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-0810	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0811-	●	●
29	HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98037-758-0	01	1	0803-0810	●
29	HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-98037-758-0	01	1	0811-	●	●
29	HOSE; FUEL WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-005-0	01	1	0803-0803	●
29	HOSE; FUEL 4HK1-TCN ENG<RDQ> WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-005-0	01	1	0803-0810	●
29	HOSE; FUEL WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-005-0	01	1	0811-	●	●
29	HOSE; FUEL WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-004-0	01	1	0803-0803	●
29	HOSE; FUEL 4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-004-0	01	1	0803-0810	●
29	HOSE; FUEL WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-004-0	01	1	0811-	●
29	HOSE; FUEL WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-004-0	01	1	0811-		●
36	HOSE; FUEL,FILTER TO TANK FRAME STRAIGHT TYPE<7KJ> THA	8-98034-028-1	01	1	0803-0803	●
36	HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> THA	8-98034-028-1	01	1	0803-0810	●
36	HOSE; FUEL,FILTER TO TANK FRAME STRAIGHT TYPE<7KJ> THA	8-98034-028-1	01	1	0811-	●	●
45	PIPE; FUEL,DELIVERY FRAME STRAIGHT TYPE<7KJ> THA	8-98057-486-1	01	1	0811-		●
45	PIPE; FUEL,DELIVERY FRAME STRAIGHT TYPE<7KJ> THA	8-98043-681-1	01	1	0803-	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98057-487-1	01	1	0811-		●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0803-0803	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0803-0810	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0811-	●	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98043-639-0	01	1	0803-	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0803	●
48	BOLT; BRKT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0803	●
48	BOLT; BRKT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0810	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0811-	●	●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0811-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0811-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98065-058-0	01	1	0803-0803	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98065-058-0	01	1	0803-0810	●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98065-058-0	01	1	0811-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-008-0	01	1	0803-0803	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG<RDQ> WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-008-0	01	1	0803-0810	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-008-0	01	1	0811-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-007-0	01	1	0803-0803	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-007-0	01	1	0803-0810	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-007-0	01	1	0811-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-007-0	01	1	0811-		●
156	BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-1	01	1	0803-0803	●
156	BRACKET; FUEL HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	0803-0810	●
156	BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	0811-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0803-0803	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0803-0810	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0811-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0803-0803	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0803-0810	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0811-	●	●

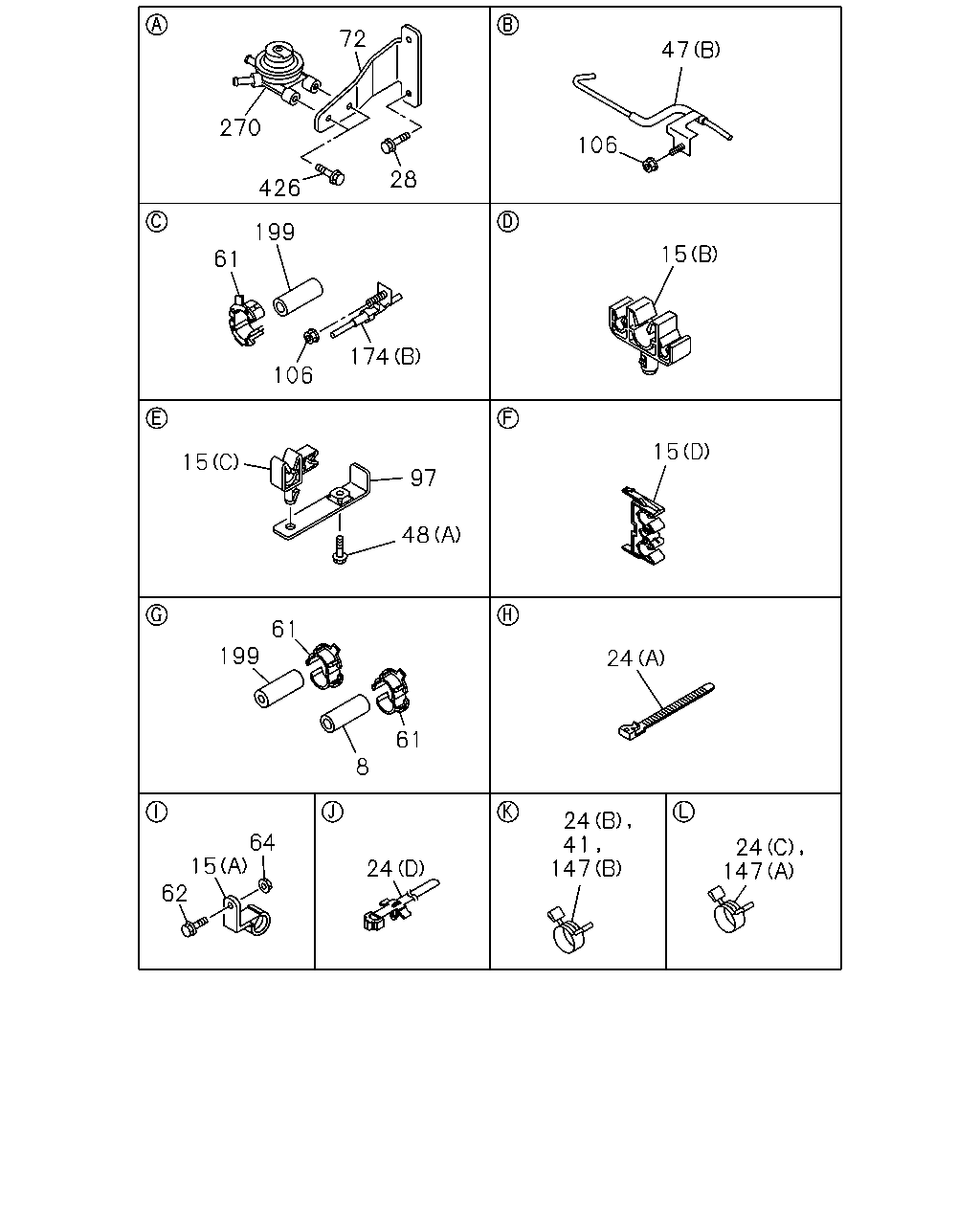

72 47 270 106 28 426 199 15 61 174 106 15 15 97 48 61 199 24 61 8 24 41 147 64 24 147 15 62 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	0803-0803	●
8	RUBBER; MTG 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	0803-0810	●
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	0811-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-0803	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-0803	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-0804	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-0804	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0805-0809	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-	●
15	CLIP; FUEL PIPE WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-		●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0803-0803	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0803-0810	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0811-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35	8-97215-437-0	02	1	0803-0803	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35	8-97215-437-0	02	1	0803-0810	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35	8-97215-437-0	02	1	0811-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-0803	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-0810	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140 THA	8-97920-656-0	03	1	0803-0803	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) L=140 THA	8-97920-656-0	03	1	0803-0810	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140 THA	8-97920-656-0	03	1	0811-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (D) L=170.3 THA	1-09987-182-0	01	1	0803-0803	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (D) L=170.3 THA	1-09987-182-0	01	1	0803-0810	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (D) L=170.3 THA	1-09987-182-0	01	1	0811-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16 THA	8-94238-568-0	04	1	0803-0803	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (C) ID=16 THA	8-94238-568-0	04	1	0803-0810	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16 THA	8-94238-568-0	04	1	0811-0911	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16 THA	8-98008-098-0	04	1	0912-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	02	1	0803-0803	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	02	1	0803-0810	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	02	1	0811-0911	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 THA	8-98150-358-0	02	1	0912-	●	●
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	0803-0810	●
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA	0-28651-030-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> ID=12	8-94238-610-0	02	1	0803-0803	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> ID=12	8-94238-610-0	02	1	0803-0810	●
41	CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> ID=12	8-94238-610-0	02	1	0811-0911	●	●
41	CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> ID=12 THA	8-98150-358-0	02	1	0912-	●	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98057-487-1	01	1	0811-		●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0803-0803	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0803-0810	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	0811-	●	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98043-639-0	01	1	0803-	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0803	●
48	BOLT; BRKT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-0810	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0811-	●	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0803-	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0803	●
48	BOLT; BRKT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0803-0810	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	0811-	●	●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	03	1	0803-0803	●
61	GROMMET; PIPE TO FRAME 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	03	1	0803-0810	●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	03	1	0811-	●	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0810	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●
62	BOLT; CLIP FIX WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-		●
62	BOLT; CLIP FIX 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0804	●
62	BOLT; CLIP FIX 4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0803-0804	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0805-0809	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0810-0810	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0810-0810	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-	●
62	BOLT; CLIP FIX WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0811-		●
64	NUT; CLIP 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0804	●
64	NUT; CLIP 4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0803-0804	●
64	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0805-0809	●
64	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0810-0810	●
64	NUT; CLIP WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0810-0810	●
64	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●	●
64	NUT; CLIP WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-	●
64	NUT; CLIP WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0811-		●
72	BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98084-815-1	01	1	0803-0810	●
72	BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98084-815-1	01	1	0811-	●	●
97	BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	0803-0803	●
97	BRACKET; CLIP 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	0803-0810	●
97	BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	0811-	●	●
106	NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0803	●
106	NUT; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0803-0810	●
106	NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0811-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0803-0803	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0803-0803	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG<RDQ> POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0803-0810	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG<RDQ> WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0803-0810	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0811-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	02	1	0811-0911	●	●
147	CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-98008-098-0	02	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	06	1	0803-0803	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	06	1	0803-0810	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-94238-568-0	06	1	0811-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA	8-98008-098-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=13 THA	8-94238-571-0	01	1	0803-0803	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 THA	8-94238-571-0	01	1	0803-0809	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	01	1	0803-0803	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	01	1	0803-0809	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	02	1	0810-0810	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-94238-610-0	02	1	0811-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 THA	8-98150-358-0	02	1	0912-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0803-0803	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0803-0810	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	0811-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0803-0803	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0803-0810	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	0811-	●	●
199	PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	02	1	0803-0803	●
199	PROTECTOR; FUEL PIPE 4HK1-TCN ENG<RDQ> FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	02	1	0803-0810	●
199	PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	02	1	0811-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0803-0810	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0811-1408	●	●
270	PUMP ASM; FUEL THA	8-97948-892-0	01	1	1409-	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE THA	0-28650-820-0	02	1	0811-	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE THA	0-28650-820-0	02	1	0803-0810	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
