◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#74553) — 85 parça

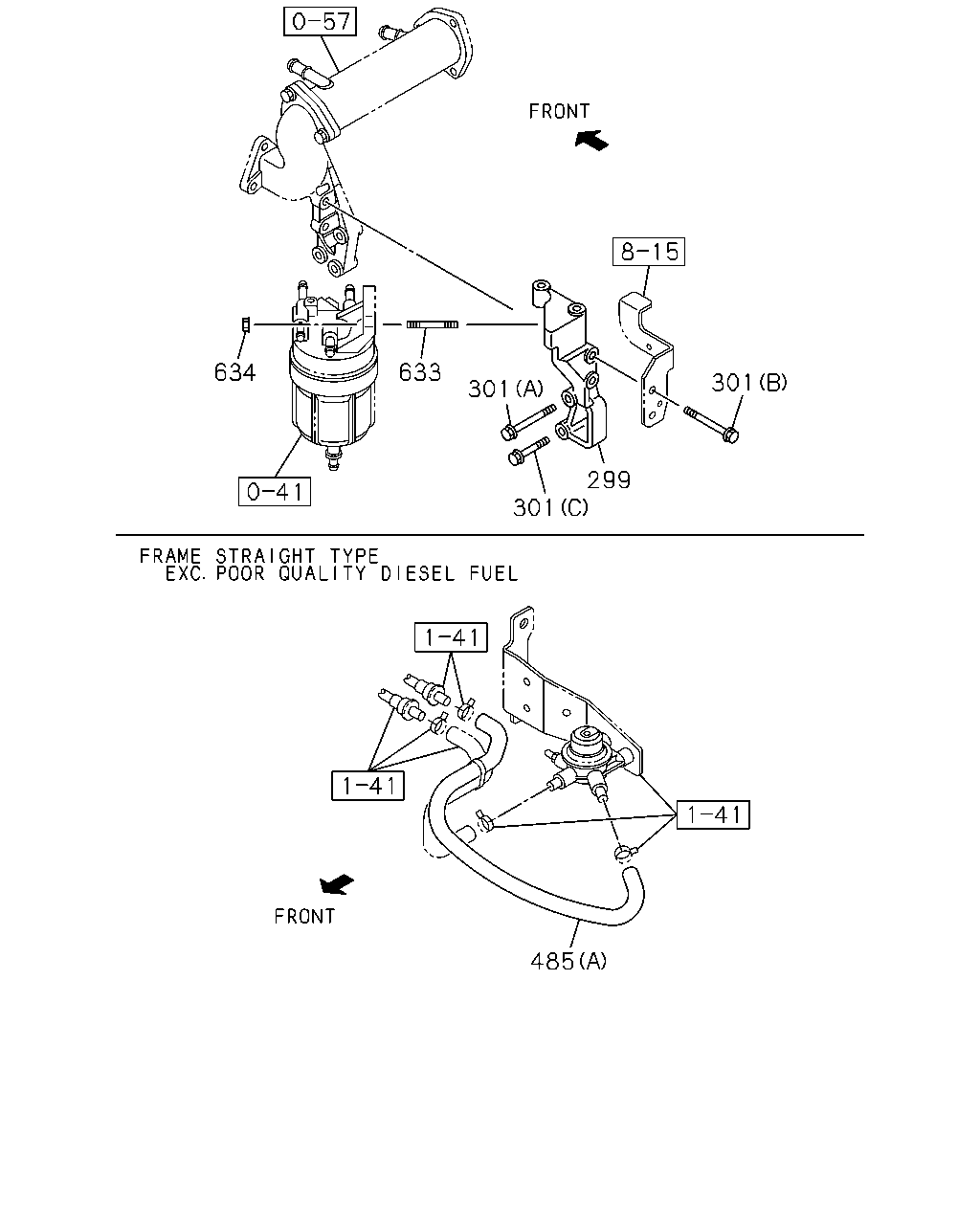

çizim 93005
633 301 634 301 301 299 485
BalonParca AdiParca NoAdetTipApplied Date A B
299 BRACKET; FUEL FILTER 8-98023-175-3 01 1 0803-0810 ●
299 BRACKET; FUEL FILTER 8-98023-175-3 01 1 0811- ● ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 0812- ● ●
301 BOLT; BRKT TO SEDIMENTER
(A) M12X100 FLANGE 		0-28151-200-0 01 1 0803-0810 ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE THA 		0-28151-250-0 02 1 0803-0810 ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 0803-0810 ●
301 BOLT; BRKT TO SEDIMENTER
(A) M12X100 FLANGE 		0-28151-200-0 01 1 0811- ● ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE THA 		0-28151-250-0 02 1 0811-0811 ● ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE THA 		0-28151-250-0 01 1 0812- ● ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 0811-0811 ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0803-0803 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0803-0810 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0811- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0803-0803 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0803-0810 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0811- ● ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0803-0803 ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0803-0810 ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0811- ● ●
633 STUD; BRKT TO SEDIMENTER
M8X25 L=37 THA 		0-41010-825-0 02 1 0803-0810 ●
633 STUD; BRKT TO SEDIMENTER
M8X25 L=37 THA 		0-41010-825-0 02 1 0811- ● ●
634 NUT; BRKT TO SEDIMENTER
M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
634 NUT; BRKT TO SEDIMENTER
M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●

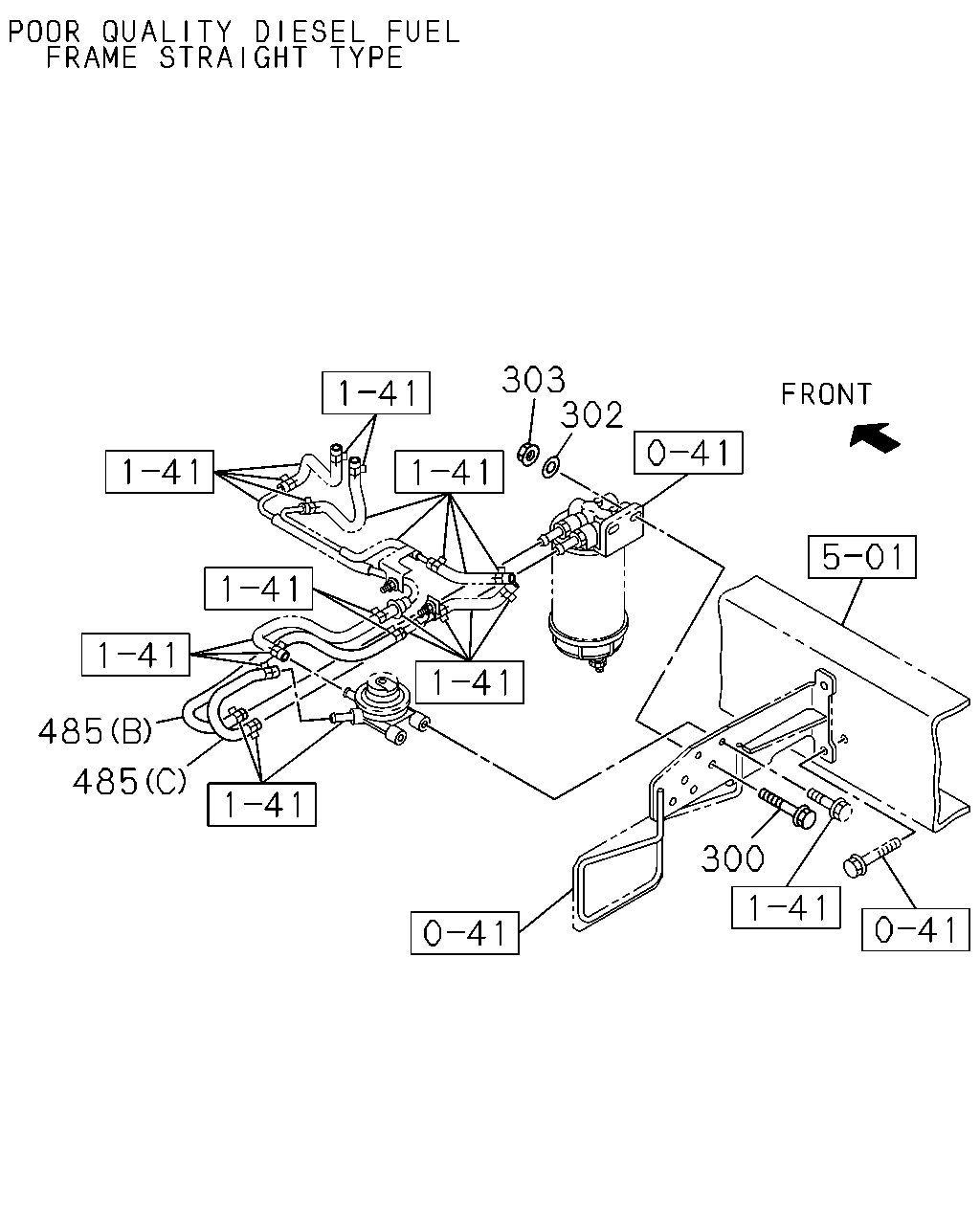

çizim 93103
303 302 485 485 300
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE THA 		0-28651-040-0 02 1 0803-0810 ●
300 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE THA 		0-28651-040-0 02 1 0811- ● ●
302 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 0803-0810 ●
302 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 0811- ● ●
303 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA 		0-91180-110-0 02 1 0803-0810 ●
303 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA 		0-91180-110-0 02 1 0811- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0803-0803 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0803-0810 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 0811- ● ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0803-0803 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0803-0810 ●
485 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 0811- ● ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0803-0803 ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0803-0810 ●
485 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) THA 		8-98041-728-0 01 1 0811- ● ●

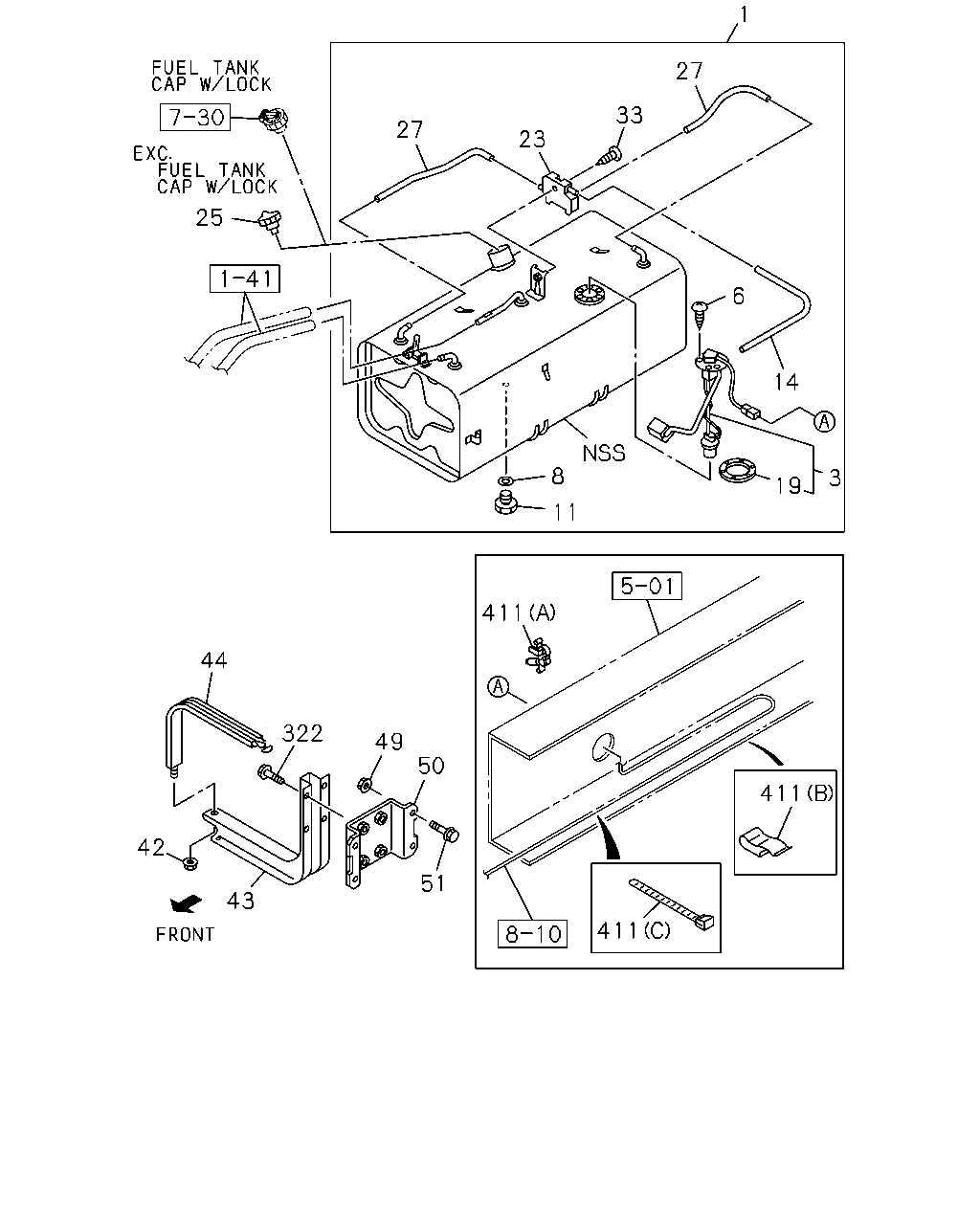

çizim 93264
1 27 33 27 23 25 6 14 8 3 19 11 411 44 322 49 50 411 42 51 411 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
1000X340X327 100L THA 		8-97924-557-0 01 1 0803-0810 ●
1 TANK; FUEL
1000X340X327 100L THA 		8-97924-557-0 01 1 0811- ● ●
3 UNIT; FUEL TANK,SUB
THA 		8-94316-190-0 01 1 0803-0810 ●
3 UNIT; FUEL TANK,SUB
THA 		8-94316-190-0 01 1 0811- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER THA 		0-36220-512-0 05 1 0803-0810 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER THA 		0-36220-512-0 05 1 0811- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 0803-0810 ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 0811- ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0803-0810 ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0811- ● ●
14 HOSE; BREATHER,OUTLET
L=430 THA 		8-97917-065-0 01 1 0803-0810 ●
14 HOSE; BREATHER,OUTLET
L=430 THA 		8-97917-065-0 01 1 0811- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0803-0810 ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0811- ● ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 0803-0810 ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 0811- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0803-0810 ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0811- ● ●
27 HOSE; BREATHER
L=470 THA 		8-97917-067-0 02 1 0803-0810 ●
27 HOSE; BREATHER
L=470 THA 		8-97917-067-0 02 1 0811- ● ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER THA 		0-36230-620-0 01 1 0803-0810 ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER THA 		0-36230-620-0 01 1 0811- ● ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0803-0810 ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0811- ● ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 0803-0810 ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 0811- ● ●
44 BAND; FUEL TANK
THA 		8-97916-551-0 02 1 0803-0810 ●
44 BAND; FUEL TANK
THA 		8-97916-551-0 02 1 0811- ● ●
49 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 08 1 0803-0803 ●
49 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 08 1 0811- ● ●
50 BRACKET; SUPPORT,FUEL BRKT
THA 		8-97923-999-1 02 1 0803-0810 ●
50 BRACKET; SUPPORT,FUEL BRKT
THA 		8-97923-999-1 02 1 0811- ● ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28661-030-0 08 1 0803-0810 ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28661-030-0 08 1 0811- ● ●
322 BOLT; BRKT FIX
M10X40 FLANGE 		0-28661-040-0 08 1 0803-0810 ●
322 BOLT; BRKT FIX
M10X40 FLANGE 		0-28661-040-0 08 1 0811- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0803-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) L=140 THA 		8-97920-656-0 03 1 0803-0810 ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) L=140 THA 		8-97920-656-0 03 1 0811- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3400MM<34W> (B) T=6.0 THA 		5-09709-012-0 02 1 0803-0803 ●
411 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG<RDQ> WHEEL BASE 3400MM<34W> (B) T=6.0 THA 		5-09709-012-0 02 1 0803-0803 ●
411 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG<RDQ> WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) T=6.0 THA 		5-09709-012-0 02 1 0803-0804 ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 THA 		5-09709-012-0 02 1 0810-0810 ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 THA 		5-09709-012-0 02 1 0811- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM<38W> (B) T=6.0 THA 		5-09709-012-0 03 1 0803-0803 ●
411 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG<RDQ> WHEEL BASE 3800MM<38W> (B) T=6.0 THA 		5-09709-012-0 03 1 0803-0803 ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0811- ● ●
