1-31 — AIR DUCT (#74551) — 116 parça

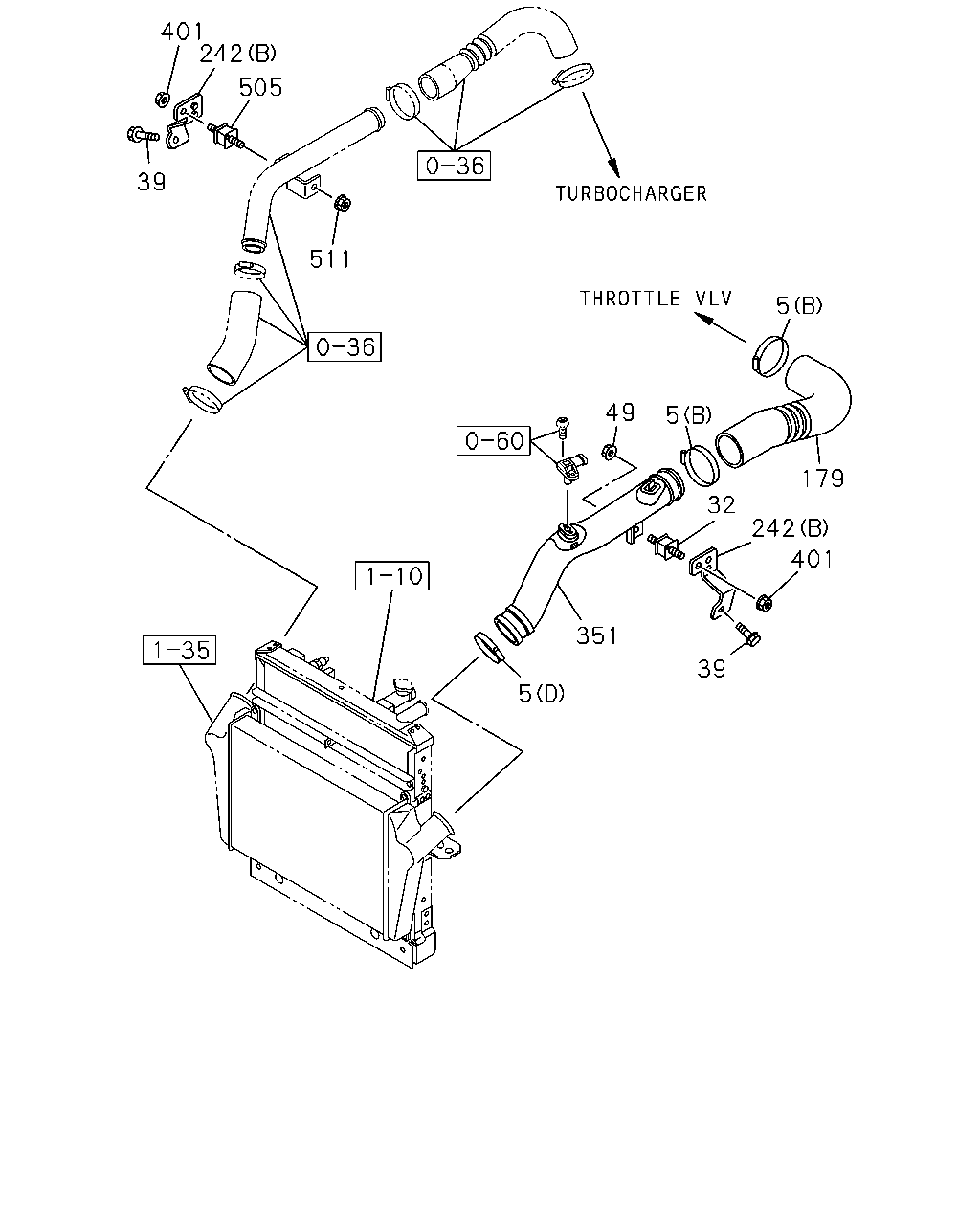

çizim 91843
401 39 242 505 511 5 351 49 5 179 32 39 242 401 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 02 1 0803-0810 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 02 1 0811-0811 ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98308-274-0 02 1 1508- ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 		1-09707-202-0 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0811- ● ●
5 CLIP; AIR DUCT
(A) 		9-09915-504-1 01 1 0803-0803 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0811- ● ●
32 RUBBER; AIR DUCT MTG 8-98036-826-0 01 1 0803-0810 ●
32 RUBBER; AIR DUCT MTG 8-98036-826-0 01 1 0811-1106 ● ●
32 RUBBER; AIR DUCT MTG 8-97081-886-0 01 1 1107- ● ●
39 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
39 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ● ●
49 NUT; AIR DUCT
M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
49 NUT; AIR DUCT
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
179 HOSE; AIR INT 8-98106-255-0 01 1 0803-0803 ●
179 HOSE; AIR INT 8-98114-719-0 01 1 0803-0810 ●
179 HOSE; AIR INT 8-98114-719-0 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0811- ● ●
351 DUCT; AIR 8-98105-722-1 01 1 0803-0810 ●
351 DUCT; AIR 8-98105-722-1 01 1 0811- ● ●
401 NUT; BRKT,AIR INT
M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
401 NUT; BRKT,AIR INT
M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●
505 RUBBER; MTG 8-98036-826-0 01 1 0803-0810 ●
505 RUBBER; MTG 8-98036-826-0 01 1 0811-1106 ● ●
505 RUBBER; MTG 8-97081-886-0 01 1 1107- ● ●
511 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
511 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●

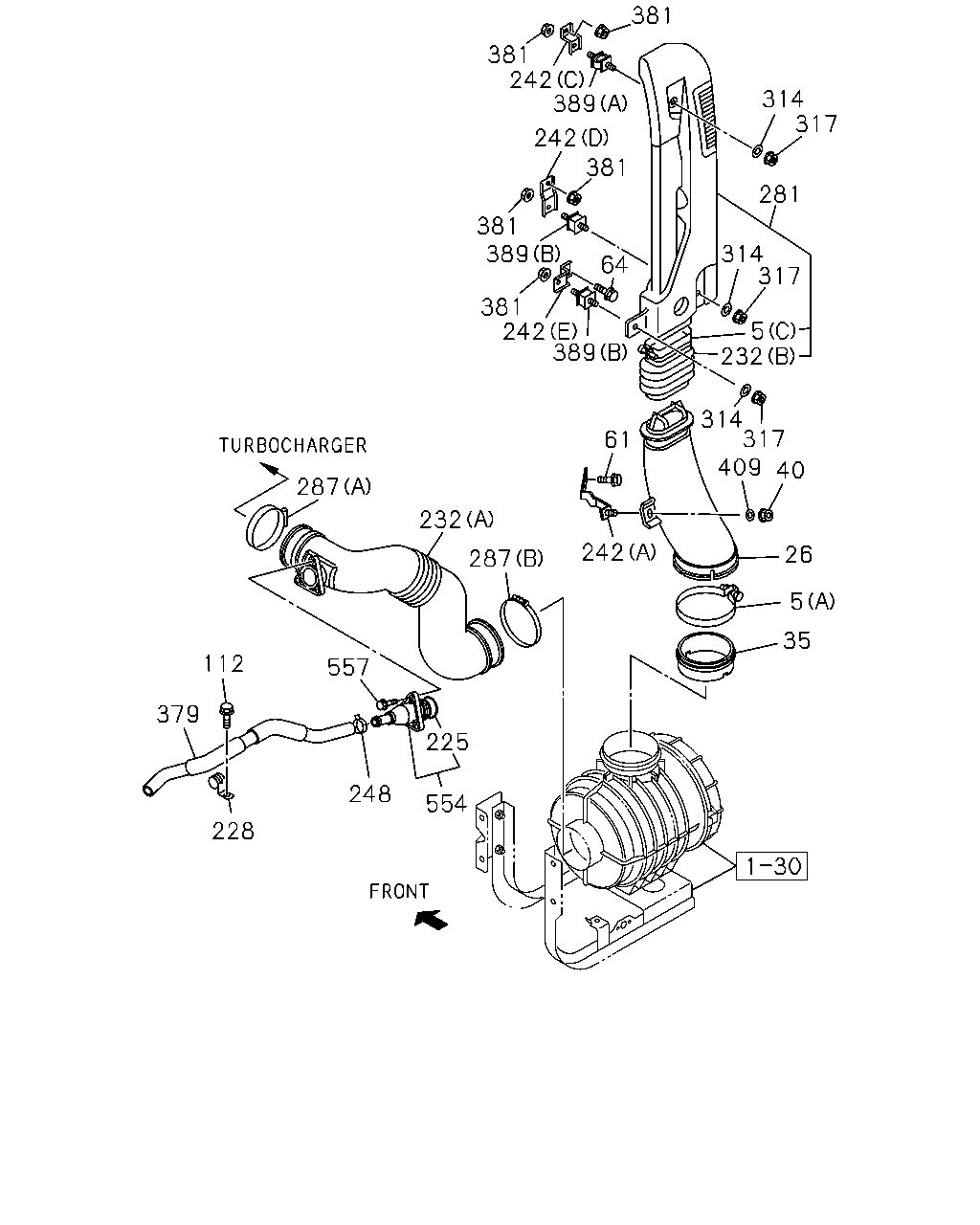

çizim 185698
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 409 61 40 287 232 242 26 287 5 35 557 112 379 225 248 554 228
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 02 1 0803-0810 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 02 1 0811-0811 ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98308-274-0 02 1 1508- ● ●
5 CLIP; AIR DUCT
(D) ID=68-85 		1-09707-202-0 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0811- ● ●
5 CLIP; AIR DUCT
(A) 		9-09915-504-1 01 1 0803-0803 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803-0810 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0811- ● ●
26 DUCT; AIR INT 8-98025-626-0 01 1 0803-0810 ●
26 DUCT; AIR INT 8-98025-626-0 01 1 0811- ● ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0803-0810 ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0811- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE THA 		0-91180-110-0 01 1 0803-0810 ●
40 NUT; AIR INT DUCT
M10 FLANGE THA 		0-91180-110-0 01 1 0811- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0803-0810 ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0811- ● ●
112 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0803-0810 ●
112 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0811- ● ●
225 GASKET; AIR PIPE
ID=43.7 		9-09561-344-0 01 1 0803-0810 ●
225 GASKET; AIR PIPE
ID=43.7 		9-09561-344-0 01 1 0811- ● ●
228 CLIP; PCV HOSE
ID=28 H=45 L=30 		1-09700-948-0 01 1 0803-0810 ●
228 CLIP; PCV HOSE
ID=28 H=45 L=30 		1-09700-948-0 01 1 0811- ● ●
232 HOSE; CONN
(A) 		8-98059-956-2 01 1 0803-0810 ●
232 HOSE; CONN
(A) 		8-98059-956-2 01 1 0811- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0803-0810 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0811-1309 ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0811- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0803-0810 ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0811- ● ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 01 1 0803-0810 ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 01 1 0811- ● ●
281 DUCT; AIR,VERTICAL INT 8-98000-230-5 01 1 0803-0810 ●
281 DUCT; AIR,VERTICAL INT 8-98000-230-5 01 1 0811- ● ●
287 CLIP; AIR DUCT
(A) ID=68-85 		1-09707-202-0 01 1 0803-0810 ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 0901-1507 ● ●
287 CLIP; AIR DUCT
(A) ID=55-75 THA 		8-98141-459-0 01 1 1508- ● ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 0803-0810 ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 0811- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0803-0810 ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0811- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER THA 		8-97581-234-0 03 1 0803-0810 ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER THA 		8-97581-234-0 03 1 0811- ● ●
379 HOSE; RUBBER 8-98075-711-0 01 1 0803-0810 ●
379 HOSE; RUBBER 8-98075-711-0 01 1 0811- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA 		8-97581-234-0 05 1 0803-0810 ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA 		8-97581-234-0 05 1 0811- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803-0810 ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0811- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0803-0810 ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0811- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0803-0810 ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0811- ● ●
554 FLANGE; PIPE,PCV 8-98038-208-0 01 1 0803-0810 ●
554 FLANGE; PIPE,PCV 8-98038-208-0 01 1 0811- ● ●
557 BOLT; HOSE CLIP
M6X20 FLANGE THA 		0-28050-620-0 03 1 0803-0810 ●
557 BOLT; HOSE CLIP
M6X20 FLANGE THA 		0-28050-620-0 03 1 0811- ● ●
