1-01 — ACCELERATOR PEDAL AND CONTROL (#74547) — 43 parça

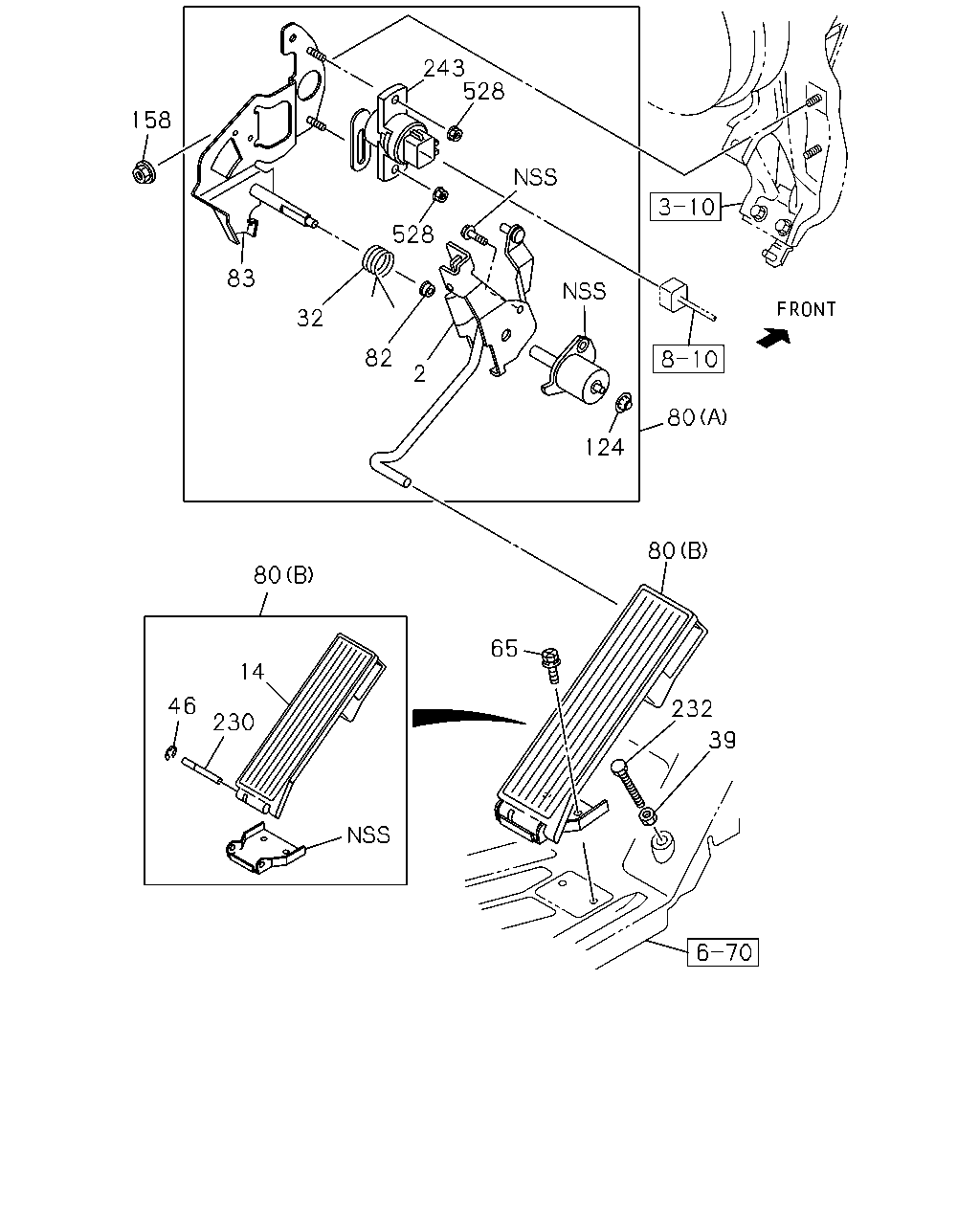

çizim 85253
243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 8-98002-158-2 01 1 0803-0810 ●
2 LEVER; ENG CONT 8-98002-158-2 01 1 0811- ● ●
14 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0803-0810 ●
14 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0811- ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0803-0810 ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0811- ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 THA 		0-91110-508-0 01 1 0803-0810 ●
39 NUT; ACCEL PEDAL STOPPER
M8 THA 		0-91110-508-0 01 1 0811- ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0803-0810 ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0811- ● ●
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0803-0810 ●
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0811- ● ●
80 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0803-0810 ●
80 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0811- ● ●
80 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0803-0810 ●
80 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0811- ● ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0803-0810 ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0811- ● ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0803-0810 ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0811- ● ●
124 NUT; LEVER
ID=7.9 PUSH NUT THA 		8-94368-617-0 01 1 0803-0810 ●
124 NUT; LEVER
ID=7.9 PUSH NUT THA 		8-94368-617-0 01 1 0811- ● ●
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 0803-0810 ●
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 0811- ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0803-0810 ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0811- ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0803-0810 ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0811- ● ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0803-0810 ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0811-0910 ● ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0803-0810 ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0811- ● ●

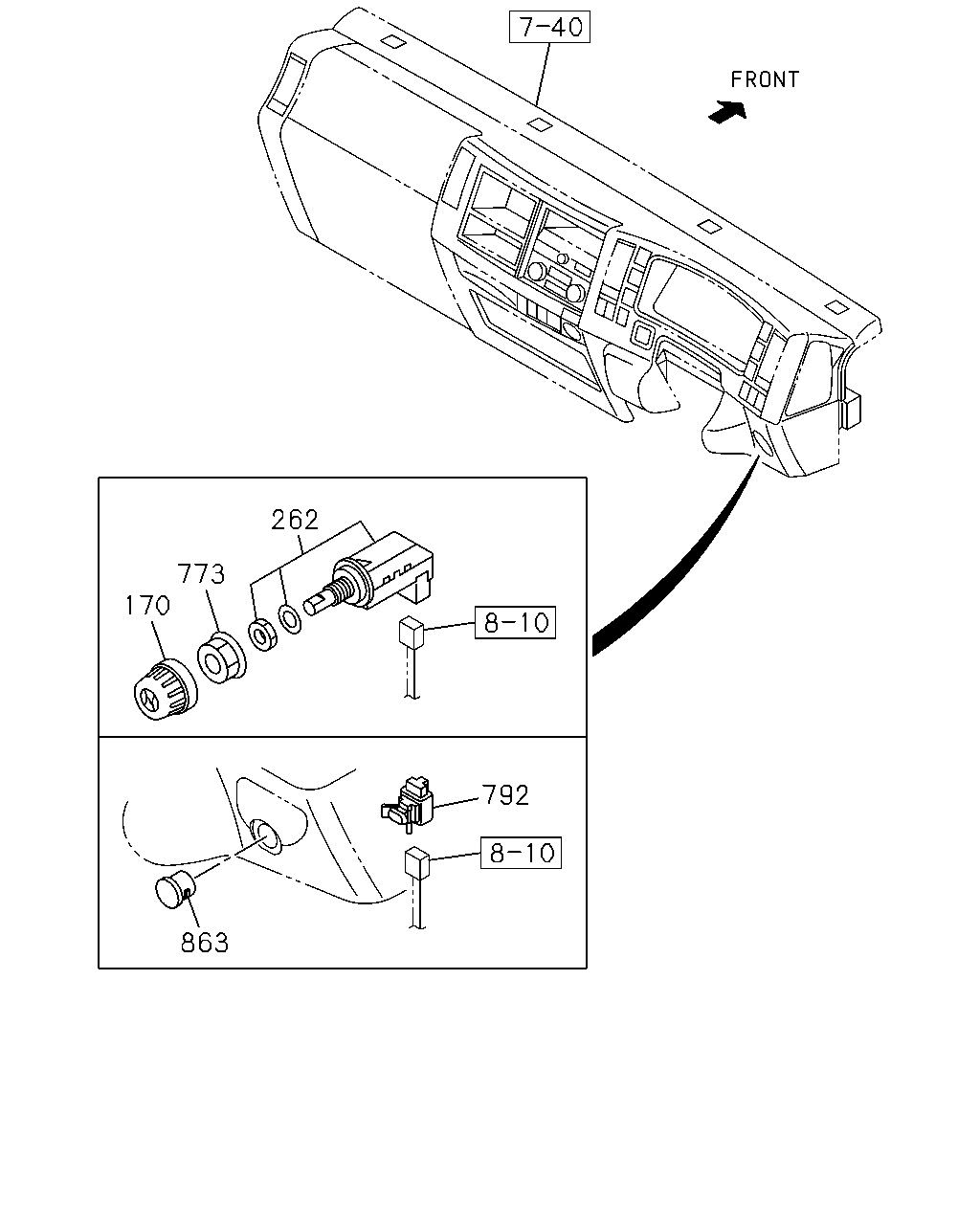

çizim 85424
262 773 170 792 863
BalonParca AdiParca NoAdetTipApplied Date A B
170 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-420-0 01 1 0803-0810 ●
170 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-420-0 01 1 0811- ● ●
262 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-418-0 01 1 0803-0810 ●
262 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-418-0 01 1 0811- ● ●
773 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-97352-127-0 01 1 0803-0810 ●
773 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-97352-127-0 01 1 0811- ● ●
792 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-906-0 01 1 0803-0810 ●
792 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-906-0 01 1 0811- ● ●
863 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> GRAY 		8-97408-816-0 01 1 0803-0810 ●
863 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> GRAY 		8-97408-816-0 01 1 0811- ● ●
