◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#74542) — 22 parça

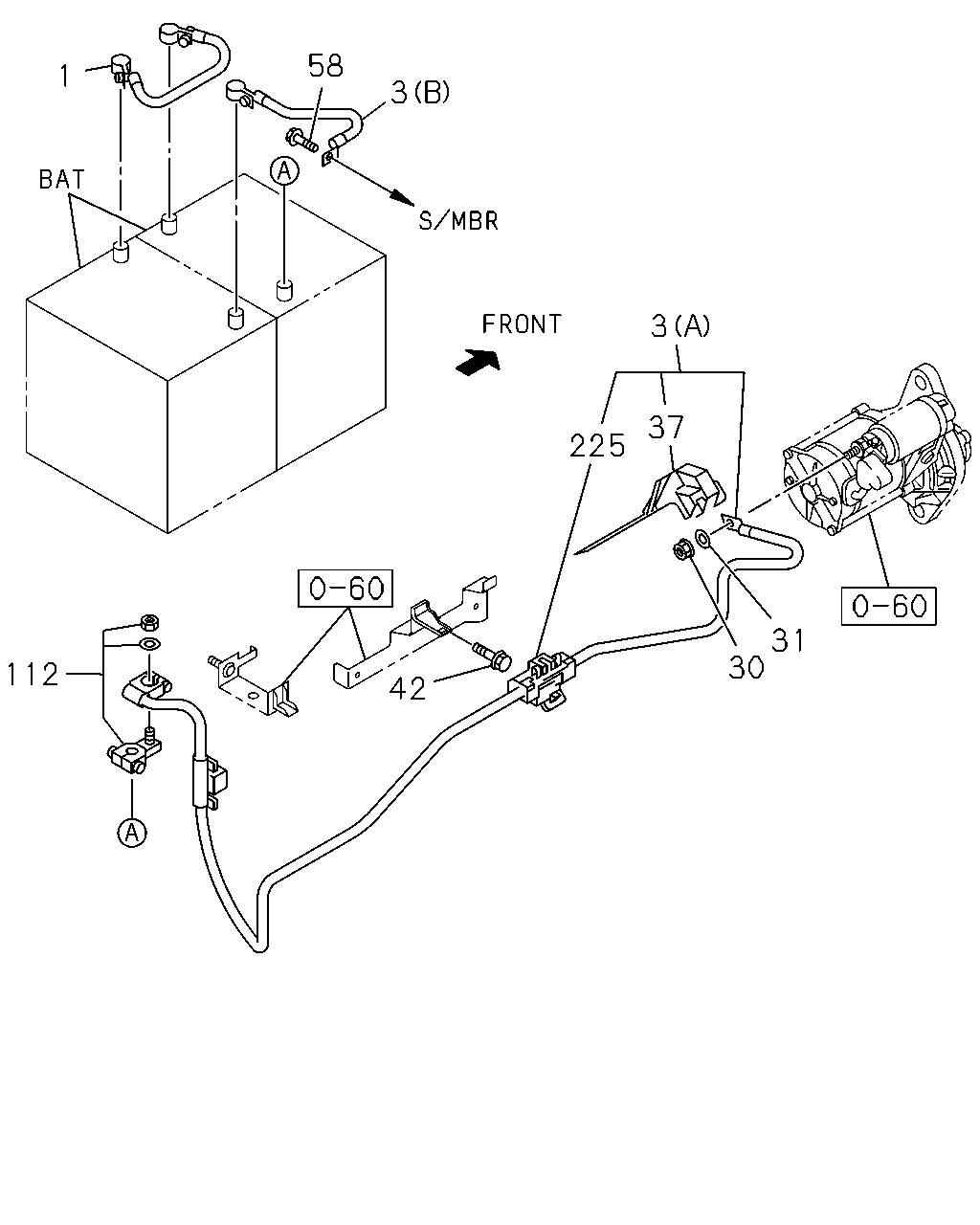

çizim 73266
58 1 3 3 37 225 31 30 42 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 0803-0810 ●
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 0811- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) THA 		8-97924-686-0 01 1 0811- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) THA 		8-97922-384-0 01 1 0803-0810 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) THA 		8-97922-384-0 01 1 0811- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) THA 		8-97923-933-1 01 1 0803-0804 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) THA 		8-97924-685-0 01 1 0805- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 THA 		0-91110-508-0 01 1 0803-0810 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 THA 		0-91110-508-0 01 1 0811- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA 		0-91510-808-0 01 1 0803-0810 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA 		0-91510-808-0 01 1 0811- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0803-0810 ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0811- ● ●
42 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE THA 		8-97329-599-0 01 1 0803-0810 ●
42 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE THA 		8-97329-599-0 01 1 0811- ● ●
58 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803-0810 ●
58 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0811- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803-0810 ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0811- ● ●
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 0803-0810 ●
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 0811- ● ●
225 BLOCK; TERMINAL
THA 		8-98294-524-0 01 1 1410- ● ●
