0-60 — ENGINE ELECTRICAL CONTROL PARTS (#74541) — 68 parça
çizim 72706
613 606 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B
601 NUT; UNIT
M6 W/DISHED WASHER 		8-98029-921-0 04 1 0803-0810 ●
601 NUT; UNIT
M6 W/DISHED WASHER 		8-98029-921-0 04 1 0811- ● ●
606 BRACKET; CONT UNIT 8-98004-751-1 01 1 0803-0810 ●
606 BRACKET; CONT UNIT 8-98004-751-1 01 1 0811-0902 ● ●
606 BRACKET; CONT UNIT 8-98114-583-2 01 1 0903- ● ●
613 CONTROL UNIT; ENG 8-98081-088-6 01 1 0811- ●
613 CONTROL UNIT; ENG 8-98081-074-6 01 1 0803- ●
748 BOLT; CONT UNIT
M6X12 FLANGE THA 		0-28050-612-0 03 1 0803-0810 ●
748 BOLT; CONT UNIT
M6X12 FLANGE THA 		0-28050-612-0 03 1 0811- ● ●
897 DRM
THA 		8-98082-814-6 01 1 0803-0810 ●
897 DRM
THA 		8-98082-814-6 01 1 0811- ● ●

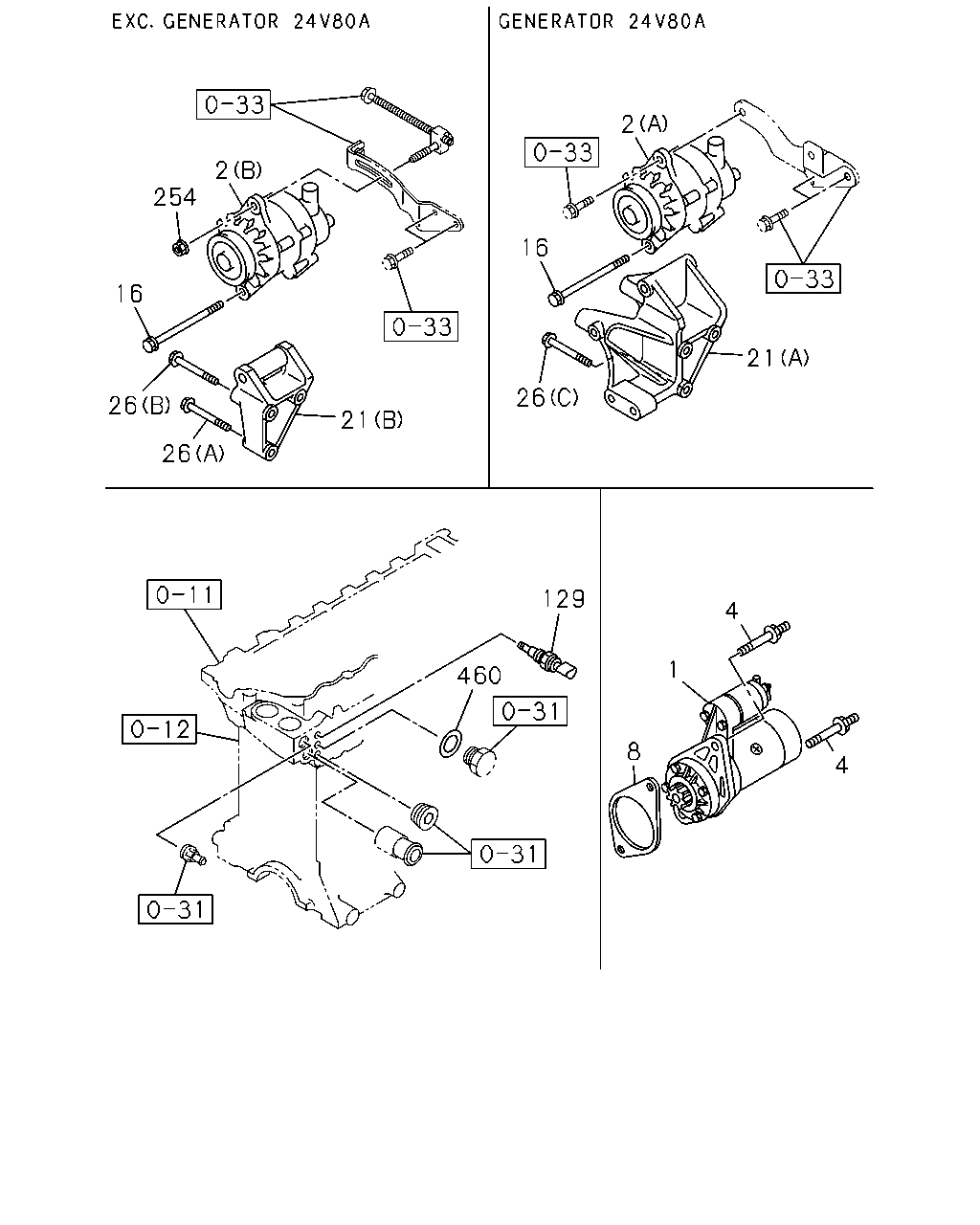

çizim 72967
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0803-0810 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0811-1010 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI THA 		8-98222-019-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A<7YN> (A) 24V 80A 		8-98029-892-2 01 1 0803-0810 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A<7YN> (A) 24V 80A 		8-98029-892-2 01 1 0811- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A<7YN> (B) 24V 50A 		8-98075-026-0 01 1 0803-0810 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A<7YN> (B) 24V 50A 		8-98075-026-0 01 1 0811- ● ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0803-0810 ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0811- ● ●
8 SPACER; STARTER 8-97350-947-0 01 1 0803- ●
16 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0803-0810 ●
16 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0811- ● ●
21 BRACKET; GEN
GENERATOR 24V80A<7YN> (A) 		8-98036-551-0 01 1 0803-0810 ●
21 BRACKET; GEN
GENERATOR 24V80A<7YN> (A) 		8-98036-551-0 01 1 0811- ● ●
21 BRACKET; GEN
EXC. GENERATOR 24V80A<7YN> (B) THA 		8-97075-884-2 01 1 0803-0810 ●
21 BRACKET; GEN
EXC. GENERATOR 24V80A<7YN> (B) THA 		8-97075-884-2 01 1 0811- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V80A<7YN> (C) M10X90 FLANGE 		0-28151-090-0 03 1 0803-0810 ●
26 BOLT; GEN BRKT
GENERATOR 24V80A<7YN> (C) M10X90 FLANGE 		0-28151-090-0 03 1 0811- ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> (A) M10X50 FLANGE THA 		0-28151-050-0 01 1 0803-0810 ●
26 BOLT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> (A) M10X50 FLANGE THA 		0-28151-050-0 01 1 0811- ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> (B) M10X70 FLANGE 		0-28151-070-0 02 1 0803-0810 ●
26 BOLT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> (B) M10X70 FLANGE 		0-28151-070-0 02 1 0811- ● ●
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0803-0810 ●
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0811-1503 ● ●
129 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 NUT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> M8 FLANGE THA 		0-91180-208-0 01 1 0803-0810 ●
254 NUT; GEN BRKT
EXC. GENERATOR 24V80A<7YN> M8 FLANGE THA 		0-91180-208-0 01 1 0811- ● ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 0803-0810 ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 0811- ● ●
çizim 73332
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0803-0810 ●
10 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0811- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0803-0810 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0811- ● ●

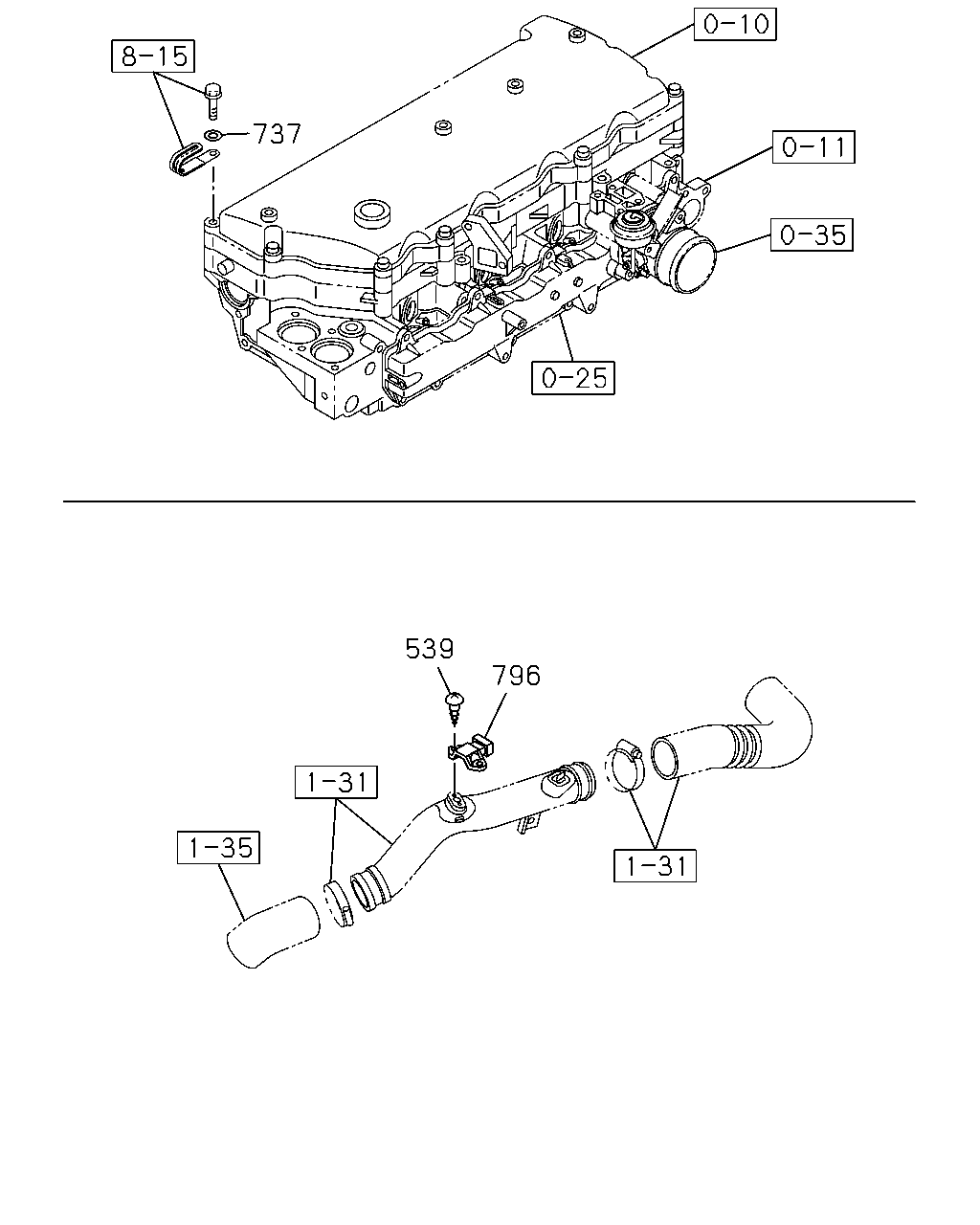

çizim 185693
737 539 796
BalonParca AdiParca NoAdetTipApplied Date A B
539 SCREW; SENSOR
M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0803-0810 ●
539 SCREW; SENSOR
M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0811-0812 ● ●
737 WASHER; PL
VIN MODEL YEAR 2010<VZA> ID=6.4 		0-91610-606-0 01 1 1004-1104 ● ●
796 SENSOR; MAP 8-98009-418-0 01 1 0803-0810 ●
796 SENSOR; MAP 8-98009-418-0 01 1 0811- ● ●

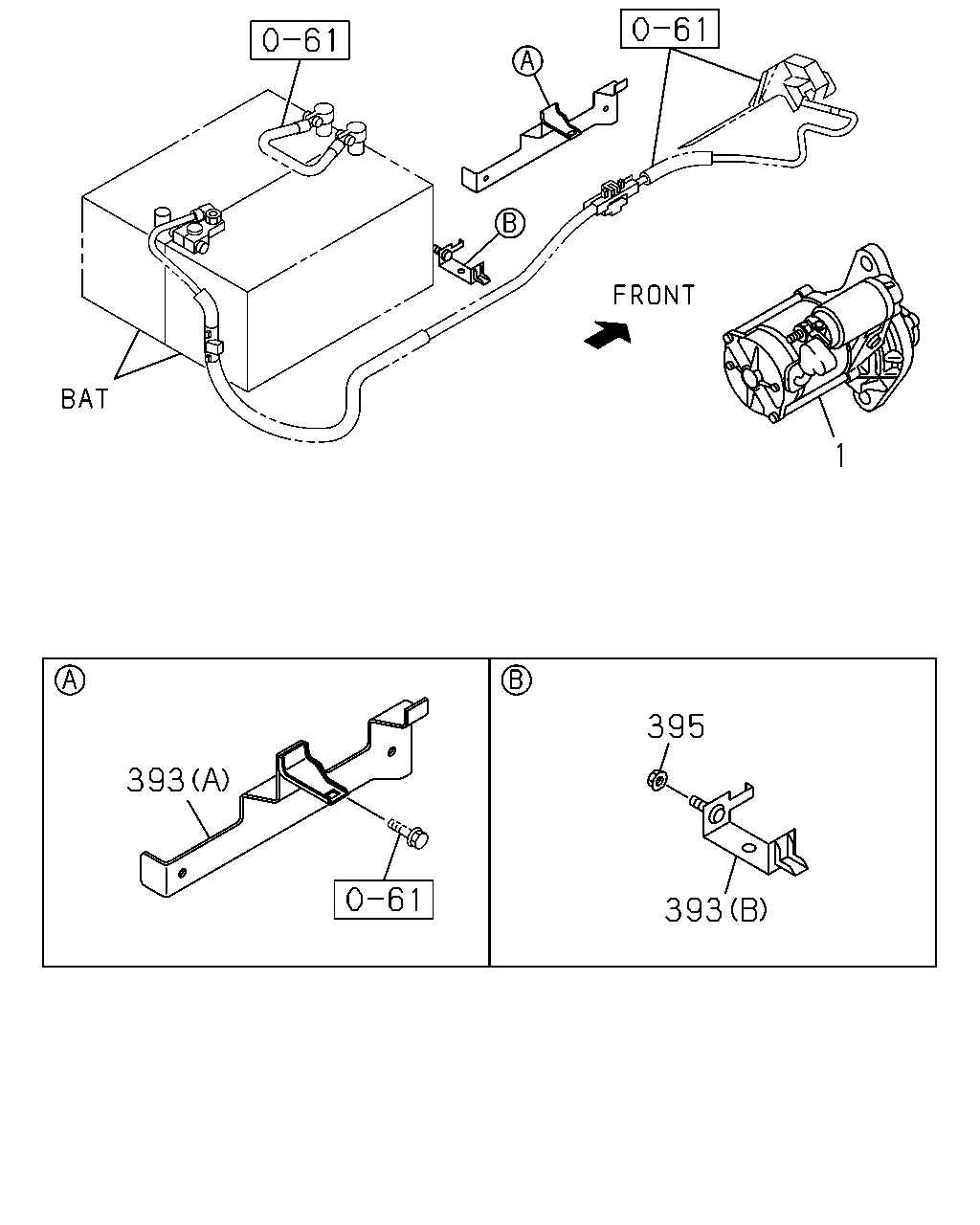

çizim 185694
1 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0803-0810 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0811-1010 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI THA 		8-98222-019-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ●
393 BRACKET; HARNESS TO BODY
(B) 		8-98018-251-1 01 1 0803-0810 ●
393 BRACKET; HARNESS TO BODY
(B) 		8-98018-251-1 01 1 0811- ● ●
393 BRACKET; HARNESS TO BODY
(A) 		8-98041-946-1 01 1 0803-0810 ●
393 BRACKET; HARNESS TO BODY
(A) 		8-98041-946-1 01 1 0811- ● ●
395 NUT; BRKT FIX
M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
395 NUT; BRKT FIX
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
