0-57 — EMISSION PIPING (#74540) — 76 parça

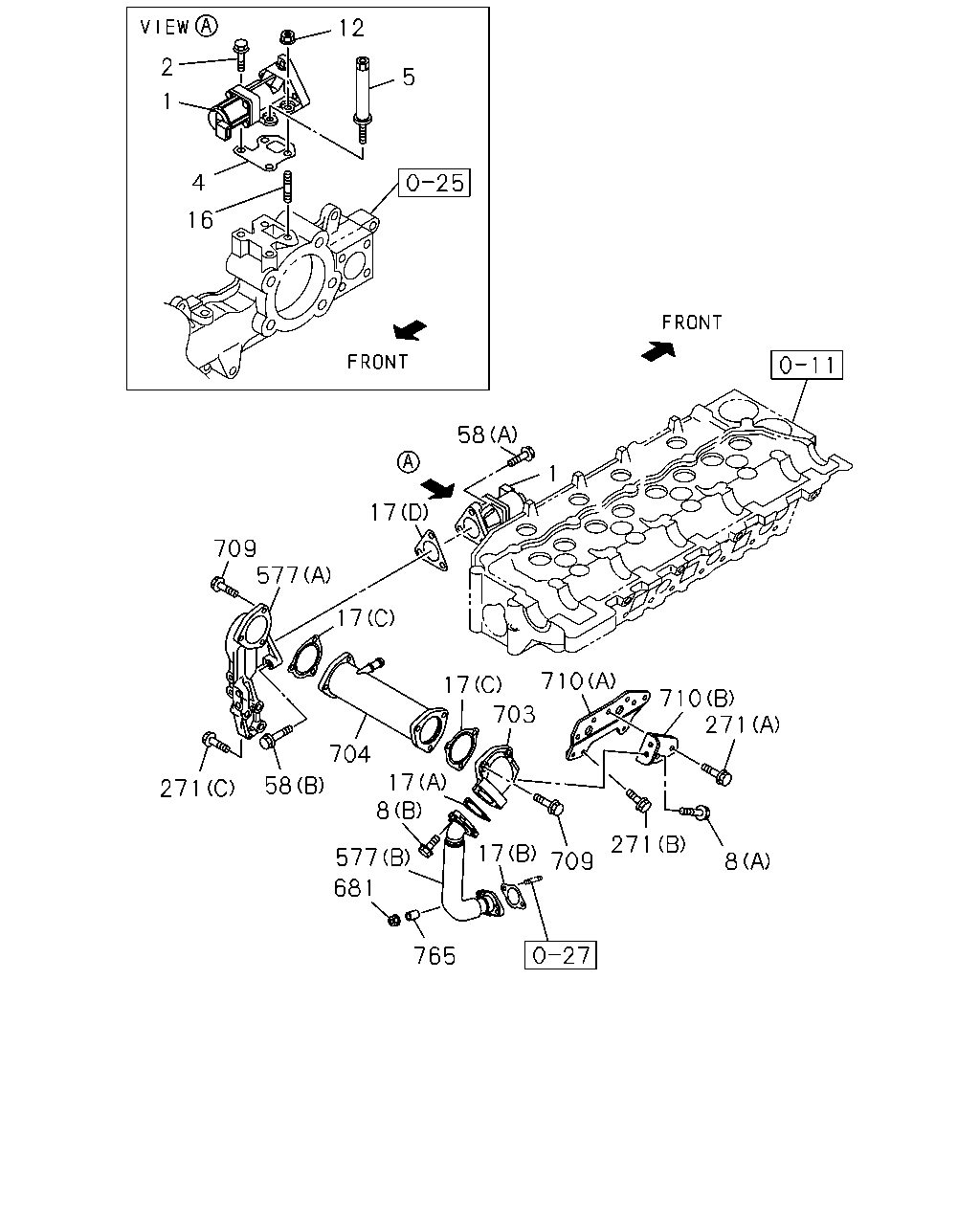

çizim 66106
12 2 5 1 4 16 58 1 17 709 577 17 710 17 710 271 703 704 17 8 58 271 271 17 577 709 8 681 765
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-97377-509-3 01 1 0803-0810 ●
1 VALVE; EGR 8-97377-509-8 01 1 0811- ● ●
2 BOLT; EGR VLV
M8X25 FLANGE THA 		0-28650-825-0 01 1 0803-0810 ●
2 BOLT; EGR VLV
M8X25 FLANGE THA 		0-28650-825-0 01 1 0811- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97306-040-0 01 1 0803-0810 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97306-040-0 01 1 0811- ● ●
5 ADAPTER ASM 8-97377-804-0 01 1 0803-0810 ●
5 ADAPTER ASM 8-97377-804-0 01 1 0811- ● ●
8 BOLT; EGR ADAPTER
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0810 ●
8 BOLT; EGR ADAPTER
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0811- ● ●
8 BOLT; EGR ADAPTER
(B) M8X28 FLANGE 		8-98043-528-0 03 1 0803-0810 ●
8 BOLT; EGR ADAPTER
(B) M8X28 FLANGE 		8-98043-528-0 03 1 0811- ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●
16 STUD; EGR VLV
M8X20 L=32 THA 		0-41010-820-0 02 1 0803-0810 ●
16 STUD; EGR VLV
M8X20 L=32 THA 		0-41010-820-0 02 1 0811- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97367-918-0 01 1 0803-0810 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97367-918-0 01 1 0811- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97375-980-1 01 1 0803-0810 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97375-980-1 01 1 0811- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97388-919-0 02 1 0803-0810 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97388-919-0 02 1 0811- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98036-507-0 01 1 0803-0810 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98036-507-0 01 1 0811- ● ●
58 BOLT; PIPE
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0803-0810 ●
58 BOLT; PIPE
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0811- ● ●
58 BOLT; PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0803-0810 ●
58 BOLT; PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0811- ● ●
271 BOLT; BRKT
KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (C) M12X50 FLANGE THA 		0-28151-250-0 02 1 0803-0810 ●
271 BOLT; BRKT
(C) M12X50 FLANGE THA 		0-28151-250-0 02 1 0811- ● ●
271 BOLT; BRKT
KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (B) M8X20 FLANGE THA 		0-28050-820-0 02 1 0803-0810 ●
271 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 0811- ● ●
271 BOLT; BRKT
KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
271 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ● ●
577 PIPE; AIR,EGR
(A) 		8-98055-858-1 01 1 0803-0810 ●
577 PIPE; AIR,EGR
(A) 		8-98055-858-2 01 1 0811- ● ●
577 PIPE; AIR,EGR
(B) 		8-98063-655-1 01 1 0803-0810 ●
577 PIPE; AIR,EGR
(B) 		8-98063-655-2 01 1 0811- ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0803-0810 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0811- ● ●
703 DUCT; EGR 8-98061-100-2 01 1 0803-0810 ●
703 DUCT; EGR 8-98061-100-2 01 1 0811- ● ●
704 COOLER ASM; EGR 8-98061-104-0 01 1 0803-0810 ●
704 COOLER ASM; EGR 8-98061-104-0 01 1 0811- ● ●
709 BOLT; EGR COOLER
M10X30 FLANGE 		0-28751-030-0 06 1 0803-0808 ●
709 BOLT; EGR COOLER
M10X35 FLANGE THA 		0-28751-035-0 06 1 0809-0810 ●
709 BOLT; EGR COOLER
M10X35 FLANGE THA 		0-28751-035-0 06 1 0811- ● ●
710 BRACKET; EGR COOLER
(A) 		8-98092-887-0 01 1 0803-0810 ●
710 BRACKET; EGR COOLER
(A) 		8-98092-887-0 01 1 0811- ● ●
710 BRACKET; EGR COOLER
(B) 		8-98092-888-0 01 1 0803-0810 ●
710 BRACKET; EGR COOLER
(B) 		8-98092-888-0 01 1 0811- ● ●
765 SPACER; EGR PIPE 8-94225-562-0 02 1 0803-0810 ●
765 SPACER; EGR PIPE 8-94225-562-0 02 1 0811- ● ●

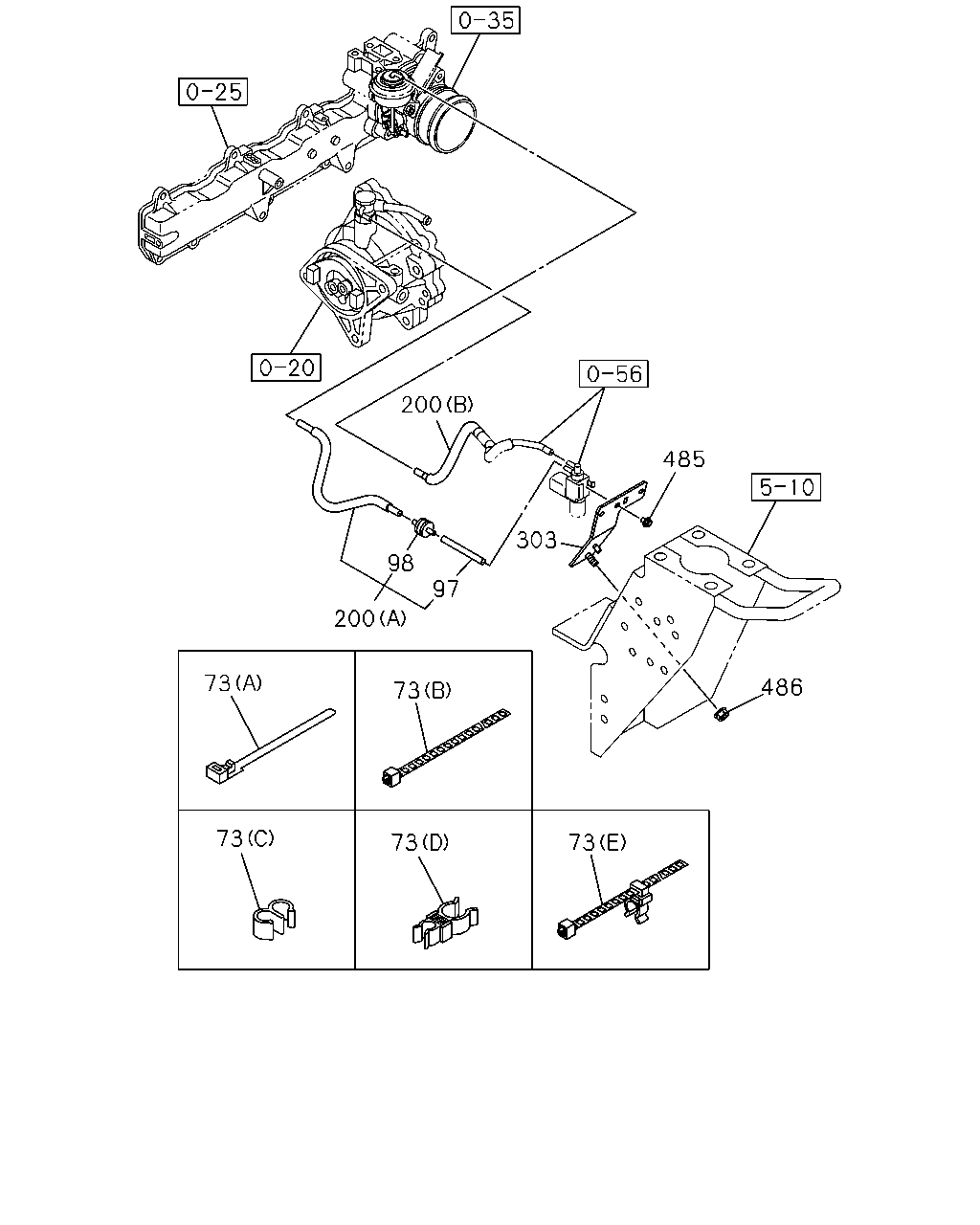

çizim 68363
200 485 303 98 97 200 73 486 73 73 73 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 CLIP; VAC HOSE
(A) L=250 THA 		5-09707-030-1 01 1 0803-0809 ●
73 CLIP; VAC HOSE
(A) L=140 THA 		5-09707-031-1 02 1 0803-0809 ●
73 CLIP; VAC HOSE
(C) ID=7.2 		8-94163-380-0 01 1 0803-0809 ●
73 CLIP; VAC HOSE
(D) ID=13.2 & 7.5 		8-94315-426-0 01 1 0803-0809 ●
73 CLIP; VAC HOSE
(E) L=350 		8-97373-487-0 01 1 0803-0810 ●
73 CLIP; VAC HOSE
(E) L=350 		8-97373-487-0 01 1 0811- ● ●
73 CLIP; VAC HOSE
(B) L=350 		8-94152-256-1 01 1 0803-0810 ●
73 CLIP; VAC HOSE
(B) L=350 		8-94152-256-1 01 1 0811- ● ●
73 CLIP; VAC HOSE
(A) L=140 THA 		8-97920-656-0 02 1 0803-0808 ●
97 HOSE; RUBBER
L=90 SERVICED BY L=3000 		0-04920-300-0 01 1 0803-0810 ●
97 HOSE; RUBBER
L=90 SERVICED BY L=3000 		0-04920-300-0 01 1 0811- ● ●
98 VALVE; DELAY 8-94110-978-0 01 1 0803-0810 ●
98 VALVE; DELAY 8-94110-978-0 01 1 0811- ● ●
200 HOSE; VAC
(A) 		8-97373-527-0 01 1 0803-0810 ●
200 HOSE; VAC
(A) 		8-97373-527-0 01 1 0811- ● ●
200 HOSE; VAC
(B) 		8-98076-251-0 01 1 0803-0810 ●
200 HOSE; VAC
(B) 		8-98076-251-0 01 1 0811- ● ●
303 BRACKET; VAC SW 8-98097-124-0 01 1 0803-0810 ●
303 BRACKET; VAC SW 8-98097-124-0 01 1 0811- ● ●
485 BOLT; VSV
M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0803-0810 ●
485 BOLT; VSV
M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0811- ● ●
486 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 0803-0810 ●
486 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ● ●
