Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10796 - EXZ LHD FUEL TANK 400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

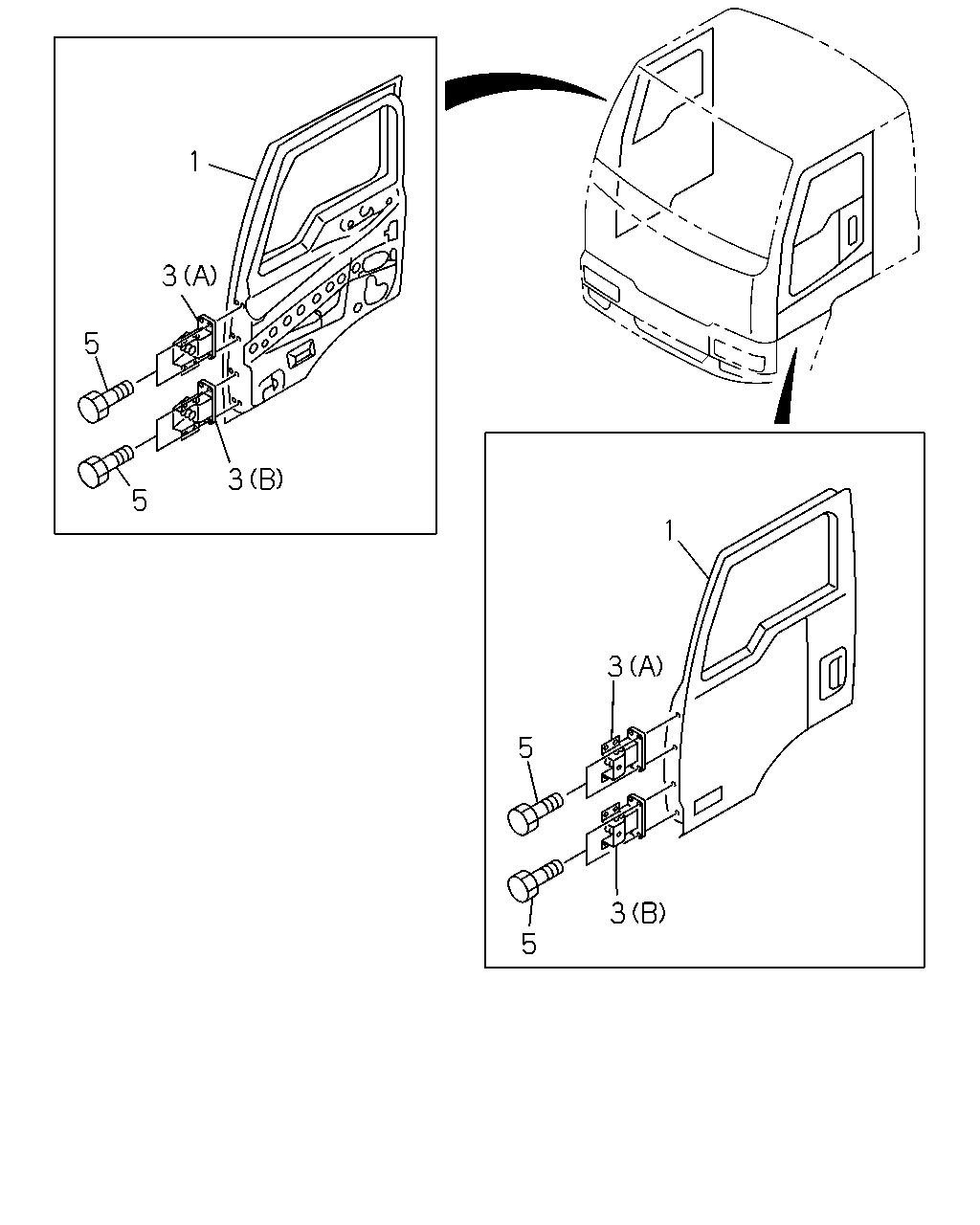

6-30 — FRONT DOOR AND HINGE
(#7454) — 13 parça
1
3
5
3
5
1
3
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-326-0
01
1
9812-9901
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-1
01
1
9902-
1
DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-327-0
01
1
9812-9901
1
DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-393-0
01
1
9902-0103
1
DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER
1-64080-404-1
01
1
0104-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-325-0
01
1
9812-9901
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-390-1
01
1
9902-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER
1-64080-333-0
01
1
9812-9901
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-388-1
01
1
9902-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-088-2
02
1
9812-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-089-2
02
1
9812-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
9812-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
9812-
