◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#74538) — 31 parça

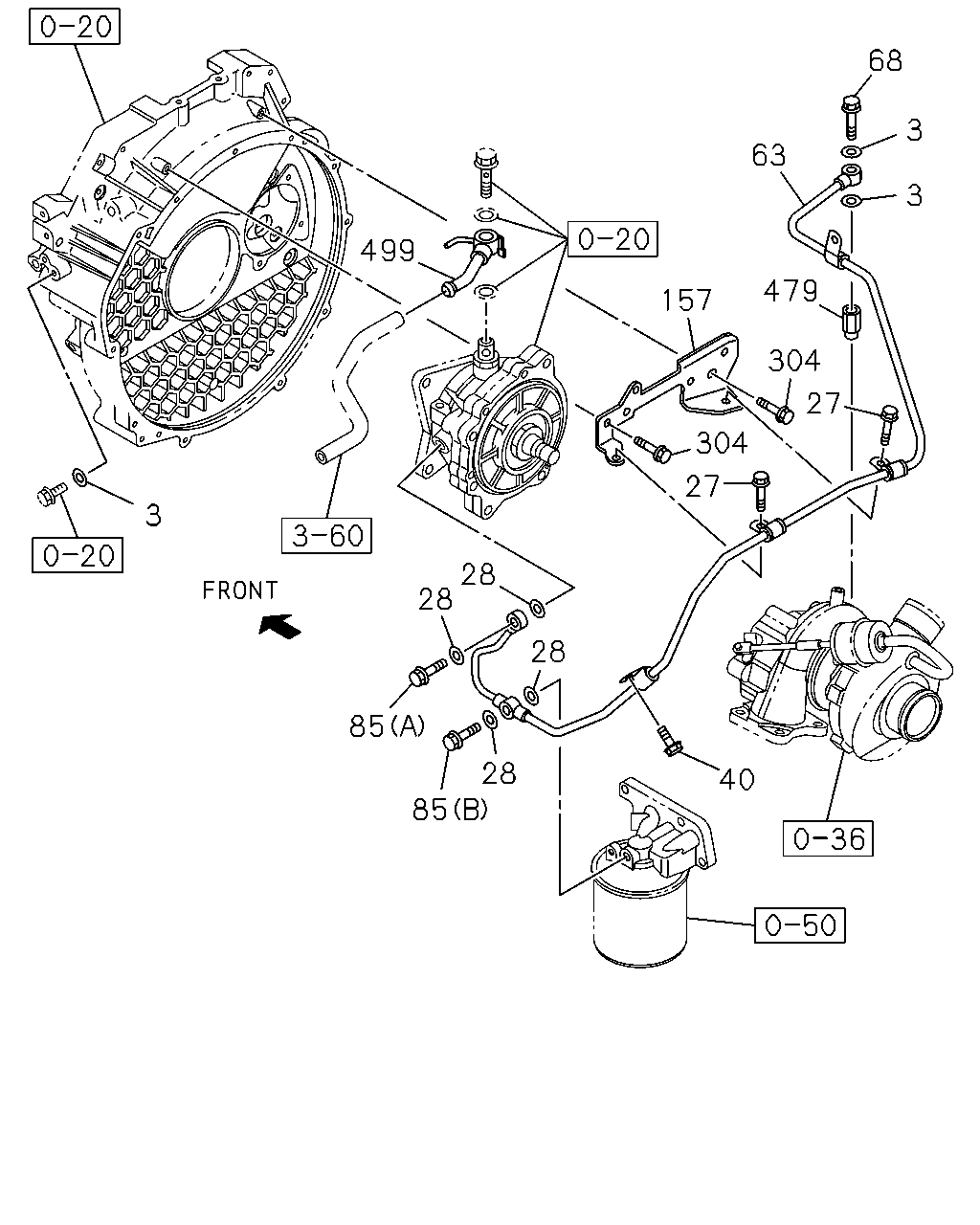

çizim 64711
68 3 63 3 499 479 157 304 27 304 27 3 28 28 28 85 28 85 40
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.6 		8-97331-137-1 01 1 1102- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0803-0810 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0811- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 02 1 0803-0810 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 02 1 0811-1101 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.6 		8-97331-137-1 01 1 1102- ● ●
27 BOLT; OIL PIPE FIX
M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0810 ●
27 BOLT; OIL PIPE FIX
M8X16 FLANGE THA 		0-28050-816-0 02 1 0811- ● ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 0803-0810 ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 0811- ● ●
40 BOLT; OIL PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0803-0810 ●
40 BOLT; OIL PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0811- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-98092-070-0 01 1 0803-0810 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-98092-070-0 01 1 0811- ● ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE 		8-97166-518-0 01 1 0803-0810 ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE 		8-97166-518-1 01 1 0811- ● ●
85 BOLT; EYE,OIL PIPE FIX
(A) M10X22 		1-09675-028-0 01 1 0803-0810 ●
85 BOLT; EYE,OIL PIPE FIX
(A) M10X22 		1-09675-028-0 01 1 0811- ● ●
85 BOLT; EYE,OIL PIPE FIX
(B) M10X28 		8-98037-823-0 01 1 0803-0810 ●
85 BOLT; EYE,OIL PIPE FIX
(B) M10X28 		8-98037-823-0 01 1 0811- ● ●
157 BRACKET; OIL PIPE 8-98077-403-0 01 1 0803-0810 ●
157 BRACKET; OIL PIPE 8-98077-403-0 01 1 0811- ● ●
304 BOLT; BRKT,OIL PIPE
M10X16 FLANGE THA 		0-28051-016-0 02 1 0812-1001 ● ●
304 BOLT; BRKT,OIL PIPE
M10X16 FLANGE THA 		0-28151-016-0 02 1 1002- ● ●
304 BOLT; BRKT,OIL PIPE
M8X20 FLANGE THA 		0-28650-820-0 02 1 0803-0810 ●
304 BOLT; BRKT,OIL PIPE
M8X20 FLANGE THA 		0-28650-820-0 02 1 0811-0811 ● ●
304 BOLT; BRKT,OIL PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0812- ● ●
479 ADAPTER 8-94436-891-0 01 1 0803-0810 ●
479 ADAPTER 8-94436-891-0 01 1 0811- ● ●
499 PIPE; VACUUM 8-98075-832-0 01 1 0803-0810 ●
499 PIPE; VACUUM 8-98075-832-0 01 1 0811- ● ●
