◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#74534) — 45 parça

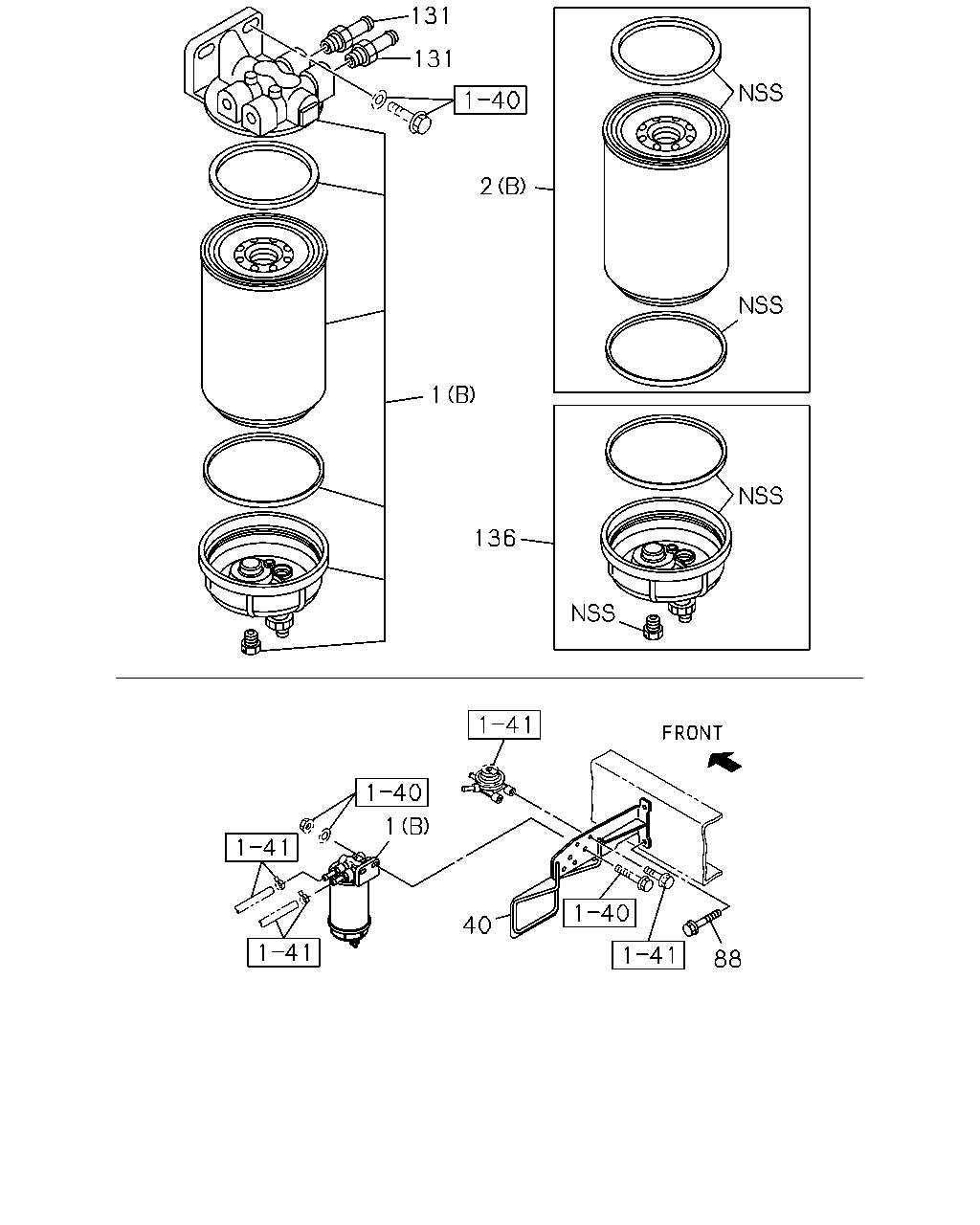

çizim 63697
131 131 2 1 136 1 40 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-980-1 01 1 0803-0810 ●
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-980-1 01 1 0811- ● ●
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0803-0810 ●
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0811-0912 ● ●
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1001- ● ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-983-0 01 1 0803-0810 ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-983-0 01 1 0811- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0803-0810 ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0811-0912 ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1112 ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201- ● ●
40 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98107-354-3 01 1 0803-0810 ●
40 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98107-354-3 01 1 0811- ● ●
88 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA 		0-28651-030-0 02 1 0803-0810 ●
88 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE THA 		0-28651-030-0 02 1 0811- ● ●
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-97358-699-0 02 1 0803-0810 ●
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-97358-699-0 02 1 0811-0908 ● ●
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0909- ● ●
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98096-004-0 01 1 0803-0810 ●
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98096-004-0 01 1 0811-1408 ● ●
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98279-324-0 01 1 1409- ● ●
çizim 185690
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-980-1 01 1 0803-0810 ●
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-980-1 01 1 0811- ● ●
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0803-0810 ●
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0811-0912 ● ●
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1001- ● ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-983-0 01 1 0803-0810 ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98095-983-0 01 1 0811- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0803-0810 ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0811-0912 ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1112 ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201- ● ●
11 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0803-0810 ●
11 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0811-1112 ● ●
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ●
92 CAP; FUEL FILTER 8-98034-314-0 01 1 0803-0810 ●
92 CAP; FUEL FILTER 8-98034-314-0 01 1 0811- ● ●
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0803-0810 ●
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0811- ● ●
114 CASE ASM; FUEL FILTER 8-98039-987-0 01 1 0803-0810 ●
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0811- ● ●
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0803-0810 ●
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0811- ● ●
