◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#74533) — 184 parça

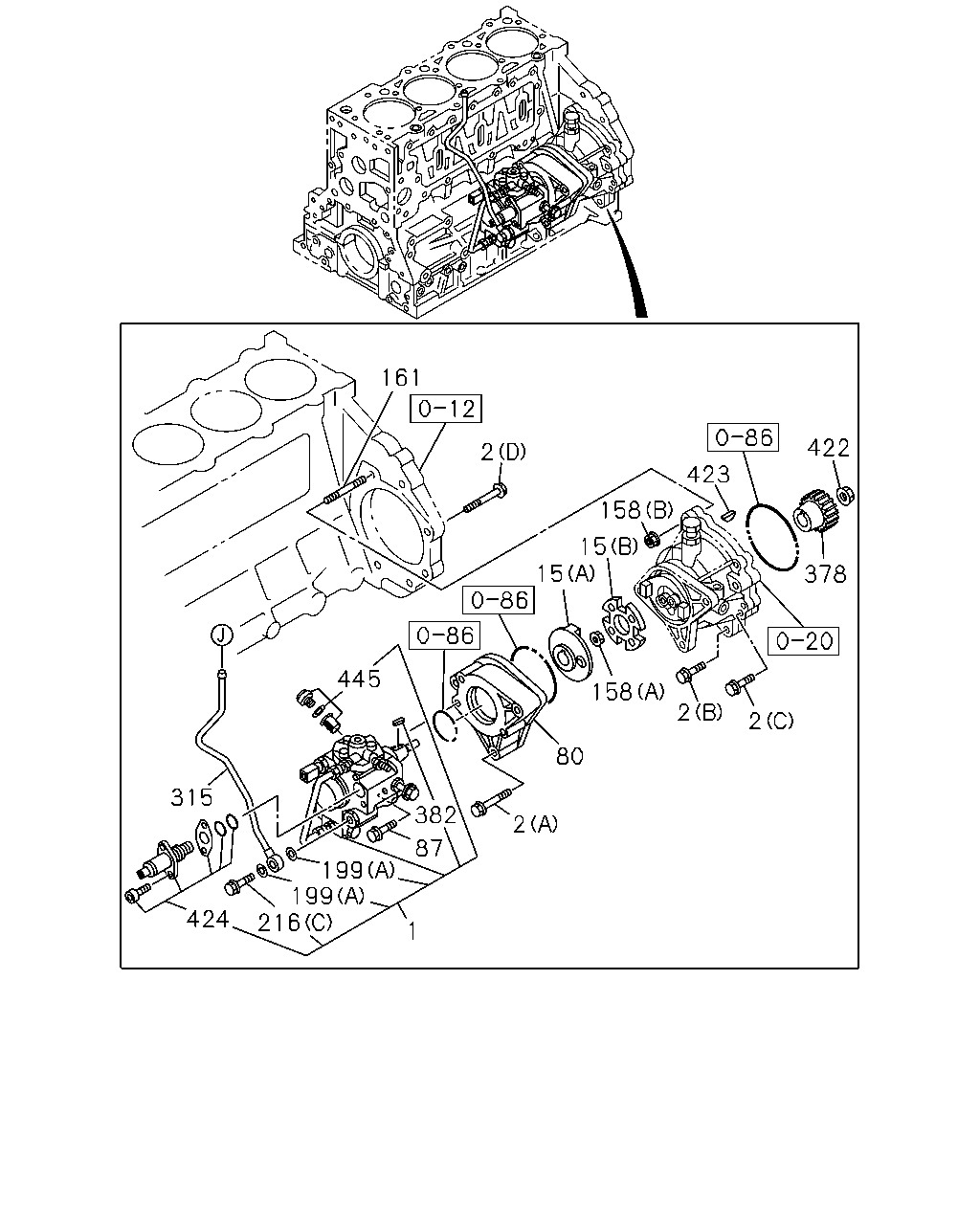

çizim 62962
2 2 158 80 2 1 216 424 199 199 87 382 445 315 161 15 15 158 423 422 378 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-3 01 1 0803-0810 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 0811- ● ●
2 BOLT; INJ PUMP
(A) M10X60 FLANGE THA 		0-28051-060-0 03 1 0803-0810 ●
2 BOLT; INJ PUMP
(A) M10X60 FLANGE THA 		0-28051-060-0 03 1 0811- ● ●
2 BOLT; INJ PUMP
(B) M10X70 FLANGE 		0-28151-070-0 01 1 0803-0810 ●
2 BOLT; INJ PUMP
(B) M10X70 FLANGE 		0-28151-070-0 01 1 0811- ● ●
2 BOLT; INJ PUMP
(C) M12X70 FLANGE 		0-28151-270-0 01 1 0803-0810 ●
2 BOLT; INJ PUMP
(C) M12X70 FLANGE 		0-28151-270-0 01 1 0811- ● ●
2 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 0803-0810 ●
2 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 0811- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0803-0810 ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0811- ● ●
15 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-0 01 1 0803-0810 ●
15 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-1 01 1 0811- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 0803-0810 ●
80 BRACKET; PUMP 8-98061-699-0 01 1 0811- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 0803-0810 ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 0811- ● ●
158 NUT; INJ PUMP
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0803-0810 ●
158 NUT; INJ PUMP
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0811- ● ●
158 NUT; INJ PUMP
(A) M14 FLANGE THA 		0-91180-114-0 01 1 0803-0810 ●
158 NUT; INJ PUMP
(A) M14 FLANGE THA 		0-91180-114-0 01 1 0811- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0803-0810 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0811-0910 ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0803-0810 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0811- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0803-0810 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0811- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0803-0810 ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0811- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-0810 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0811- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0803-0810 ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0811- ● ●
315 PIPE; FUEL,SUCTION 8-98036-172-0 01 1 0803-0808 ●
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 0809-0810 ●
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 0811- ● ●
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0803-0810 ●
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0811- ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0803-0810 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0811-1201 ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1202- ● ●
422 NUT; GEAR
M18 		8-97141-154-0 01 1 0803-0810 ●
422 NUT; GEAR
M18 		8-97141-154-0 01 1 0811- ● ●
423 KEY; GEAR 9-08055-519-0 01 1 0803-0810 ●
423 KEY; GEAR 9-08055-519-0 01 1 0811- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0803-0810 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0811-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0803-0810 ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0811- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0803-0810 ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0811- ● ●

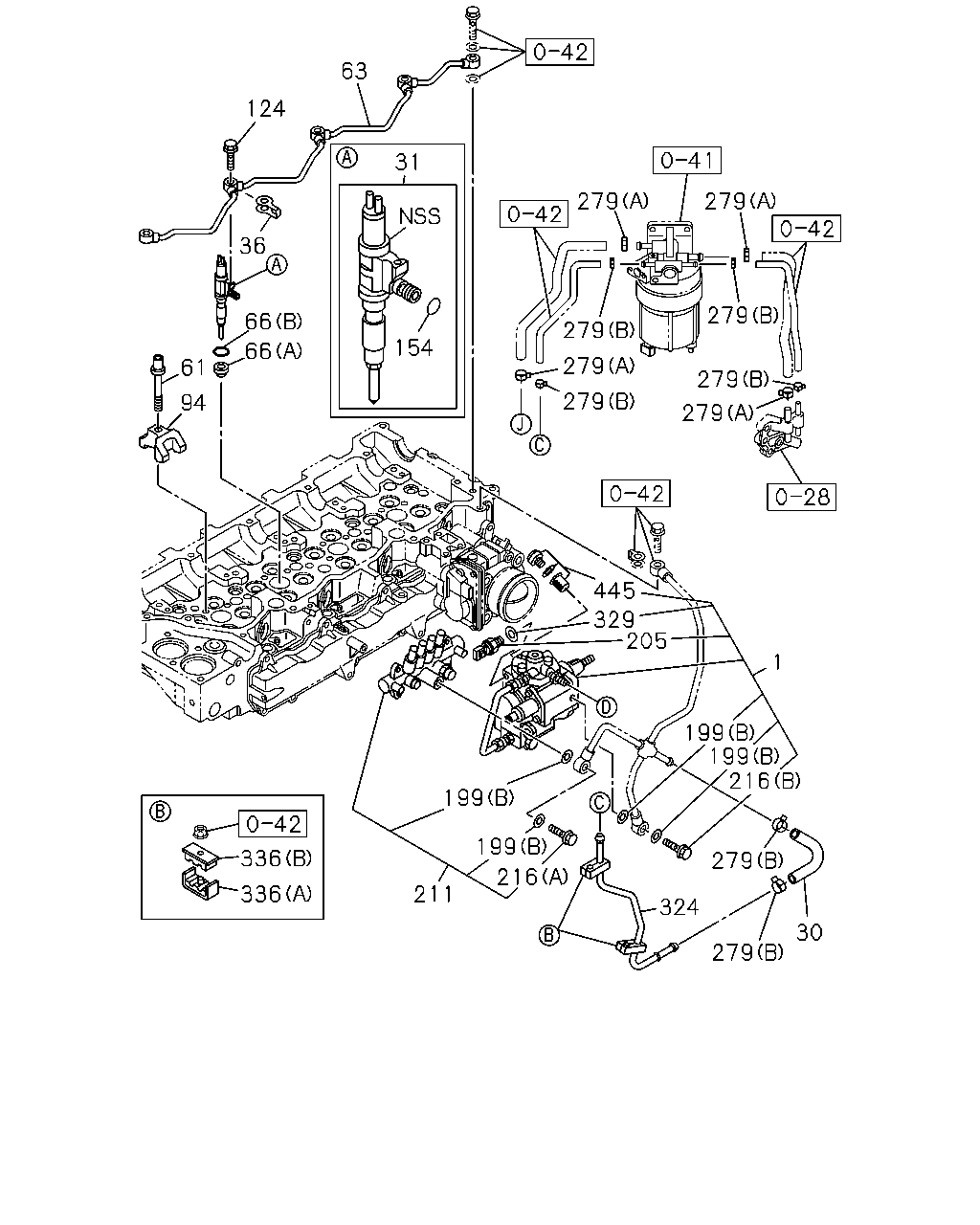

çizim 185688
1 279 279 279 279 279 279 279 279 279 279 216 199 199 205 329 445 199 199 216 324 211 336 336 94 61 66 66 36 124 63 31 154 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-3 01 1 0803-0810 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 0811- ● ●
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-1 01 1 0803-0810 ●
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 0811- ● ●
31 NOZZLE ASM; INJ 8-97609-788-3 04 1 0803-0810 ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 0811- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0803-0810 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0811-0908 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0803-0810 ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0811- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0803-0810 ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0811- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0803-0810 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0811- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0803-0810 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0811-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-0 04 1 0803-0810 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0811- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0803-0810 ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0811- ● ●
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 0803-0810 ●
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 0811-1106 ● ●
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0803-0810 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0811- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0803-0810 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0811- ● ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 0803-0810 ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 0811- ● ●
211 RAIL ASM; COMMON 8-98011-888-1 01 1 0803-0810 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0811- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0803-0810 ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0811- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-0810 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0811- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0803-0810 ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0811- ● ●
279 CLIP; FUEL HOSE
(A) ID=16 THA 		8-97329-628-0 04 1 0803-0810 ●
279 CLIP; FUEL HOSE
(A) ID=16 THA 		8-97329-628-0 04 1 0811- ● ●
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 0803-0810 ●
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 0811- ● ●
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 0803-0810 ●
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 0811- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0803-0810 ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0811-1201 ● ●
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 0803-0810 ●
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 0811- ● ●
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 0803-0810 ●
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 0811- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0803-0810 ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0811- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0803-0810 ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 0811- ● ●

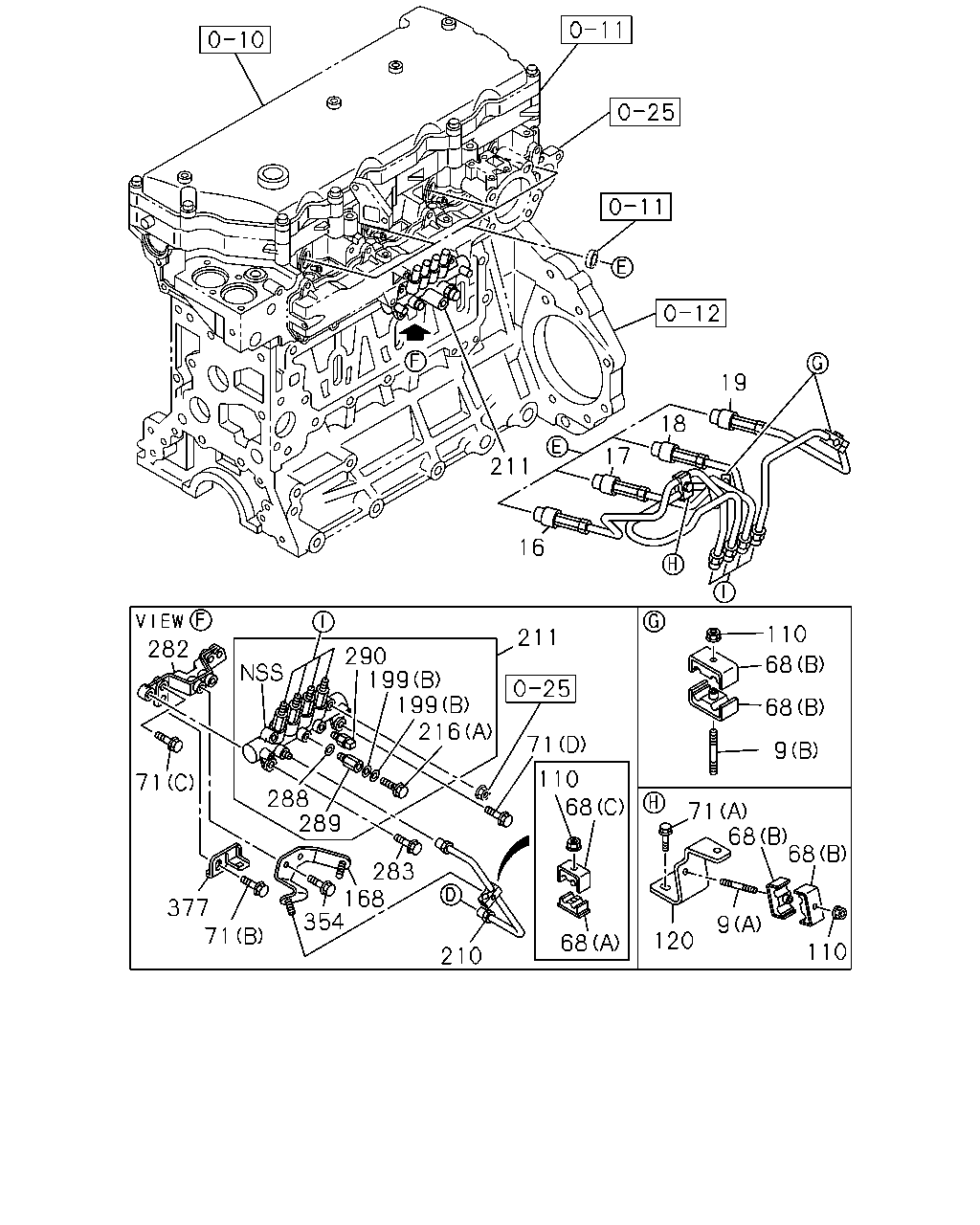

çizim 185691
19 211 18 17 16 282 110 211 290 199 199 216 68 68 71 9 110 68 71 288 289 71 68 68 283 168 354 377 71 9 120 68 110 210
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(B) M6X30 L=38 THA 		0-41010-630-0 02 1 0803-0810 ●
9 STUD; CLIP
(B) M6X30 L=38 THA 		0-41010-630-0 02 1 0811- ● ●
9 STUD; CLIP
(A) M6X35 L=43 		8-97203-278-0 01 1 0803-0810 ●
9 STUD; CLIP
(A) M6X35 L=43 		8-97203-278-0 01 1 0811- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0803-0810 ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0811-1102 ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0803-0810 ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0811-1102 ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0803-0810 ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0811-1102 ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0803-0810 ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0811-1102 ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-195-3 01 1 0803-0810 ●
68 CLIP; INJ PIPE
(C) 		1-09701-195-3 01 1 0811- ● ●
68 CLIP; INJ PIPE
(A) 		1-09701-196-2 01 1 0803-0810 ●
68 CLIP; INJ PIPE
(A) 		1-09701-196-2 01 1 0811- ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98039-293-0 06 1 0803-0810 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98039-293-0 06 1 0811-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
71 BOLT; BRKT
(B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0803-0810 ●
71 BOLT; BRKT
(B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0811- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0803-0810 ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0811- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 0803-0810 ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 0811- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 0803-0810 ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 0811- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 0803-0810 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 0811- ● ●
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 0803-0810 ●
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 0811- ● ●
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0803-0810 ●
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0811- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0803-0810 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0811- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0803-0810 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0811- ● ●
210 PIPE; INJ,C/R 8-98036-176-1 01 1 0803-0810 ●
210 PIPE; INJ,C/R 8-98036-176-1 01 1 0811- ● ●
211 RAIL ASM; COMMON 8-98011-888-1 01 1 0803-0810 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0811- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0803-0810 ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 0811- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-0810 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0811- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0803-0810 ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0811- ● ●
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0803-0810 ●
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0811-1005 ● ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 0803-0810 ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 0811- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0803-0810 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0811- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0803-0810 ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0811- ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0803-0809 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0810-0810 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0811- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0810 ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0811- ● ●
377 BRACKET; HARNESS 8-97310-438-0 02 1 0803-0810 ●
377 BRACKET; HARNESS 8-97310-438-1 02 1 0811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
