◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#74531) — 120 parça

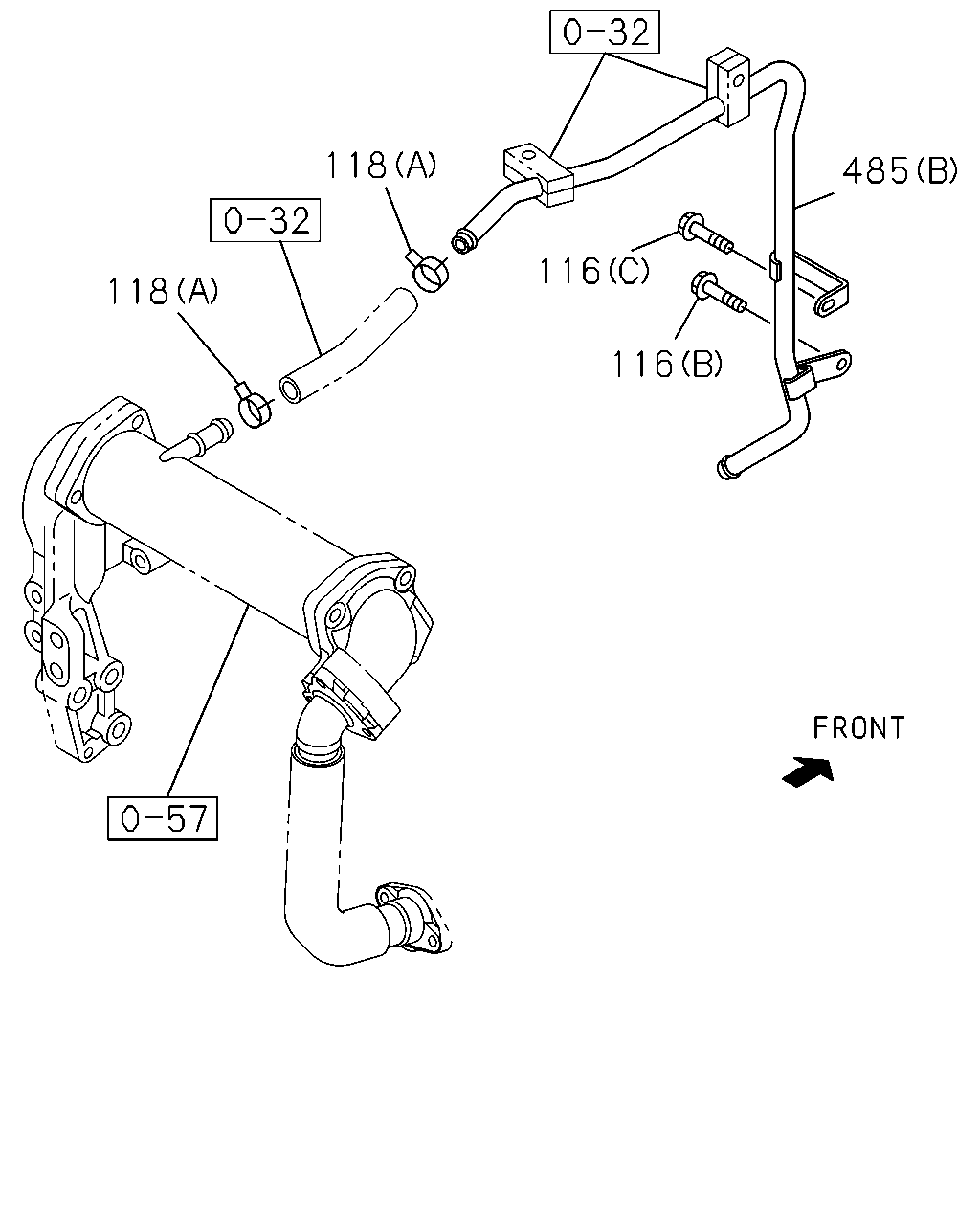

çizim 61127
118 485 116 118 116
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0803-0810 ●
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0811- ● ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 0803-0810 ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 0811- ● ●
116 BOLT; WATER PIPE
(A) M12X24 EYE-BOLT THA 		1-09675-081-0 01 1 0803-0804 ●
116 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0803-0810 ●
116 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0811- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0803-0810 ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0811- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 02 1 0803-0810 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 02 1 0811- ● ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0803-0810 ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0811- ● ●
485 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0803-0810 ●
485 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0811- ● ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 0803-0810 ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 0811- ● ●

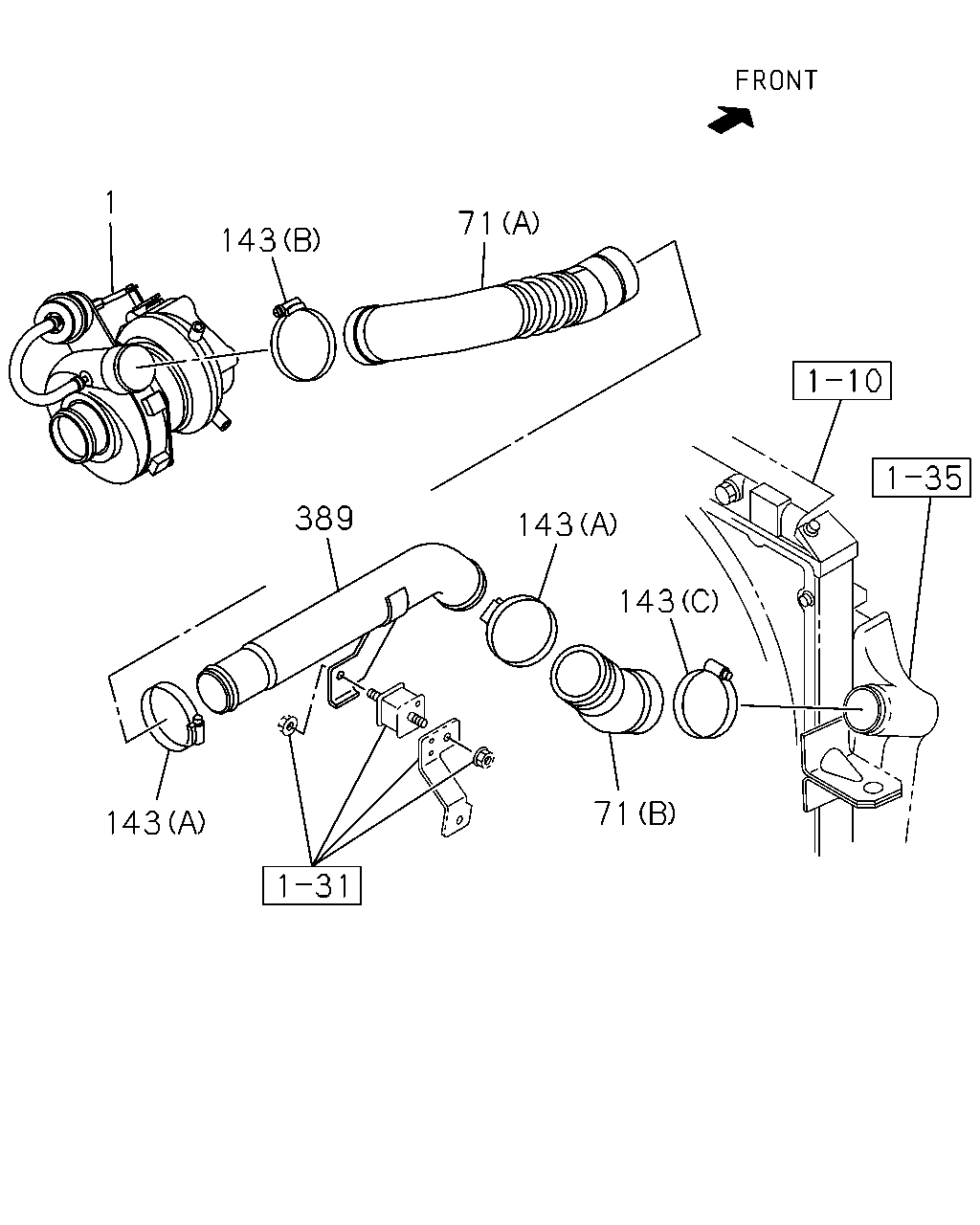

çizim 61131
1 71 143 389 143 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0810 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0811- ● ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98059-964-1 01 1 0803-0810 ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98059-964-1 01 1 0811- ● ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98067-806-0 01 1 0803-0810 ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98067-806-0 01 1 0811- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-1507 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98308-273-0 01 1 1508- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=58-76 THA 		1-09707-203-0 02 1 0803-0810 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=58-76 THA 		1-09707-203-0 02 1 0811-0811 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=45-65 		8-98133-348-0 02 1 0901-1507 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=45-65 THA 		8-98133-396-0 02 1 1508- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0810 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0811-1507 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 THA 		8-98194-605-0 01 1 1508- ● ●
389 PIPE; INL,TURBOCHARGER TO CAC
THA 		8-98042-688-1 01 1 1106- ● ●
389 PIPE; INL,TURBOCHARGER TO CAC
THA 		8-98042-688-1 01 1 0803-0810 ●
389 PIPE; INL,TURBOCHARGER TO CAC
THA 		8-98042-688-1 01 1 0811- ● ●

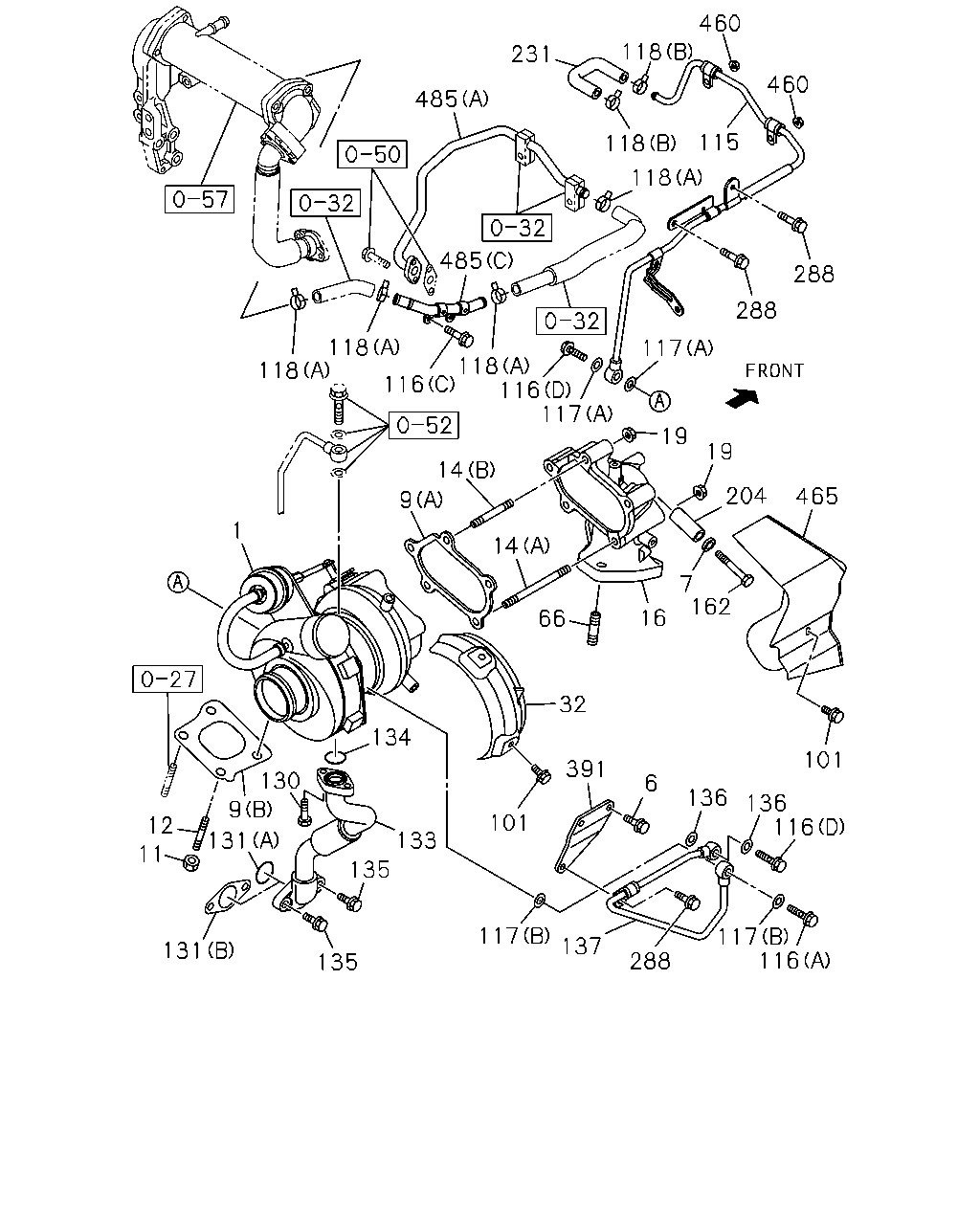

çizim 185684
485 231 118 460 460 115 118 118 288 288 117 19 19 204 465 7 162 16 101 116 136 136 6 391 32 101 117 137 288 117 116 135 135 134 133 131 11 12 131 130 9 1 118 118 116 9 14 118 116 117 14 66 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0810 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0811- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0810 ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 0811- ● ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0803-0810 ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0811- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 0803-0810 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 0811- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 0803-0810 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 0811- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0810 ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 0811- ● ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 0803-0810 ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 0811- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 0803-0810 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 0811- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803-0810 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0811- ● ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 0803-0810 ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 0811- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 0803-0810 ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 0811- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 0803-0810 ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 0811- ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 0803-0810 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 0811- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0803-0810 ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0811- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98096-928-0 01 1 0803-0810 ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98096-928-0 01 1 0811- ● ●
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0803-0810 ●
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0811- ● ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 0803-0810 ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 0811- ● ●
116 BOLT; WATER PIPE
(A) M12X24 EYE-BOLT THA 		1-09675-081-0 01 1 0803-0804 ●
116 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0803-0810 ●
116 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0811- ● ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0803-0803 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0804-0810 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0811- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0803-0810 ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0811- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 02 1 0803-0810 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 02 1 0811- ● ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0803-0810 ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0811- ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0803-0810 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0811-1006 ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30 		8-94394-671-0 01 1 1007- ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97148-925-1 01 1 0803-0810 ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97148-925-2 01 1 0811-1006 ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-658-0 01 1 1007- ● ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0803-0810 ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0811- ● ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 0803-0810 ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 0811- ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0803-0810 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0811-1312 ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-840-0 01 1 0803-0810 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-840-0 01 1 0811- ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0803-0810 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0811- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0803-0810 ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0811- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803-0810 ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0811- ● ●
288 BOLT; WATER PIPE CLIP
M8X12 FLANGE THA 		0-28050-812-0 03 1 0803-0810 ●
288 BOLT; WATER PIPE CLIP
M8X12 FLANGE THA 		0-28050-812-0 03 1 0811- ● ●
391 BRACKET; WATER PIPE 8-97371-730-0 01 1 0803-0810 ●
391 BRACKET; WATER PIPE 8-97371-730-0 01 1 0811- ● ●
460 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 0803-0810 ●
460 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 0811- ● ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 0803-0810 ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 0811-1204 ● ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ● ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0803-0810 ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0811- ● ●
485 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0803-0810 ●
485 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0811- ● ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 0803-0810 ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 0811- ● ●
