◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#7453) — 159 parça

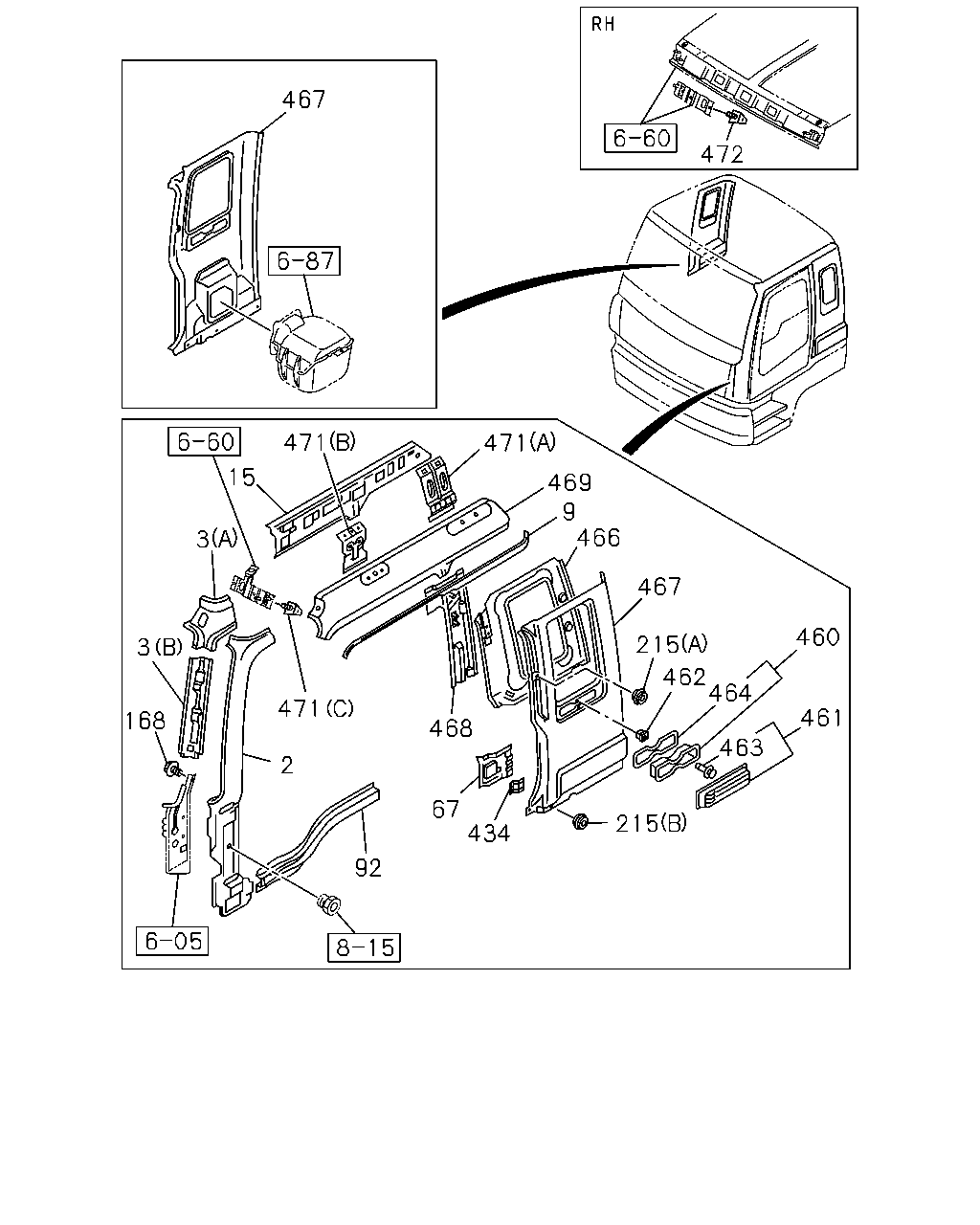

çizim 41514
467 472 471 471 15 469 9 466 3 467 460 215 3 462 464 471 461 168 468 463 2 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-409-2 01 1 9812-
2 PILLAR; FRT
CHINA EQUIPMENT(YT2) 		1-61281-410-2 01 1 9812-9901
2 PILLAR; FRT 1-61281-410-2 01 1 9902-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 9812-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 9812-
3 PANEL; CLOSING,FRT PILLAR
CHINA EQUIPMENT(YT2) (A) 		1-61281-170-5 01 1 9812-9901
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 9902-
3 PANEL; CLOSING,FRT PILLAR
CHINA EQUIPMENT(YT2) (B) 		1-61281-344-5 01 1 9812-9901
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 9902-
9 MOLDING; DRIP,CAB SIDE
CHINA EQUIPMENT(YT2) EXC. HIGH ROOF<S2F> 		1-61281-281-4 01 1 9812-9901
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-4 01 1 9902-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-2 01 1 9812-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> CHINA EQUIPMENT(YT2) 		1-61270-792-2 01 1 9812-9901
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-2 01 1 9902-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-4 01 1 9812-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9812-
15 PANEL; CANT RAIL SIDE
CHINA EQUIPMENT(YT2) 		1-61281-178-8 01 1 9812-9901
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9902-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9812-
67 PANEL; INNER,RR PILLAR LWR
CHINA EQUIPMENT(YT2) 		1-61281-195-5 01 1 9812-9901
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9902-
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9812-
92 PANEL; SIDE SILL,CAB
CHINA EQUIPMENT(YT2) 		1-61281-212-7 01 1 9812-9901
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9902-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9812-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9812-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9812-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9812-
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9812-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9812-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9812-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9812-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9812-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9812-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9812-
466 PANEL; INNER,BACK CORNER
CHINA EQUIPMENT(YT2) 		1-61281-416-1 01 1 9812-9901
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9902-
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9812-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-939-0 01 1 9812-9904
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-939-0 01 1 9905-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA EQUIPMENT(YT2) 		1-61270-773-1 01 1 9902-9904
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CH INA EQUIPMENT(YT2) 		1-61270-773-1 01 1 9905-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-476-1 01 1 9812-9904
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-476-1 01 1 9905-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM>,CHINA EQUIPMENT(YT2) 		1-61281-204-2 01 1 9902-9904
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) 		1-61281-204-2 01 1 9905-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9812-
468 REINFORCEMENT; SEAT BELT ANCHOR
CHINA EQUIPMENT(YT2) 		1-61281-418-2 01 1 9812-9901
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 9902-
469 ROOF; SIDE 1-61281-198-6 01 1 9812-
469 ROOF; SIDE
CHINA EQUIPMENT(YT2) 		1-61281-199-4 01 1 9812-9901
469 ROOF; SIDE 1-61281-199-6 01 1 9902-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9812-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9812-
471 PATCH; AIR DEFLECTOR
CHINA EQUIPMENT(YT2) (B) 		1-61281-201-3 01 1 9812-9901
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9902-
471 PATCH; AIR DEFLECTOR
CHINA EQUIPMENT(YT2) (C) 		1-61281-233-3 01 1 9812-9901
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 9902-
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9812-9910
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 9911-

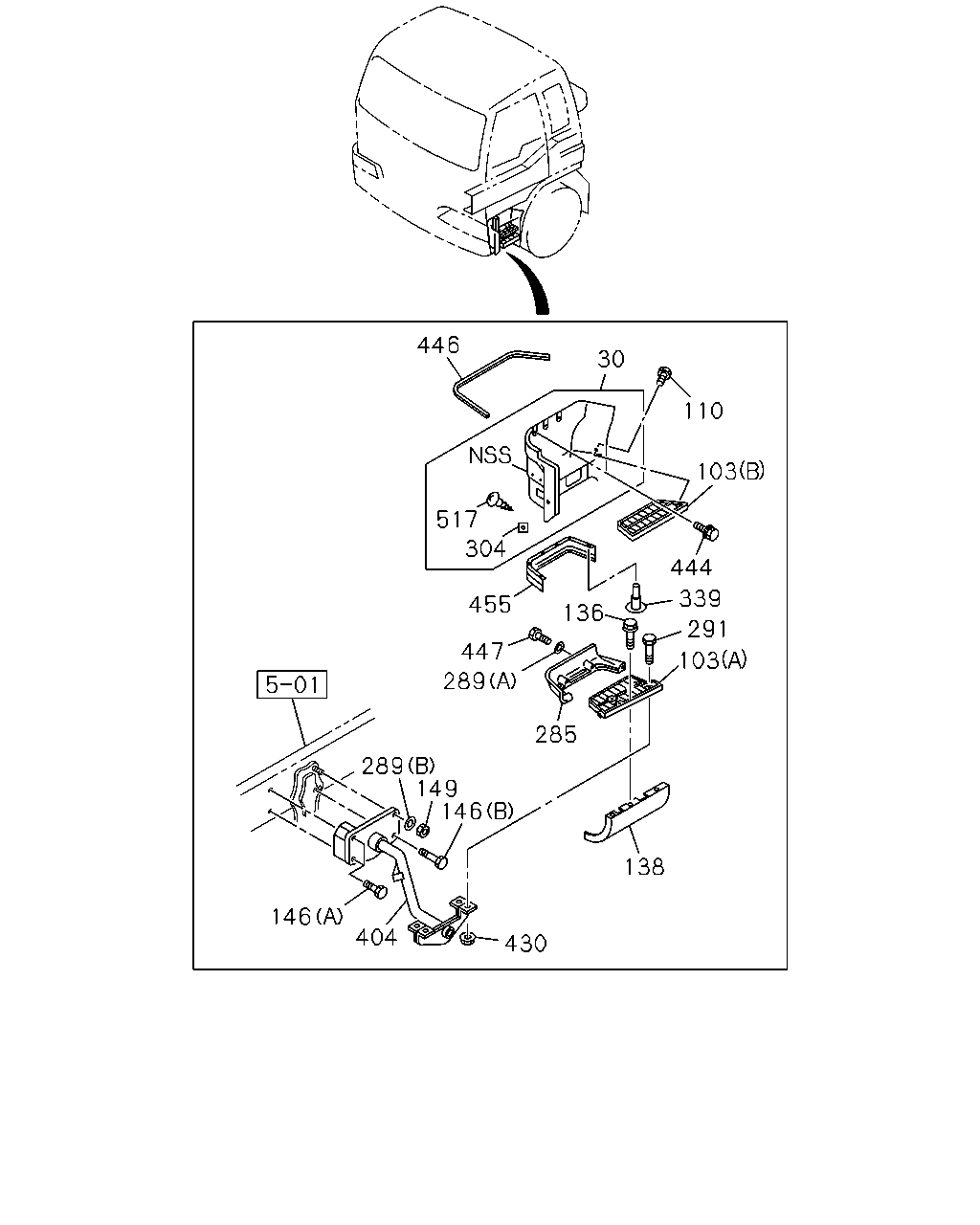

çizim 42175
446 30 110 103 517 304 444 339 455 136 291 447 103 289 285 289 149 146 138 146 404 430
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9812-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9812-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9812-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9812-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9812-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9812-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9812-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 9812-9904
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 9905-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-263-0 01 1 9905-
138 FENDER; OVER 1-79931-264-0 01 1 9812-9902
138 FENDER; OVER 1-79931-264-0 01 1 9903-9904
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-264-0 01 1 9905-
138 FENDER; OVER 1-79931-263-0 01 1 9812-9902
138 FENDER; OVER 1-79931-263-0 01 1 9903-9904
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9812-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9812-9901
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9902-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9812-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 9812-9904
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-182-0 01 1 9905-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 9812-9904
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-047-2 01 1 9905-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-183-0 01 1 9905-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-100-2 01 1 9905-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9812-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9812-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9812-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9812-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9812-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-201-0 01 1 9812-9904
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-201-0 01 1 9905-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-201-0 01 1 9905-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-200-0 01 1 9812-9904
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-200-0 01 1 9905-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-200-0 01 1 9905-
404 BRACKET
EXC. CAB UP +110MM<TGG> 		1-53414-212-0 01 1 9812-9904
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-212-0 01 1 9905-
404 BRACKET
EXC. CAB UP +110MM<TGG> 		1-53414-213-0 01 1 9812-9904
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-213-0 01 1 9905-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9902-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9812-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9812-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9812-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9812-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9812-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9812-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9812-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9812-

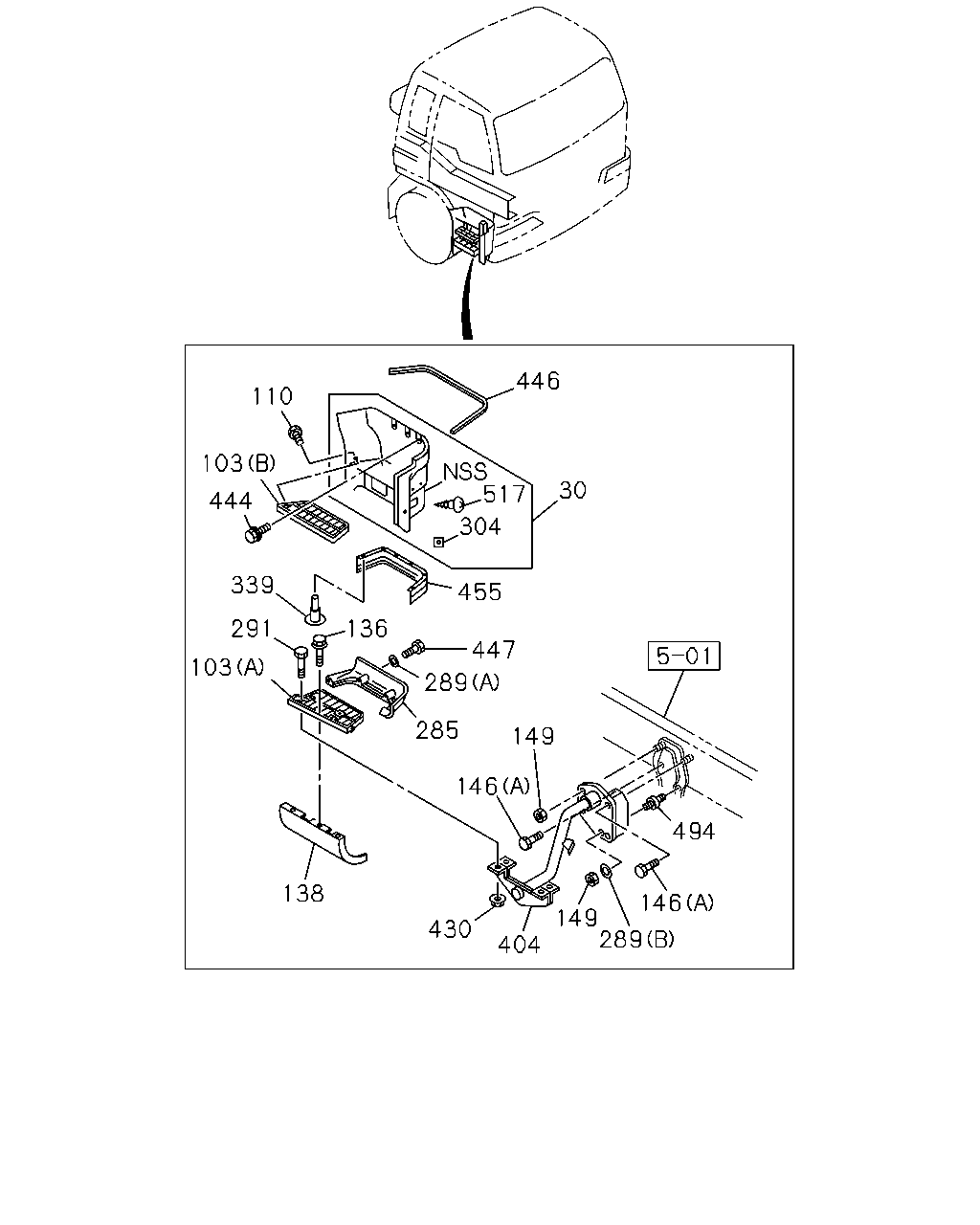

çizim 42206
446 110 103 517 30 444 304 339 455 291 136 447 103 289 285 149 146 494 138 146 149 289 430 404
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9812-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9812-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9812-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9812-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9812-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9812-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9812-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 9812-9904
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 9905-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-263-0 01 1 9905-
138 FENDER; OVER 1-79931-264-0 01 1 9812-9902
138 FENDER; OVER 1-79931-264-0 01 1 9903-9904
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-264-0 01 1 9905-
138 FENDER; OVER 1-79931-263-0 01 1 9812-9902
138 FENDER; OVER 1-79931-263-0 01 1 9903-9904
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9812-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9812-9901
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9902-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9812-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 9812-9904
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-182-0 01 1 9905-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 9812-9904
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-047-2 01 1 9905-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-183-0 01 1 9905-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-100-2 01 1 9905-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9812-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9812-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9812-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9812-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9812-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-201-0 01 1 9812-9904
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-201-0 01 1 9905-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-201-0 01 1 9905-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-200-0 01 1 9812-9904
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-200-0 01 1 9905-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-200-0 01 1 9905-
404 BRACKET
EXC. CAB UP +110MM<TGG> 		1-53414-212-0 01 1 9812-9904
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-212-0 01 1 9905-
404 BRACKET
EXC. CAB UP +110MM<TGG> 		1-53414-213-0 01 1 9812-9904
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-213-0 01 1 9905-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9902-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9812-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9812-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9812-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9812-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9812-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9812-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9812-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 9812-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9812-
