0-32 — WATER PIPING; ENGINE (#74528) — 25 parça

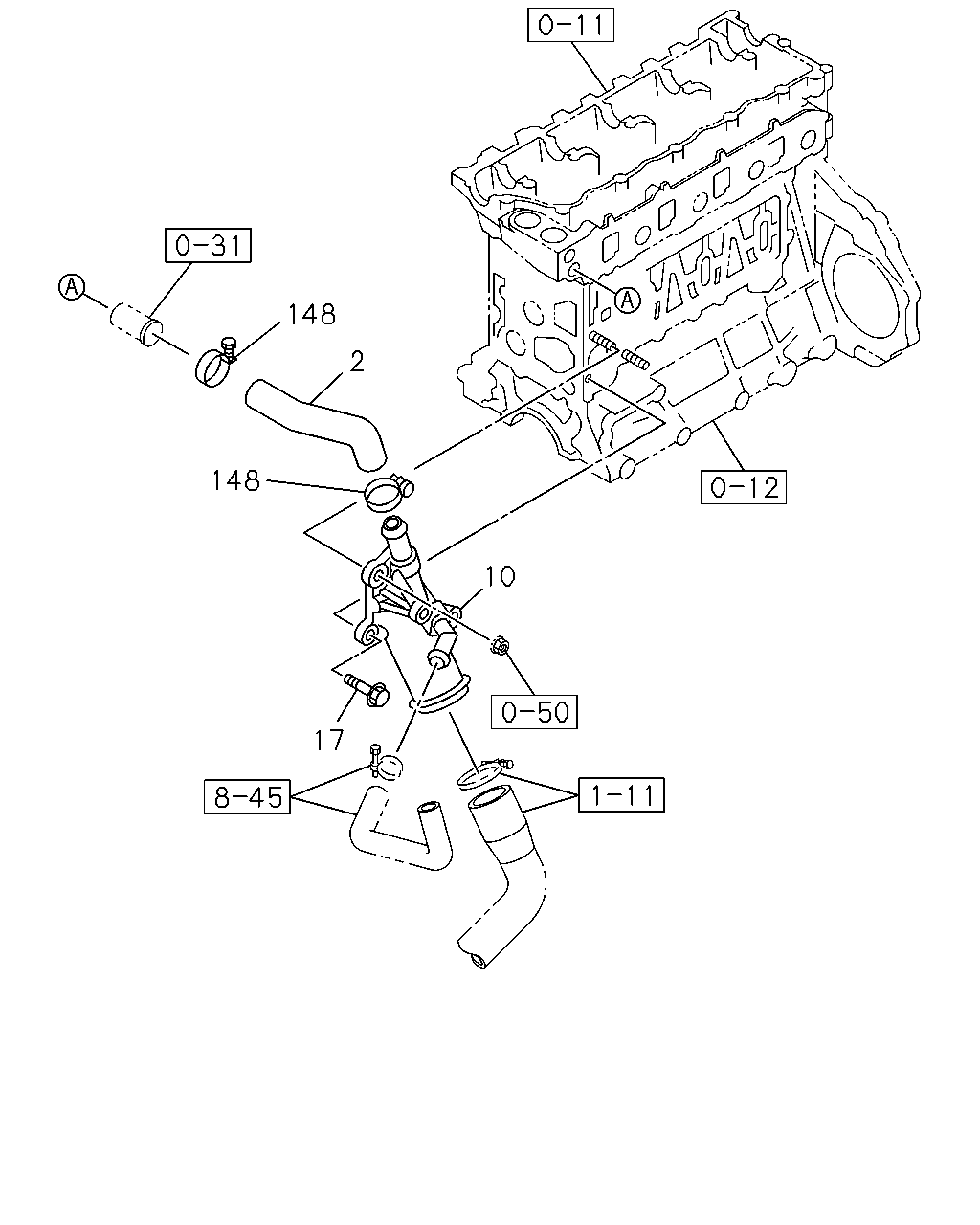

148 2 148 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	0803-0810	●
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	0811-	●	●
10	PIPE; SUCTION	8-97371-775-1	01	1	0803-0810	●
10	PIPE; SUCTION	8-97371-775-1	01	1	0811-1010	●	●
10	PIPE; SUCTION	8-98166-991-0	01	1	1011-	●	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	0803-0810	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	0811-	●	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	0803-0810	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	0811-	●	●

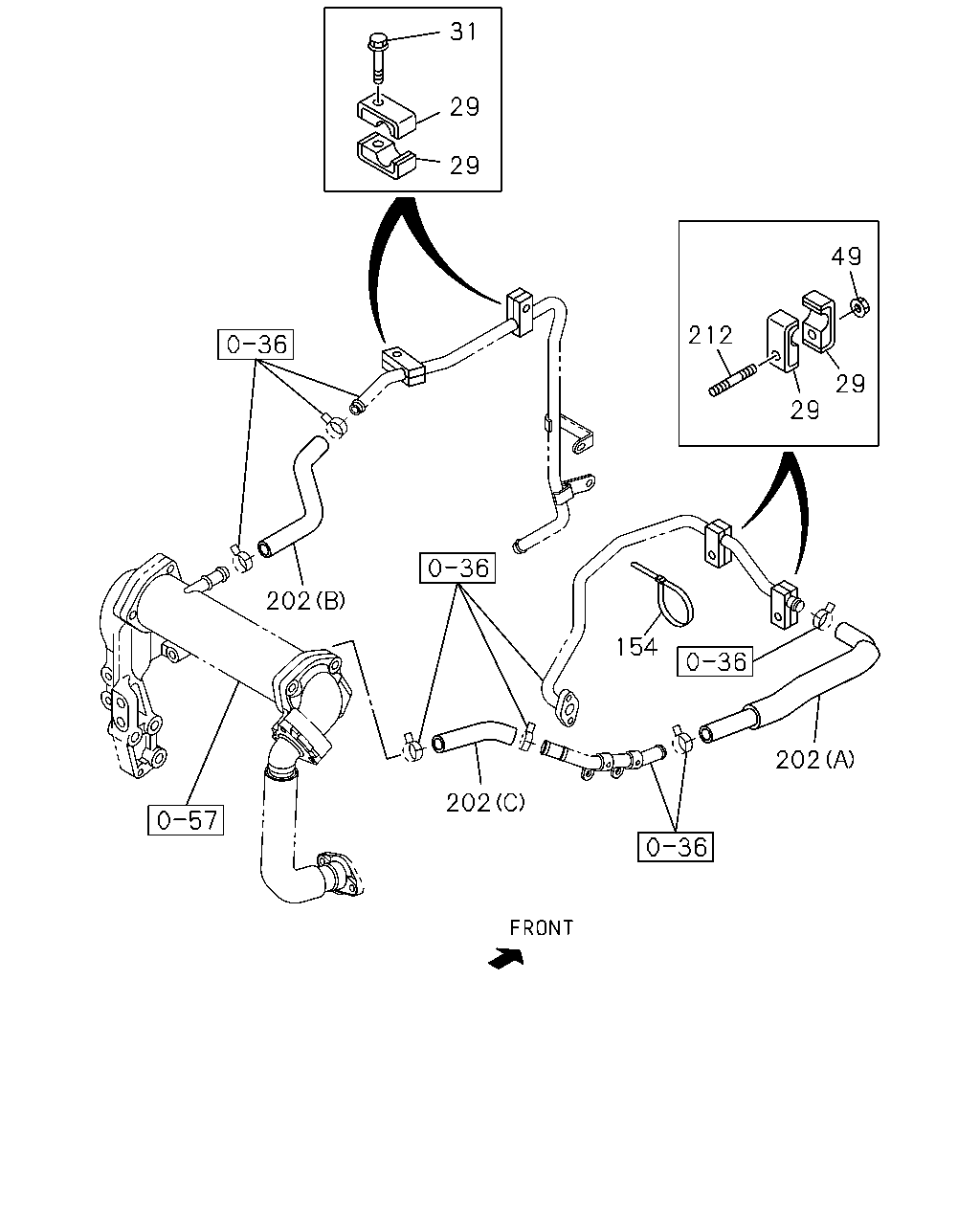

31 29 29 49 29 29 212 154 202 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	0803-0810	●
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	0811-	●	●
31	BOLT; CLIP M8X40 FLANGE THA	0-28050-840-0	02	1	0803-0810	●
31	BOLT; CLIP M8X40 FLANGE THA	0-28050-840-0	02	1	0811-	●	●
49	NUT; WATER PIPE M8 FLANGE THA	0-91180-108-0	02	1	0803-0810	●
49	NUT; WATER PIPE M8 FLANGE THA	0-91180-108-0	02	1	0811-	●	●
154	CLIP; WATER HOSE L=170.3 THA	1-09987-182-0	01	1	0803-0810	●
154	CLIP; WATER HOSE L=170.3 THA	1-09987-182-0	01	1	0811-	●	●
202	HOSE; RUBBER,EGR COOLER (B)	8-97386-586-1	01	1	0803-0810	●
202	HOSE; RUBBER,EGR COOLER (B)	8-97386-586-1	01	1	0811-	●	●
202	HOSE; RUBBER,EGR COOLER (C)	8-98092-382-0	01	1	0803-0810	●
202	HOSE; RUBBER,EGR COOLER (C)	8-98092-382-0	01	1	0811-	●	●
202	HOSE; RUBBER,EGR COOLER (A)	8-98097-605-0	01	1	0803-0810	●
202	HOSE; RUBBER,EGR COOLER (A)	8-98097-605-1	01	1	0811-	●	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	0803-0810	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	0811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
