0-31 — THERMOSTAT AND HOUSING (#74527) — 26 parça

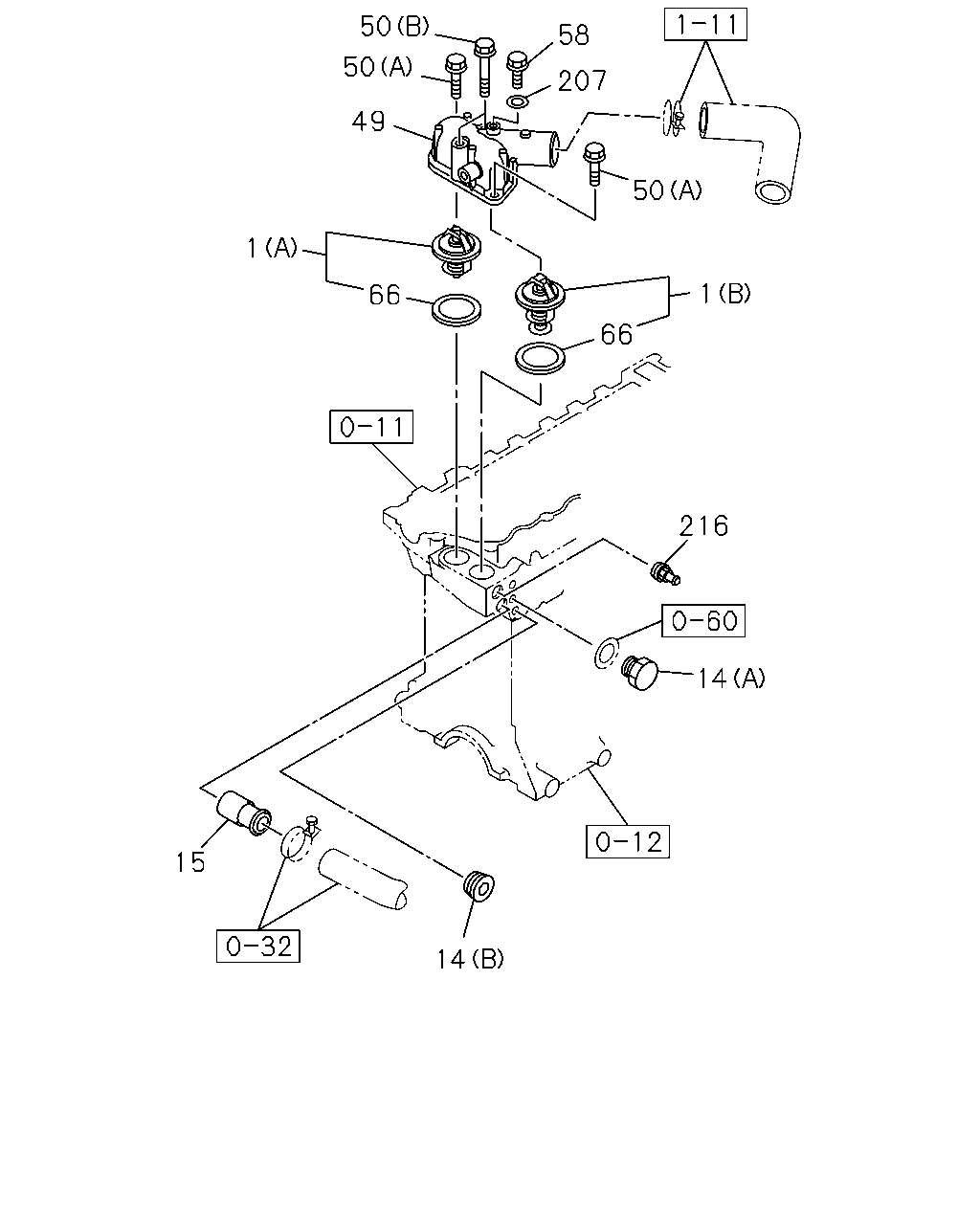

çizim 41927
50 50 49 1 66 15 14 14 216 1 66 50 207 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-2 01 1 0803-0810 ●
1 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 0811- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-2 01 1 0803-0810 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 0811- ● ●
14 PLUG; SW
(B) PT3/8 THA 		5-09605-005-0 01 1 0803-0810 ●
14 PLUG; SW
(B) PT3/8 THA 		5-09605-005-0 01 1 0811- ● ●
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 0803-0810 ●
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 0811- ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 0803-0810 ●
15 PIPE; BYPASS 8-94342-574-0 01 1 0811- ● ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 0803-0810 ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 0811- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0803-0810 ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0811- ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 0803-0810 ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 0811- ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0803-0810 ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0811- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0803-0810 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0811-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 0803-0810 ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 0811- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0803-0810 ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0811- ● ●
