Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

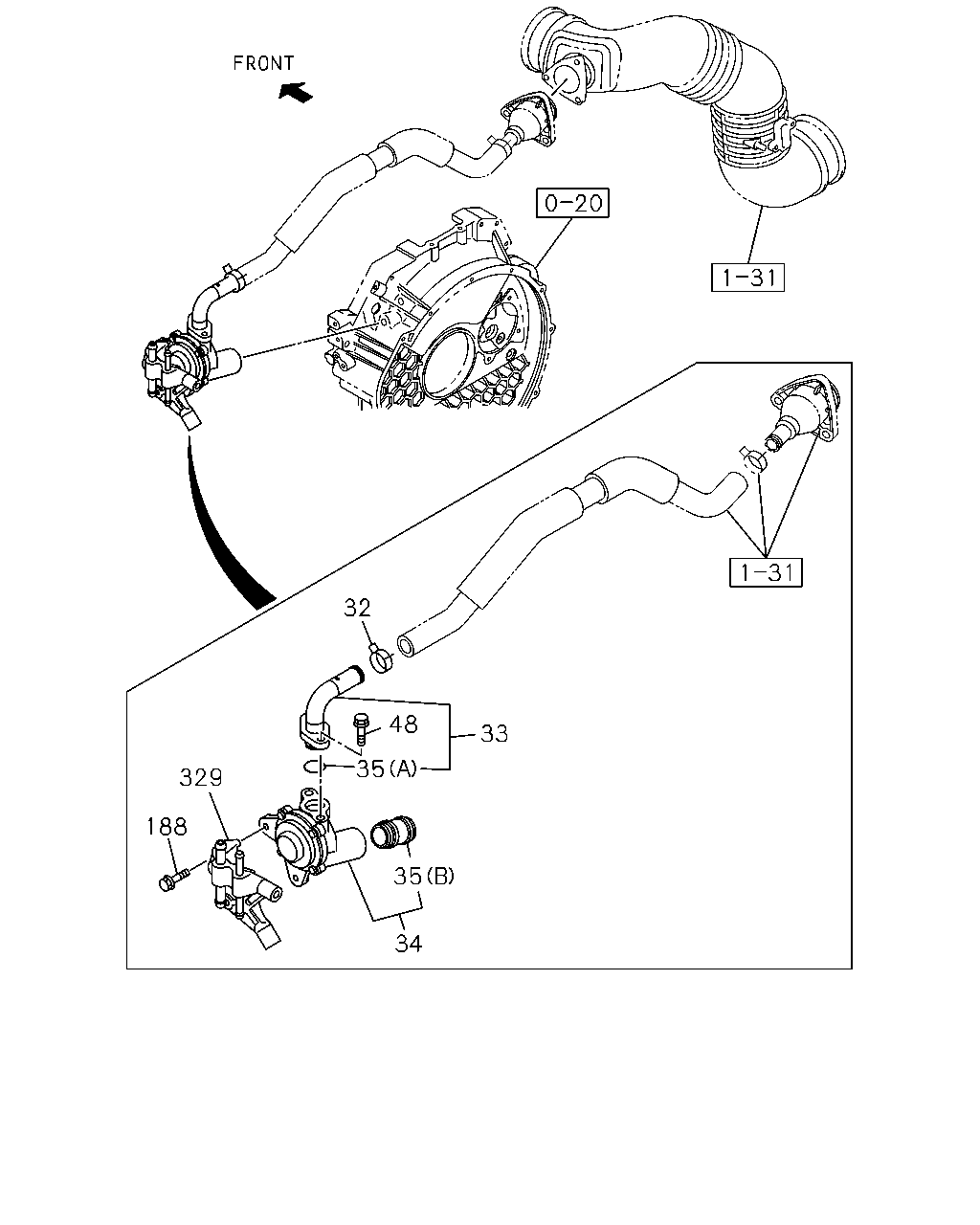

0-28 — VENTILATION SYSTEM
(#74525) — 19 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
32
48
33
35
329
188
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
CLIP; VENT HOSE
ID=21.7
8-97203-074-0
01
1
0803-0810
●
32
CLIP; VENT HOSE
ID=21.7
8-97203-074-0
01
1
0811-
●
●
33
PIPE; VENTILATOR
8-98075-640-1
01
1
0803-0810
●
33
PIPE; VENTILATOR
8-98075-640-1
01
1
0811-
●
●
34
VENTILATOR
8-98245-392-0
01
1
1311-
●
●
34
VENTILATOR
8-98036-808-1
01
1
0803-0810
●
34
VENTILATOR
8-98036-808-1
01
1
0811-1310
●
●
34
VENTILATOR
8-98245-392-0
01
1
1311-
●
●
35
GASKET; VENTILATOR
(A) ID=17.8
1-09623-588-0
01
1
0803-0810
●
35
GASKET; VENTILATOR
(A) ID=17.8
1-09623-588-0
01
1
0811-
●
●
35
GASKET; VENTILATOR
(B)
8-98038-692-0
01
1
0803-0810
●
35
GASKET; VENTILATOR
(B)
8-98038-692-0
01
1
0811-
●
●
48
BOLT; PIPE
M6X16 FLANGE THA
0-28050-616-0
02
1
0803-0810
●
48
BOLT; PIPE
M6X16 FLANGE THA
0-28050-616-0
02
1
0811-
●
●
188
BOLT; BRKT
M8X30 FLANGE THA
0-28050-830-0
04
1
0803-0810
●
188
BOLT; BRKT
M8X30 FLANGE THA
0-28050-830-0
04
1
0811-
●
●
329
BRACKET; VENTILATOR
8-98036-160-0
01
1
0803-0810
●
329
BRACKET; VENTILATOR
8-98036-160-0
01
1
0811-1009
●
●
329
BRACKET; VENTILATOR
8-98171-059-0
01
1
1010-
●
●
