◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#74521) — 101 parça

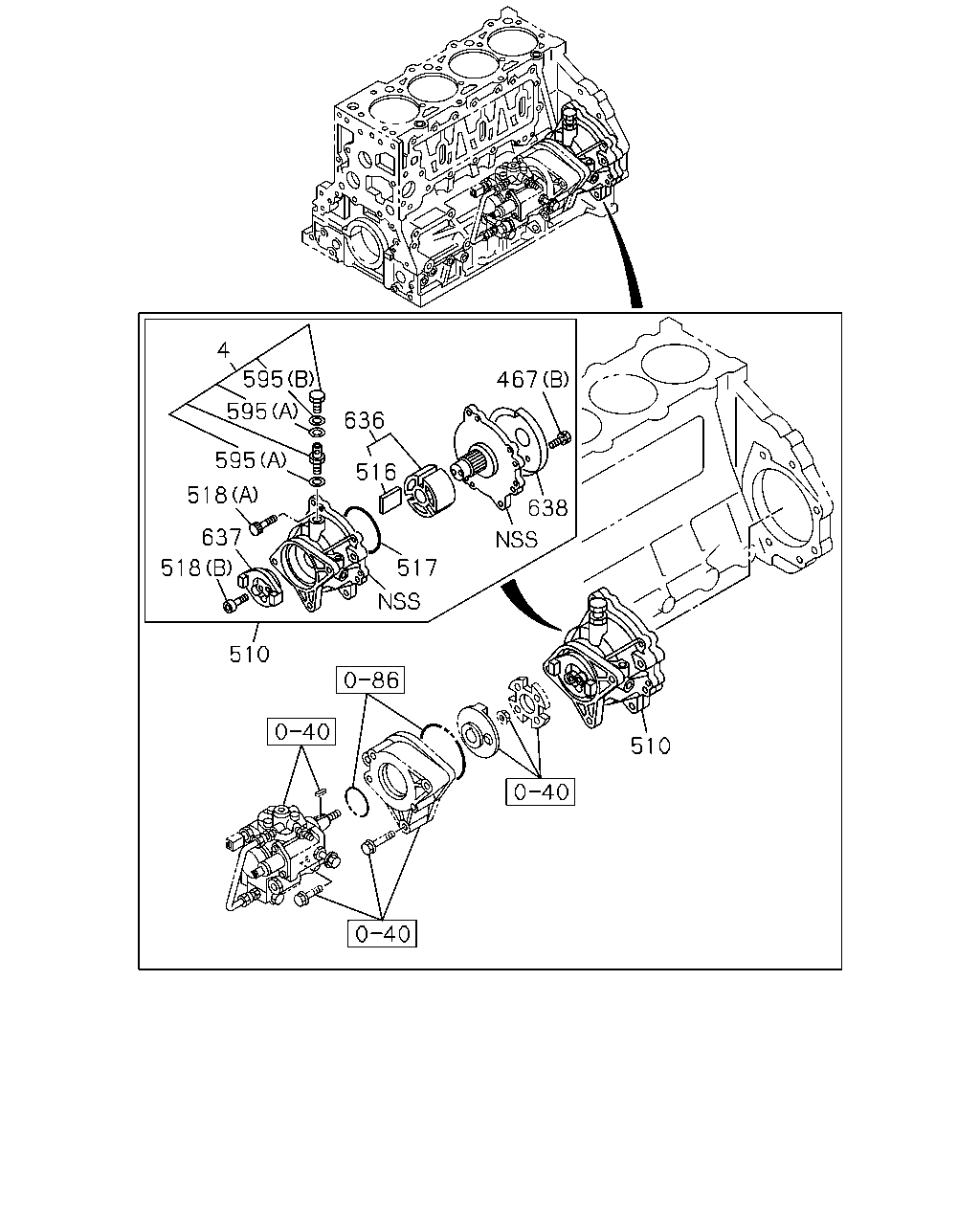

çizim 38065
4 595 467 638 510 510 518 517 516 636 595 595 518 637
BalonParca AdiParca NoAdetTipApplied Date A B
4 VALVE ASM; CHECK 8-98049-521-0 01 1 0803-0810 ●
4 VALVE ASM; CHECK 8-98049-521-0 01 1 0811- ● ●
467 BOLT; PLATE
(A) M6X10 		0-20800-610-0 06 1 0803-0805 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 0806-0810 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 0811- ● ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 0803-0810 ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 0811- ● ●
510 PUMP ASM; VACUUM 8-97388-589-6 01 1 0803-0810 ●
510 PUMP ASM; VACUUM 8-97388-589-6 01 1 0811- ● ●
516 VANE; VAC PUMP 8-98051-279-0 03 1 0803-0810 ●
516 VANE; VAC PUMP 8-98051-279-0 03 1 0811- ● ●
517 GASKET; VAC PUMP 8-98051-280-0 01 1 0803-0810 ●
517 GASKET; VAC PUMP 8-98051-280-0 01 1 0811- ● ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 0803-0810 ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 0811- ● ●
518 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 0803-0810 ●
518 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 0811- ● ●
595 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 0803-0810 ●
595 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 0811- ● ●
595 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 0803-0810 ●
595 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 0811- ● ●
636 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 0803-0810 ●
636 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 0811- ● ●
637 COUPLING; VAC PUMP 8-98051-278-0 01 1 0803-0810 ●
637 COUPLING; VAC PUMP 8-98051-278-0 01 1 0811- ● ●
638 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 0803-0810 ●
638 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 0811- ● ●

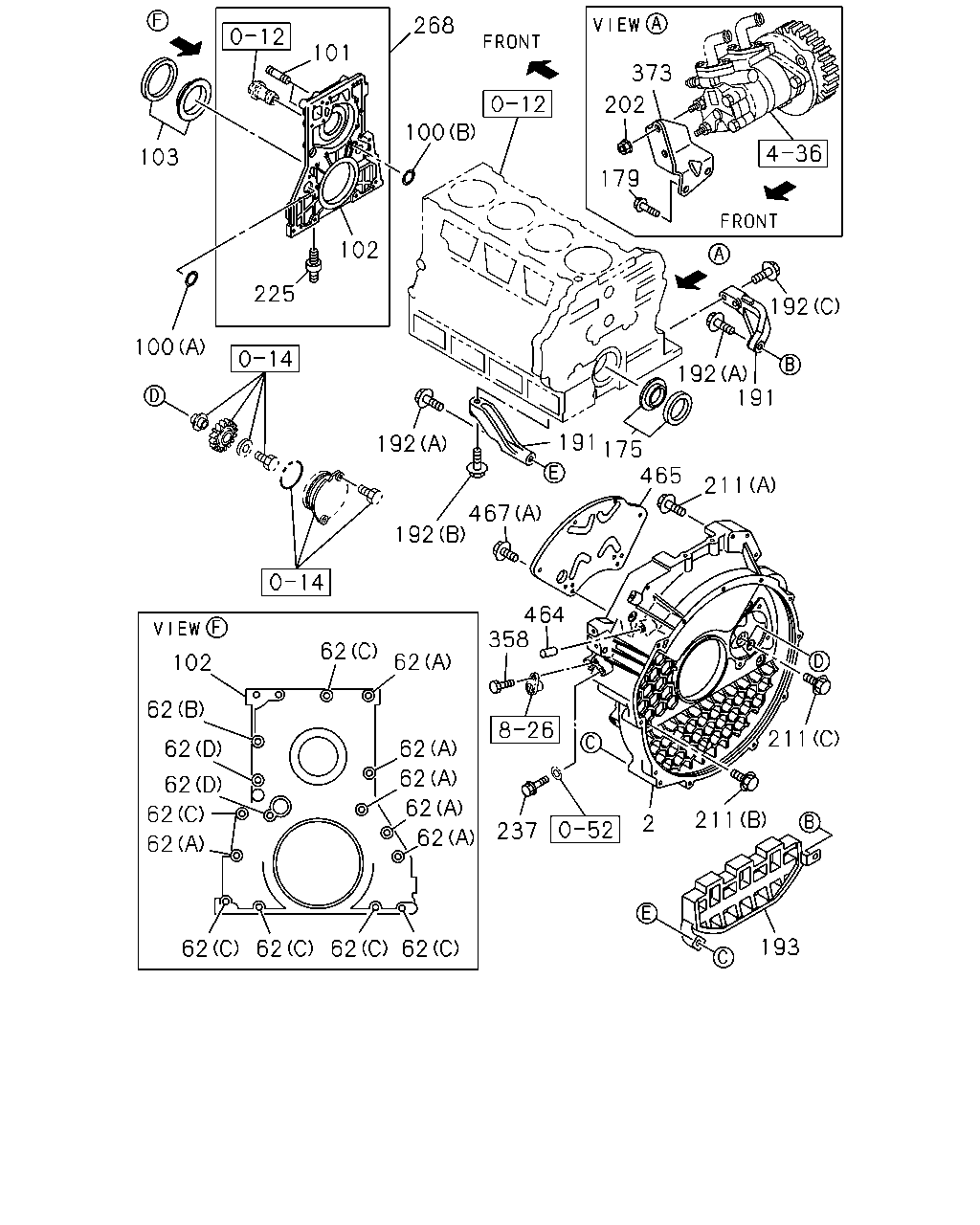

çizim 185681
101 103 102 100 225 192 192 467 191 268 100 202 373 179 192 192 191 211 465 464 358 237 175 102 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 2 211 211 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-901-1 01 1 0803-0810 ●
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0811- ● ●
62 BOLT; COVER
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 0803-0810 ●
62 BOLT; COVER
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 0811- ● ●
62 BOLT; COVER
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0803-0810 ●
62 BOLT; COVER
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0811- ● ●
62 BOLT; COVER
(C) M8X35 FLANGE THA 		0-28650-835-0 06 1 0803-0810 ●
62 BOLT; COVER
(C) M8X35 FLANGE THA 		0-28650-835-0 06 1 0811- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 0803-0810 ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 0811- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0803-0810 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0811- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0803-0810 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0811- ● ●
101 STUD; WATER PUMP
M8X18 L=30 THA 		0-41010-818-0 02 1 1201- ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 02 1 1201- ● ●
101 STUD; WATER PUMP
M8X18 L=30 THA 		0-41010-818-0 01 1 0803-0810 ●
101 STUD; WATER PUMP
M8X18 L=30 THA 		0-41010-818-0 01 1 0811-1112 ● ●
101 STUD; WATER PUMP
M8X18 L=30 THA 		0-41010-818-0 02 1 1201- ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 0803-0810 ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 0811-1112 ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 02 1 1201- ● ●
102 RETAINER; FRT 8-98039-932-2 02 1 1201- ● ●
102 RETAINER; FRT 8-98039-932-1 01 1 0803-0810 ●
102 RETAINER; FRT 8-98039-932-1 01 1 0811-1112 ● ●
102 RETAINER; FRT 8-98039-932-2 02 1 1201- ● ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0803-0810 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0811- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0803-0810 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0811- ● ●
179 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 0811- ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0803-0810 ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0811- ● ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0803-0810 ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0811- ● ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE THA 		0-28151-250-0 02 1 0803-0810 ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE THA 		0-28151-250-0 02 1 0811- ● ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0803-0810 ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0811- ● ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 0803-0810 ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 0811- ● ●
193 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 0803-0810 ●
193 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 0811-1010 ● ●
202 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 0811- ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0803-0810 ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0811- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0803-0810 ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0811-1102 ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 0803-0810 ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 0811- ● ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1201- ● ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0803-0810 ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0811-1012 ● ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28051-012-0 01 1 0803-0810 ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28051-012-0 01 1 0811- ● ●
268 COVER; FRT 8-98039-931-2 01 1 1108- ● ●
268 COVER; FRT 8-97148-937-3 01 1 1105- ● ●
268 COVER; FRT 8-98039-931-1 01 1 0803-0810 ●
268 COVER; FRT 8-98039-931-1 01 1 0811-1012 ● ●
268 COVER; FRT
THA 		8-97148-937-2 01 1 1101-1107 ● ●
268 COVER; FRT 8-97148-937-3 02 1 1108- ● ●
358 BOLT; ADAPTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0803-0810 ●
358 BOLT; ADAPTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0811- ● ●
373 BRACKET; PUMP 8-97149-333-0 01 1 0811- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0803-0810 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0811- ● ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0803-0810 ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0811- ● ●
467 BOLT; PLATE
(A) M6X10 		0-20800-610-0 06 1 0803-0805 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 0806-0810 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 0811- ● ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 0803-0810 ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 0811- ● ●
