0-14 — CAMSHAFT AND VALVE (#74519) — 106 parça

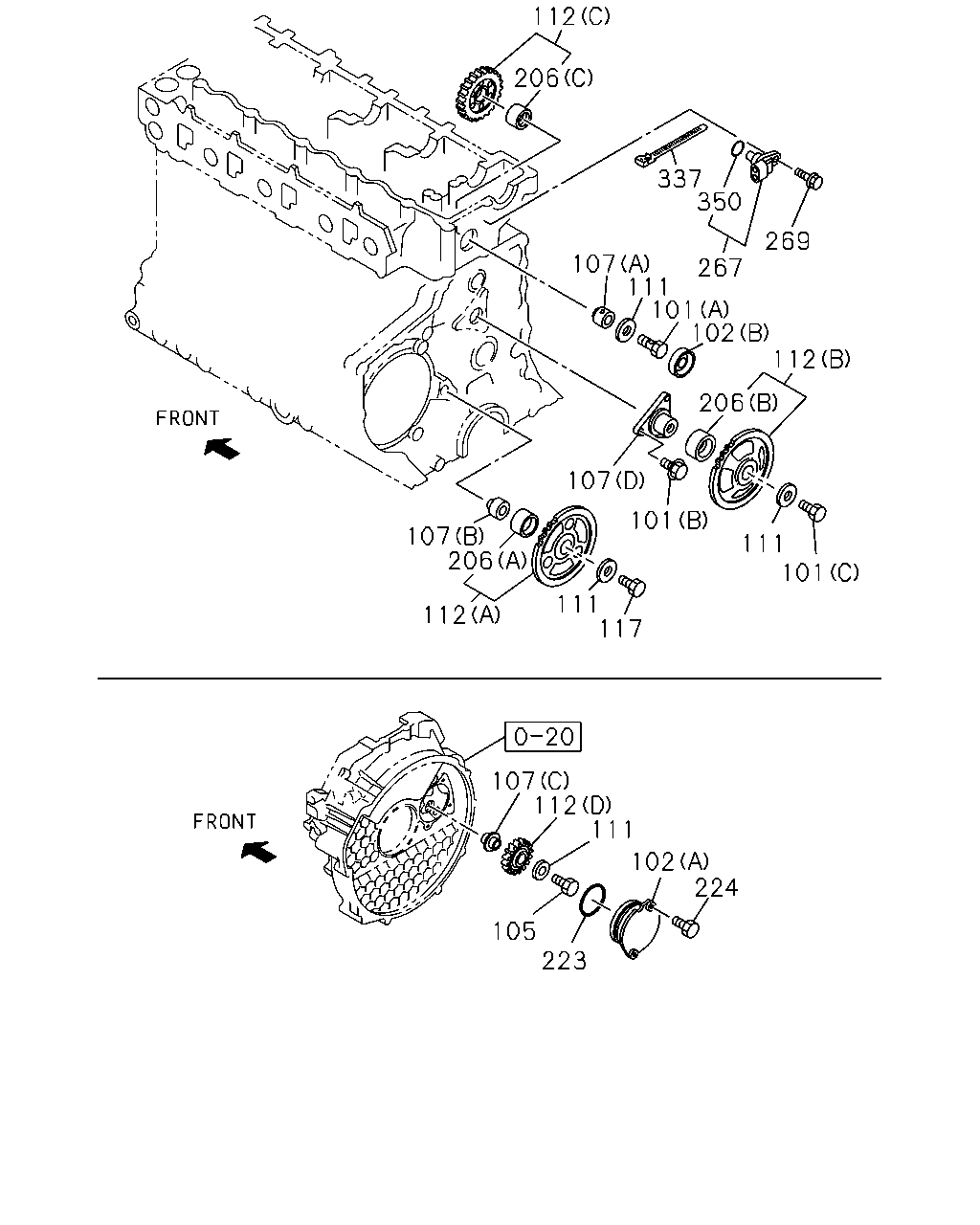

112 206 337 350 269 107 111 101 102 112 267 206 107 101 107 206 111 101 111 117 112 107 112 111 102 224 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0803-0810	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0811-	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0803-0810	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0811-	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0803-0810	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0811-1310	●	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0803-0810	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0811-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0803-0810	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0811-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0803-0810	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0811-	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	0803-0810	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0811-	●	●
107	SHAFT; IDLE GEAR (A)	8-97186-398-1	01	1	0803-0810	●
107	SHAFT; IDLE GEAR (A)	8-97186-398-1	01	1	0811-	●	●
107	SHAFT; IDLE GEAR (D)	8-97350-021-0	01	1	0803-0810	●
107	SHAFT; IDLE GEAR (D)	8-97350-021-0	01	1	0811-	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0803-0810	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0811-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0803-0810	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0811-	●	●
112	GEAR; IDLE (D) Z=34	8-97120-005-1	01	1	0803-0810	●
112	GEAR; IDLE (D) Z=34	8-97120-005-1	01	1	0811-	●	●
112	GEAR; IDLE (A) Z=72-60-30	8-97600-586-1	01	1	0803-0810	●
112	GEAR; IDLE (A) Z=72-60-30	8-97600-586-1	01	1	0811-1402	●	●
112	GEAR; IDLE (A) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●
112	GEAR; IDLE (B) Z=61	8-97606-767-0	01	1	0803-0810	●
112	GEAR; IDLE (B) Z=61	8-97606-767-0	01	1	0811-	●	●
112	GEAR; IDLE KD PREPARATORY PACK<6HF> EXC. GENERATOR 24V80A<7YN> (C) Z=41	8-97606-929-0	01	1	0803-0810	●
112	GEAR; IDLE (C) Z=41	8-97606-929-0	01	1	0811-	●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0803-0810	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0811-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0803-0810	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0811-1402	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-0810	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0811-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0803-0810	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0811-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0803-0810	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0811-	●	●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	0803-0810	●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	0811-	●	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	0803-0810	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	0811-	●	●
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	0803-0810	●
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	0811-	●	●
337	CLIP; SENSOR L=170	5-09707-054-0	02	1	0803-0804	●
350	GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	0803-0810	●
350	GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	0811-	●	●

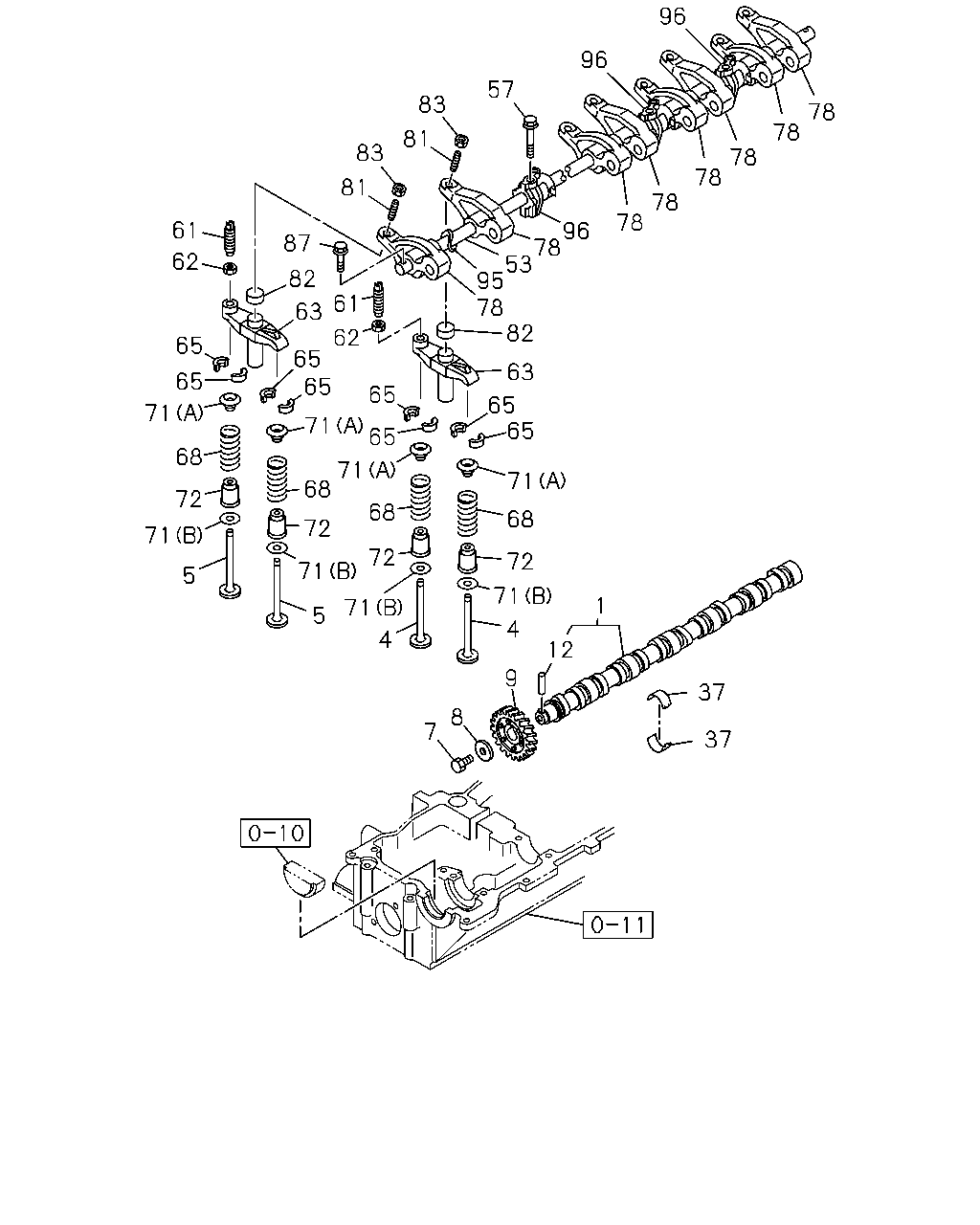

96 96 57 83 78 78 81 83 78 78 81 78 78 61 96 78 53 95 78 82 87 62 82 61 63 62 65 65 65 63 65 65 65 65 71 71 65 68 71 68 71 72 68 68 72 71 72 72 71 5 71 1 71 5 4 4 12 9 37 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97262-166-0	01	1	0803-0810	●
1	CAMSHAFT	8-97262-166-0	01	1	0811-	●	●
4	VALVE; INL	8-94395-882-2	08	1	0803-0810	●
4	VALVE; INL	8-94395-882-2	08	1	0811-	●	●
5	VALVE; EXH	8-97209-876-3	08	1	0803-0810	●
5	VALVE; EXH	8-97209-876-4	08	1	0811-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0803-0810	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0811-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0803-0810	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0811-	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0803-0810	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0811-	●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0803-0810	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0811-	●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0803-0810	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0811-	●	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0803-0810	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0811-	●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0803-0810	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0811-	●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0803-0810	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0811-	●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0803-0810	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0811-	●	●
63	BRIDGE	8-94392-002-3	08	1	0803-0810	●
63	BRIDGE	8-94392-002-3	08	1	0811-	●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0803-0810	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0811-	●	●
68	SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	0803-0810	●
68	SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	0811-	●	●
68	SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	0803-0810	●
68	SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	0811-	●	●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	0803-0810	●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	0811-	●	●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	0803-0810	●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	0811-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0803-0810	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0811-	●	●
78	ARM; ROCKER INLET	8-97306-421-2	04	1	0803-0810	●
78	ARM; ROCKER INLET	8-97306-421-3	04	1	0811-	●	●
78	ARM; ROCKER EXHAUST	8-97306-424-2	04	1	0803-0810	●
78	ARM; ROCKER EXHAUST	8-97306-424-3	04	1	0811-	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0803-0810	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0811-	●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0803-0810	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0811-	●	●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	08	1	0803-0810	●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	08	1	0811-	●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	0803-0810	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	0811-	●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0803-0810	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0811-	●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0803-0810	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0811-	●	●
