◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51169 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#74518) — 69 parça

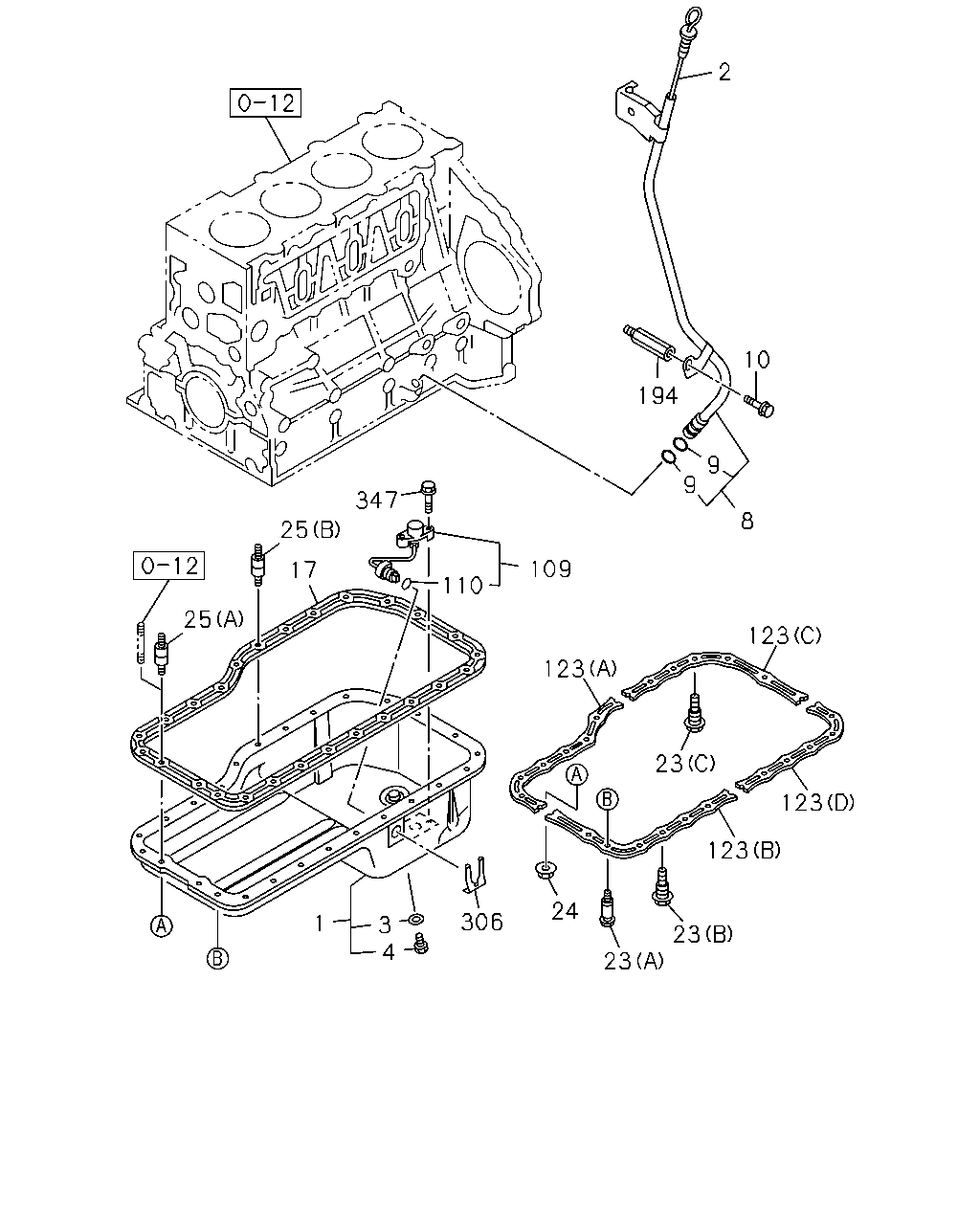

çizim 33143
2 10 194 8 9 9 109 110 123 123 23 123 123 23 23 347 25 17 25 306 4 3 1 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97386-772-0 01 1 0803-0810 ●
1 PAN ASM; OIL 8-98113-023-0 01 1 0811-1012 ● ●
1 PAN ASM; OIL
THA 		8-97149-314-0 01 1 1101-1109 ● ●
1 PAN ASM; OIL 8-98191-050-0 01 1 1110- ● ●
2 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0803-0810 ●
2 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0811-1011 ● ●
2 GAUGE; OIL LEVEL 8-98183-344-0 01 1 1012- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0803-0810 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0811- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0803-0810 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0811- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0803-0810 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0811- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA 		1-09623-469-0 02 1 0803-0810 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA 		1-09623-469-0 02 1 0811- ● ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0803-0810 ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0811- ● ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0803-0810 ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0811-1012 ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1105- ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1101- ● ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1105- ● ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0803-0810 ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0811-1012 ● ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1101- ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1105- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 13 1 0803-0810 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 13 1 0811-1012 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1101- ● ●
25 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0803-0810 ●
25 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0811-1012 ● ●
25 STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0803-0810 ●
25 STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0811-1012 ● ●
109 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0803-0810 ●
109 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0811-1012 ● ●
110 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0803-0810 ●
110 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0811-1012 ● ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0803-0810 ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0811-1012 ● ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0803-0810 ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0811-1012 ● ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0803-0810 ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0811-1012 ● ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0803-0810 ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0811-1012 ● ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0803-0810 ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0811- ● ●
306 CLIP; CONNECTOR 8-97229-219-0 01 1 0803-0810 ●
306 CLIP; CONNECTOR 8-97229-219-0 01 1 0811-1012 ● ●
347 BOLT; OIL LEVEL SW
M6X25 FLANGE THA 		0-28650-625-0 02 1 0803-0810 ●
347 BOLT; OIL LEVEL SW
M6X25 FLANGE THA 		0-28650-625-0 02 1 0811-1012 ● ●
çizim 36507
24 3 23 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97386-772-0 01 1 0803-0810 ●
1 PAN ASM; OIL 8-98113-023-0 01 1 0811-1012 ● ●
1 PAN ASM; OIL
THA 		8-97149-314-0 01 1 1101-1109 ● ●
1 PAN ASM; OIL 8-98191-050-0 01 1 1110- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0803-0810 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0811- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0803-0810 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0811- ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1105- ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1101- ● ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1105- ● ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0803-0810 ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0811-1012 ● ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1101- ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1105- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 13 1 0803-0810 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 13 1 0811-1012 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1101- ● ●
