Isuzu WW
▶
TRUCKS
▶
NPR
▶
51169 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#74514) — 30 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀

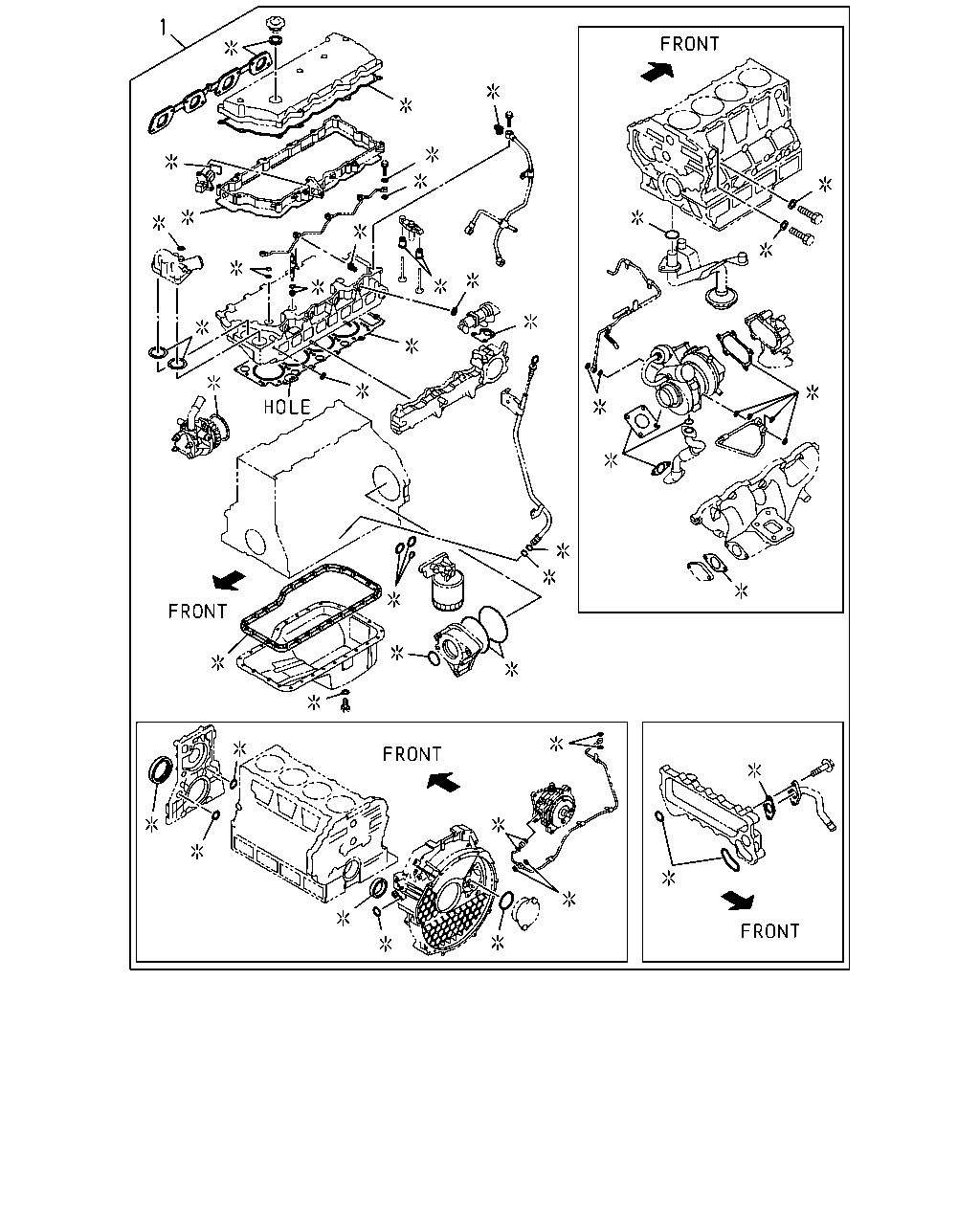

[005A] ENG OVERHAUL GASKET SET (21 parça)

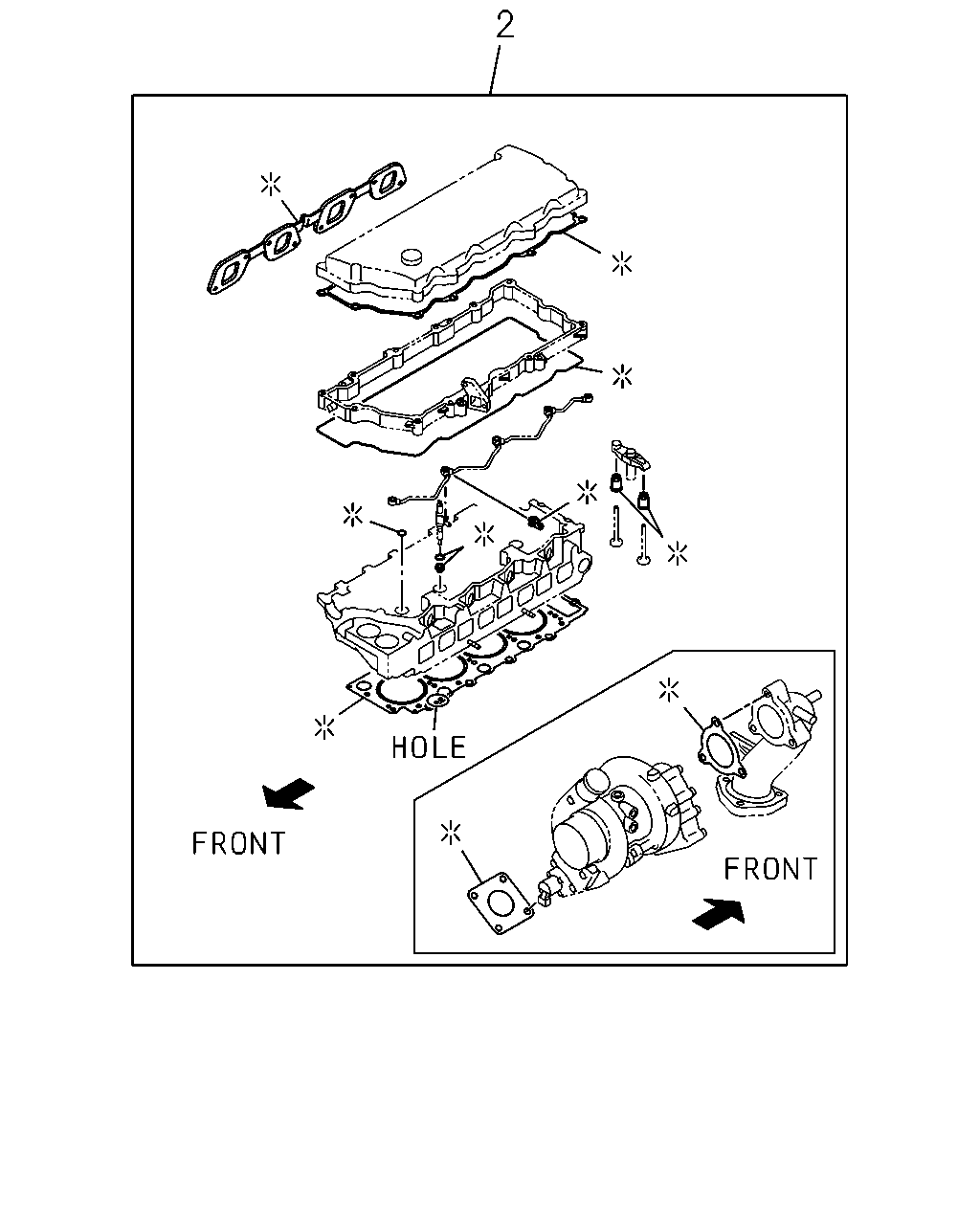

[005A] ENG HD OVERHAUL GASKET SET (9 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87815-340-3
01
1
0803-0908
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87815-523-1
01
1
0909-1006
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87815-810-0
01
1
1007-1101
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87815-952-2
01
1
1102-1312
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87817-044-0
01
1
1401-1501
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87817-762-0
01
1
1502-1505
●
●
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87817-957-0
01
1
1506-
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87815-341-3
01
1
0803-0908
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87815-524-1
01
1
0909-1006
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87815-811-0
01
1
1007-1101
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87815-953-2
01
1
1102-1312
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87817-045-0
01
1
1401-1501
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87817-763-0
01
1
1502-1505
●
●
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87817-958-0
01
1
1506-
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87815-342-3
01
1
0803-0908
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87815-525-1
01
1
0909-1006
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87815-812-0
01
1
1007-1101
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87815-954-2
01
1
1102-1312
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87817-046-0
01
1
1401-1501
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87817-764-0
01
1
1502-1505
●
●
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87817-959-0
01
1
1506-
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87815-117-1
01
1
0803-0908
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87815-532-3
01
1
0909-1505
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87817-993-0
01
1
1506-
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87815-118-1
01
1
0803-0908
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87815-533-3
01
1
0909-1505
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87817-994-0
01
1
1506-
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87815-119-1
01
1
0803-0908
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87815-534-3
01
1
0909-1505
●
●
2
GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87817-995-0
01
1
1506-
●
●
