8-90 — RADIO AND TV (#74511) — 17 parça

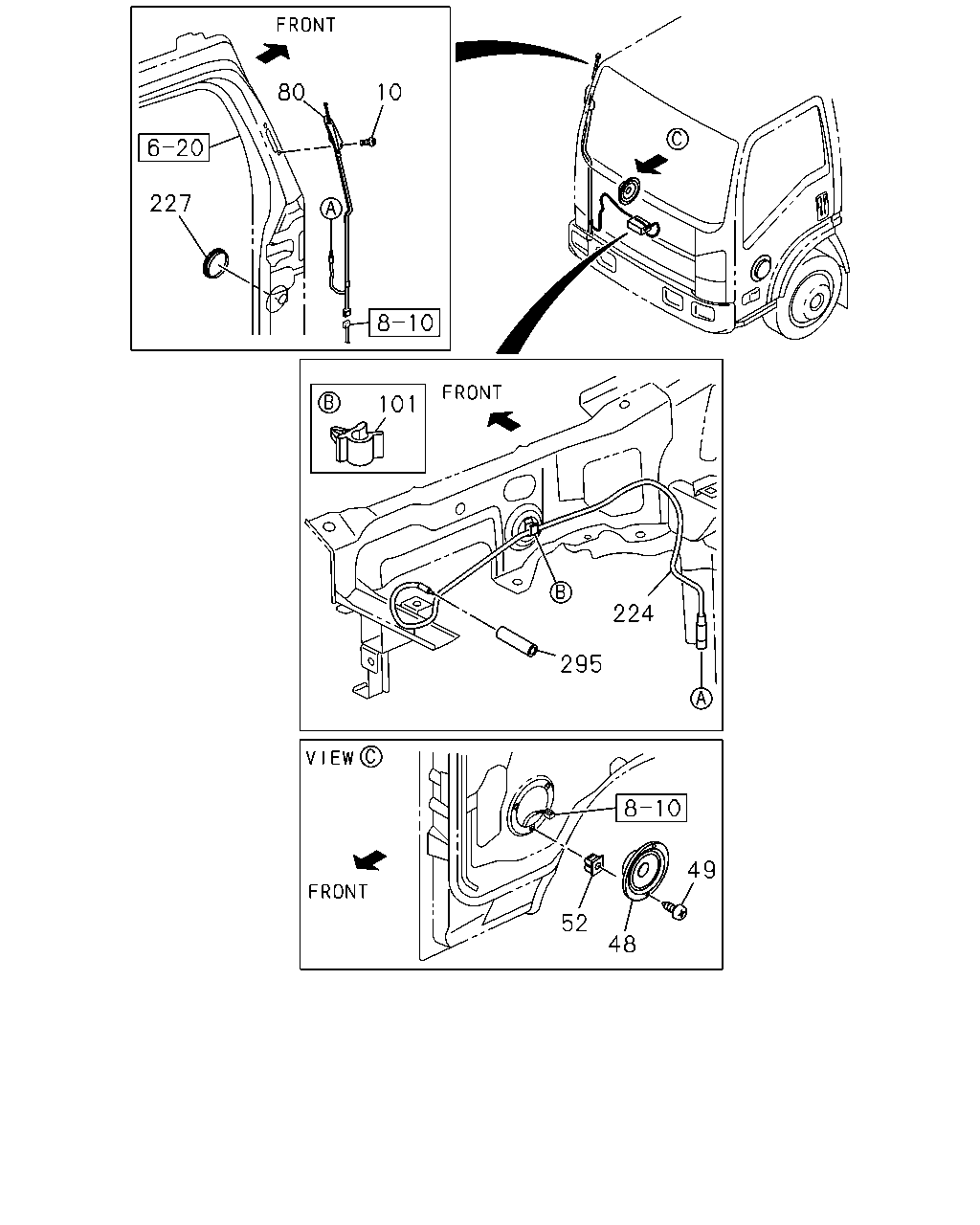

çizim 14456
80 10 227 101 224 295 49 52 48
BalonParca AdiParca NoAdetTipApplied Date A B
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0803- ● ●
48 SPEAKER; AUDIO
THA 		8-97923-687-0 02 1 0803-0806 ● ●
48 SPEAKER; AUDIO
THA 		8-97317-001-1 02 1 0807- ● ●
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0803-1003 ● ●
49 SCREW; SPEAKER
INTERIOR TRIM-FULL TRIMMING<WM3> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1004-1005 ● ●
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1006- ● ●
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0803- ● ●
80 ANTENNA 8-97387-265-2 01 1 0803-0810 ● ●
80 ANTENNA 8-97387-265-3 01 1 0811- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 01 1 0803- ● ●
224 CABLE; EXT,FEEDER
THA 		8-98029-970-1 01 1 0805- ● ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0803- ● ●
295 INSULATOR; ANTENNA 8-98095-617-1 01 1 0803- ● ●

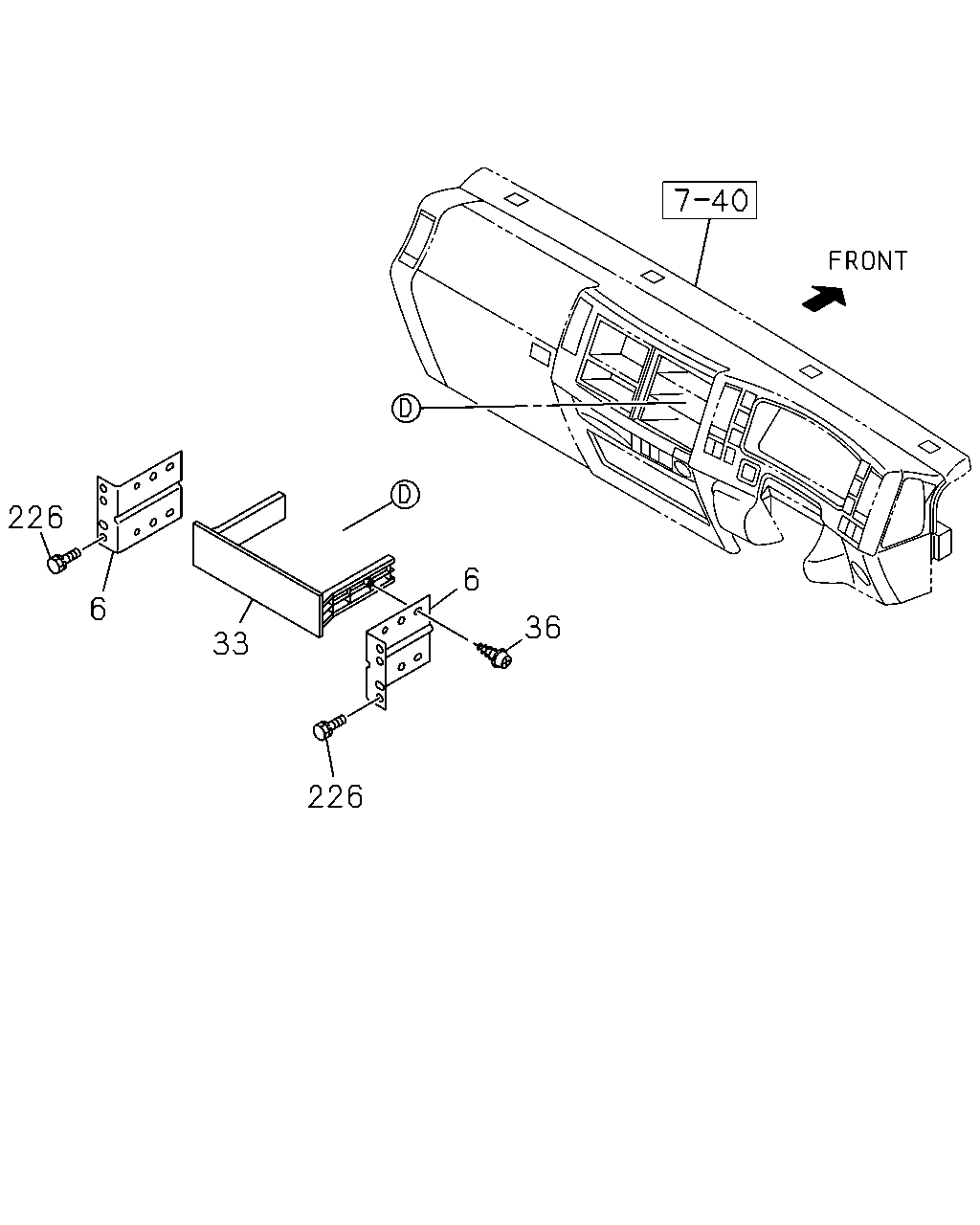

çizim 185586
226 6 6 36 33 226
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0803- ● ●
33 COVER; RADIO
BLACK 		8-97407-896-2 01 1 0803- ● ●
36 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803- ● ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0803- ● ●
