Sayfa 6-05 - Isuzu EPC

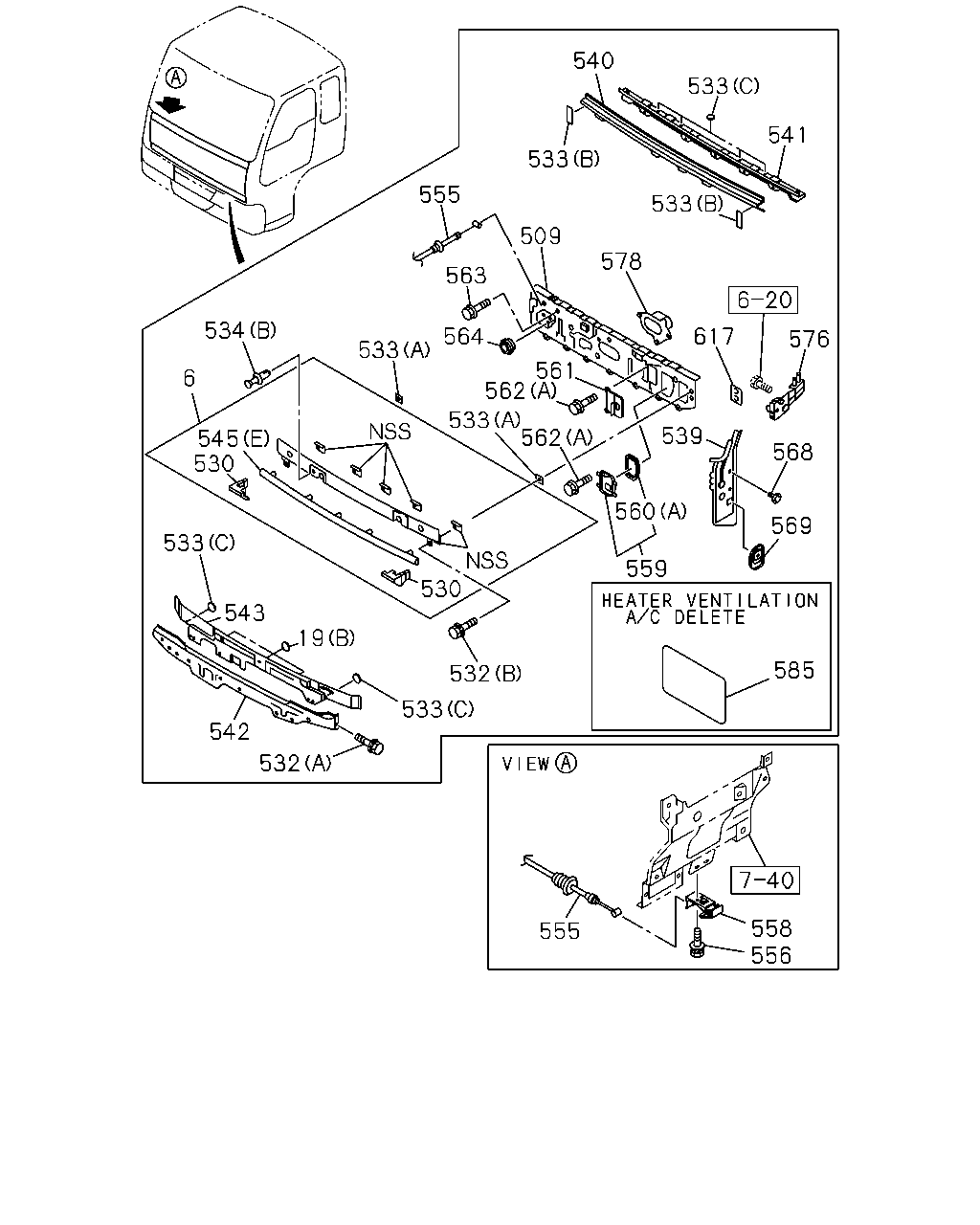

6-05 — FRONT PANEL (#7451) — 283 parça

540 533 541 533 555 533 509 578 563 534 564 617 576 533 561 562 6 533 562 539 545 530 568 560 569 533 530 559 543 19 585 532 533 542 532 558 556 555

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65472-551-2	01	1	9812-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	9812-9904
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9905-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	9812-9904
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9905-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9905-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-4	01	1	9905-
509	PANEL; DASH EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS(Q3P) ,HEATER VENTILATION A/C DELETE(TFA)	1-62270-482-3	01	1	9905-9906
509	PANEL; DASH HEATER VENTILATION A/C DELETE(TFA)	1-62270-497-1	01	1	9812-9904
509	PANEL; DASH ENG CONTROL TICS(Q3P) HEATER VENTILATION A/C DELETE(TFA)	1-62270-497-1	01	1	9905-9906
509	PANEL; DASH HEATER VENTILATION A/C DELETE(TFA)	1-62270-497-1	01	1	9907-
509	PANEL; DASH HEATER VENTILATION A/C DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS(Q3P)	1-62270-493-2	01	1	9905-9906
509	PANEL; DASH EXC. HEATER VENTILATION A/C DELETE(TFA)	1-62270-496-1	01	1	9812-9904
509	PANEL; DASH ENG CONTROL TICS(Q3P) EXC. HEATER VENTILATION A/C DELETE(TFA)	1-62270-496-1	01	1	9905-9906
509	PANEL; DASH EXC. HEATER VENTILATION A/C DELETE(TFA)	1-62270-496-1	01	1	9907-
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	9812-
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	9812-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	9812-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9812-
532	BOLT; FRT PANEL CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9812-9904
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	9812-
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	16	1	9812-9908
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	9909-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9812-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9812-0001
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9812-
539	CLOSING; PILLAR	1-61480-763-1	01	1	9812-
539	CLOSING; PILLAR	1-61480-762-1	01	1	9812-
540	PANEL; FRONT,OUTER	1-61470-699-2	01	1	9812-
541	PANEL; FRONT,INNER	1-61470-700-1	01	1	9812-
542	RAIL; FRT MOUNTING	1-61470-701-3	01	1	9812-
543	CLOSING; FRT MTG RAIL	1-61470-703-2	01	1	9812-
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)	1-71907-572-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	01	1	9905-
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9812-9904
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9905-
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9812-9904
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9905-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9812-
558	LEVER; FRT LID	8-97865-110-0	01	1	9812-
559	COVER; EVAPOLATOR	1-71996-193-0	01	1	9812-
560	SEAL; COVER (A)	1-71998-827-1	01	1	9812-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9812-
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9812-9904
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9812-9907
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
561	COVER; HEATER CORE	1-71998-993-2	01	1	9812-
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9812-
562	BOLT; COVER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9812-9904
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	9812-
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9812-
568	PATCH; INST REINF	1-61480-675-2	02	1	9812-
569	PATCH; LWR GRIP	1-61480-736-2	01	1	9812-
569	PATCH; LWR GRIP	1-61480-772-0	01	1	9812-
576	FRAME; INST SIDE	1-62280-201-2	01	1	9812-
576	FRAME; INST SIDE	1-62280-200-2	01	1	9812-
578	COVER; WIPER MOTOR	1-62280-185-3	01	1	9812-0009
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0010-
585	PLATE; EVAPOLATOR HEATER VENTILATION A/C DELETE(TFA)	1-71996-084-1	01	1	9812-
617	SEAL; DASH	1-61281-497-0	02	1	9812-

544 544 560 548 545 545 601 545 198 548 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	NUT; PANEL CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9812-9904
198	NUT; PANEL CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9905-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2>	1-71107-370-0	01	1	9902-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-293-0	01	1	9905-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2>	1-71107-373-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9812-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9812-9901
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-281-0	01	1	9902-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9905-
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)	1-71907-572-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	01	1	9905-
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	9812-
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	9812-
560	SEAL; COVER (A)	1-71998-827-1	01	1	9812-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9812-
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9812-9904
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9812-9907
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
601	FINISHER; LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190	1-71998-300-0	01	1	9812-

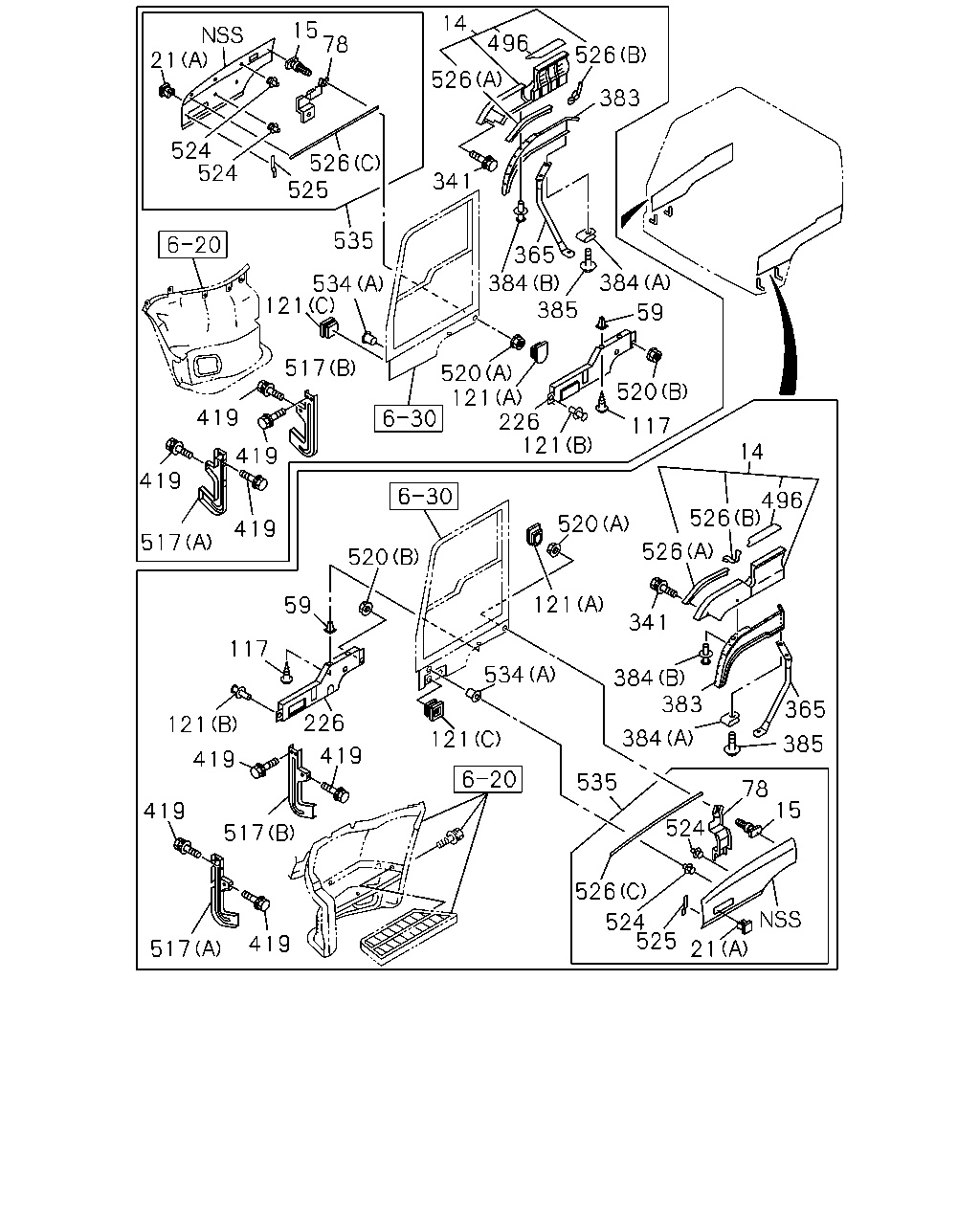

14 15 78 496 526 21 526 383 524 524 526 525 341 535 365 384 384 385 534 121 59 517 520 121 226 121 520 419 117 14 419 419 496 526 520 419 517 526 520 121 59 341 117 534 384 383 365 226 121 384 121 385 419 419 535 78 15 419 524 517 526 524 525 419 517 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT WHITE	1-65472-453-2	01	1	9812-
14	FENDER; FRT WHITE	1-65472-452-2	01	1	9812-
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	9812-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9812-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9812-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	9812-
78	BRACKET; FENDER	1-71267-215-0	01	1	9812-
78	BRACKET; FENDER	1-71267-214-0	01	1	9812-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	9812-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	9812-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	9812-
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	9812-
226	PROTECTOR; FRT	1-71267-153-7	01	1	9812-9902
226	PROTECTOR; FRT	1-71267-269-1	01	1	9903-
226	PROTECTOR; FRT	1-71267-152-7	01	1	9812-9902
226	PROTECTOR; FRT	1-71267-268-1	01	1	9903-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	9812-
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-418-1	01	1	9812-
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-417-1	01	1	9812-
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-457-2	01	1	9812-
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-456-2	01	1	9812-
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-443-2	01	1	9812-
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-442-2	01	1	9812-
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	09	1	9812-
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (A) ID=6	1-09987-266-0	04	1	9812-
384	CLIP; FENDER LWR EXC. CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	11	1	9812-
385	SCREW; FENDER LWR CAB UP +110MM<TGG> M6X25	1-65481-736-0	04	1	9812-
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9812-
496	RUBBER; STEP	1-71998-862-0	01	1	9812-
496	RUBBER; STEP	1-71998-861-0	01	1	9812-
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	9812-
517	SUPPORT; STEP PANEL (A)	1-65671-747-4	01	1	9812-9901
517	SUPPORT; STEP PANEL DUAL AIR GAUGE<UG2> (A)	1-65671-747-4	01	1	9902-
517	SUPPORT; STEP PANEL (A)	1-65671-528-3	01	1	9812-9904
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	9905-
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	9812-
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A)	1-65671-529-3	01	1	9902-9904
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A)	1-65671-767-1	01	1	9905-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9812-
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	9812-
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9812-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9812-
526	FINISHER; FENDER (A)	1-71998-900-3	02	1	9812-
526	FINISHER; FENDER (C)	1-71268-276-1	01	1	9812-
526	FINISHER; FENDER (B)	1-71907-181-4	01	1	9812-
526	FINISHER; FENDER (C)	1-71268-275-1	01	1	9812-
526	FINISHER; FENDER (B)	1-71907-180-4	01	1	9812-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9812-0001
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9812-
535	FENDER; BLISTER	1-71267-186-2	01	1	9812-
535	FENDER; BLISTER	1-71267-185-2	01	1	9812-

544 562 544 560 548 545 545 548 532 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	9812-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9812-
532	BOLT; FRT PANEL CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9812-9904
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2>	1-71107-370-0	01	1	9902-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-293-0	01	1	9905-
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2>	1-71107-373-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9812-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9812-9901
544	LID; FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-281-0	01	1	9902-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9905-
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)	1-71907-572-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	01	1	9905-
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	9812-
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	9812-
560	SEAL; COVER (A)	1-71998-827-1	01	1	9812-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9812-
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9812-9904
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9812-9907
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9908-
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9812-
562	BOLT; COVER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9812-9904
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-

104 542 181 366 547 426 555 550 545 426 551 550 551 547 547 550 551 551 590 551 551 557 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9812-
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	9812-
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9812-
426	GASKET OD=25 BLACK	1-76798-019-0	11	1	9812-
426	GASKET OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9812-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	02	1	9812-
542	RAIL; FRT MOUNTING	1-61470-701-3	01	1	9812-
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9812-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)	1-71907-572-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9812-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	01	1	9905-
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	9812-
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	9812-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-79317-002-2	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-79317-002-2	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-007-4	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-007-4	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-006-2	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-006-2	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-015-0	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-015-0	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-014-0	01	1	9812-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-014-0	01	1	9905-
551	BOLT; LOCK (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	9812-
551	BOLT; LOCK CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-9904
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0102-
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9812-9904
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9905-
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9812-9904
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9905-
557	CLIP; CABLE CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	05	1	9812-9904
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	05	1	9905-
557	CLIP; CABLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	04	1	9812-9904
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	04	1	9905-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-007-4	01	1	0102-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-006-2	01	1	0102-

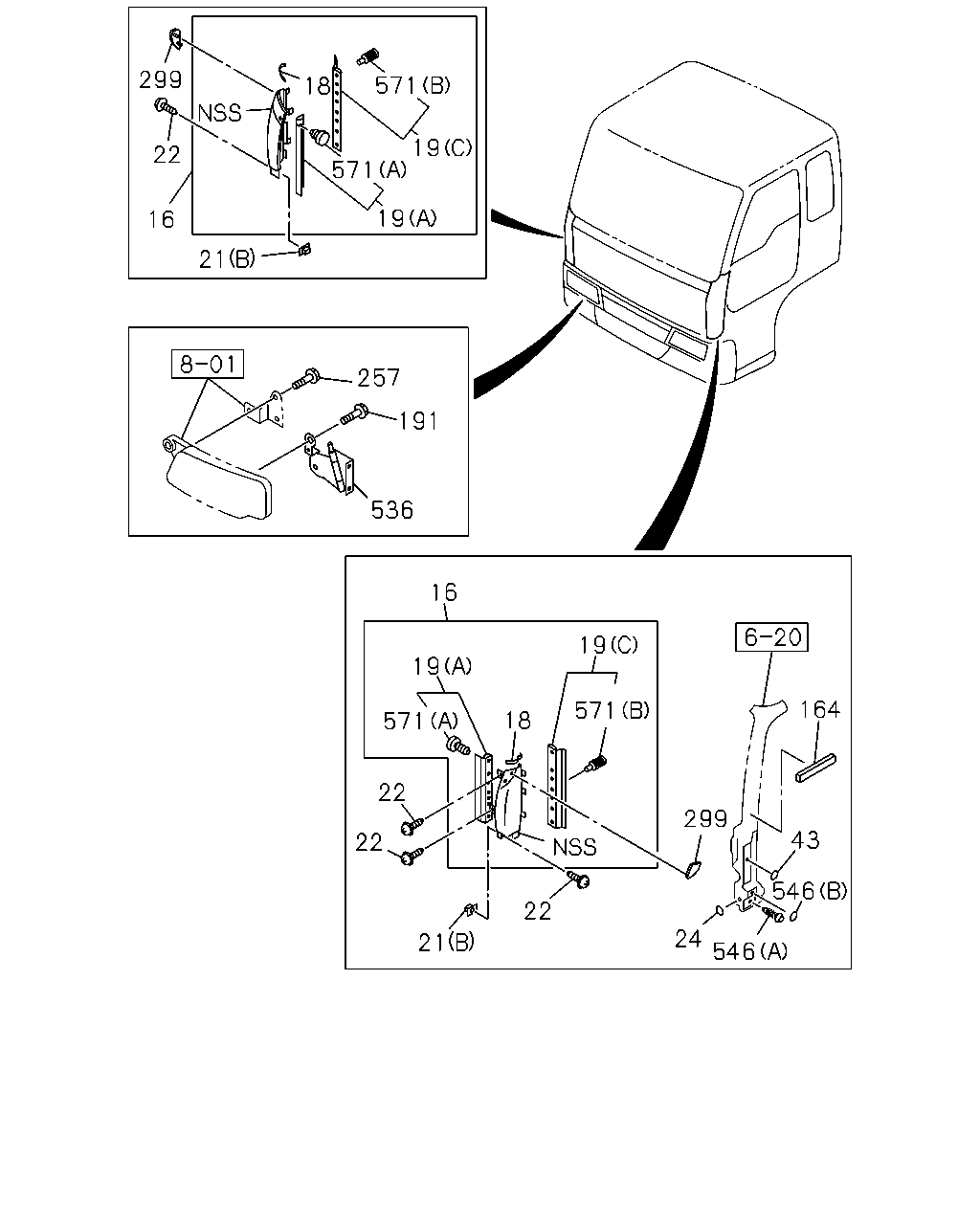

299 18 571 19 22 571 19 16 21 257 191 536 16 19 19 164 571 18 571 22 299 43 22 546 22 24 21 546

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-899-0	01	1	9812-
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-898-0	01	1	9812-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	9905-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	9905-
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-899-2	01	1	9812-9904
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	9905-
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-898-2	01	1	9812-9904
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9905-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	9812-9904
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9905-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9812-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	9812-9904
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9905-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9905-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-4	01	1	9905-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9812-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9812-
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9812-0003
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	04	1	9812-9903
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	06	1	9904-
24	SEAL; FRT PANEL LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	10	1	9812-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9812-
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9812-
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9905-
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9905-
299	COVER; FRT PANEL SIDE	1-71998-996-1	01	1	9812-
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71998-995-1	01	1	9812-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	9905-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	9905-
546	PLUG; DUMMY HOLE (A) OD=16 L=11	1-76378-155-0	02	1	9812-
546	PLUG; DUMMY HOLE (B) OD=25 BLACK	1-76798-019-0	04	1	9812-
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9812-
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B) PINK	1-09987-256-0	08	1	9812-9904
571	CLIP; SEAL (B) PINK	1-09987-256-0	08	1	9905-
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B) NATURAL	1-09987-257-0	08	1	9812-9904
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	08	1	9905-
571	CLIP; SEAL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	14	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
