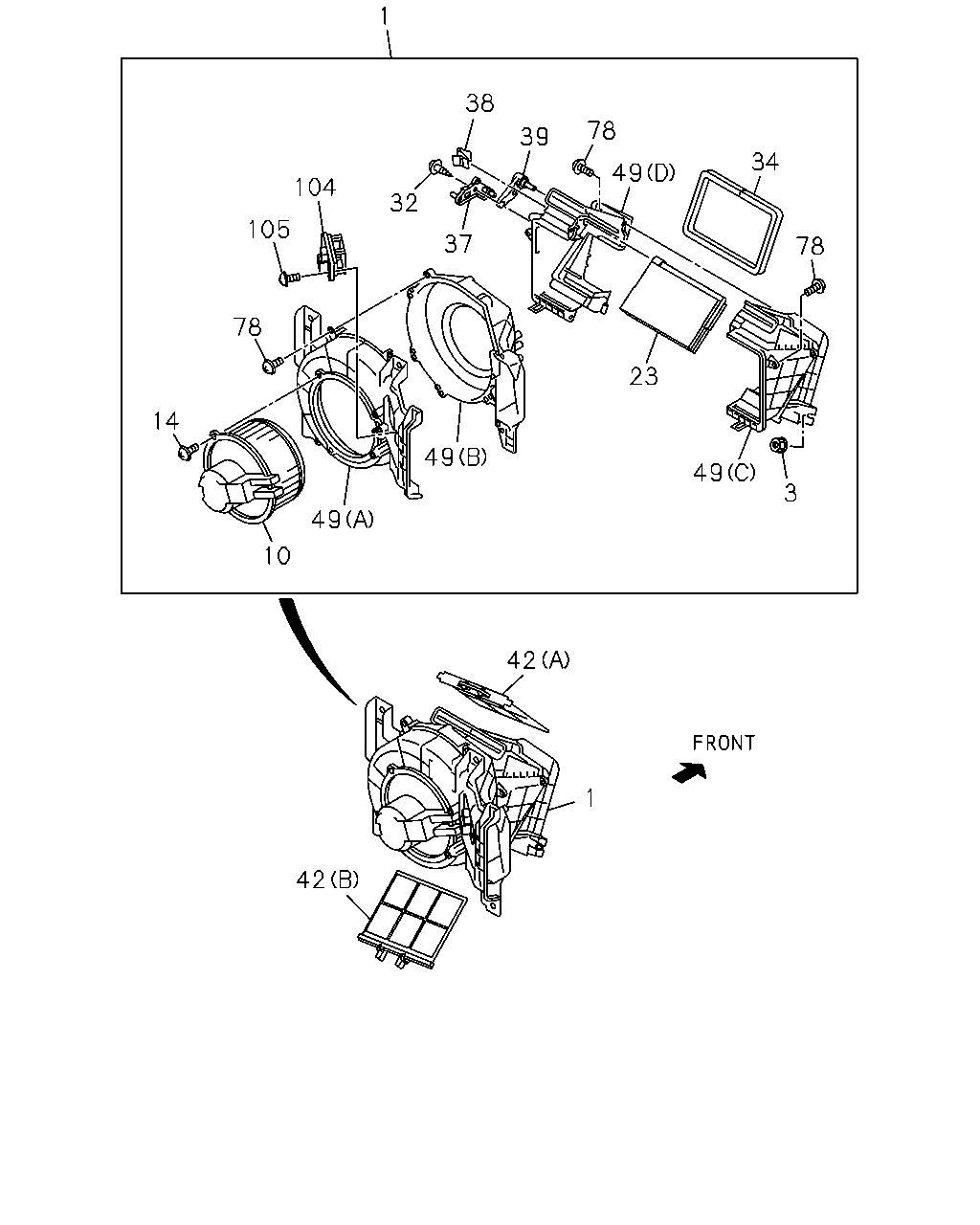

8-73 — BLOWER UNIT (#74508) — 28 parça

1 38 78 39 34 49 104 32 105 37 78 78 23 14 49 49 3 49 10 42 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98021-976-3	01	1	0803-1102	●	●
1	BLOWER ASM FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98183-589-0	01	1	1103-1103	●	●
1	BLOWER ASM FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98171-719-0	01	1	1103-	●	●
3	NUT; CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6	8-98047-419-0	02	1	0803-1102	●	●
3	NUT; CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 THA	1-83539-354-0	02	1	1103-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-767-0	01	1	0803-1102	●	●
10	MOTOR ASM; FAN,BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98183-924-0	01	1	1103-	●	●
14	SCREW; COVER TO CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16	8-98047-448-0	03	1	0803-	●	●
23	SHUTTER; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-437-0	01	1	0803-1102	●	●
23	SHUTTER; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98171-863-0	01	1	1103-	●	●
32	SCREW; LEVER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16	8-98047-416-0	01	1	0803-	●	●
34	LINING; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-430-0	01	1	0803-	●	●
37	LEVER; MODE LEVER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-436-0	01	1	0803-	●	●
38	CLIP; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-432-0	01	1	0803-1102	●	●
38	CLIP; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-417-0	01	1	1103-	●	●
39	LEVER; SHUTTER,BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98047-435-0	01	1	0803-	●	●
42	FILTER; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-97387-096-1	01	1	0803-1002	●	●
42	FILTER; BLOWER UNIT COOLER WO/HEATER<C65> (A)	8-97387-096-1	01	1	1003-	●	●
42	FILTER; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98025-006-1	01	1	0803-	●	●
49	CASE; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A)	8-98047-440-0	01	1	0803-	●	●
49	CASE; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98047-441-0	01	1	0803-	●	●
49	CASE; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C)	8-98047-442-0	01	1	0803-	●	●
49	CASE; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D)	8-98047-443-0	01	1	0803-	●	●
78	SCREW; CASE TO CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16	8-98047-418-0	15	1	0803-1102	●	●
78	SCREW; CASE TO CASE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	15	1	1103-	●	●
104	RESISTOR; BLOWER UNIT FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98074-113-0	01	1	0803-	●	●
105	SCREW; RESISTOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16	8-98047-418-0	02	1	0803-1102	●	●
105	SCREW; RESISTOR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M4X16 TAPPING	8-97957-708-0	02	1	1103-	●	●
