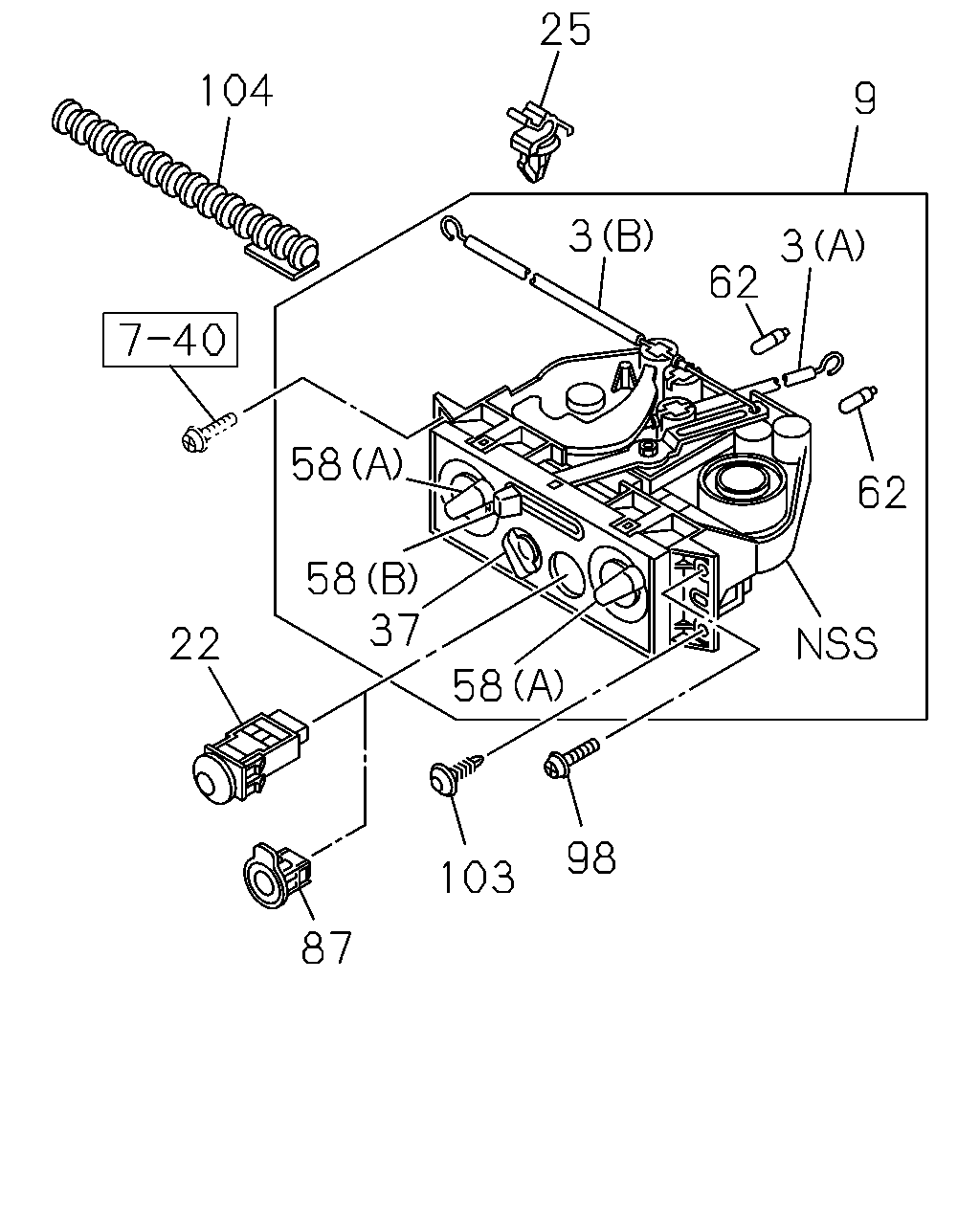

8-65 — CONTROL LEVER; HEATER AND AIR CON (#74506) — 15 parça

25 104 9 3 3 62 58 62 58 37 58 22 98 103 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) MODE	8-98039-250-0	01	1	0803-	●	●
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) FRESH	8-98039-253-2	01	1	0803-	●	●
9	LEVER ASM; HTR & A/C CONT COOLER WO/HEATER<C65>	8-98066-000-1	01	1	0803-	●	●
9	LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION<C39>	8-98066-001-1	01	1	0803-	●	●
22	SWITCH; A/C,MAIN COOLER WO/HEATER<C65>	8-98021-982-0	01	1	0803-	●	●
25	CLIP; CABLE,CONT LEVER FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> ID=4.8	8-94128-483-0	01	1	0803-	●	●
37	KNOB; SW,HTR CONT LVR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98037-368-0	01	1	0803-	●	●
58	KNOB; LVR,HTR CONT LVR COOLER WO/HEATER<C65> (A)	8-98037-369-0	02	1	0803-	●	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION<C39> (A)	8-98037-369-0	01	1	0803-	●	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)	8-98037-370-0	01	1	0803-	●	●
62	BULB; HTR CONT LVR FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 1.1W	8-98037-371-0	02	1	0803-	●	●
87	CAP; A/C SWITCH FORGED AIR VENTILATION<C39>	8-98006-089-0	01	1	0803-	●	●
98	SCREW; CONT PANEL FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0803-	●	●
103	CLIP FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> DARK GRAY	8-97098-326-0	01	1	0803-	●	●
104	GUIDE; CABLE FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>	8-98048-216-0	01	1	0803-	●	●
