8-50 — AIR CONDITIONING SYSTEM; FRONT (#74503) — 19 parça

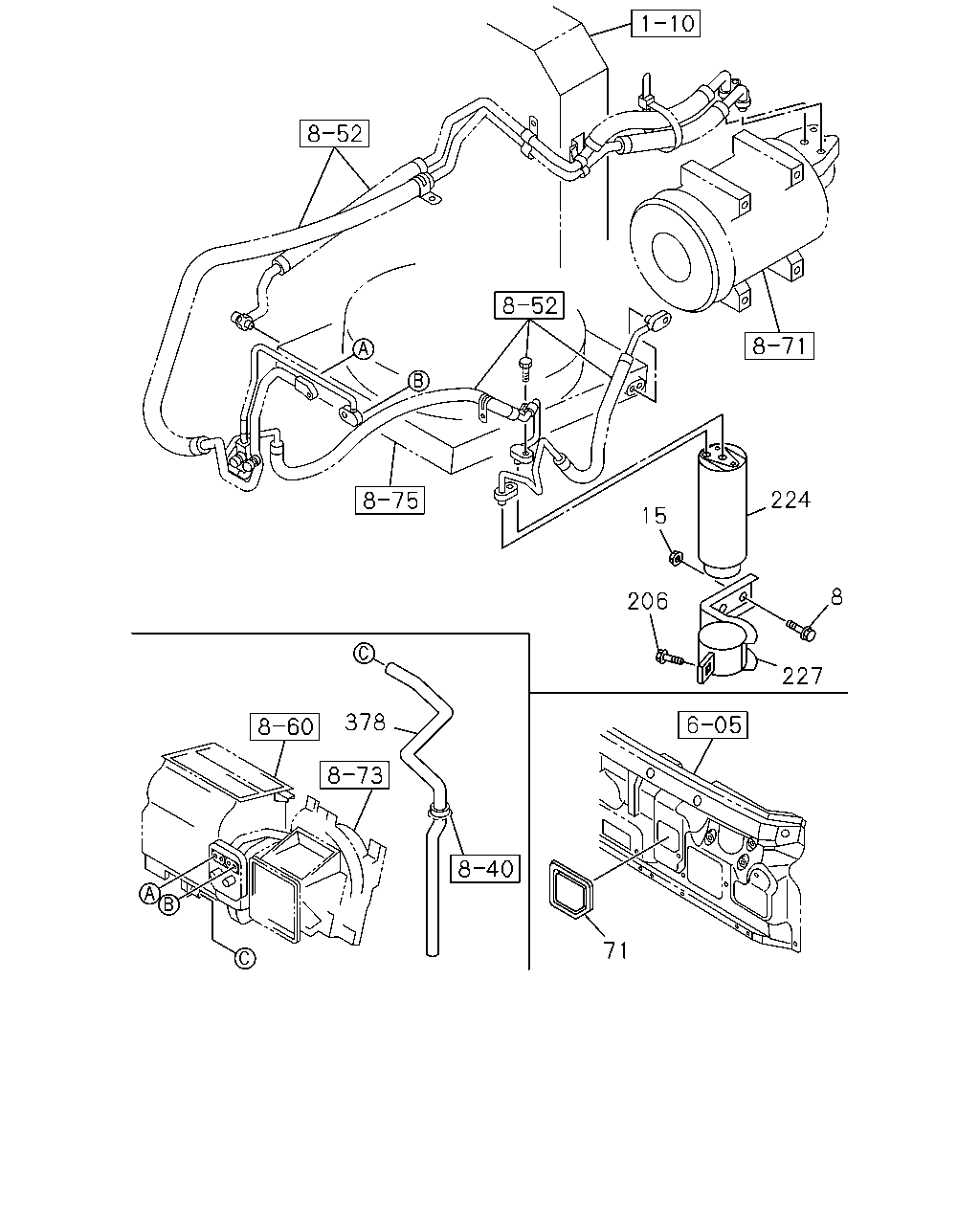

çizim 141174
224 15 8 206 227 378 71
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
COOLER WO/HEATER<C65> M8X25 FLANGE THA 		0-28650-825-0 02 1 0803- ● ●
15 NUT; BRKT
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 02 1 0803- ● ●
71 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98017-234-1 01 1 0803-1301 ● ●
71 COVER; EVAP,A/C
EXC. COOLER WO/HEATER<C65> 		8-98017-234-1 01 1 1302- ● ●
206 BOLT; CLIP BRKT
COOLER WO/HEATER<C65> M6X16 		8-97096-525-0 01 1 0803- ● ●
224 TANK ASM; RECEIVER
COOLER WO/HEATER<C65> 		8-97096-593-0 01 1 0803- ● ●
227 BRACKET; RECEIVER TANK
COOLER WO/HEATER<C65> 		8-98042-566-0 01 1 0803- ● ●
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98001-241-2 01 1 0803- ● ●
çizim 185582
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
COOLER WO/HEATER<C65> M8X100 FLANGE THA 		0-28050-800-0 04 1 0803- ● ●
17 NUT; CMPR
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 0803- ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0803-1006 ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE 		8-98114-437-0 01 1 1007- ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> BEST VALUE PARTS 		5-87610-103-0 01 1 0803- ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0803-0804 ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0805- ● ●
46 BRACKET; CMPR
COOLER WO/HEATER<C65> 		8-98037-322-0 01 1 0803- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M8X45 FLANGE THA 		0-28050-845-0 01 1 0803- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0803- ● ●
387 BOLT; TENSIONER FIX
COOLER WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 01 1 0803- ● ●
