◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#74502) — 32 parça

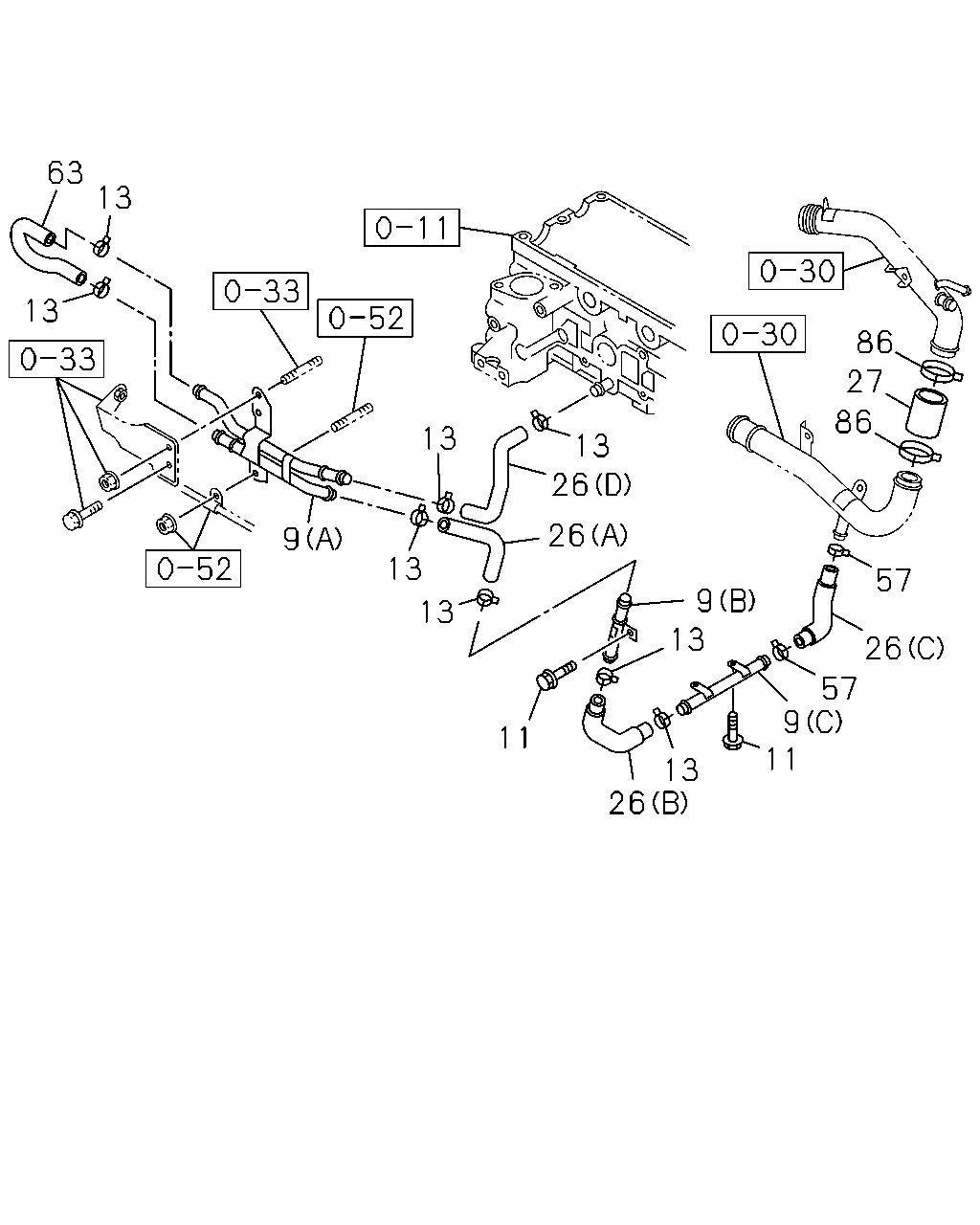

çizim 141037
86 27 86 57 26 57 9 11 13 26 13 9 11 26 26 13 13 13 13 9 13 13 63
BalonParca AdiParca NoAdetTipApplied Date A B
9 PIPE; HTR
ENGINE MADE IN THAILAND<6ZP> (B) 		8-97381-481-3 01 1 1109- ● ●
9 PIPE; HTR
ENGINE MADE IN THAILAND<6ZP> (C) 		8-97383-035-1 01 1 1109- ● ●
9 PIPE; HTR
ENGINE MADE IN THAILAND<6ZP> (A) 		8-98028-829-1 01 1 1109- ● ●
9 PIPE; HTR
KD PREPARATORY PACK<6HF> (B) 		8-97381-481-3 01 1 0803- ● ●
9 PIPE; HTR
KD PREPARATORY PACK<6HF> (C) 		8-97383-035-1 01 1 0803- ● ●
9 PIPE; HTR
KD PREPARATORY PACK<6HF> (A) 		8-98028-829-1 01 1 0803- ● ●
11 BOLT; HTR PIPE
ENGINE MADE IN THAILAND<6ZP> M8X16 FLANGE THA 		0-28050-816-0 03 1 1109- ● ●
11 BOLT; HTR PIPE
KD PREPARATORY PACK<6HF> M8X16 FLANGE THA 		0-28050-816-0 03 1 0803- ● ●
13 CLIP; HTR HOSE
ENGINE MADE IN THAILAND<6ZP> ID=20.8 		8-94125-862-1 06 1 1109-1112 ● ●
13 CLIP; HTR HOSE
ENGINE MADE IN THAILAND<6ZP> ID=20.8 THA 		8-97944-127-0 06 1 1201- ● ●
13 CLIP; HTR HOSE
KD PREPARATORY PACK<6HF> ID=20.8 		8-94125-862-1 06 1 0803-1112 ● ●
13 CLIP; HTR HOSE
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> ID=20.8 THA 		8-97944-127-0 06 1 1201- ● ●
13 CLIP; HTR HOSE
KD PREPARATORY PACK<6HF> EXC. ENGINE MADE IN THAILAND<6ZP> ID=20.8 		8-94125-862-1 06 1 1201- ● ●
26 HOSE; HTR
ENGINE MADE IN THAILAND<6ZP> (D) 		8-97383-048-1 01 1 1109- ● ●
26 HOSE; HTR
ENGINE MADE IN THAILAND<6ZP> (B) 		8-98000-099-1 01 1 1109- ● ●
26 HOSE; HTR
ENGINE MADE IN THAILAND<6ZP> (C) 		8-98000-101-2 01 1 1109- ● ●
26 HOSE; HTR
ENGINE MADE IN THAILAND<6ZP> (A) 		8-98143-868-0 01 1 1109- ● ●
26 HOSE; HTR
KD PREPARATORY PACK<6HF> (A) 		0-03516-240-0 01 1 0803-0910 ● ●
26 HOSE; HTR
KD PREPARATORY PACK<6HF> (A) 		8-98143-868-0 01 1 0911- ● ●
26 HOSE; HTR
KD PREPARATORY PACK<6HF> (D) 		8-97383-048-1 01 1 0803- ● ●
26 HOSE; HTR
KD PREPARATORY PACK<6HF> (B) 		8-98000-099-1 01 1 0803- ● ●
26 HOSE; HTR
KD PREPARATORY PACK<6HF> (C) 		8-98000-101-2 01 1 0803- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
ENGINE MADE IN THAILAND<6ZP> 		8-98009-701-0 01 1 1109- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
KD PREPARATORY PACK<6HF> 		8-98009-701-0 01 1 0803- ● ●
57 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> ID=20.8 		8-94125-862-1 02 1 1109-1112 ● ●
57 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> ID=20.8 THA 		8-97944-127-0 02 1 1201- ● ●
57 CLIP; HOSE
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> ID=20.8 THA 		8-97944-127-0 02 1 1201- ● ●
57 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=20.8 		8-94125-862-1 02 1 0803-1112 ● ●
57 CLIP; HOSE
KD PREPARATORY PACK<6HF> EXC. ENGINE MADE IN THAILAND<6ZP> ID=20.8 		8-94125-862-1 02 1 1201- ● ●
63 HOSE; WATER
THA 		8-98015-119-3 01 1 0803- ● ●
86 CLIP; HTR HOSE
ENGINE MADE IN THAILAND<6ZP> ID=40.5 		8-97313-472-0 02 1 1109- ● ●
86 CLIP; HTR HOSE
KD PREPARATORY PACK<6HF> ID=40.5 		8-97313-472-0 02 1 0803- ● ●
