◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#74500) — 18 parça

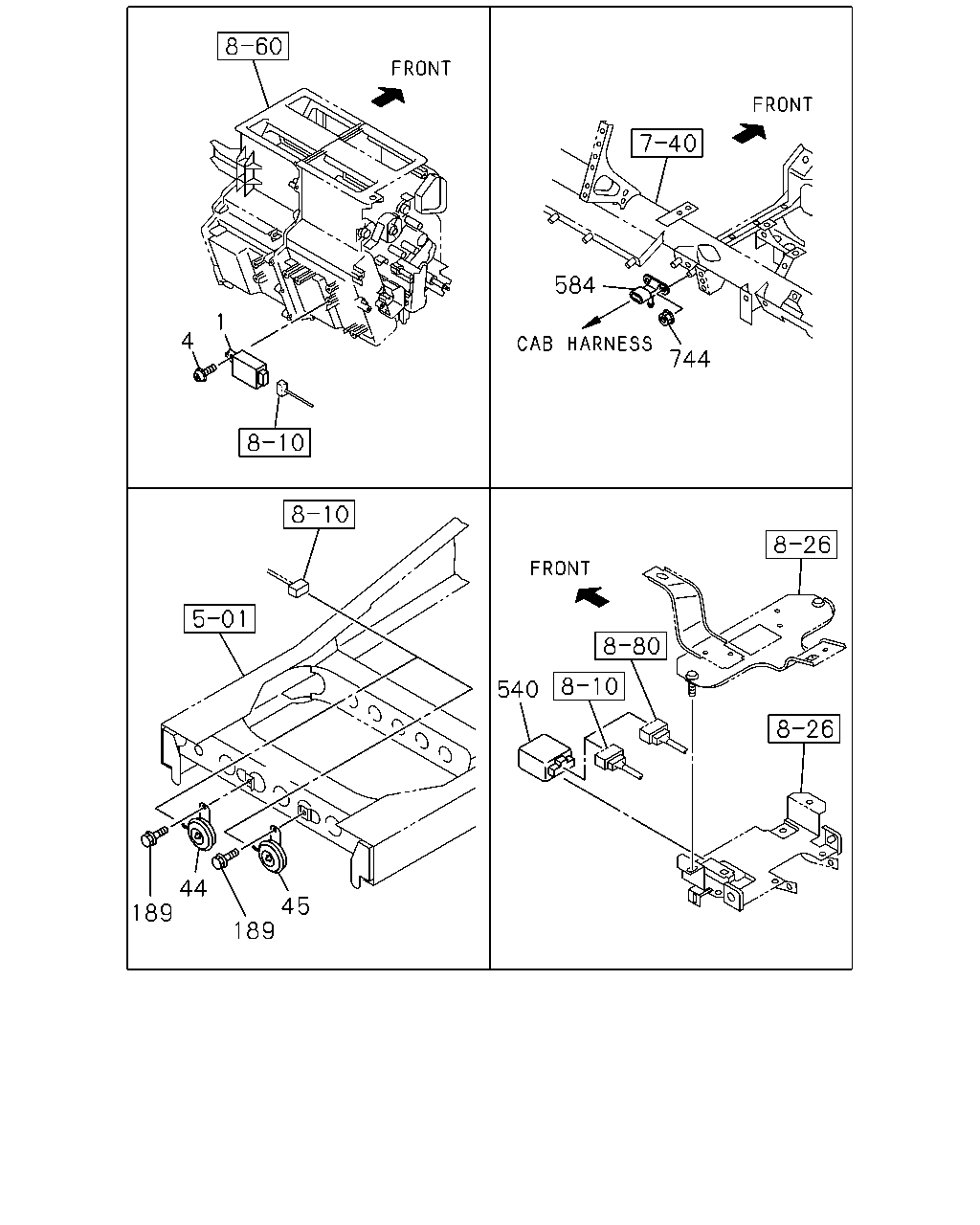

çizim 143926
1 4 44 189 189 45 540 744 584
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0803- ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98022-022-0 01 1 0803- ● ●
45 HORN; LOW NOTE
THA 		8-97925-172-0 01 1 1109- ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 0803- ● ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803- ● ●
189 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0803-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0803- ● ●
744 NUT; SENSOR
M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
744 NUT; SENSOR
M6 FLANGE THA 		0-91180-106-0 02 1 0803-1207 ● ●
çizim 185580
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0803-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 RELAY; STARTER
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0803-1005 ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●

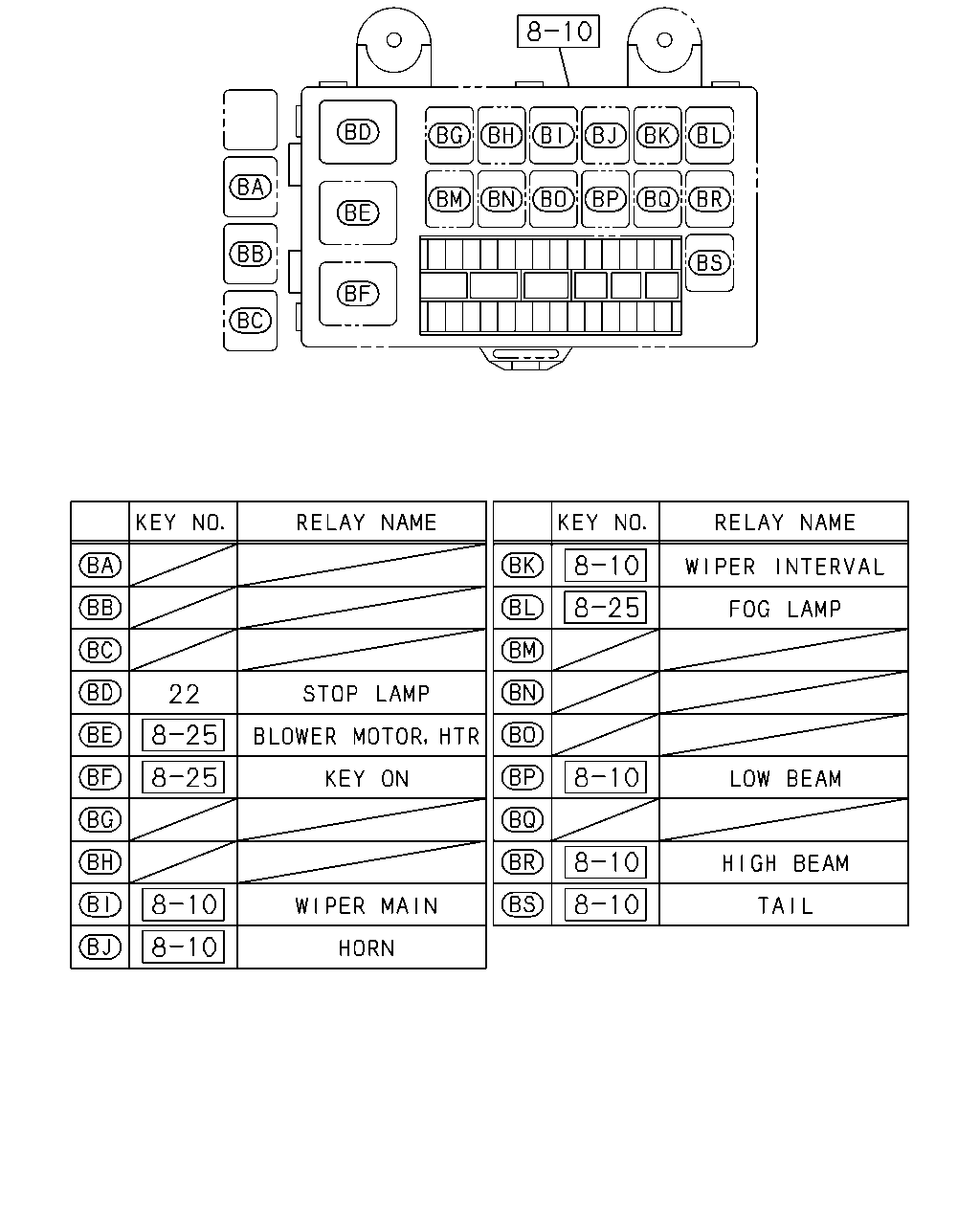

çizim 185581
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803- ● ●

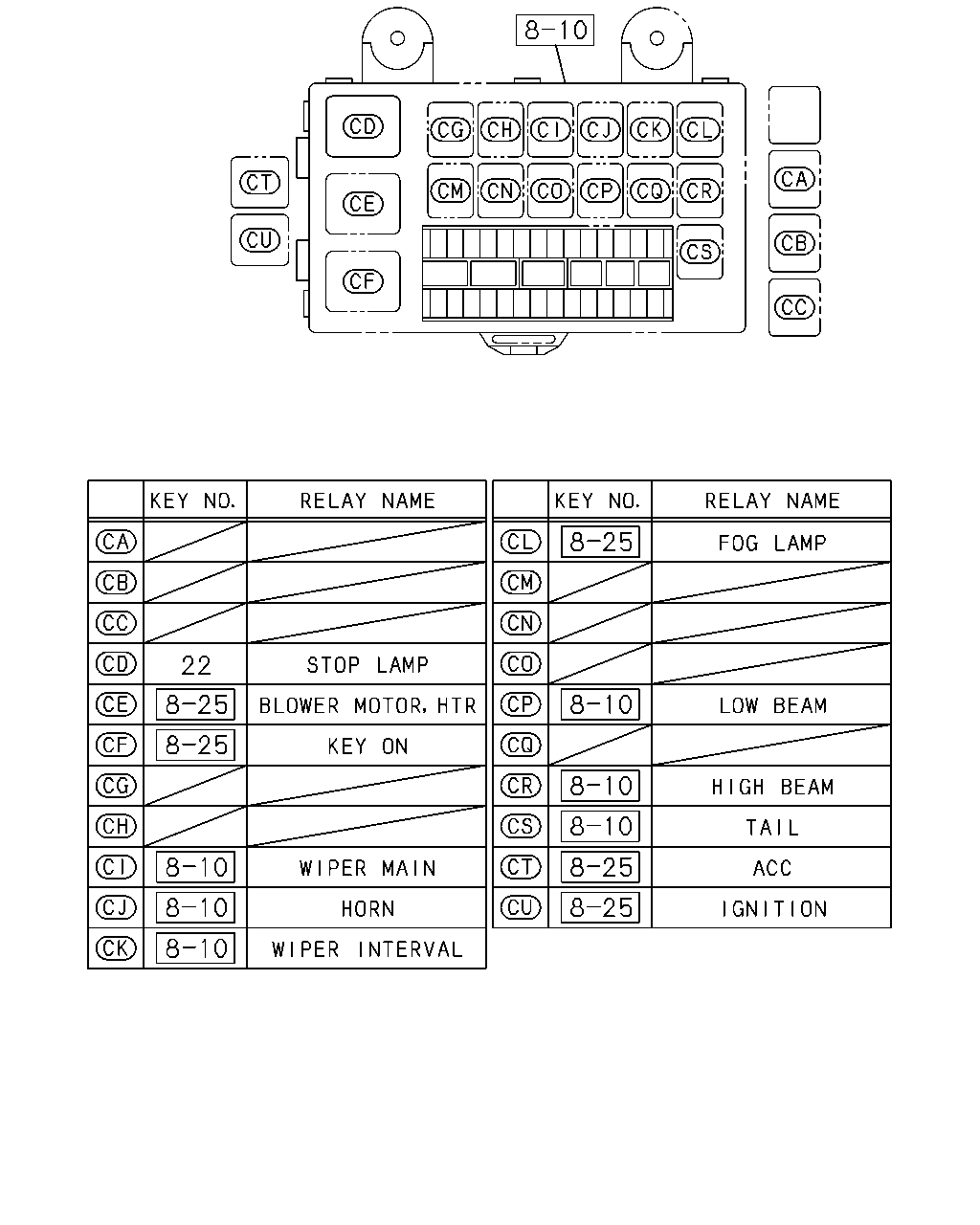

çizim 284346
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803- ● ●
