Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#745) — 441 parça

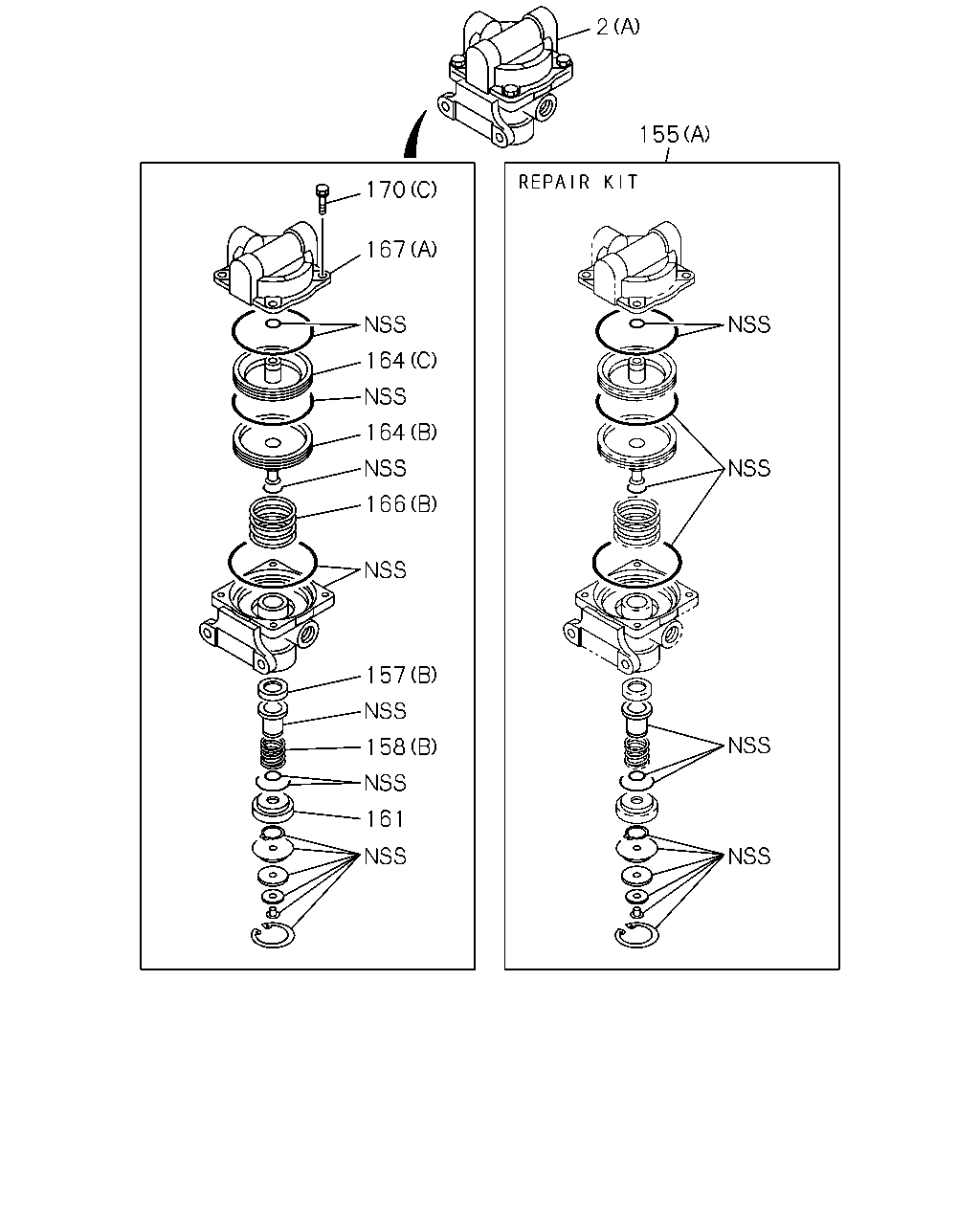

2 1 155 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9204-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9504
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	03	1	9212-9504
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	02	1	9505-
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-035-0	01	1	9204-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9212-9504
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	01	1	9505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9505-
157	RETAINER; VALVE (A)	1-48219-121-0	03	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	01	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48213-002-0	01	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	03	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-121-0	01	1	9204-9211
158	SPRING; VALVE (A)	1-48219-112-0	03	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	01	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-47819-089-0	01	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	03	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-112-0	01	1	9204-9211
161	GUIDE; VALVE	1-48129-014-0	01	1	9212-9504
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9505-
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9204-9211
161	GUIDE; VALVE	1-48129-014-0	03	1	9212-9504
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9505-
164	PISTON; RELAY VALVE (A)	1-48219-107-0	03	1	9204-9211
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	02	1	9505-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9204-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9204-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9204-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	01	1	9505-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9505-
166	SPRING; PISTON (A)	1-48219-110-0	03	1	9204-9211
166	SPRING; PISTON (A)	1-47819-090-0	03	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	02	1	9505-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9204-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9204-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	01	1	9505-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9505-
167	COVER; VALVE (B)	1-48219-070-0	03	1	9212-9504
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	02	1	9505-
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-050-1	01	1	9204-
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-070-0	01	1	9212-9504
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	9505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-070-0	01	1	9505-
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9204-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	08	1	9505-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9204-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9204-9211

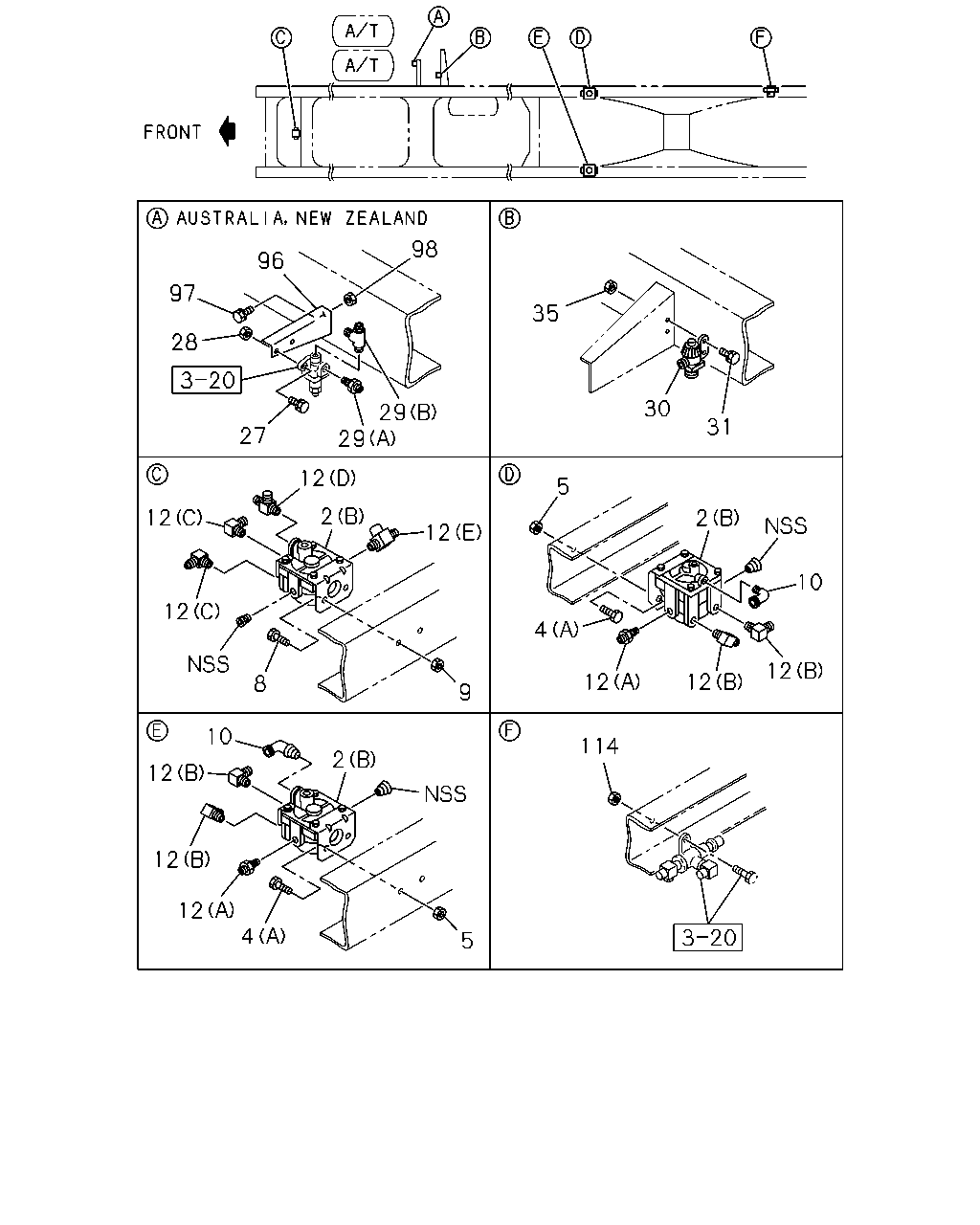

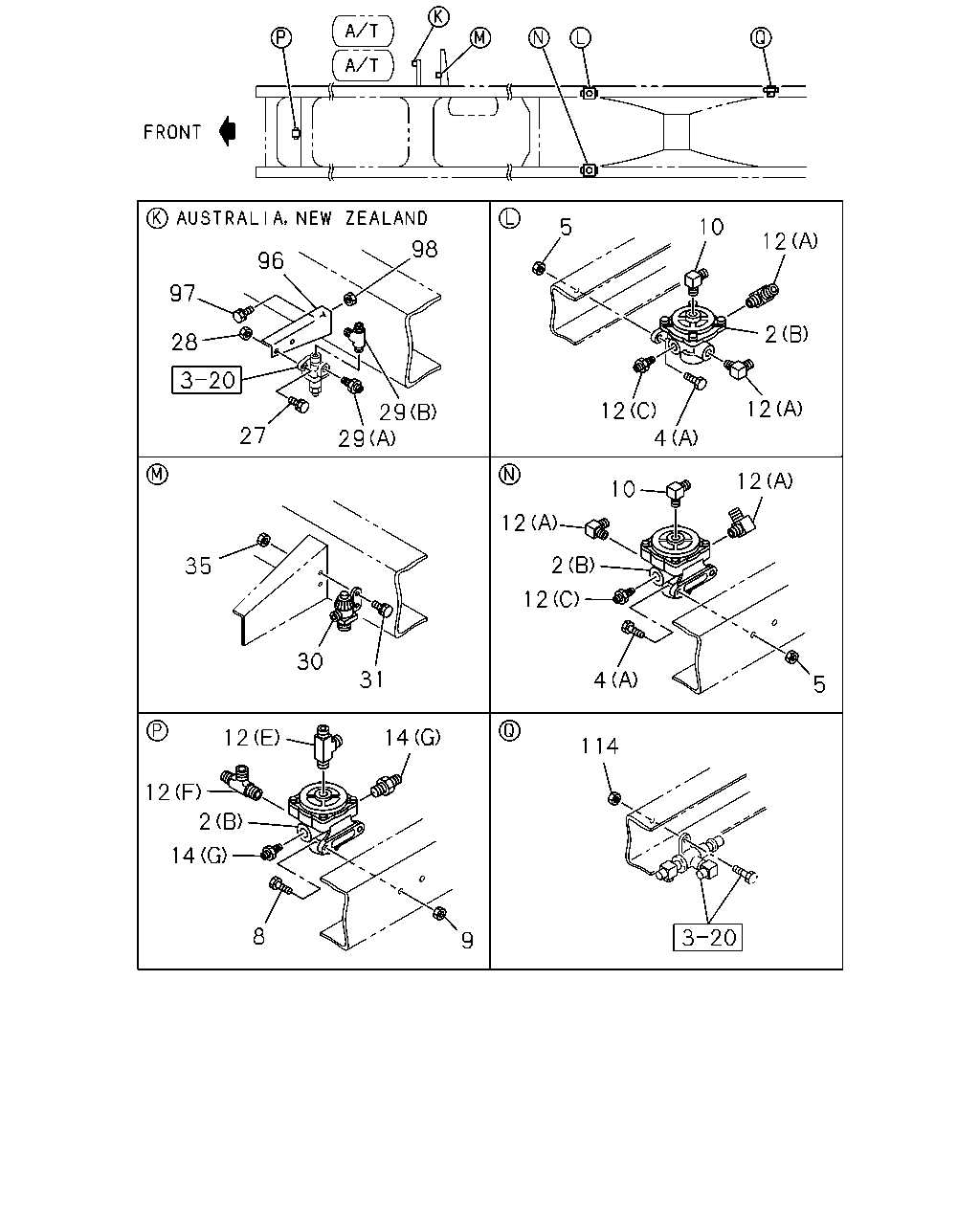

79 54 7 2 14 60 54 25 79 59 13 6 54 14 14 181 25 79 181 54 59 54 7 14 1 6 60 13 54 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9204-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9504
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
6	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 W/LK WASHER	0-50041-035-0	02	1	9204-9211
6	BOLT; VLV M10X35 W/LK WASHER	0-50041-035-0	02	1	9212-9504
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 W/LK WASHER	0-50041-035-0	02	1	9505-
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X25 W/LK WASHER	0-50041-025-0	02	1	9204-9211
7	NUT; RELAY VLV M10	9-09110-410-0	02	1	9204-9504
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9505-
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9204-9307
13	VALVE ASM; QUICK RELEASE	1-48410-320-0	02	1	9308-9504
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-298-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (B)	1-09660-298-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-298-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-571-0	01	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-1	01	1	9204-9211
14	CONNECTOR; RELAY VLV (G) M16	1-09650-245-1	02	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M16	1-09650-245-1	02	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-536-0	01	1	9204-9211
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9204-9502
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-9504
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-0	01	1	9505-
54	CONNECTOR; QUICK RELEASE VLV (A)	1-09660-572-0	02	1	9204-9504
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-572-0	02	1	9505-
54	CONNECTOR; QUICK RELEASE VLV (B)	1-09660-574-0	04	1	9204-9504
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-574-0	04	1	9505-
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28010-830-0	04	1	9204-9204
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	04	1	9205-9504
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	04	1	9505-
60	NUT; RELEASE VALVE FIX M8	9-09110-408-0	04	1	9204-9504
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9505-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-569-0	01	1	9204-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-570-0	01	1	9204-9211
79	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9212-9504
79	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-570-0	01	1	9505-
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-533-0	01	1	9204-9211
181	ADAPTER; PRESSURE SW M20X36	1-09660-576-0	01	1	9204-9504
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20X36	1-09660-576-0	01	1	9505-

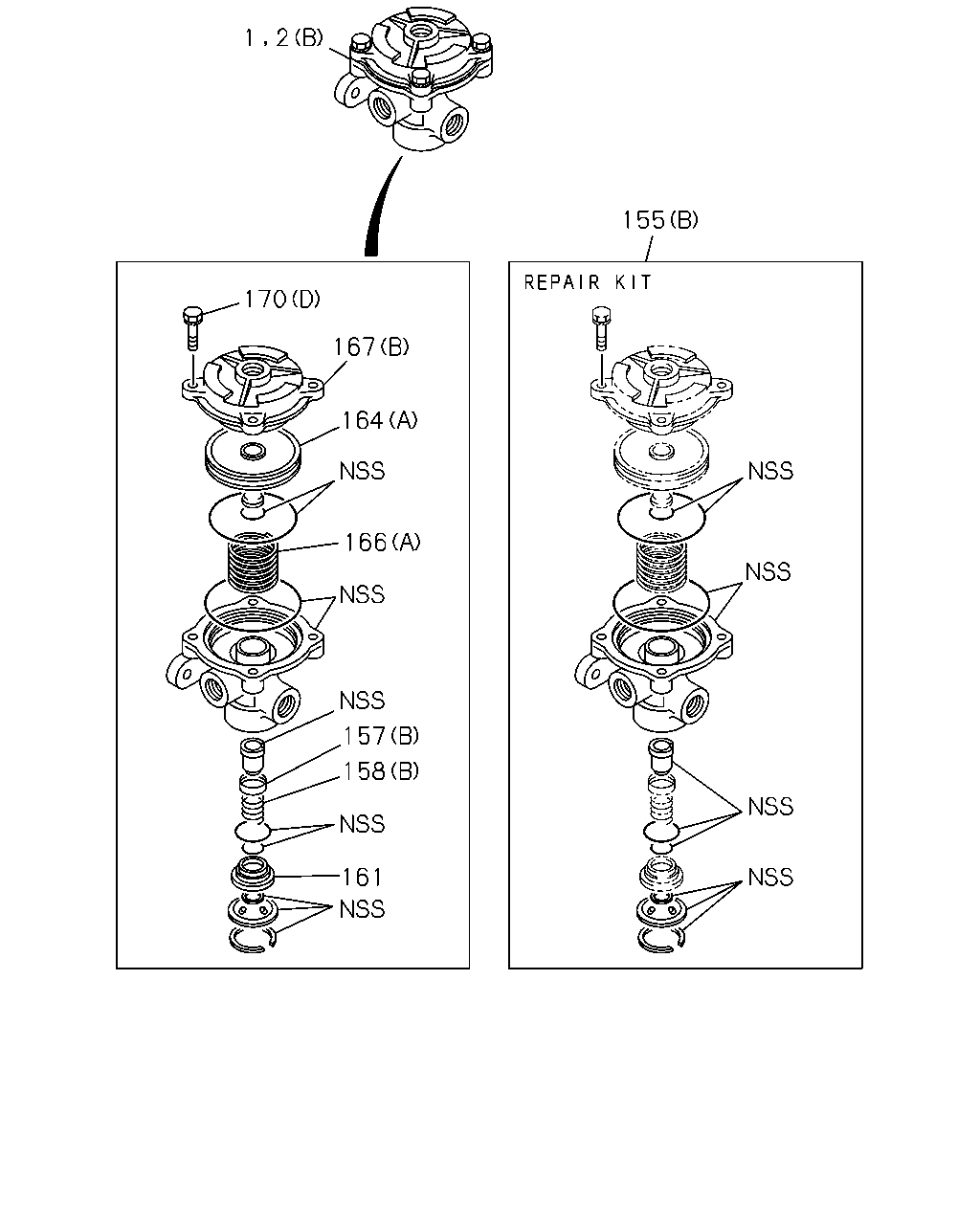

2 155 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	03	1	9212-9504
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	02	1	9505-
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-035-0	01	1	9204-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9212-9504
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	01	1	9505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9505-
157	RETAINER; VALVE (A)	1-48219-121-0	03	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	01	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48213-002-0	01	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	03	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-121-0	01	1	9204-9211
158	SPRING; VALVE (A)	1-48219-112-0	03	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	01	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-47819-089-0	01	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	03	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-112-0	01	1	9204-9211
161	GUIDE; VALVE	1-48129-014-0	01	1	9212-9504
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9505-
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9204-9211
161	GUIDE; VALVE	1-48129-014-0	03	1	9212-9504
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9505-
164	PISTON; RELAY VALVE (A)	1-48219-107-0	03	1	9204-9211
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	02	1	9505-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9204-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9204-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9204-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	01	1	9505-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9505-
166	SPRING; PISTON (A)	1-48219-110-0	03	1	9204-9211
166	SPRING; PISTON (A)	1-47819-090-0	03	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	02	1	9505-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9204-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9204-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	01	1	9505-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9505-
167	COVER; VALVE (B)	1-48219-070-0	03	1	9212-9504
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	02	1	9505-
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-050-1	01	1	9204-
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-070-0	01	1	9212-9504
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	9505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-070-0	01	1	9505-
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9204-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	08	1	9505-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9204-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9204-9211

98 96 97 35 28 30 29 29 31 27 12 5 2 12 2 12 10 12 4 12 12 12 8 9 10 114 2 12 12 12 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
4	BOLT; RELAY VLV TO BRKT (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9204-9211
4	BOLT; RELAY VLV TO BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9504
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9505-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	03	1	9204-9211
4	BOLT; RELAY VLV TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-116-0	01	1	9204-9211
5	NUT M10	9-09110-410-0	04	1	9204-9504
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9505-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9204-9504
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9505-
9	NUT M10	9-09110-410-0	02	1	9204-9504
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9505-
10	CONNECTOR	1-09660-533-0	02	1	9204-9211
10	CONNECTOR	1-09660-570-0	02	1	9212-9504
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-570-0	02	1	9505-
12	CONNECTOR; RELAY VLV (C)	1-09650-406-0	02	1	9204-9211
12	CONNECTOR; RELAY VLV (C)	1-09660-298-0	02	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-298-0	02	1	9505-
12	CONNECTOR; RELAY VLV (A)	1-09660-532-0	02	1	9204-9211
12	CONNECTOR; RELAY VLV (A)	1-09660-571-0	04	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-571-0	04	1	9505-
12	CONNECTOR; RELAY VLV (B)	1-09660-536-0	04	1	9204-9211
12	CONNECTOR; RELAY VLV (E)	1-09660-628-0	01	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09660-628-0	01	1	9505-
12	CONNECTOR; RELAY VLV (D)	1-09660-537-0	01	1	9204-9211
12	CONNECTOR; RELAY VLV (F)	1-09660-645-0	01	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-09660-645-0	01	1	9505-
12	CONNECTOR; RELAY VLV (E)	1-09660-540-0	01	1	9204-9211
27	BOLT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9204-
28	NUT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9204-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-577-0	01	1	9204-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09664-182-0	01	1	9204-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9204-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9204-9504
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9204-
96	BRACKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48195-058-0	01	1	9204-
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9204-
98	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9204-
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9204-9310
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9311-

79 54 7 2 14 60 54 25 79 59 13 6 54 14 14 181 1 54 7 79 59 54 14 6 60 25 14 13 54 14 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9204-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9504
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
6	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 W/LK WASHER	0-50041-035-0	02	1	9204-9211
6	BOLT; VLV M10X35 W/LK WASHER	0-50041-035-0	02	1	9212-9504
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 W/LK WASHER	0-50041-035-0	02	1	9505-
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X25 W/LK WASHER	0-50041-025-0	02	1	9204-9211
7	NUT; RELAY VLV M10	9-09110-410-0	02	1	9204-9504
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9505-
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9204-9307
13	VALVE ASM; QUICK RELEASE	1-48410-320-0	02	1	9308-9504
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-298-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (B)	1-09660-298-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-298-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-571-0	01	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-1	01	1	9204-9211
14	CONNECTOR; RELAY VLV (G) M16	1-09650-245-1	02	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M16	1-09650-245-1	02	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-536-0	01	1	9204-9211
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9204-9502
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-9504
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-0	01	1	9505-
54	CONNECTOR; QUICK RELEASE VLV (A)	1-09660-572-0	02	1	9204-9504
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-572-0	02	1	9505-
54	CONNECTOR; QUICK RELEASE VLV (B)	1-09660-574-0	04	1	9204-9504
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-574-0	04	1	9505-
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28010-830-0	04	1	9204-9204
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	04	1	9205-9504
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	04	1	9505-
60	NUT; RELEASE VALVE FIX M8	9-09110-408-0	04	1	9204-9504
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9505-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-569-0	01	1	9204-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-570-0	01	1	9204-9211
79	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9212-9504
79	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-570-0	01	1	9505-
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-533-0	01	1	9204-9211
181	ADAPTER; PRESSURE SW M20X36	1-09660-576-0	01	1	9204-9504
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20X36	1-09660-576-0	01	1	9505-

2 1 170 170 168 165 164 156 113 166 156 159 157 159 158 160 162 186 187 4 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9204-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9504
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
4	BOLT; RELAY VLV TO BRKT (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9204-9211
4	BOLT; RELAY VLV TO BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9504
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9505-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	03	1	9204-9211
4	BOLT; RELAY VLV TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-116-0	01	1	9204-9211
113	BOLT; VLV	1-48219-108-0	03	1	9204-9211
113	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-108-0	01	1	9204-9211
156	VALVE ASM; INL (A)	1-48219-111-0	03	1	9204-9211
156	VALVE ASM; INL (B)	1-48219-120-0	03	1	9204-9211
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-111-0	01	1	9204-9211
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-120-0	01	1	9204-9211
157	RETAINER; VALVE (A)	1-48219-121-0	03	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	01	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48213-002-0	01	1	9204-9211
157	RETAINER; VALVE (B)	1-48213-002-0	03	1	9212-9504
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48213-002-0	02	1	9505-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-121-0	01	1	9204-9211
158	SPRING; VALVE (A)	1-48219-112-0	03	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	01	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-47819-089-0	01	1	9204-9211
158	SPRING; VALVE (B)	1-47819-089-0	03	1	9212-9504
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47819-089-0	02	1	9505-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-112-0	01	1	9204-9211
159	GASKET; INL VALVE (A)	1-48219-119-0	03	1	9204-9211
159	GASKET; INL VALVE (B)	1-48219-122-0	03	1	9204-9211
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-119-0	01	1	9204-9211
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-122-0	01	1	9204-9211
160	GASKET; VALVE GUIDE	1-48219-113-0	03	1	9204-9211
160	GASKET; VALVE GUIDE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-113-0	01	1	9204-9211
162	COVER ASM; EXH	1-48219-114-0	03	1	9204-9211
162	COVER ASM; EXH EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-114-0	01	1	9204-9211
163	RING; RET,EXH COVER	1-48219-118-0	03	1	9204-9211
163	RING; RET,EXH COVER EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-118-0	01	1	9204-9211
164	PISTON; RELAY VALVE (A)	1-48219-107-0	03	1	9204-9211
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	02	1	9505-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9204-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9204-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9204-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9212-9504
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	01	1	9505-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9505-
165	GASKET; PISTON	1-48219-109-0	03	1	9204-9211
165	GASKET; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9204-9211
166	SPRING; PISTON (A)	1-48219-110-0	03	1	9204-9211
166	SPRING; PISTON (A)	1-47819-090-0	03	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	02	1	9505-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9204-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9204-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9212-9504
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	01	1	9505-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9505-
168	GASKET; COVER TO BODY	1-48219-109-0	03	1	9204-9211
168	GASKET; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9204-9211
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9204-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	08	1	9505-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9504
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9505-
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9204-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9204-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9204-9211
186	DIAPHRAGM; RELAY VLV	1-48219-115-0	03	1	9204-9211
186	DIAPHRAGM; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-115-0	01	1	9204-9211
187	WASHER; RELAY VLV	1-48219-117-0	03	1	9204-9211
187	WASHER; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-117-0	01	1	9204-9211

10 5 12 98 96 97 2 28 12 12 4 29 29 27 12 10 12 2 35 12 30 31 4 5 14 12 114 12 2 14 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9204-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-9310
2	VALVE; RELAY (B)	1-48210-278-0	01	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	01	1	9505-
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9311-9504
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-278-0	02	1	9505-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9204-
4	BOLT; RELAY VLV TO BRKT (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9204-9211
4	BOLT; RELAY VLV TO BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9504
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X35 W/LK WASHER	0-50041-035-0	04	1	9505-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	03	1	9204-9211
4	BOLT; RELAY VLV TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-116-0	01	1	9204-9211
5	NUT M10	9-09110-410-0	04	1	9204-9504
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9505-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9204-9504
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9505-
9	NUT M10	9-09110-410-0	02	1	9204-9504
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9505-
10	CONNECTOR	1-09660-533-0	02	1	9204-9211
10	CONNECTOR	1-09660-570-0	02	1	9212-9504
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-570-0	02	1	9505-
12	CONNECTOR; RELAY VLV (C)	1-09650-406-0	02	1	9204-9211
12	CONNECTOR; RELAY VLV (C)	1-09660-298-0	02	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-298-0	02	1	9505-
12	CONNECTOR; RELAY VLV (A)	1-09660-532-0	02	1	9204-9211
12	CONNECTOR; RELAY VLV (A)	1-09660-571-0	04	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-571-0	04	1	9505-
12	CONNECTOR; RELAY VLV (B)	1-09660-536-0	04	1	9204-9211
12	CONNECTOR; RELAY VLV (E)	1-09660-628-0	01	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09660-628-0	01	1	9505-
12	CONNECTOR; RELAY VLV (D)	1-09660-537-0	01	1	9204-9211
12	CONNECTOR; RELAY VLV (F)	1-09660-645-0	01	1	9212-9504
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-09660-645-0	01	1	9505-
12	CONNECTOR; RELAY VLV (E)	1-09660-540-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-298-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (B)	1-09660-298-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-298-0	01	1	9505-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-571-0	01	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-1	01	1	9204-9211
14	CONNECTOR; RELAY VLV (G) M16	1-09650-245-1	02	1	9212-9504
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M16	1-09650-245-1	02	1	9505-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9204-9211
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-536-0	01	1	9204-9211
27	BOLT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9204-
28	NUT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9204-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-577-0	01	1	9204-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09664-182-0	01	1	9204-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9204-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9204-9504
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9204-
96	BRACKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48195-058-0	01	1	9204-
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9204-
98	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9204-
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9204-9310
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9311-

31 34 30 33 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9204-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9204-9504
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-022-0	01	1	9505-
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9505-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9204-
38	NUT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
