8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#74499) — 17 parça

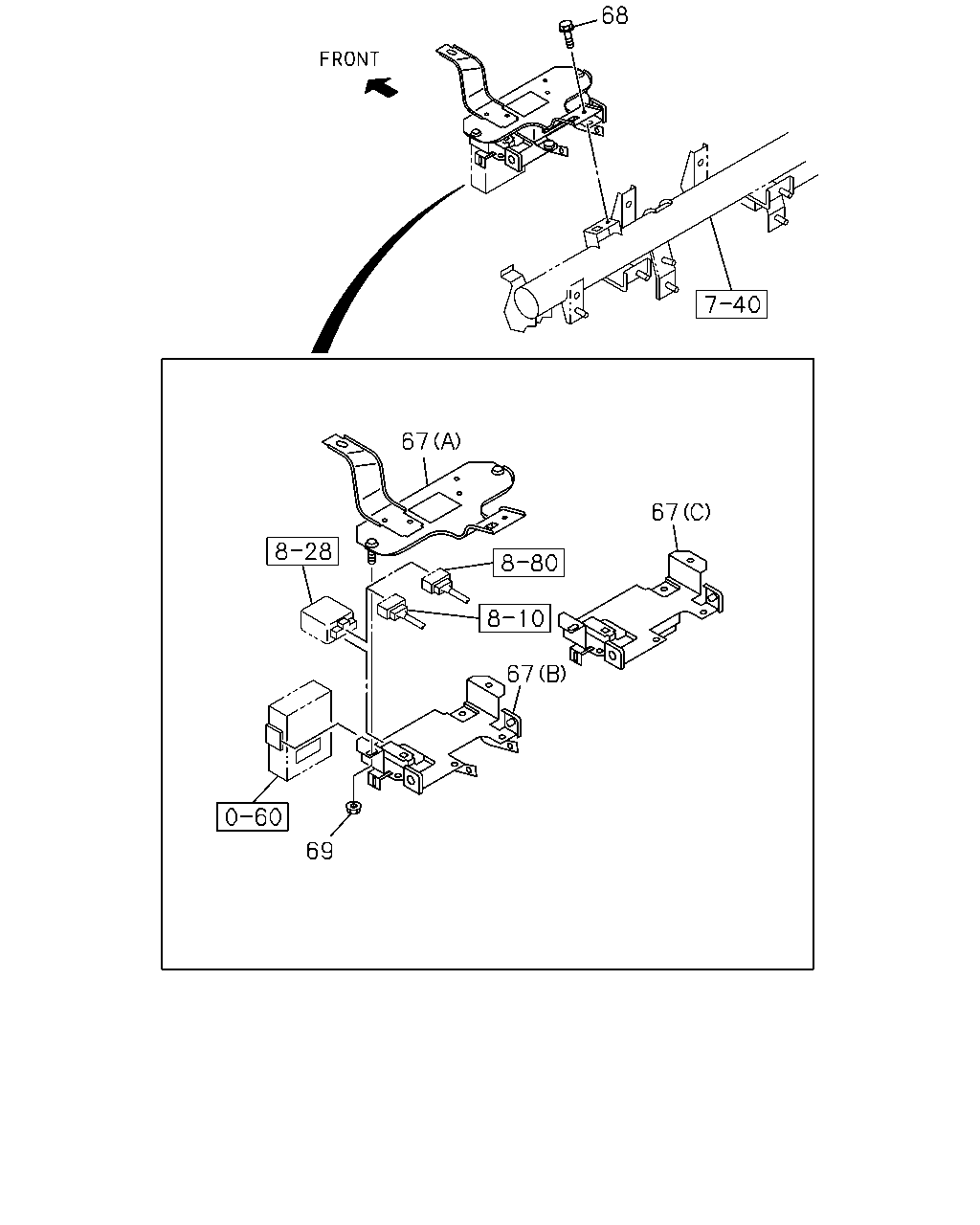

çizim 138346
68 67 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0803- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0803-1111 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ● ●
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 0803-1207 ● ●
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 1208- ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0803-1207 ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●

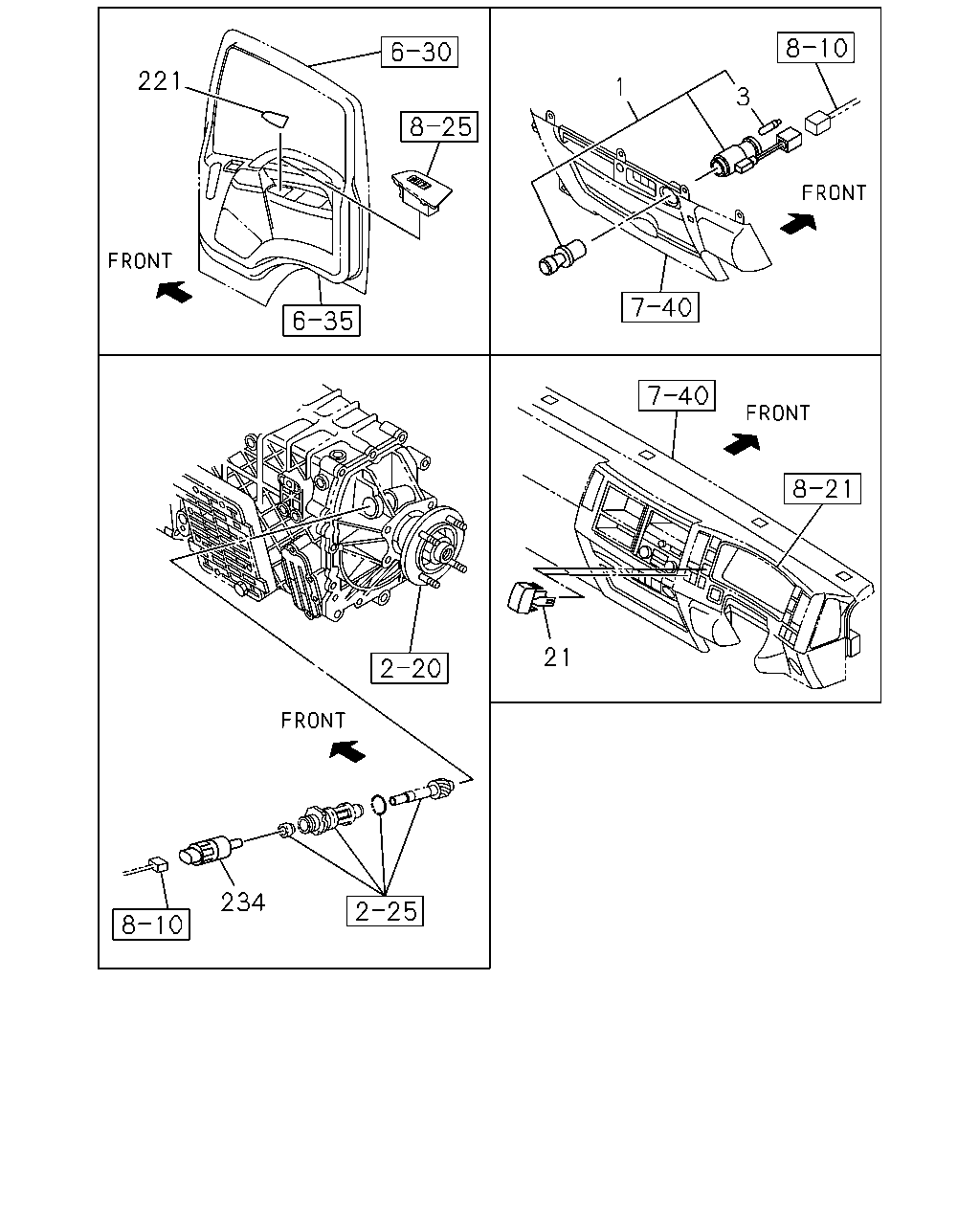

çizim 138355
221 1 3 21 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0803-0906 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0906 ● ●
21 COVER; HOLE 8-98025-954-1 02 1 0803- ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0803- ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0803- ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803- ● ●
