◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#74498) — 47 parça

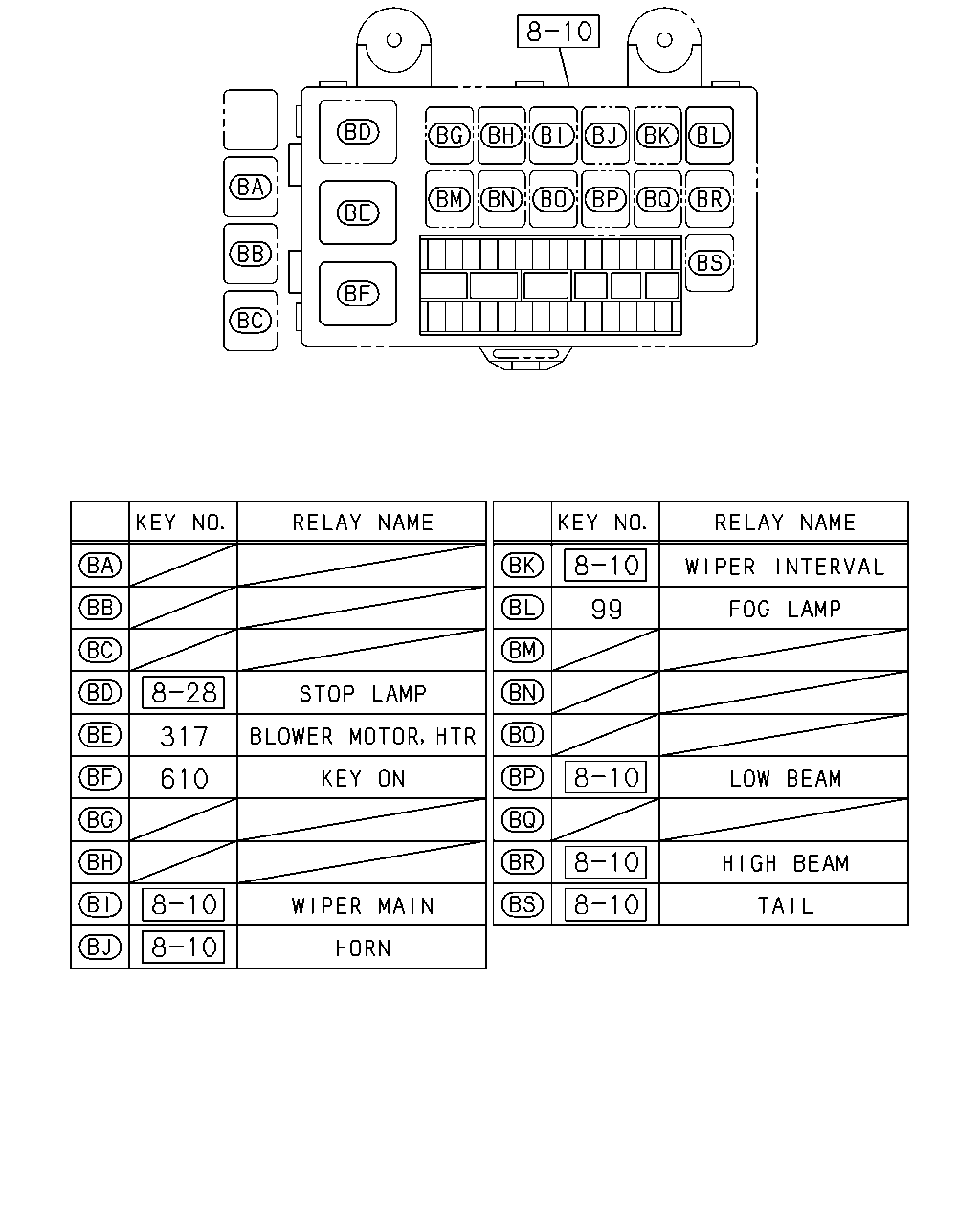

çizim 137971
99 317 610
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0803- ● ●
317 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-1201 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1202-1208 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1202-1208 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1209- ● ●

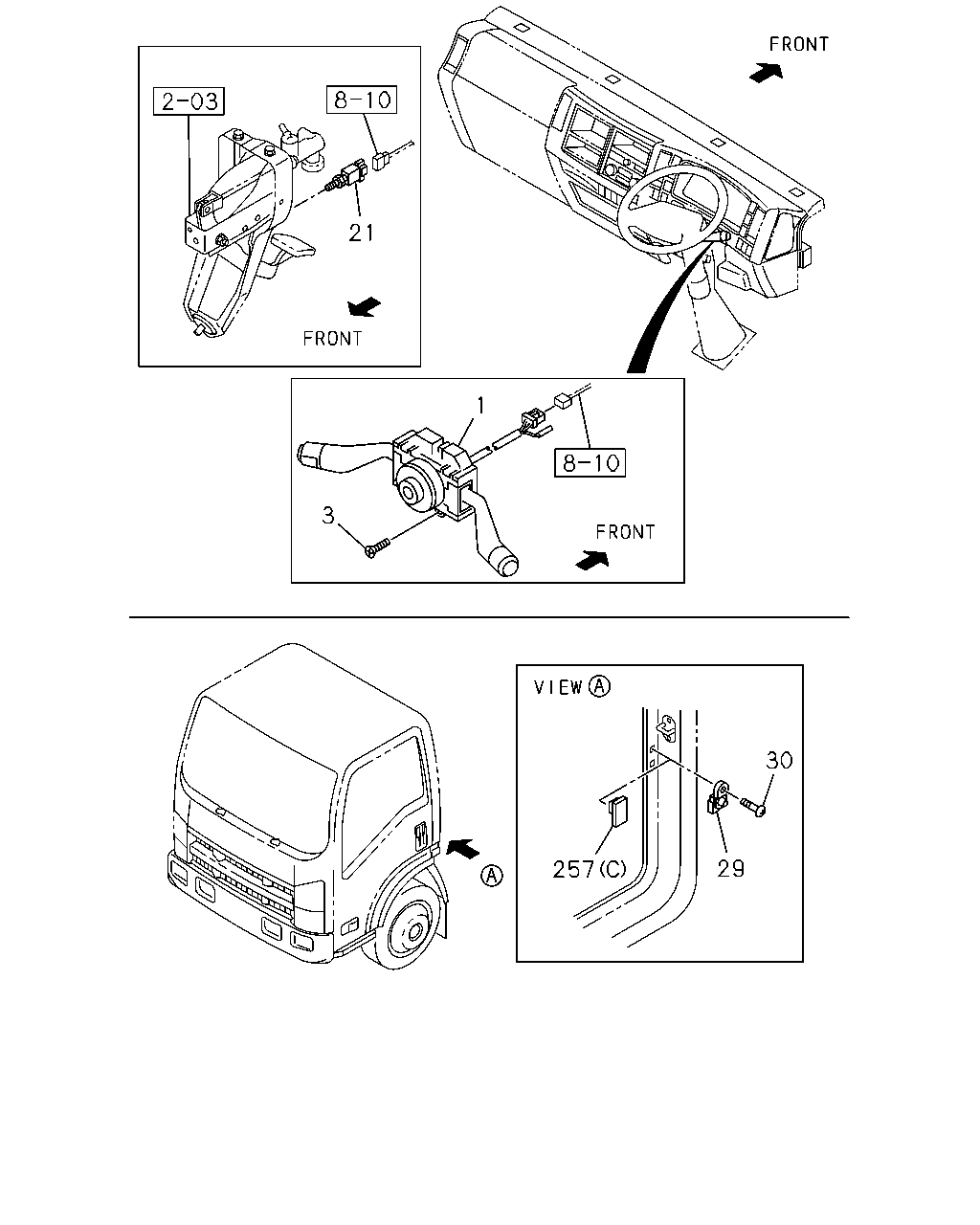

çizim 138507
21 1 3 30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98069-995-1 01 1 0803-1310 ● ●
1 SWITCH; COMB 8-98243-729-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0803- ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 0803- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0803- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0803- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0803-0809 ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0803-0809 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0803-0809 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 07 1 0803- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0803- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 0803- ● ●
çizim 185578
151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803- ● ●
154 RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A PANASONIC THA 		8-97173-035-1 01 1 0803- ● ●

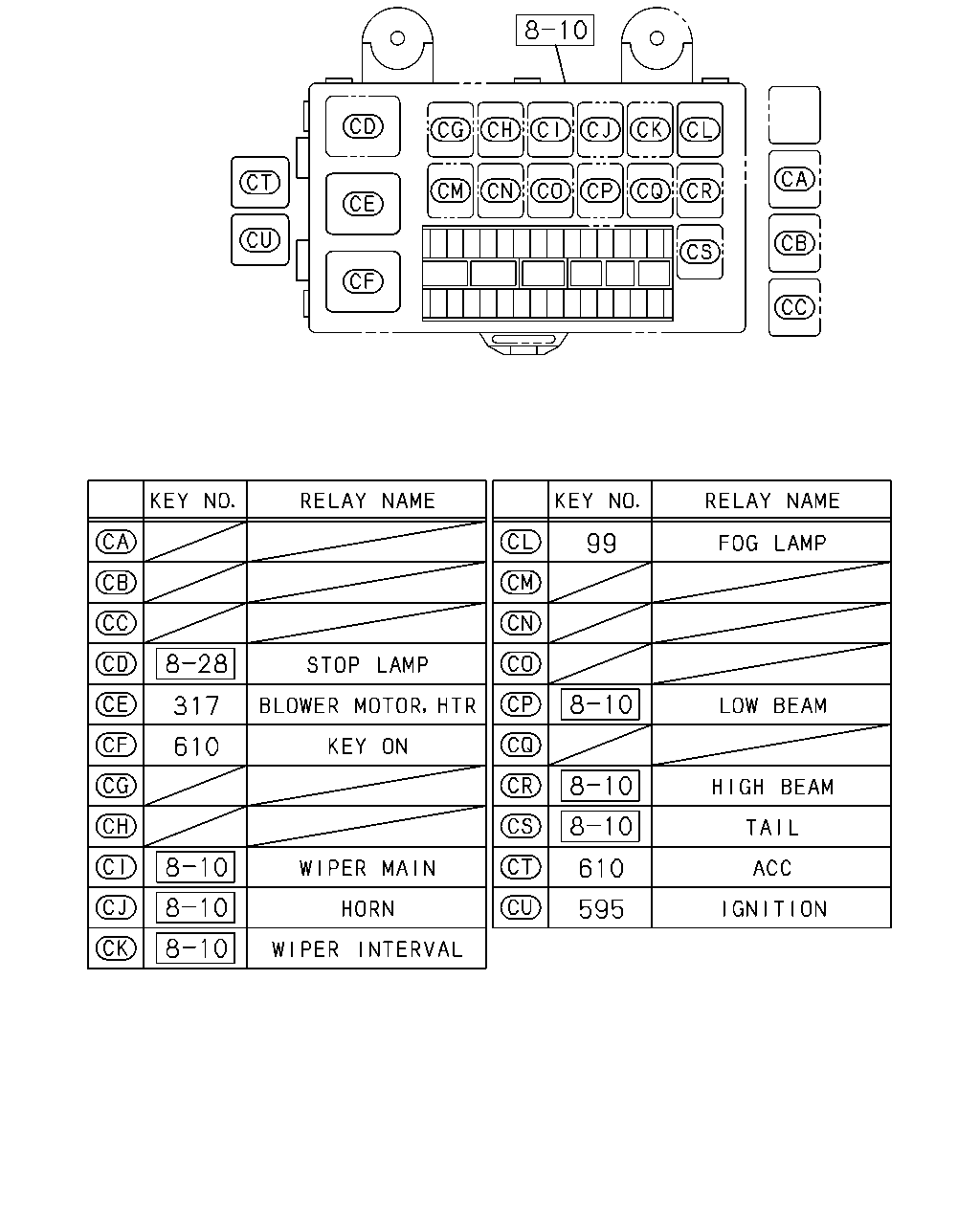

çizim 185585
99 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0803- ● ●
317 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803- ● ●
595 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1202-1208 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-1201 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1202-1208 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1202-1208 ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1209- ● ●

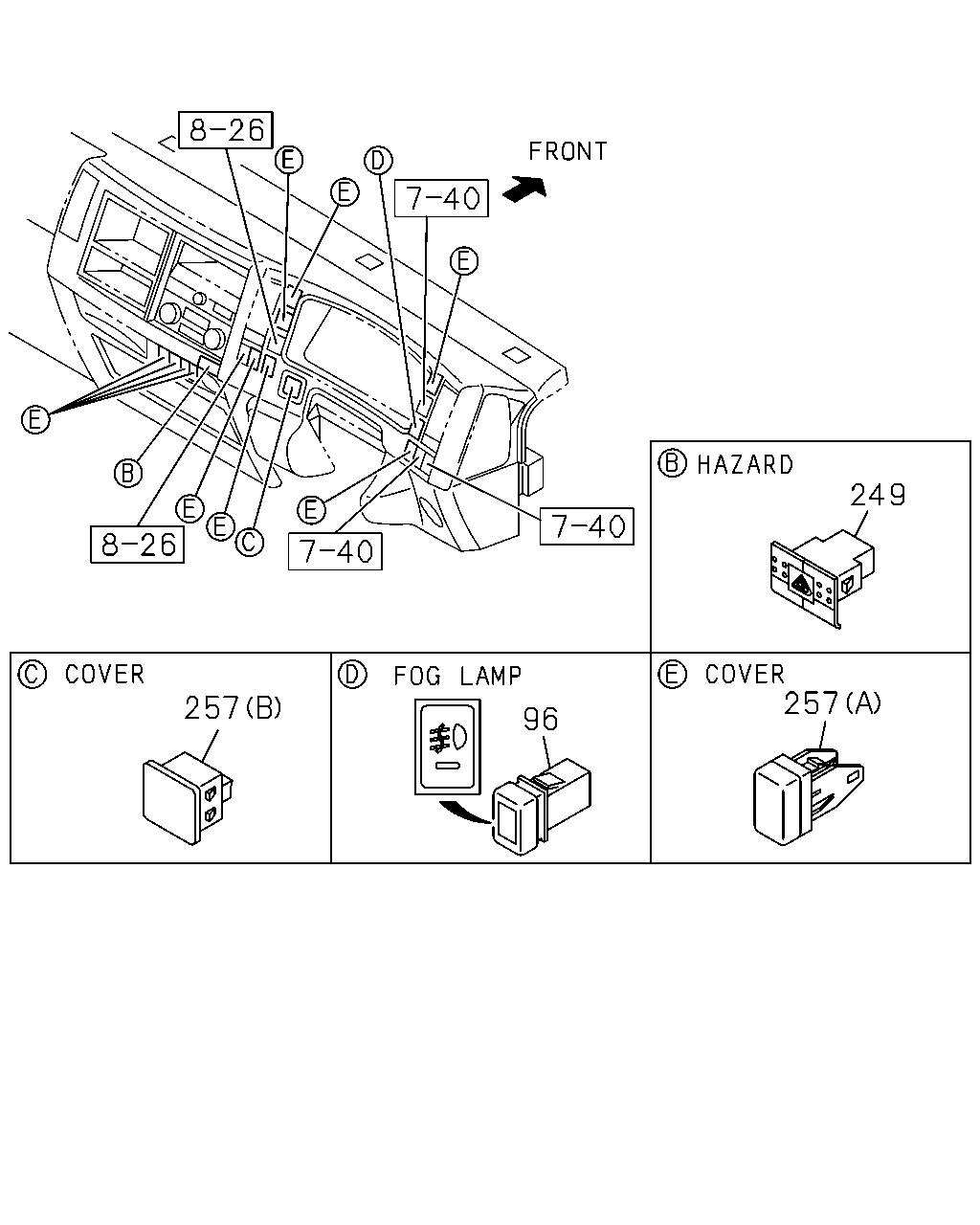

çizim 284345
249 257 257 96
BalonParca AdiParca NoAdetTipApplied Date A B
96 SWITCH; FOG LAMP
THA 		8-97387-031-4 01 1 1109- ● ●
96 SWITCH; FOG LAMP
THA 		8-97387-031-4 01 1 0803- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1109- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0803- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0803-0809 ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0803-0809 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98025-954-1 01 1 0810- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0803-0809 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 07 1 0803- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0803- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
