8-21 — METER ASM (#74497) — 16 parça
çizim 137758
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98113-282-3 01 1 0803- ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98113-282-3 01 1 0803- ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0803- ●
2 PANEL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98054-432-0 01 1 0803- ●
81 METER SUB ASM 8-98113-316-0 01 1 0803- ●
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98113-316-0 01 1 0803- ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0803- ●
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98054-431-0 01 1 0803- ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0803- ●
480 COVER; METER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BLACK 		8-98054-433-0 01 1 0803- ●

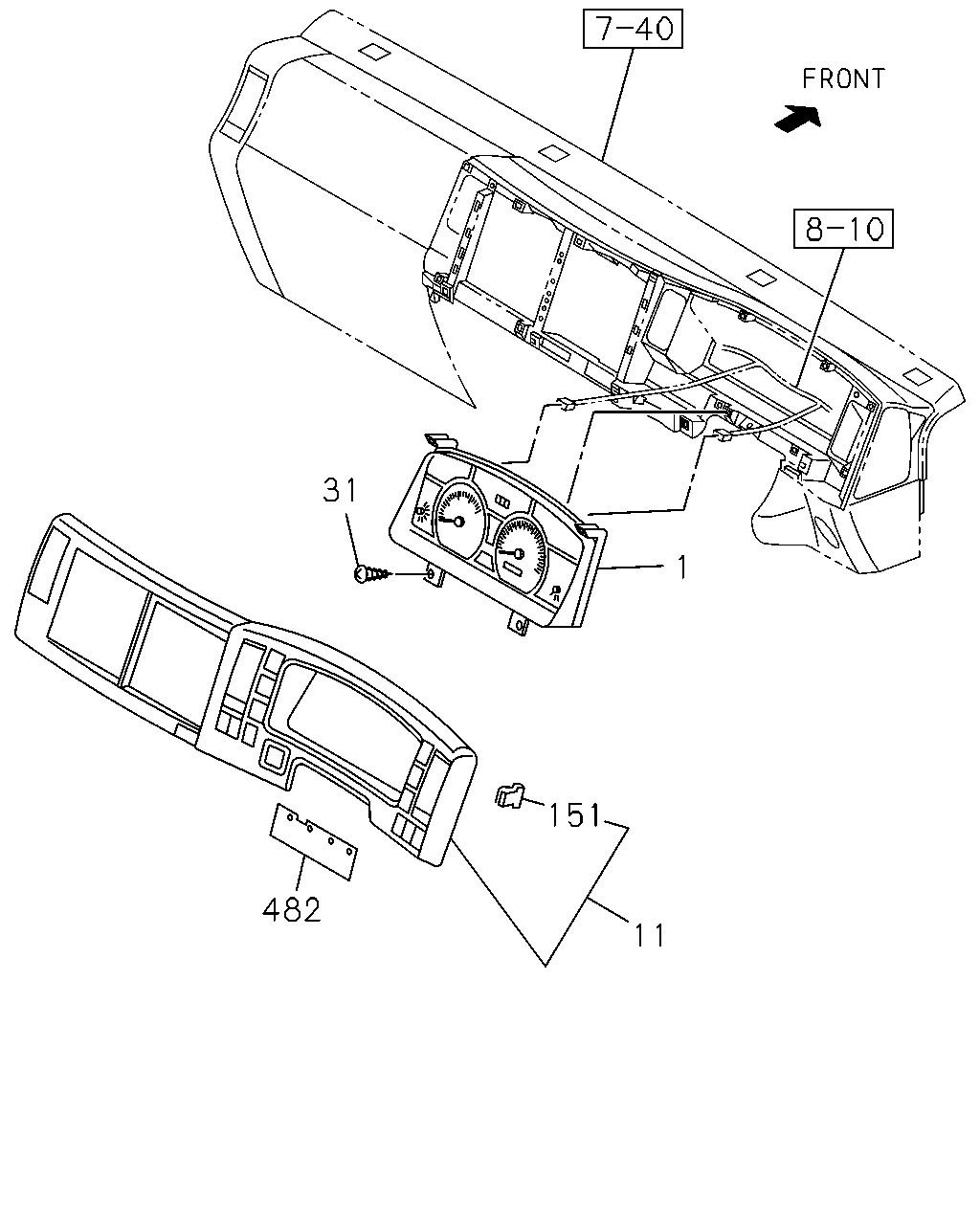

çizim 138049
31 1 151 482 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98113-282-3 01 1 0803- ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98113-282-3 01 1 0803- ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0803- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803- ● ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 0803- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 0806- ● ●
