◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#74496) — 197 parça

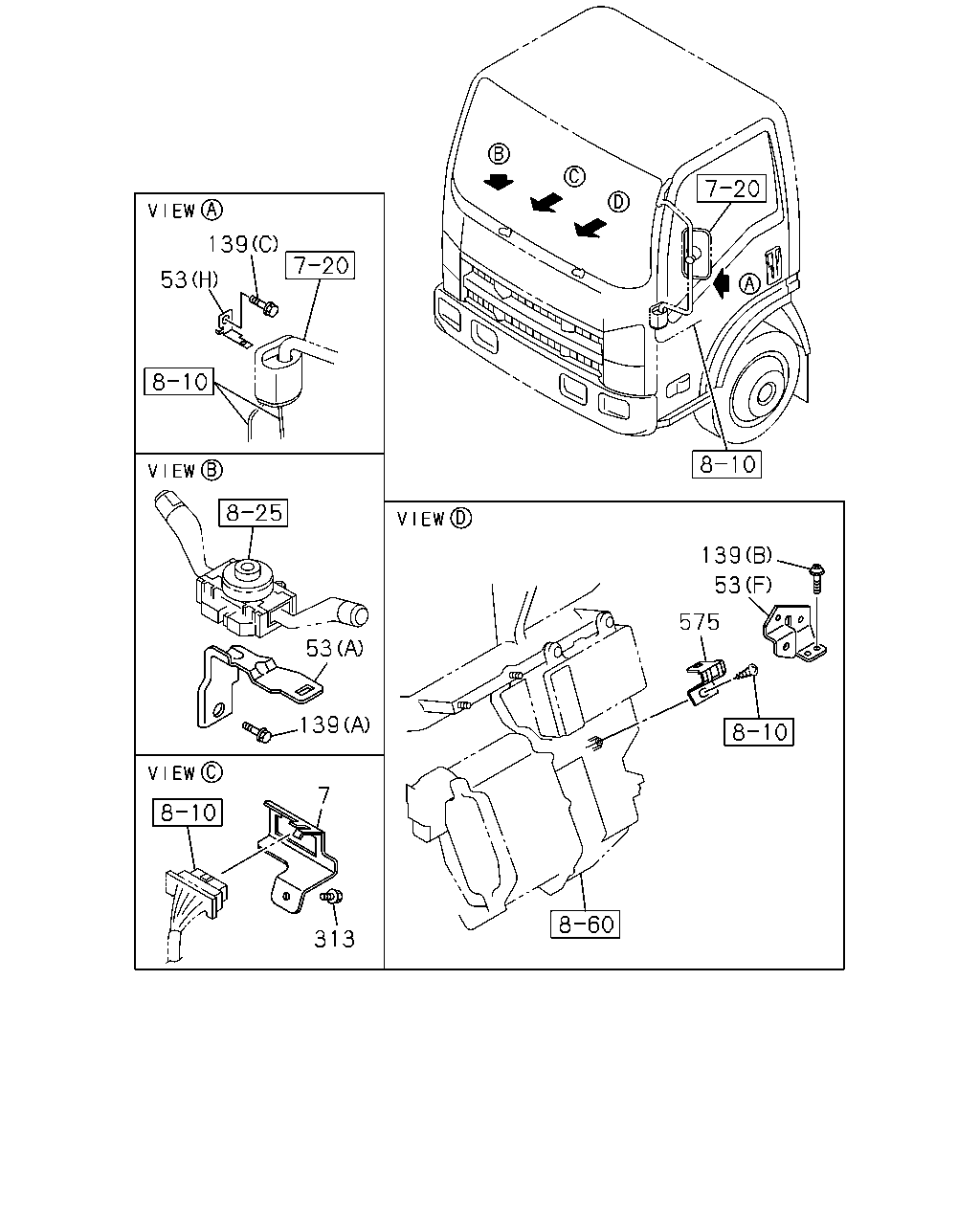

çizim 136655
139 53 139 53 575 53 139 7 313
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98043-070-1 01 1 0803- ●
7 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98043-070-1 01 1 0803- ●
53 BRACKET; HARNESS
(B) 		8-98105-778-0 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (B) 		8-98105-778-0 01 1 0803- ●
53 BRACKET; HARNESS
(G) 		8-98107-111-1 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (G) 		8-98107-111-1 01 1 0803- ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0803- ● ●
53 BRACKET; HARNESS
(E) 		8-98039-984-2 01 1 0803- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0803- ● ●
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0803- ● ●
53 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) 		8-98039-277-1 02 1 0803-0805 ● ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (D) 		8-98033-918-2 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (B) 		8-98052-900-1 01 1 0803- ●
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0803-1207 ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1208- ● ●
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
139 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0805 ● ●
313 BOLT; BRKT
M6X16 FLANGE THA 		0-28450-616-0 01 1 0803- ● ●
575 BRACKET; FUSE BOX 8-98042-656-2 01 1 0803- ● ●
çizim 136843
516 313 480 38 139 516 139 529 139 377 377 386 386 24 515 577 24 294 515 552 515 552
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0803-1207 ● ●
24 NUT; HARNESS
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1208- ● ●
24 NUT; HARNESS
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0803-1101 ● ●
38 BOLT; CLIP,HARNESS
ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA 		0-28050-812-0 01 1 1109- ● ●
38 BOLT; CLIP,HARNESS
KD PREPARATORY PACK<6HF> M8X12 FLANGE THA 		0-28050-812-0 01 1 0803- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0803-1207 ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1208- ● ●
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
139 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803-0805 ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0803-1207 ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1208- ● ●
313 BOLT; BRKT
M6X16 FLANGE THA 		0-28450-616-0 01 1 0803- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0803- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0803- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803- ● ●
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 0803- ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0803-1207 ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1208- ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0803-0809 ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 04 1 0810-1207 ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0810- ● ●
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 0803- ●
515 NUT; BRKT
WHEEL BASE 2400MM<24W> (C) M10 FLANGE THA 		0-91180-110-0 01 1 0803- ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0803-0803 ● ●
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0803- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0803- ● ●
516 BOLT; HARNESS
(B) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0803- ● ●
516 BOLT; HARNESS
KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0803-1105 ● ●
516 BOLT; HARNESS
KD PREPARATORY PACK<6HF> EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1106-1106 ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0803- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0809 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0809 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 04 1 0810-1207 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 04 1 0810-1207 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0809 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0809 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0810-1207 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0810-1207 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0803 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0803 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0803 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0803 ●
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 0803-1207 ● ●
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●

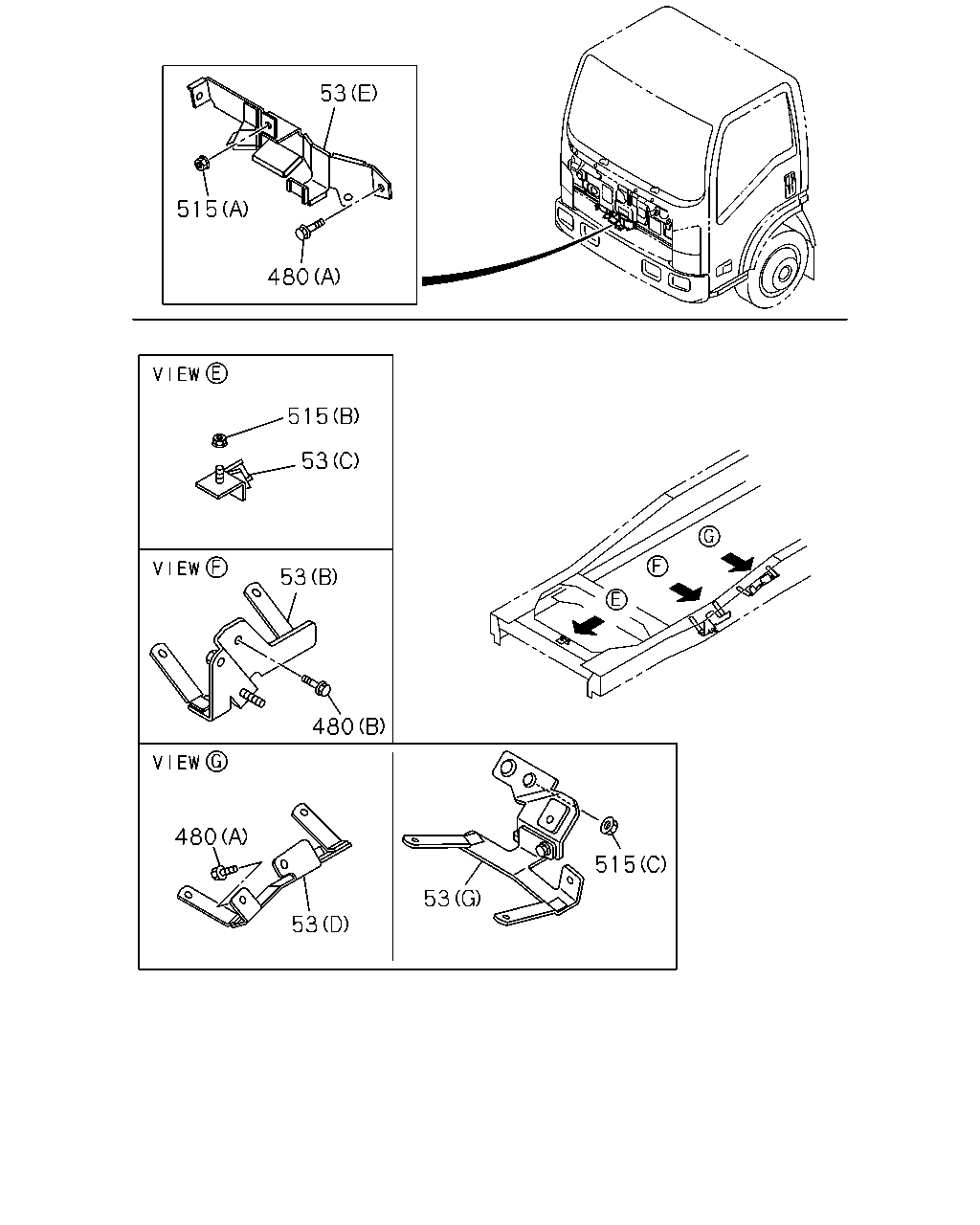

çizim 136971
53 515 480 515 53 53 480 480 515 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(B) 		8-98105-778-0 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (B) 		8-98105-778-0 01 1 0803- ●
53 BRACKET; HARNESS
(G) 		8-98107-111-1 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (G) 		8-98107-111-1 01 1 0803- ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0803- ● ●
53 BRACKET; HARNESS
(E) 		8-98039-984-2 01 1 0803- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0803- ● ●
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0803- ● ●
53 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) 		8-98039-277-1 02 1 0803-0805 ● ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (D) 		8-98033-918-2 01 1 0803- ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (B) 		8-98052-900-1 01 1 0803- ●
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 0803- ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0803-1207 ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1208- ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0803-0809 ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 04 1 0810-1207 ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0810- ● ●
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 0803- ●
515 NUT; BRKT
WHEEL BASE 2400MM<24W> (C) M10 FLANGE THA 		0-91180-110-0 01 1 0803- ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0803-0803 ● ●
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0803- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0803- ● ●
çizim 137781
16 16 16 22 48 48 513
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (F) L=40.6 THA 		8-97229-357-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
(F) L=40.6 THA 		8-97229-357-0 02 1 1105- ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<C65> (E) ID=6 & 10 		8-94154-844-0 01 1 0903- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0803- ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0803-1003 ● ●
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104 ● ●
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104 ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105- ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0803-1003 ● ●
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA 		8-98052-679-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA 		8-98052-679-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1105- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (E) ID=6 & 8.3 		8-94167-742-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (H) L=140 THA 		5-09707-031-1 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (G) ID=12 & 6.8 		8-97125-842-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(D) L=119.5 		1-09707-197-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(H) L=140 THA 		5-09707-031-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (H) L=140 THA 		5-09707-031-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(B) L=100 		5-09707-036-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(C) ID=34 THA 		8-98069-482-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8 		8-97125-842-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 07 1 0803- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 2400MM<24W> (B) ID=14 L=47 		5-09700-319-0 07 1 0803- ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 		8-94241-972-0 01 1 0803-0803 ● ●
48 CLIP; FRAME HARNESS
(D) T=9 & 10.5 		8-97371-949-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
MANUAL TILT CAB<RWZ> (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM<33W> (B) ID=14 L=47 		5-09700-319-0 09 1 0803- ●
513 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1003 ● ●
513 TAPE; SOFT,HARNESS
EXC. VIN MODEL YEAR 2010<VZA> 70X45 		8-97304-372-0 01 1 1004-1104 ● ●
çizim 185574
22 48 22 16 48 16 22 22 22 617 488 16 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (F) L=40.6 THA 		8-97229-357-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
(F) L=40.6 THA 		8-97229-357-0 02 1 1105- ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<C65> (E) ID=6 & 10 		8-94154-844-0 01 1 0903- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0803- ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0803-1003 ● ●
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104 ● ●
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104 ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105- ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0803-1003 ● ●
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA 		8-98052-679-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA 		8-98052-679-0 02 1 1004-1104 ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1105- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (E) ID=6 & 8.3 		8-94167-742-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (H) L=140 THA 		5-09707-031-1 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
ENGINE MADE IN THAILAND<6ZP> (G) ID=12 & 6.8 		8-97125-842-0 01 1 1109- ● ●
22 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(D) L=119.5 		1-09707-197-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(H) L=140 THA 		5-09707-031-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (H) L=140 THA 		5-09707-031-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(B) L=100 		5-09707-036-1 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
(C) ID=34 THA 		8-98069-482-0 01 1 0803- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8 		8-97125-842-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 07 1 0803- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 2400MM<24W> (B) ID=14 L=47 		5-09700-319-0 07 1 0803- ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 		8-94241-972-0 01 1 0803-0803 ● ●
48 CLIP; FRAME HARNESS
(D) T=9 & 10.5 		8-97371-949-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
MANUAL TILT CAB<RWZ> (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM<33W> (B) ID=14 L=47 		5-09700-319-0 09 1 0803- ●
488 CLIP; CABLE,TRAILER
L=250 THA 		5-09707-030-1 01 1 0803- ● ●
617 STRAP; BAND
L=140 THA 		8-97920-656-0 01 1 1104-1106 ●
617 STRAP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=140 THA 		8-97920-656-0 01 1 1104-1106 ●
617 STRAP; BAND
L=140 THA 		5-09707-031-1 01 1 1104-1106 ●
617 STRAP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=140 THA 		5-09707-031-1 01 1 1104-1106 ●

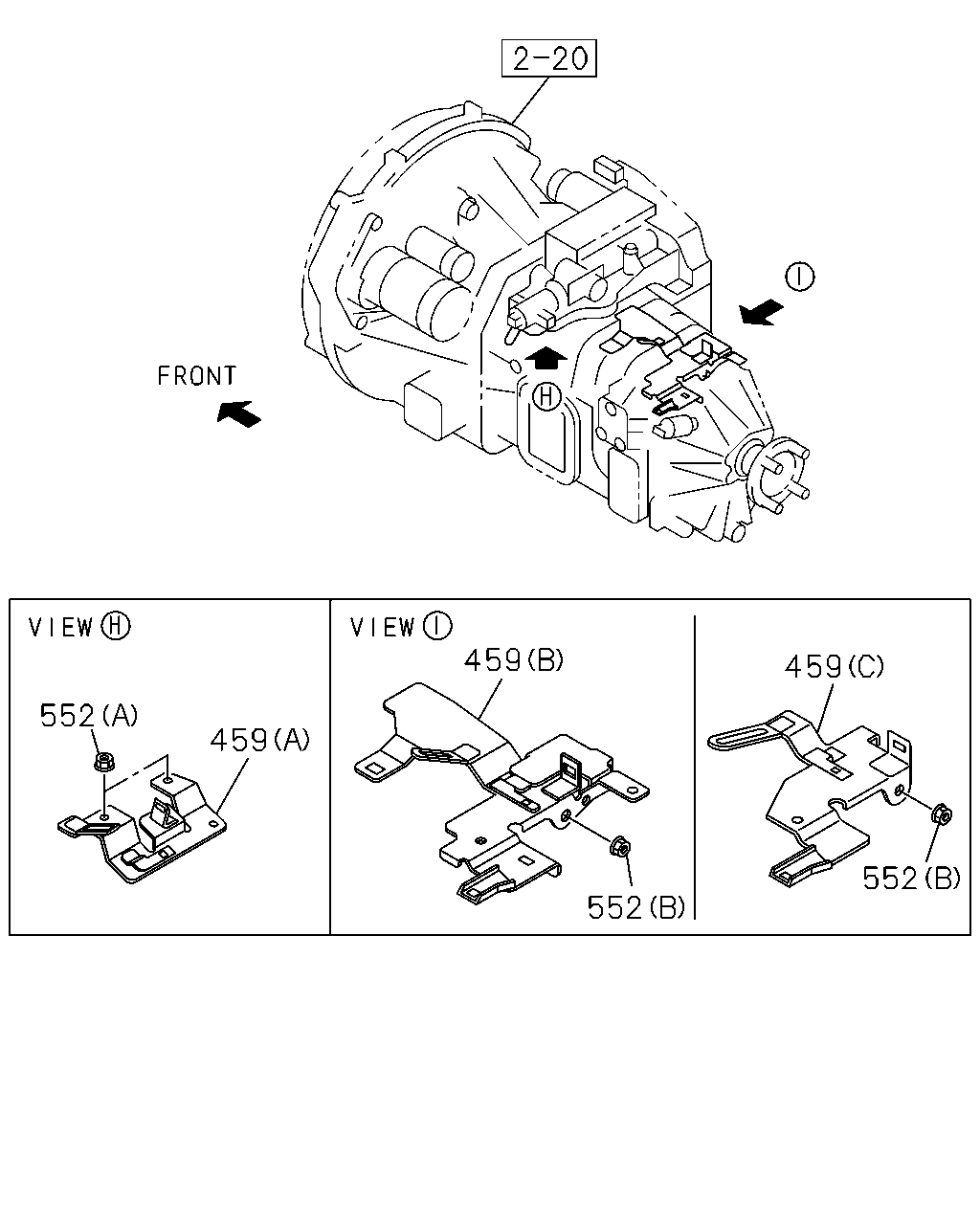

çizim 185579
459 459 552 459 552 552
BalonParca AdiParca NoAdetTipApplied Date A B
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 0803- ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98020-227-3 01 1 0803- ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 0803-1109 ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98030-990-2 01 1 0803-1109 ●
459 BRACKET; SUPPORT,HARNESS
(C) 		8-98196-974-0 01 1 1110- ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) 		8-98196-974-0 01 1 1110- ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0809 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0809 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 04 1 0810-1207 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 04 1 0810-1207 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1208- ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0809 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0809 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0810-1207 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0810-1207 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 1208- ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0803 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0803-0803 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0803 ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10 FLANGE THA 		0-91180-110-0 01 1 0803-0803 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
