7-50 — FRONT SEAT (#74490) — 61 parça

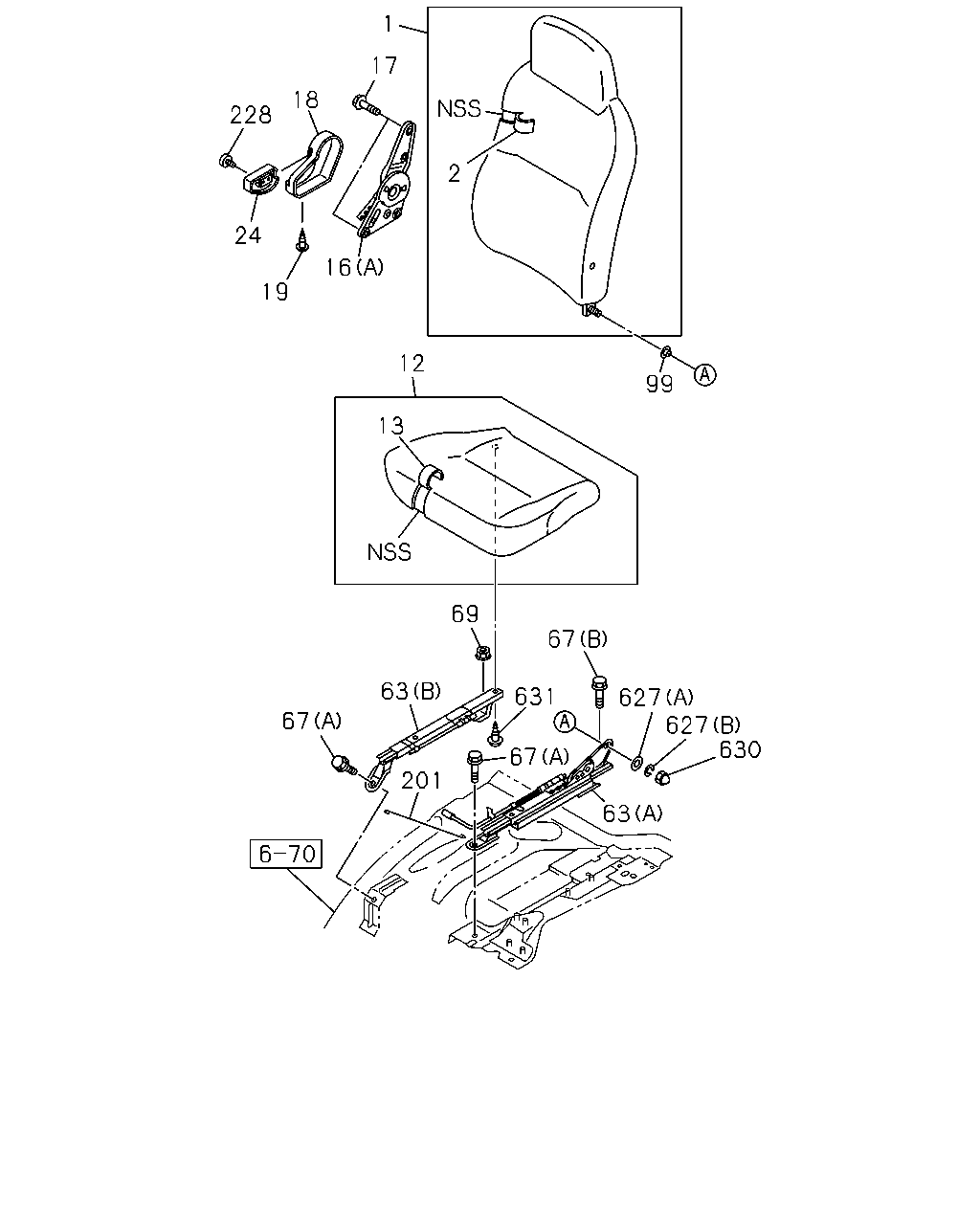

çizim 134213
1 17 18 228 2 24 16 19 12 99 13 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DARK GRAY 		8-97409-312-4 01 1 0803-0808 ● ●
1 BACK ASM; SEAT
THA 		8-97924-733-0 01 1 0809- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97409-318-0 01 1 0803-0808 ● ●
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-740-0 01 1 0809- ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97409-322-2 01 1 0803-0808 ● ●
12 CUSHION; SEAT,FRT
THA 		8-97924-741-1 01 1 0809- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97409-328-1 01 1 0803-0808 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-742-0 01 1 0809- ● ●
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0803- ● ●
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0803- ● ●
17 BOLT; RECLINING
M10X20 THA 		8-98062-661-0 04 1 0803- ● ●
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 0803- ● ●
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 0803- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 0803- ● ●
63 ADJUSTER; SEAT SLIDE
(A) INNER THA 		8-97382-800-2 01 1 0803- ● ●
63 ADJUSTER; SEAT SLIDE
(B) OUTER THA 		8-97382-801-1 01 1 0803- ● ●
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0803- ● ●
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0803- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0803- ● ●
99 BUSHING; SEAT BACK
THA 		8-98112-751-0 01 1 0805- ● ●
99 BUSHING; SEAT BACK
THA 		8-98063-219-0 01 1 0803-0804 ● ●
201 CABLE; ADJ
THA 		8-98003-086-1 01 1 0803- ● ●
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 0803- ● ●
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 0803- ● ●
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 0803- ● ●
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 0803- ● ●
631 BOLT; ADJ,SEAT
M8X25 W/LK WASHER THA 		8-98062-658-0 02 1 0803- ● ●
631 BOLT; ADJ,SEAT
M8X32 W/LK WASHER THA 		8-98062-659-0 02 1 0803- ● ●
çizim 135254
460 139 114 16 478 361 126 368 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0803- ● ●
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0803- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-477-0 01 1 0807-1002 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-277-0 01 1 1209- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-477-0 01 1 0803-0804 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-477-0 01 1 1004-1104 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97406-352-4 01 1 0803-0808 ● ●
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97924-743-0 01 1 0809-1002 ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-743-0 01 1 1004-1104 ● ●
115 CUSHION ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-270-0 01 1 1004-1104 ● ●
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97925-270-0 01 1 1105- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97924-744-0 01 1 0810-1002 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97925-275-0 01 1 1209- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97409-301-2 01 1 0803-0808 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-744-0 01 1 1004-1104 ● ●
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 01 1 0807-1002 ● ●
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 01 1 1209- ● ●
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 01 1 0803- ● ●
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER THA 		8-98031-841-0 03 1 0803- ● ●
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 02 1 0807-1002 ● ●
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 02 1 1209- ● ●
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 02 1 0803- ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 01 1 0807-1002 ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 01 1 1209- ● ●
368 BOLT; SEAT
M8X20 W/PL WASHER THA 		8-98031-841-0 01 1 0803-0804 ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 01 1 0805- ● ●
460 BACK ASM; PASSENGER SEAT
THA 		8-97924-465-2 01 1 0803-1002 ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-465-2 01 1 1004-1104 ● ●
460 BACK ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-272-0 01 1 1004-1104 ● ●
460 BACK ASM; PASSENGER SEAT
THA 		8-97925-272-0 01 1 1105- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-186-0 01 1 0803- ● ●
479 PLUG; HINGE
OD=25 BLACK THA 		1-76798-019-0 02 1 0803- ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0803- ● ●
