Sayfa 6-01 - Isuzu EPC

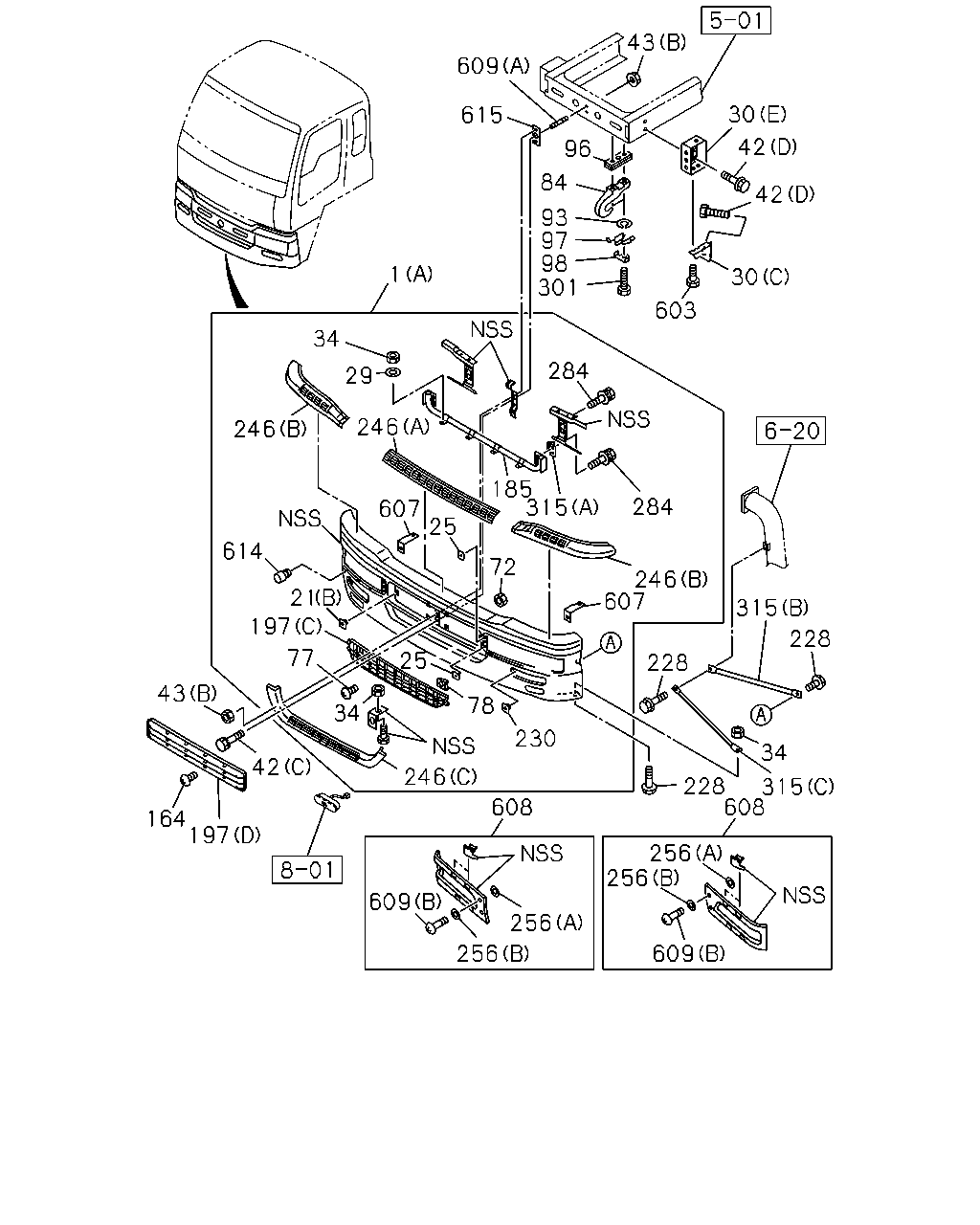

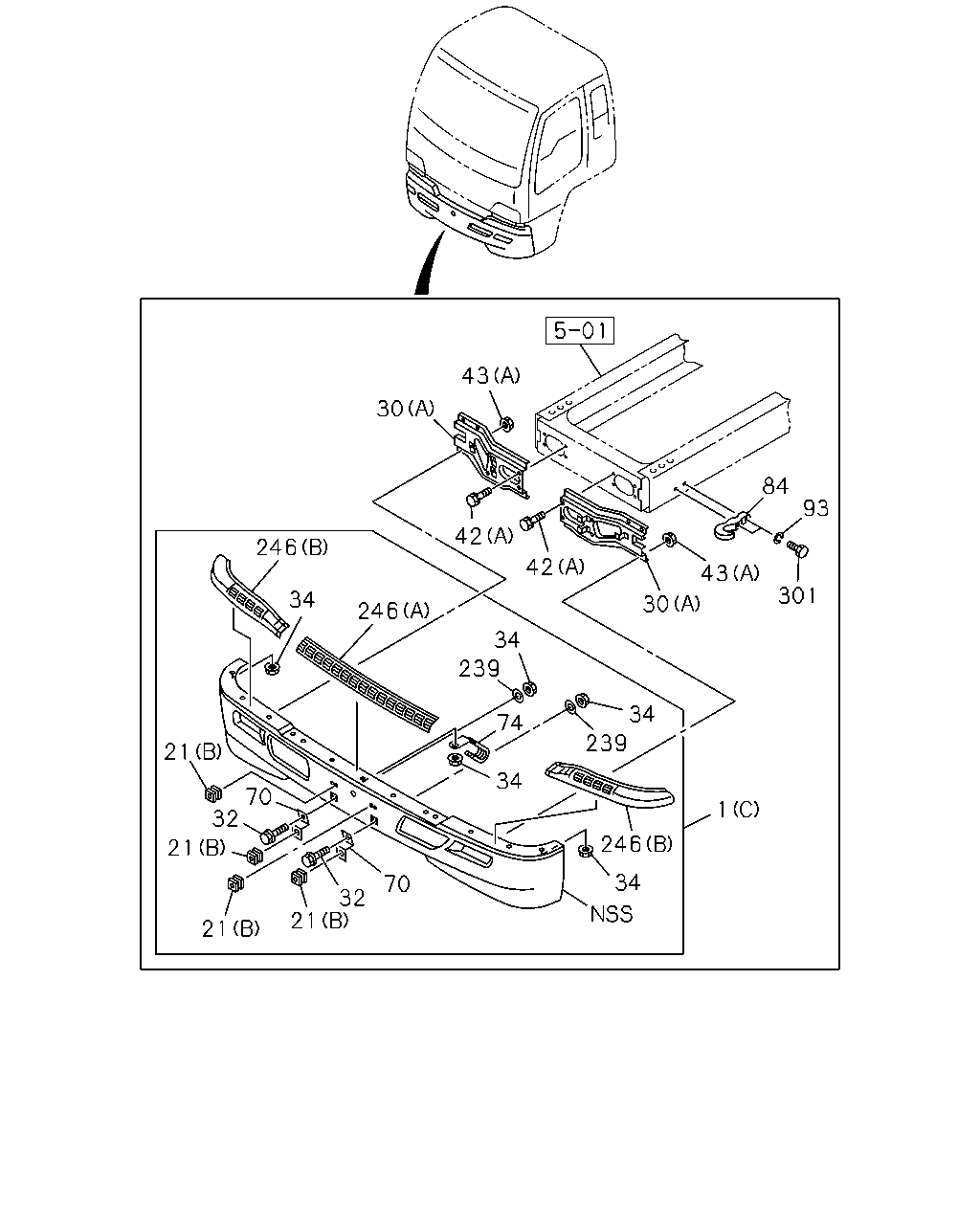

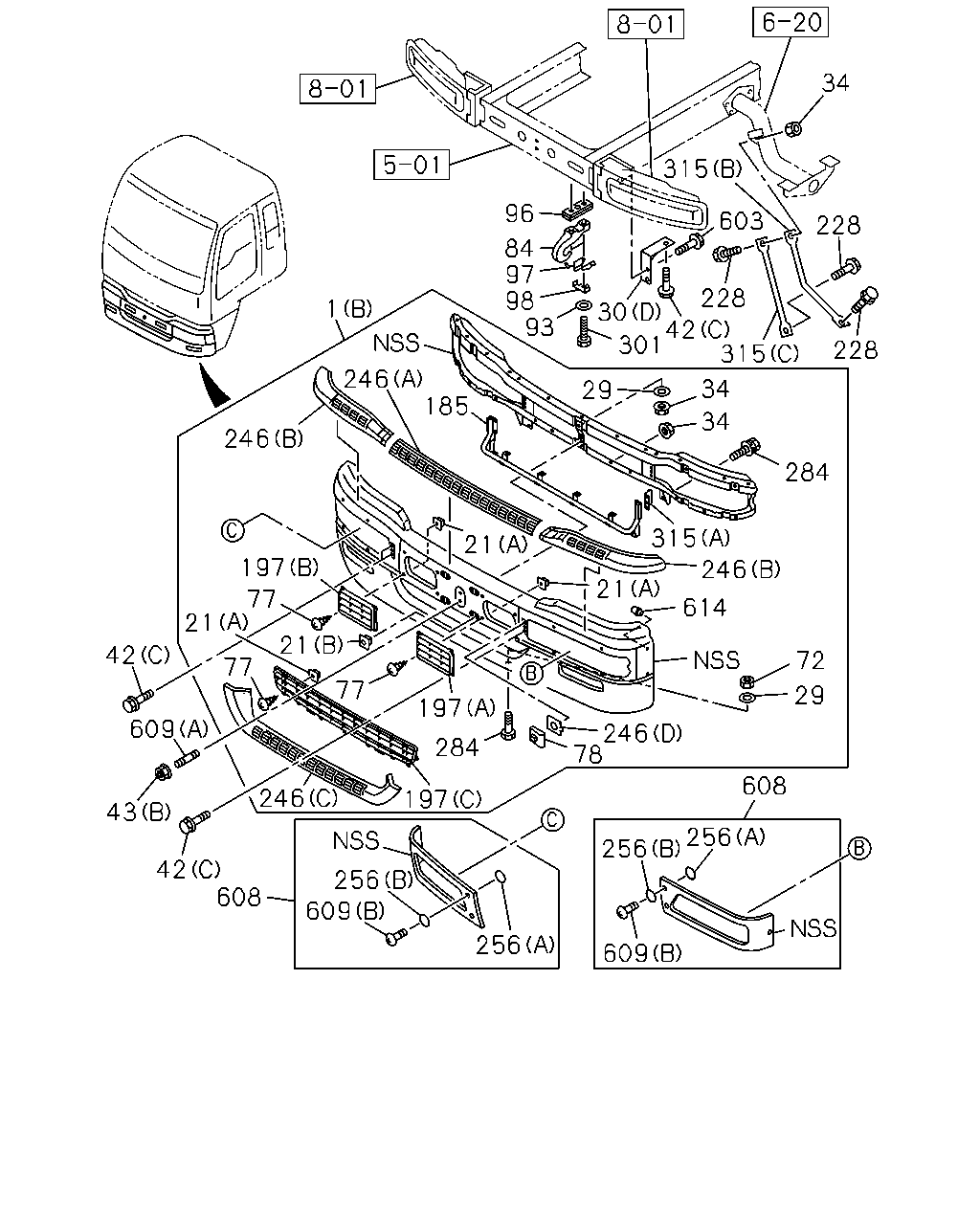

6-01 — FRONT BUMPER (#7449) — 581 parça

34 315 96 603 228 84 97 98 93 228 1 30 42 301 315 228 246 185 34 29 34 246 21 284 315 197 246 21 77 614 21 21 42 72 77 77 29 197 609 246 78 246 284 608 197 43 256 256 42 608 256 609 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> (A)	1-71210-870-4	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (A)	1-71210-870-4	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-3	01	1	9812-9904
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-5	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (D)	1-71210-817-0	01	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9905-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> ID=8.4	9-09160-508-0	21	1	9812-9904
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9905-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9812-9904
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-455-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-456-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	17	1	9812-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	02	1	9812-9902
34	NUT; BRKT,BUMPER M8 FLANGE	0-91150-108-0	02	1	9903-9904
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9905-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER (C) M10X25 FLANGE	0-28681-025-0	07	1	9812-9904
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9905-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (D) M10X35 FLANGE	0-28081-035-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9905-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9812-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9905-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9905-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	02	1	9812-9904
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9905-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M8	9-09110-508-0	04	1	9812-9904
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9905-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9812-9904
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9905-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M5X12	9-93490-512-0	16	1	9812-9904
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9905-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9812-9904
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9905-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71260-152-0	04	1	9812-9904
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9905-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9812-9904
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9905-
84	HOOK	1-57181-027-1	01	1	9812-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9812-
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-53497-560-0	01	1	9812-9902
96	PLATE; DIST,HOOK CAB UP +110MM<TGG>	1-53497-560-0	01	1	9903-9904
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9812-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9812-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9905-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9812-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71230-406-0	01	1	9812-9904
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9812-9904
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-117-0	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9905-
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (D)	1-71260-157-2	01	1	9812-9902
197	GRILLE; BUMPER CAB UP +110MM<TGG> (D)	1-71260-157-2	01	1	9903-9904
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9905-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9905-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9911-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28680-820-0	06	1	9812-9902
228	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	9903-9904
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-156-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9905-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9905-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9905-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9905-9909
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9905-9909
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9905-9909
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9905-9909
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9812-9904
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9905-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9812-9904
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9905-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9812-9904
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9905-
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9905-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9812-9904
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9812-9904
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-382-0	02	1	9812-9902
315	STAY; BUMPER (C)	1-71230-382-0	02	1	9903-9904
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-382-0	02	1	9905-0004
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-501-0	02	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-346-1	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	9905-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-347-1	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	9905-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (B)	1-71230-408-0	02	1	9812-9902
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-408-0	02	1	9903-9904
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-408-0	02	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71230-383-0	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-383-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71230-389-0	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-389-0	01	1	9905-
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9812-9904
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9905-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-753-4	01	1	9812-9904
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9905-9909
608	LID; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9910-9910
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9911-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-752-4	01	1	9812-9904
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9905-9909
608	LID; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9910-9910
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9911-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	9905-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	9905-
609	STUD; BUMPER (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9812-9904
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9905-
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9905-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9911-
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9905-9909
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9905-9909
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9910-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9910-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9812-9904
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9905-9910
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9911-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB>	1-71260-163-0	12	1	9812-9904
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9905-
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9905-

43 609 30 615 42 96 84 42 93 97 98 301 1 30 603 34 284 29 246 246 185 607 315 25 284 614 72 246 607 21 315 197 228 25 77 228 43 34 78 230 34 42 246 608 608 164 197 256 256 609 256 256 609 228 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> (A)	1-71210-870-4	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (A)	1-71210-870-4	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-3	01	1	9812-9904
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-5	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (D)	1-71210-817-0	01	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9905-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
25	SPACER; PLATFORM BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71260-162-0	06	1	9812-9904
25	SPACER; PLATFORM CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-162-0	06	1	9905-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> ID=8.4	9-09160-508-0	21	1	9812-9904
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9905-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9812-9904
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-455-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-456-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	17	1	9812-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	02	1	9812-9902
34	NUT; BRKT,BUMPER M8 FLANGE	0-91150-108-0	02	1	9903-9904
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9905-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER (C) M10X25 FLANGE	0-28681-025-0	07	1	9812-9904
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9905-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (D) M10X35 FLANGE	0-28081-035-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9905-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9812-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9905-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9905-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	02	1	9812-9904
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9905-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M8	9-09110-508-0	04	1	9812-9904
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9905-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9812-9904
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9905-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M5X12	9-93490-512-0	16	1	9812-9904
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9905-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9812-9904
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9905-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71260-152-0	04	1	9812-9904
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9905-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9812-9904
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9905-
84	HOOK	1-57181-027-1	01	1	9812-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9812-
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-53497-560-0	01	1	9812-9902
96	PLATE; DIST,HOOK CAB UP +110MM<TGG>	1-53497-560-0	01	1	9903-9904
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9812-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9812-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9905-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9812-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
164	SCREW; AIR INT GRILLE BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M6X20	1-71260-141-0	06	1	9812-9902
164	SCREW; AIR INT GRILLE CAB UP +110MM<TGG> M6X20	1-71260-141-0	06	1	9903-9904
164	SCREW; AIR INT GRILLE CAB UP +110MM<TGG> FRONT SPOILER<VP1> M6X20	1-71260-141-0	06	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71230-406-0	01	1	9812-9904
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9812-9904
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-117-0	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9905-
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (D)	1-71260-157-2	01	1	9812-9902
197	GRILLE; BUMPER CAB UP +110MM<TGG> (D)	1-71260-157-2	01	1	9903-9904
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9905-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9905-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9812-9904
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9905-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9911-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28680-820-0	06	1	9812-9902
228	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	9903-9904
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9905-
230	NUT; BRK,HD LAMP,LWR BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> D=9.7X9.7 L=8	8-94222-314-0	04	1	9812-9904
230	NUT; BRK,HD LAMP,LWR CAB UP +110MM<TGG> FRONT SPOILER<VP1> D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-156-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9905-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9905-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9905-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9905-9909
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9905-9909
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9905-9909
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9905-9909
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9910-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9812-9904
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9905-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9812-9904
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9905-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9812-9904
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9905-
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9905-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9812-9904
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9812-9904
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-382-0	02	1	9812-9902
315	STAY; BUMPER (C)	1-71230-382-0	02	1	9903-9904
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-382-0	02	1	9905-0004
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-501-0	02	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-346-1	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	9905-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-347-1	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	9905-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (B)	1-71230-408-0	02	1	9812-9902
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-408-0	02	1	9903-9904
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-408-0	02	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71230-383-0	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-383-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71230-389-0	01	1	9812-9904
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-389-0	01	1	9905-
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9812-9904
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9905-
607	BRACKET BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71230-454-0	02	1	9812-9904
607	BRACKET CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-454-0	02	1	9905-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-753-4	01	1	9812-9904
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9905-9909
608	LID; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9910-9910
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9911-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-752-4	01	1	9812-9904
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9905-9909
608	LID; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9910-9910
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9911-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	9905-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	9905-
609	STUD; BUMPER (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9812-9904
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9905-
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9905-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9911-
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9905-9909
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9905-9909
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9910-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR LIME GREEN(911) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9910-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9812-9904
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9905-9910
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9911-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB>	1-71260-163-0	12	1	9812-9904
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9905-
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9905-
615	BRACKET; BUMPER CENTER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-71230-407-0	01	1	9812-9902
615	BRACKET; BUMPER CENTER CAB UP +110MM<TGG>	1-71230-407-0	01	1	9903-9904
615	BRACKET; BUMPER CENTER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-407-0	01	1	9905-

43 30 42 42 96 43 30 93 301 84 97 1 98 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> (A)	1-71210-870-4	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (A)	1-71210-870-4	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-3	01	1	9812-9904
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-5	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (D)	1-71210-817-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-455-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-456-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9905-
42	BOLT; BUMPER (C) M10X25 FLANGE	0-28681-025-0	07	1	9812-9904
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9905-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (D) M10X35 FLANGE	0-28081-035-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9905-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9812-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9905-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9905-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	02	1	9812-9904
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9905-
84	HOOK	1-57181-027-1	01	1	9812-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9812-
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG>	1-53497-560-0	01	1	9812-9902
96	PLATE; DIST,HOOK CAB UP +110MM<TGG>	1-53497-560-0	01	1	9903-9904
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9812-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9812-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9905-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9812-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-

43 30 84 93 42 246 42 43 301 34 30 246 34 239 34 74 239 21 34 70 32 1 246 21 34 70 32 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> (A)	1-71210-870-4	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (A)	1-71210-870-4	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-3	01	1	9812-9904
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (A) WHITE	1-71210-746-5	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9812-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71210-769-7	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (D)	1-71210-817-0	01	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9905-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9812-9904
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9905-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-430-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9812-9902
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> (C)	1-71230-431-0	01	1	9903-9904
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9812-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-455-1	01	1	9905-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E)	1-71230-456-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9905-
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	17	1	9812-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	02	1	9812-9902
34	NUT; BRKT,BUMPER M8 FLANGE	0-91150-108-0	02	1	9903-9904
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9905-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER (C) M10X25 FLANGE	0-28681-025-0	07	1	9812-9904
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9905-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (D) M10X35 FLANGE	0-28081-035-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9905-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9812-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9905-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9905-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	02	1	9812-9904
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9905-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9905-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9905-
84	HOOK	1-57181-027-1	01	1	9812-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9812-
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-156-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9812-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9905-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9812-9902
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	9903-9904
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9812-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
