◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#74487) — 127 parça

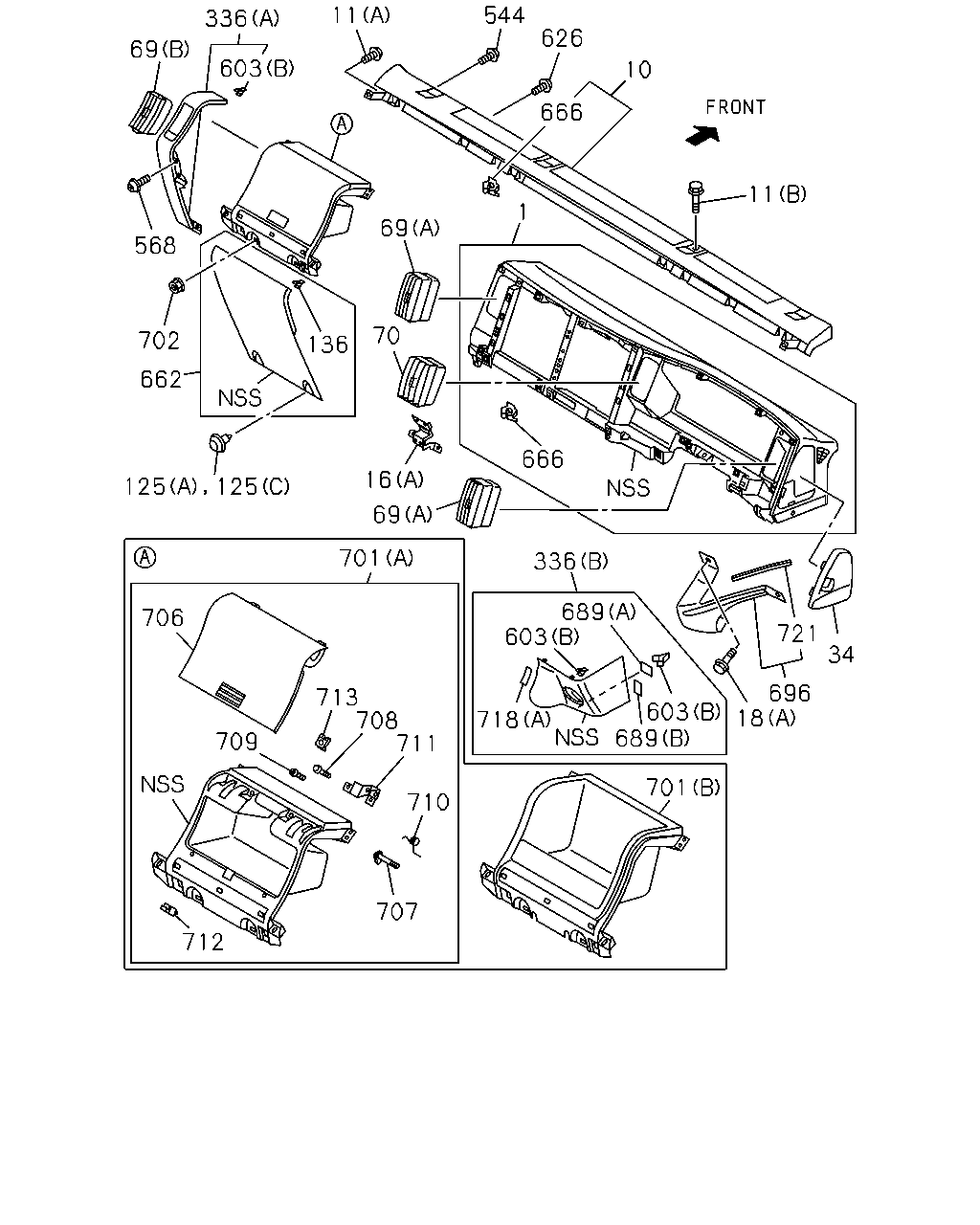

çizim 185572
544 11 336 626 69 603 10 666 11 1 69 568 70 702 136 662 666 16 125 125 69 701 336 689 603 706 721 34 696 18 713 708 711 603 689 718 709 701 710 707 712
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 0803- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0803-1003 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0803- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0803- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0803- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0803- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0803- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0803- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0803- ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0803- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0803- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0803- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0803- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0803-1011 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1012- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ●
136 CLIP; INST COVER 8-98021-271-0 05 1 0803- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0803- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0803- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0803- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0803- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97414-903-1 01 1 0803- ● ●
666 INSERT; INST PANEL 8-98037-629-0 17 1 0803-1003 ● ●
666 INSERT; INST PANEL 8-98037-629-0 15 1 1004- ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0803- ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0803- ● ●
696 BRACKET; KNEE 8-97589-189-4 01 1 0803-1211 ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-090-1 01 1 1105- ● ●
701 TRAY; INST
(A) GRAY 		8-97406-268-4 01 1 0803-1104 ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97406-268-4 01 1 1105- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 0803-1207 ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1208- ● ●
706 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0803-1104 ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97409-510-0 01 1 1105- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0803-1104 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1105-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0803-1104 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1105- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 0803-1104 ● ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING THA 		0-71040-516-0 04 1 1105- ● ●
710 SPRING; TRAY INST LID 8-98034-987-0 01 1 0803-1104 ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1105-1311 ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-399-0 01 1 1312- ● ●
710 SPRING; TRAY INST LID 8-98034-986-0 01 1 0803-1104 ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1105-1311 ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-398-0 01 1 1312- ● ●
711 HOLDER ASM; LID 8-98034-929-0 01 1 0803-1104 ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1105-1311 ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-397-0 01 1 1312- ● ●
711 HOLDER ASM; LID 8-98034-928-0 01 1 0803-1104 ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1105-1311 ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-396-0 01 1 1312- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0803-1104 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1105- ● ●
713 NUT; TRAY INST LID
M5 		1-09984-196-0 04 1 0803-1104 ● ●
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5 		1-09984-196-0 04 1 1105-1311 ● ●
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5 THA 		8-97926-400-0 04 1 1312- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0803- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0803-1211 ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ●

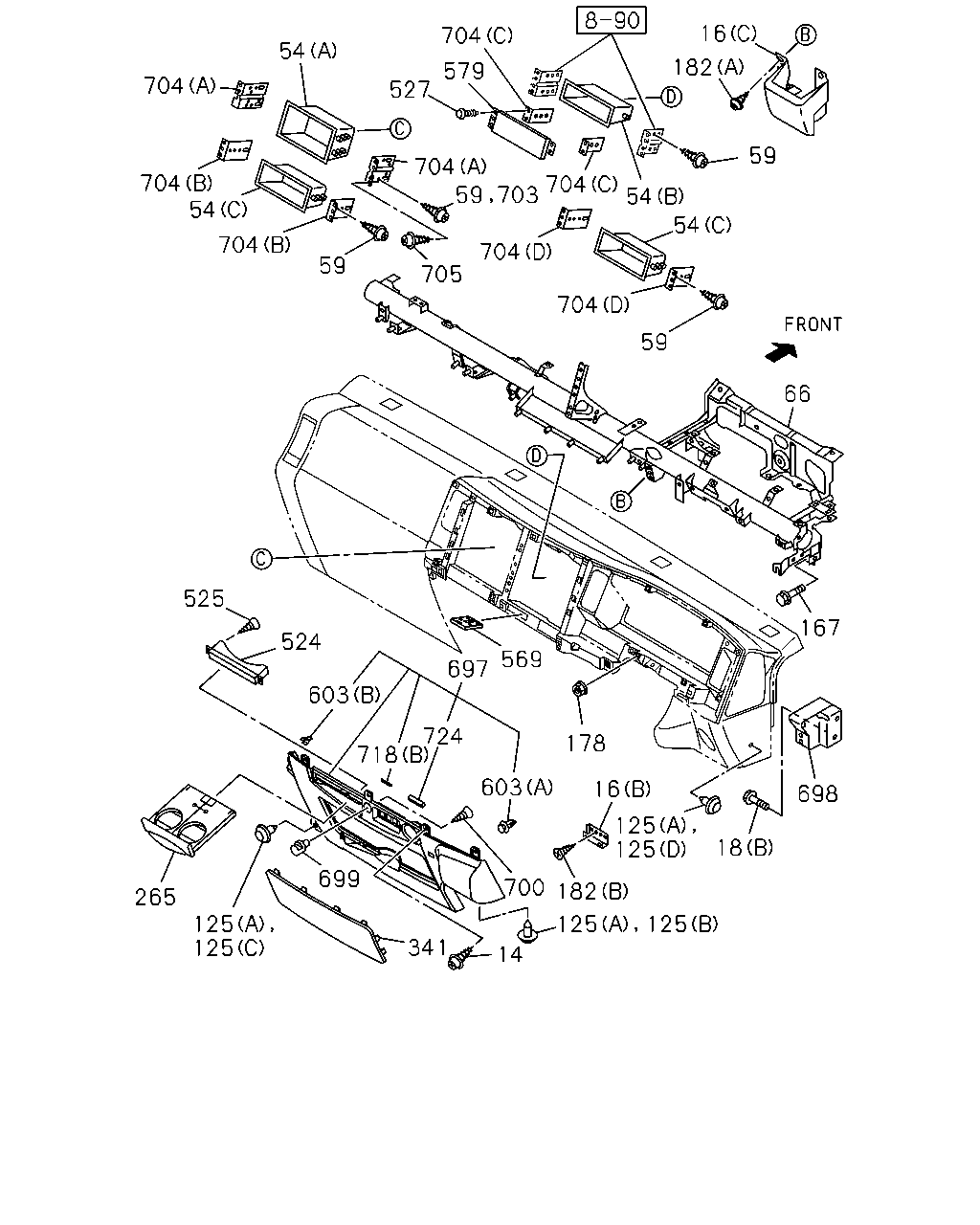

çizim 185575
59 704 54 704 704 54 527 579 704 16 182 59 54 704 703 59 704 54 704 705 704 59 66 167 698 18 16 125 125 125 125 182 700 14 341 699 125 125 265 718 724 603 178 569 697 603 524 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0803- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0803- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0803- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0803- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0803- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0803- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0803- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0803-0910 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0911- ● ●
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) H=69.8 BLACK 		8-97408-865-3 01 1 0911- ● ●
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0803 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803- ● ●
66 REINFORCEMENT; INST PANEL 8-98089-361-0 01 1 0803-0808 ● ●
66 REINFORCEMENT; INST PANEL 8-98105-263-4 01 1 0809-1204 ● ●
66 REINFORCEMENT; INST PANEL 8-98199-356-0 01 1 1205-1211 ● ●
66 REINFORCEMENT; INST PANEL 8-98199-364-1 01 1 1212- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0803-1011 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1012- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0803- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 0803-1207 ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 1208- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 0803- ● ●
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0803-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97406-265-3 01 1 0803-1205 ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0803- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803- ● ●
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> DARK GRAY 		8-97098-326-0 01 1 0803- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0803- ● ●
579 COVER; INST PNL
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> BLACK 		8-97408-909-0 01 1 0803-0911 ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0803- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803- ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0803-1205 ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0803- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0803- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0803- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0803- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0803- ● ●
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) 		8-98073-822-0 02 1 0803- ● ●
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D) 		8-98107-549-0 02 1 0912- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0803- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0803- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0803- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●

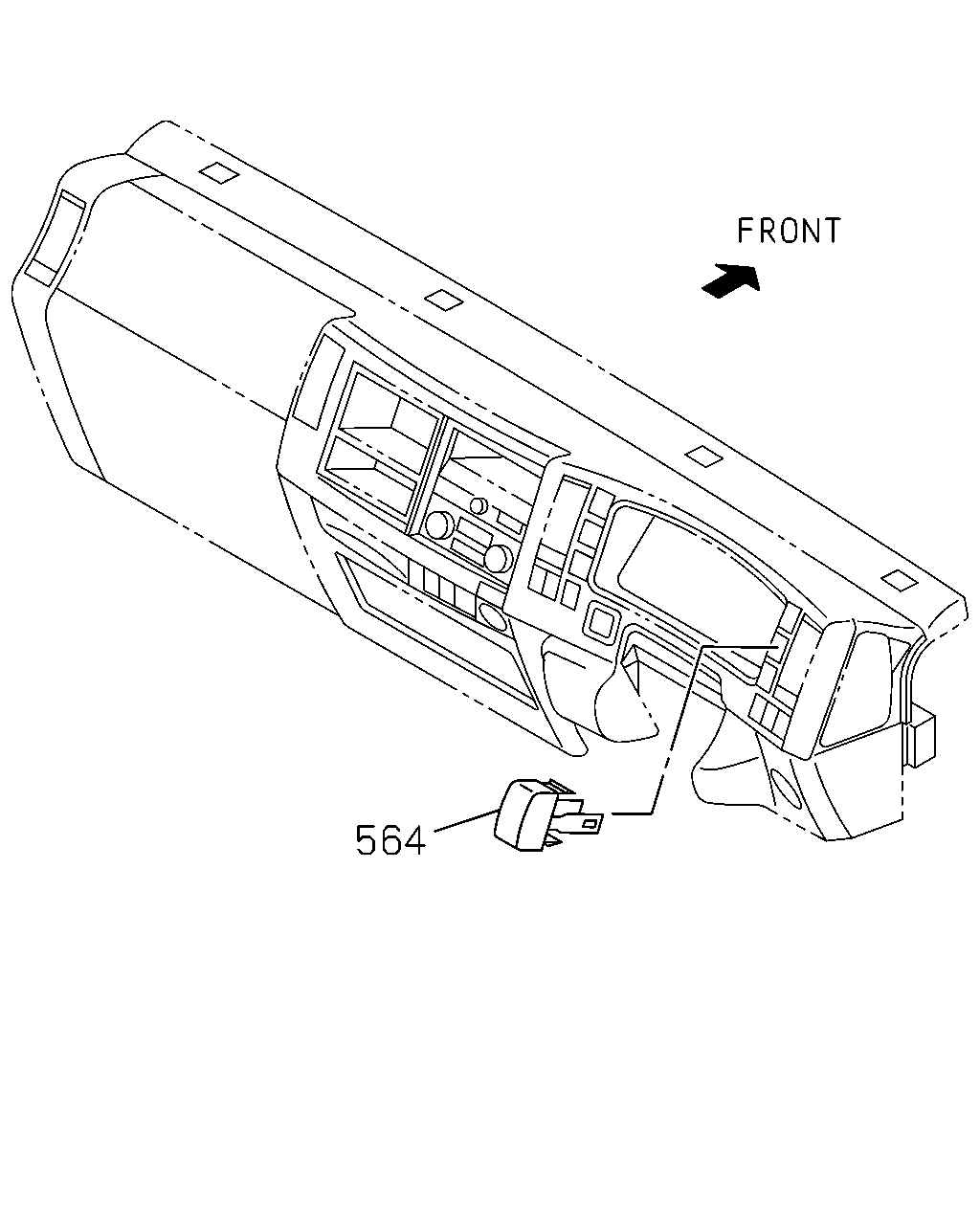

çizim 185576
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW 8-98025-954-1 03 1 0803- ● ●
