◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#74485) — 92 parça

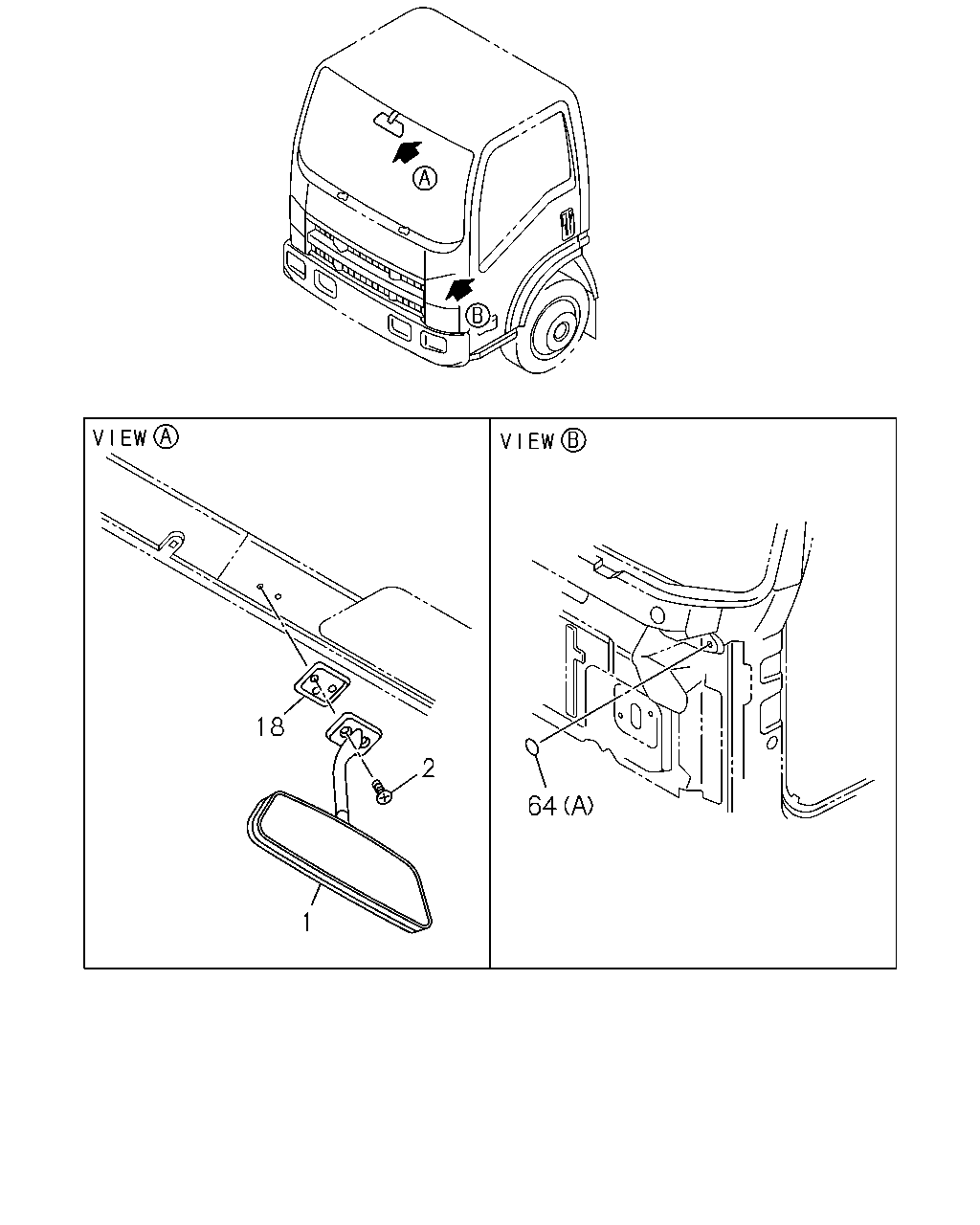

çizim 132872
18 2 64 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0803- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0803-1003 ● ●
18 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1004-1004 ● ●
18 CLIP; MIRROR
VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1005-1104 ● ●
18 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1005-1104 ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1105- ● ●
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0803 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-1104 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0803-1104 ● ●

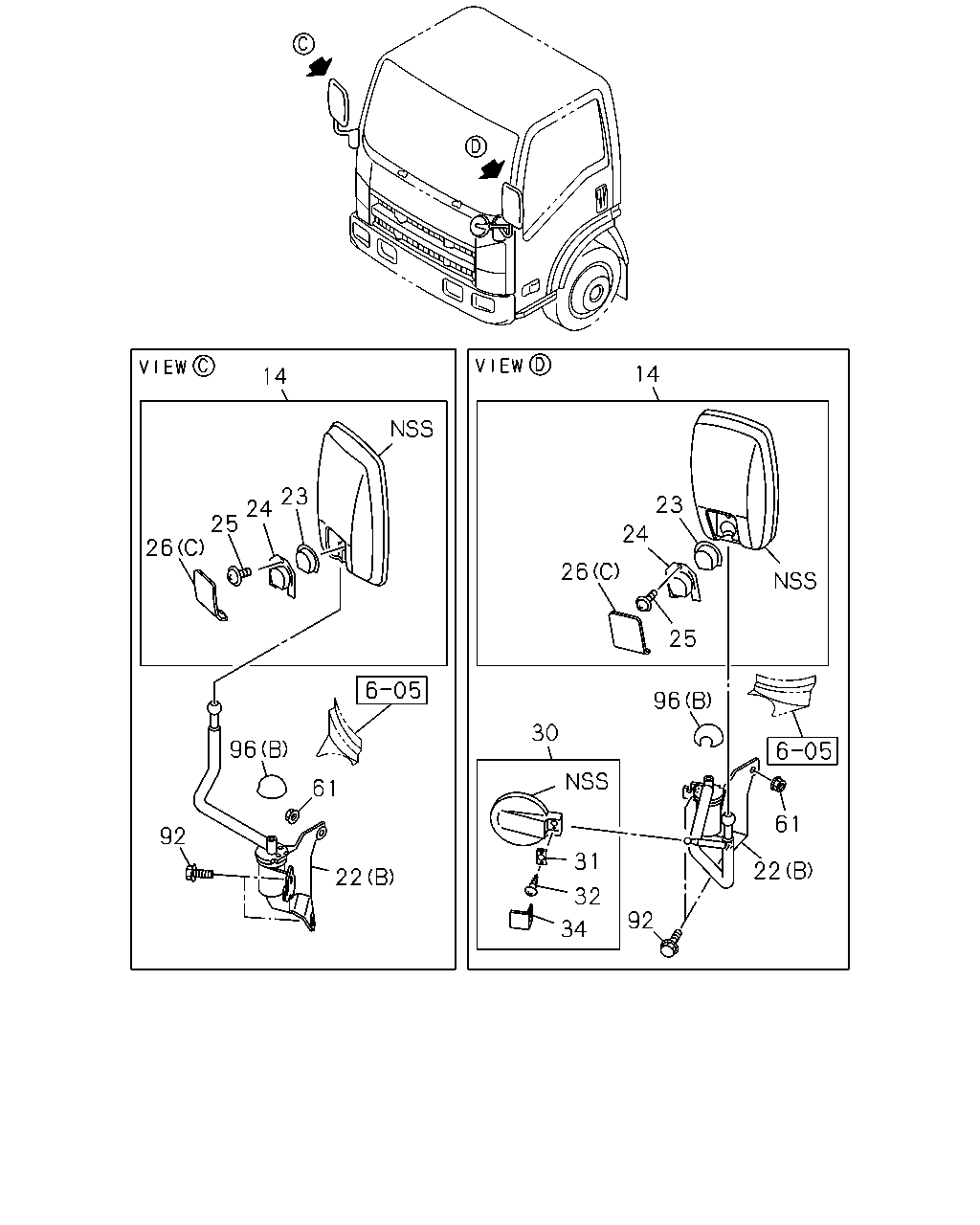

çizim 133147
14 14 23 24 25 26 23 24 26 25 96 30 96 61 61 92 31 22 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105- ● ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-082-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0803-1104 ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1105- ● ●
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1105- ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1105- ● ●
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1105- ● ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1105- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 04 1 1105- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 04 1 1105- ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0803-1003 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104 ● ●
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105- ● ●
çizim 133178
96 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date A B
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 0803-1011 ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 1012-1104 ● ●
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 0803-1011 ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 1012-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-082-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0803-1104 ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0803-1104 ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0803-1104 ● ●
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 		8-97310-216-1 08 1 0803-1104 ● ●
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-0803 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0803-1104 ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0803-1104 ● ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0803-1104 ● ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0803-1104 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 0803-1104 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 0803-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0803-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0803-1104 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0803-1104 ● ●
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 0803-1104 ● ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0803-1104 ● ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0803-1104 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0803-1003 ● ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104 ● ●
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105- ● ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 0803-1104 ● ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 0803-1104 ● ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 0803-1104 ● ●
