◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#74484) — 13 parça
çizim 133134
306 5 4 35
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
THA 		8-97923-093-0 01 1 0803-0803 ● ●
4 LABEL; ENG MAINTENANCE
THA 		8-97924-682-0 01 1 0804- ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97918-774-2 01 1 0803-0803 ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97924-661-3 01 1 0804- ● ●
35 PLATE; CAUTION,CAB
THA 		8-97923-905-1 01 1 0803- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0803-1207 ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1208- ● ●
çizim 185565
48 96 2 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
THA 		8-97923-894-0 01 1 0803- ● ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL<6WC> 		8-94469-277-0 01 1 0803- ● ●
96 PLATE; CAUTION,ENGINE OIL
THA 		8-97923-893-0 01 1 0803- ● ●
269 LABEL; CAUTION,EGR
THA 		8-97374-989-0 01 1 0803- ● ●

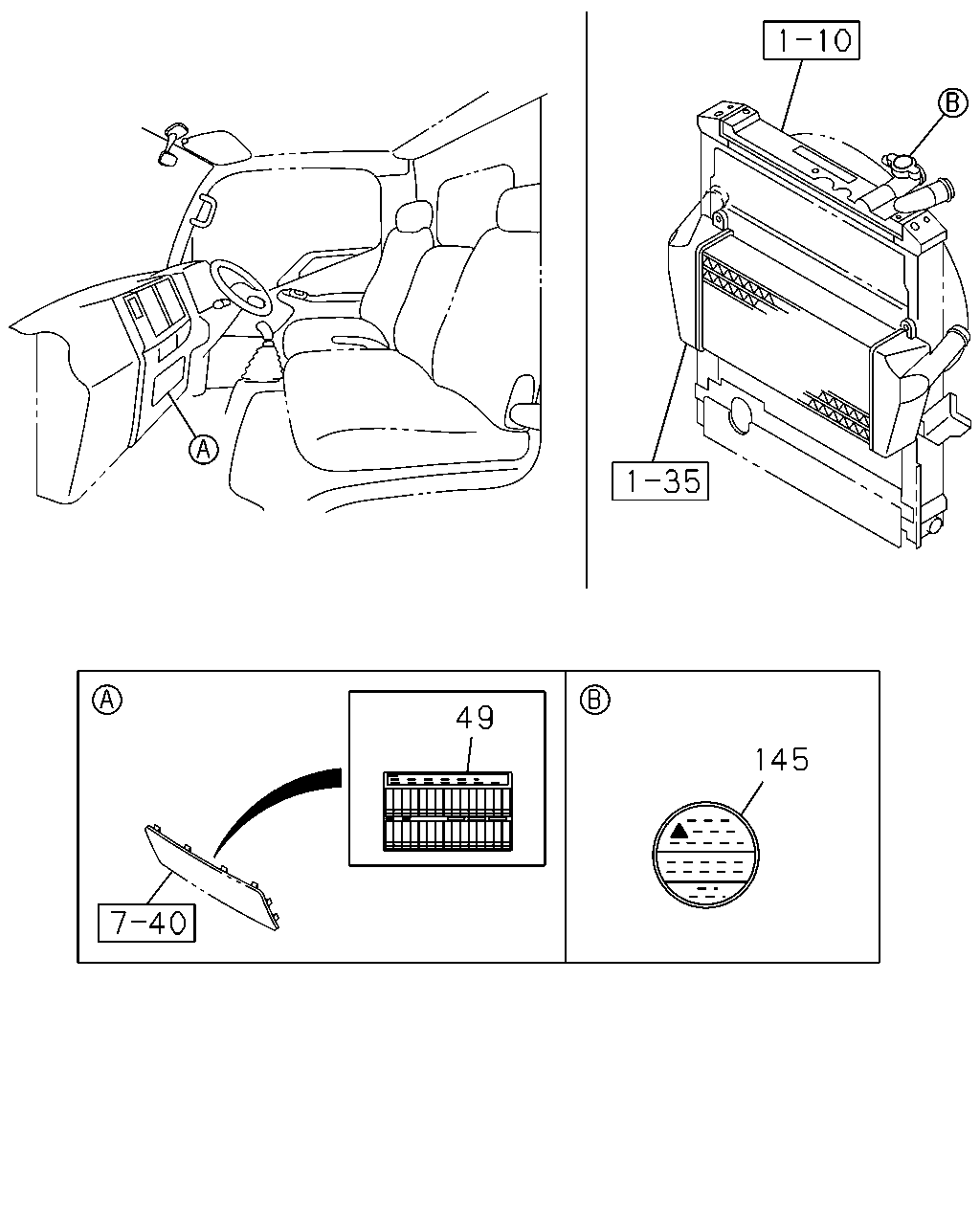

çizim 185567
49 145
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX
THA 		8-97923-867-0 01 1 0803- ● ●
145 PLATE; CAUTION,RADIATOR
THA 		8-97922-972-0 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
